INSTRUCTION MANUAL

CRV-808

CRV-809

04.01.2023 CRV-808_809_2_INSSXEN_v.1.00.000

Assisting the automation

industry since 1986

Read the user's manual carefully before starting to use the unit or software.

Producer reserves the right to implement changes without prior notice.

Diﬀerential pressure transmitter

two wires

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

Description

Selected technical parameters:

Mechanical assembly

Pressure sensors of the CRV type are used to measure very small pressures (relative and diﬀerential ones). The

measured pressure is sensed by a semiconductor strain-gauge sensor or a ceramic capacitive sensor. The

sensors are designed for gases. In case of a semiconductor sensor, gases have to be non-aggressive and dry.

The sensors are not manufactured in the EX design.

The sensors are adjusted at the factory. Further calibration has to be performed according to calibration

instructions.

Pressure ranges: 0.6 kPa to 100 kPa

Accuracy: 0.5% (1%) of range according to range and type of used sensor

Supply voltage range: 19 to 31V DC (12 to 31V DC for sensor without display)

Inﬂuence of supply voltage on accuracy: max 0.05% of range / 10 V

Output signal: 4 to 20 mA, two wires (max. load ((Un (V) - 19) / 0.02) Ω)

Inﬂuence of load resistance: max.0.05% of range / 10 V

Power polarity reversal resistance and short circuit resistance at the output: permanent

semiconductor sensor capacitive sensor

Operating range of temperatures: -40°C to 80°C 0°C to 60°C

Compensated range of temperatures: 0°C to 60°C 10°C to 40°C

Inﬂuence of temperature in the compensated range of temperatures:

a. zero: 0.1 ... 1.8% of range / 10°C depends on the pressure range and the sensor type

b. range: 0.1 ... 1.8% of range / 10°C depends on the pressure range and the sensor type

Material of the box: ABS

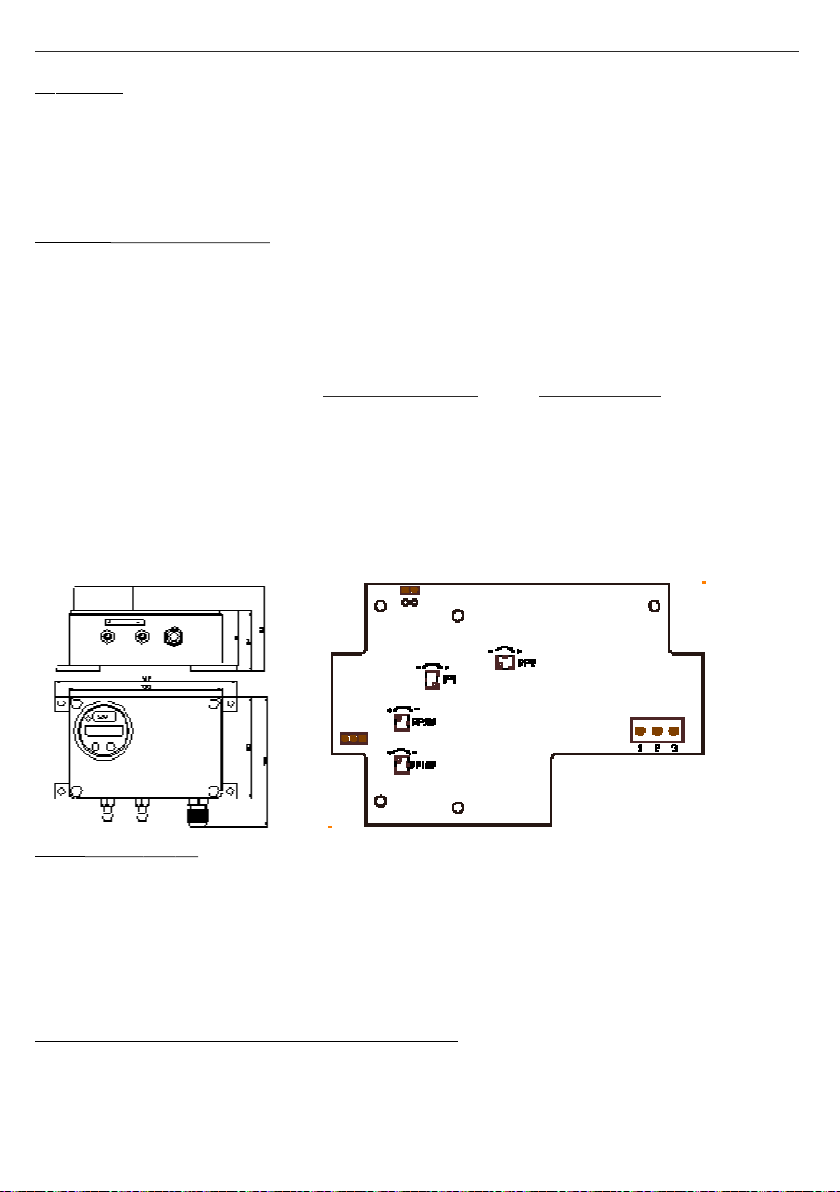

Fig. 1 Mechanical dimensions Fig. 2 Location of terminal blocks and adjusting elements on the

printed circuit board (view with the removed cover of the sensor in

a vertical position)

The sensor should be ﬁxed using four clips on the housing. The sensor cannot be placed in an immediate

proximity of interference sources (transformers, transmitters, motors) and heat sources. Shocks or vibrations at

the installation site can cause an error. Correctly, the sensor has to be mounted in a vertical position (pressure

inlets oriented down).

In this position, the sensors are adjusted at the factory. This position prevents a condensate from the penetration

into the sensor. WARNING! Prior to mounting, make sure that there is no liquid in the threaded insert of the

closed valve. Remaining liquid has to be removed properly. The sensor cannot be mounted if there is liquid in the

thread.

Connection of the measured pressure (using 1/4“ hose)

The higher pressure is connected to the "+" inlet, the lower pressure to the "-" inlet. In case of a risk of water

vapor condensation, condensation loops have to be created on the hoses. The version of the sensor for

measuring the relative pressure includes only a single inlet. Blowing into pressure inlets is not allowed. Sensors

to be used up to 100 mbar can be damaged or destroyed by air pressure from lungs.

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

Commissioning

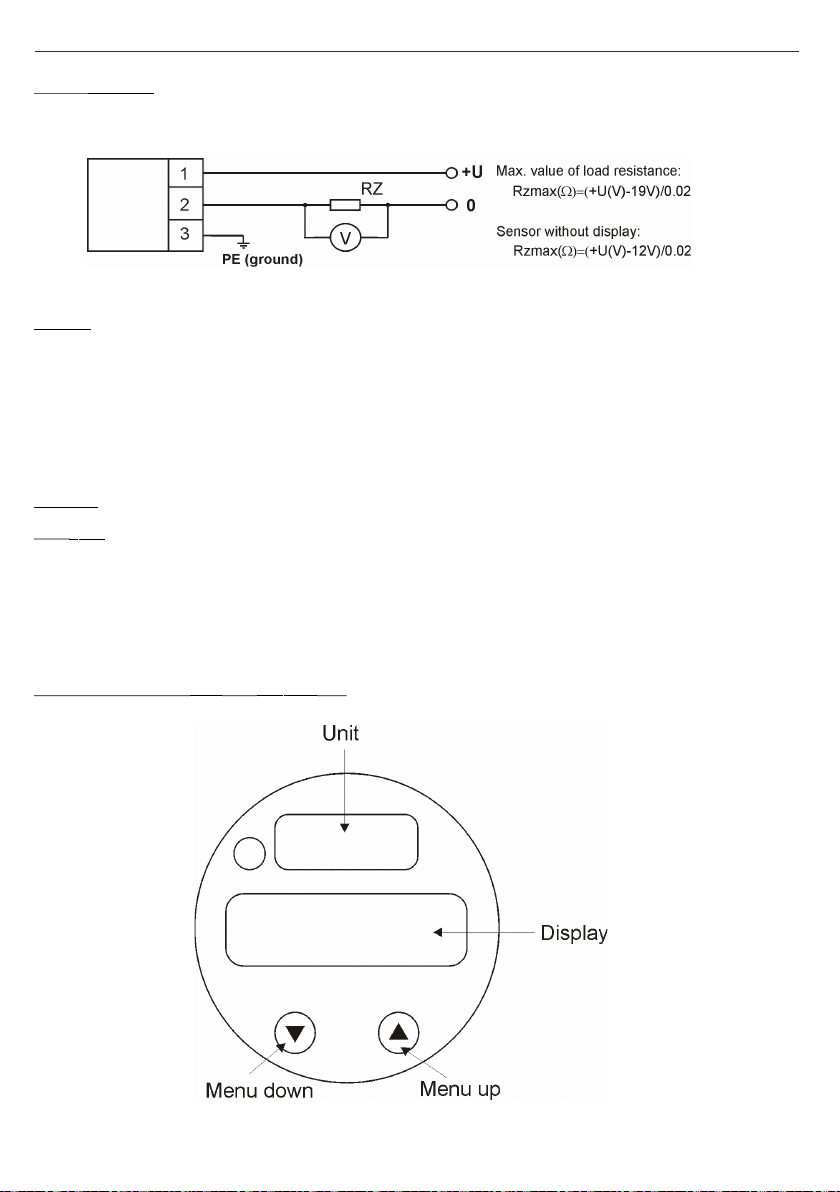

Fig. 3 Electrical schematics (DC supply U = 19-31 V; without display U = 12 - 31 V)

Display

Settings

In general

Location of control elements and the display

Remove the cover of housing. Connect electrical power using the connection terminals (see Fig. 2). Thread the

outlets through the cable gland. The sensor is equipped with the polarity reversal protection.

The display shows data in pressure units or according to user's request. The user can adjust the range of the

display. After switching on, the output signal can be measured. When changing the output signal, two

circumstances have to be taken into account.

1) The starting time is 5 minutes. After that time, the output signal has to be stable at the zero diﬀerential

pressure and the constant temperature.

2) For measuring ranges below 100 mbar, the shift of zero occurs due to the change of the sensor position. After

passing the starting time, the error can be reset by zero-setting potentiometers RP2 or RP101.

When designing the display, a simple operation and a customer control were primarily emphasized. Particular

functions are set by two buttons on the front side via the system of menus.

The settings are permanently saved in the Flash-EPROM memory and can be password-protected against an

unauthorized manipulation.

The indicator of measured values (or individual menus) comprises a four-digit seven-segment display with the

height of digits being 7.62 mm.

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

Unit

ATTENTION: Adjusted parameters are changed just after changing the display mode.

Erasing the display at a diﬀerent oﬀset of the pressure sensor

(regardless of the measuring range of the pressure sensor, the pressure reference is necessary)

The unit of the displayed measured value is determined at the time of ordering. By default, bar, mbar and m v.s.

are considered (to be speciﬁed when ordering). Nevertheless, the unit can be selected later by attaching one of

the enclosed stickers.

Display of measured values and settings menu

In the center, there is the four-digit display showing the measured value and supporting the conﬁguration. The

measured value is displayed in units deﬁned by the user and depends on the scale and adjusted settings.

Control elements for setting the functions

For the control, two buttons located under a foil can be used. The user moves forward in the menu system or

increases the values on the display by the "▲" button . The "▼" button is used to decrease the values and to

move backward in the menu system.

The menu system is closed. By scrolling the particular menu settings forward and backward, the desired set-

point can be achieved.

By pressing the buttons for a longer time (> 5 seconds), the pulse rate is increased.

By simultaneous pressing of both the buttons,

- the display mode is changed to the conﬁguration mode,

- the adjusted value is saved

- the display mode is restored.

During the lifetime of the pressure sensor, the oﬀset (nominally set at 4,000 mA) may shift. This phenomenon

can cause that the display shows a signal value which diﬀers from the adjusted beginning of the measuring

range. The control software of the display considers this phenomenon and oﬀers a function to eliminate this

phenomenon.

•The PAof menu should be selected. Both the buttons should simultaneously be pressed.

•The number 0247 should be entered to select the special function.

•Both the buttons should be pressed simultaneously again. The following sample value appears on the

display.

•Now, the pressure sensor has to be pressurized via the pressure reference. The pressure has to

correspond to the beginning value of the measuring range.

•When pressing both the buttons simultaneously afterwards, the current output signal of the sensor is saved

as an oﬀset. From this moment, the adjusted beginning of the measuring range (zero-point) appears on the

display, although the sensor signal is shifted in the oﬀset.

ATTENTION: Please note that the output signal remains unaﬀected by this change. Furthermore, the shift

of the range value ("Full Scale") is performed simultaneously with the shift of the oﬀset.

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

Change of the display at diﬀerent range of pressure sensor

(regardless of the measuring range of the pressure sensor, the pressure reference is necessary)

During the lifetime of the pressure sensor, the value of the range being nominally at 20,000 mA e.g., might be

shifted. This phenomenon could cause that the display shows a signal value which diﬀers from the adjusted

boundary of the measuring range. In the control software of the display, this phenomenon was considered and a

function eliminating this phenomenon was implemented.

•The PAof menu should be selected.

•Both the buttons should simultaneously be pressed.

•The number 0238 should be entered to select the special function.

•Both the buttons should be pressed simultaneously again. The following sample value appears on the

display.

Entering the data of the basic adjustment of the mechanism ("Load Defaults")

Restrictions on entering a password

•Now, the pressure sensor has to be pressurized via the pressure reference. The pressure has to

correspond to the ending value of the measuring range.

•When pressing both the buttons simultaneously afterwards, the current output signal of the sensor is saved

as a voltage signal. From this moment, the adjusted ending of the measuring range (end-point) appears on

the display, although the sensor signal is shifted in the voltage signal.

ATTENTION: Please note that the output signal remains unaﬀected by this change.

The control system of the display is equipped with the possibility to re-create the adjustment of the mechanism.

That way pre-made changes related to the compensation of the oﬀset or the voltage can be performed

retroactively.

•To load the basic adjustment, the PAof menu should be selected.

•Then, both the buttons should simultaneously be pressed.

•The number 0729 should be entered to select the special function.

•Both the buttons should be pressed simultaneously again. The following sample value appears on the

display,

•If both the buttons are simultaneously pressed again, the basic adjustment of the mechanism is activated

again.

Dealing with special functions for the compensation of the oﬀset, the range, recording the basic adjustment and

password change, various codes have been entered to call the function.

ATTENTION: Please note that these codes cannot be used as passwords.

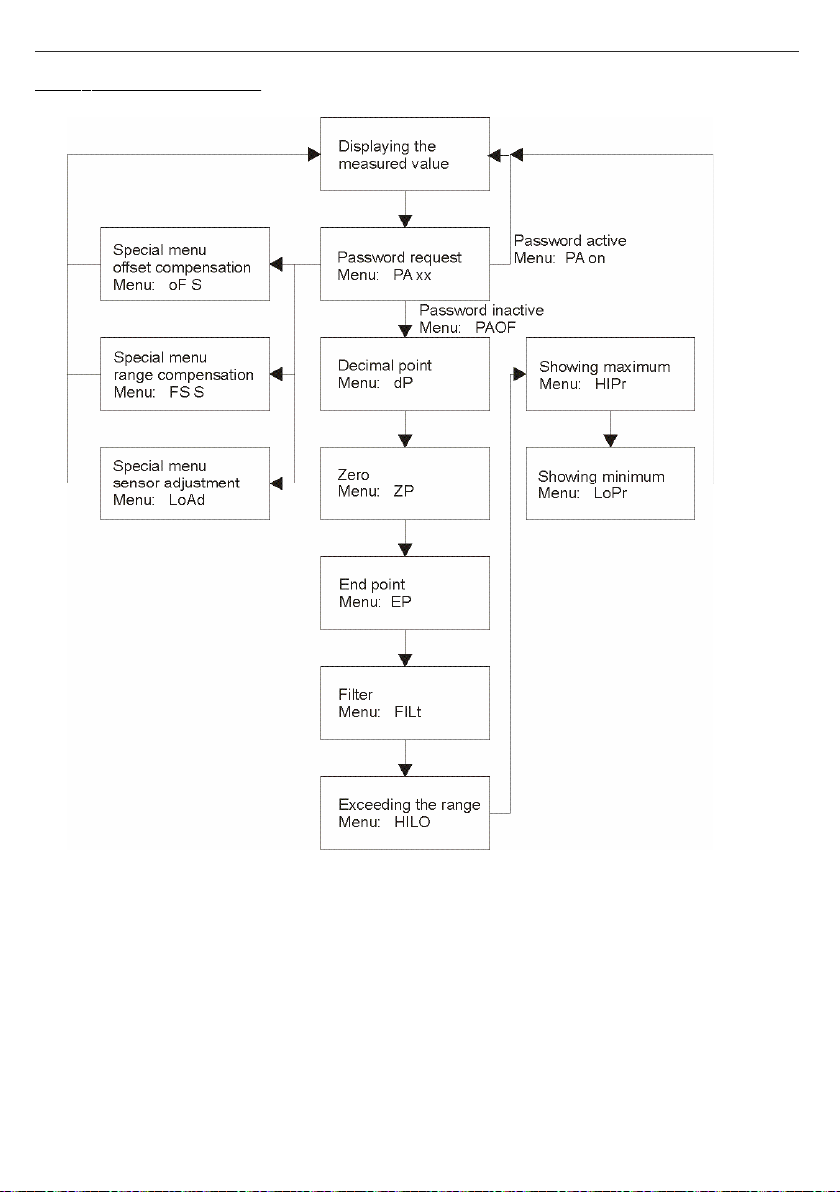

Structure of the menu system

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

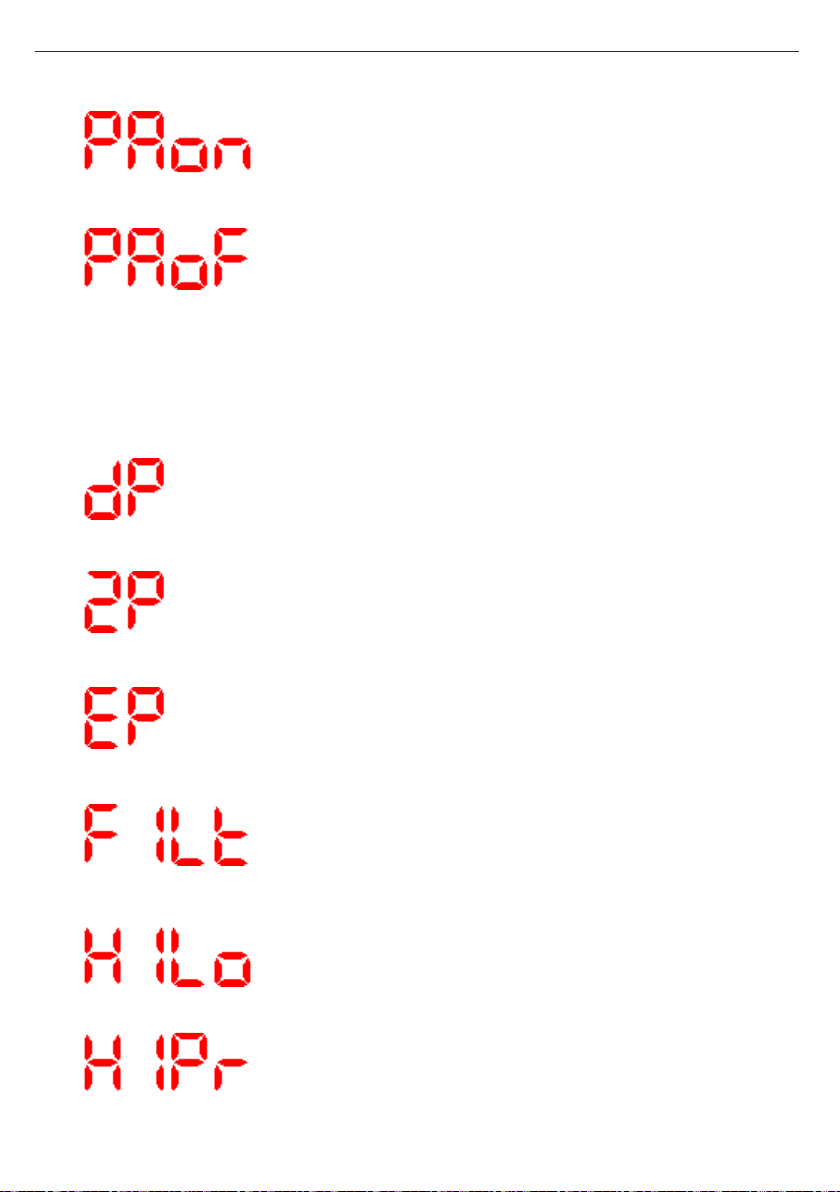

Adjustment of the access security - secured status

Adjustment of the password security - unsecured status

Adjustment of decimal point

Adjustment of zero

Adjustment of the ending value

Adjustment of attenuation (ﬁlter)

Activation of report about exceeding the range

High-Pressure

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

If the password is activated, the user is asked to enter the unlock code

after pressing both the control buttons to make settings in the menu

system.

If not activate, the password can be activated by pressing both the

buttons simultaneously and entering a predetermined secret number.

In settings of the mechanism, 5 is the secret number. To change this

number, both the buttons should be pressed simultaneously in this

menu. Then, the number 0835 should be adjusted by the cursor.

Afterwards, both the buttons should be pressed simultaneously again,

and the secret number within 0 and 9999 should be adjusted by cursor

buttons. The number is conﬁrmed by pressing the cursor buttons

simultaneously. That way, the new password is adjusted. To activate

the password protection, instructions given in the PAon menu should

be followed.

After pressing of both the buttons simultaneously, position of the

decimal point can be adjusted. The desired position can be selected

using "▲" or "▼" buttons. Pressing both the buttons simultaneously,

the settings are closed.

Pressing both the buttons simultaneously, zero can be adjusted. The

adjusted value is shown when the electrical output signal of the

pressure sensor corresponds to 4 mA (zero). Pressing both the buttons

simultaneously, the settings are closed.

After pressing both the buttons simultaneously, the ending point can be

adjusted. The programmed value is shown when the electrical output

signal of the pressure sensor corresponds to 20 mA (the ending point).

Pressing both the buttons simultaneously, the settings are closed.

After pressing both the buttons simultaneously, the time interval for

updating the displayed value can be adjusted. The range of the

adjustment is from 0.3 to 30 seconds. To close the conﬁguration, both

the buttons should be pressed simultaneously.

After pressing both the buttons simultaneously, the report about

exceeding or failing to meet the display range can be activated. Only

the "ON" status or the "OFF" status can be selected. Pressing both the

buttons simultaneously, the settings are closed.

After pressing both the buttons simultaneously, the maximum pressure

saved during the measurement is displayed. If both the buttons are

within one-second interval pressed again, the saved value is deleted.

Please note that the value does not stay saved when the power supply

is interrupted (current loop).

User manual - DIFFERENTIAL PRESSURE TRANSMITTER CRV-808/809

Low-Pressure

Transport and storage

Calibration instructions

After pressing both the buttons simultaneously, the minimum pressure

saved during the measurement is displayed. If both the buttons are

within one-second interval pressed again, the saved value is deleted.

Please note that the value does not stay saved when the power supply

is interrupted (current loop).

The range of storage temperatures: -10°C to +50°C.

When transporting, make sure that both the inputs of diﬀerential pressure sensors are open.

Required equipment: pressure gauge: (e.g., high-precision digital pressure gauge)

pressure source: (e.g., a pump, a bag)

power supply: according to the design of the pressure gauge

measuring device: mA-meter for measuring the output signal.

Output settings:

1. 1The sensor should be connected to the corresponding power supply (see operating instructions).

Instead of a load resistor and a voltmeter, a suitable mA-meter of the accuracy class at least 2 times better

than the sensor should be connected.

2. After switching on, the starting time should be let to pass (see operating instructions).

3. Adjusting zero (trimmers RP2 or RP101)

When adjusting zero, both the pressure inputs have to be open. The output current is adjusted to 4 mA by

the RP2 trimmer or the RP101 trimmer (only one of them is available).

4. Adjusting range (trimmers RP1 or RP102)

The nominal pressure is set on the pressure source. This pressure is connected to the inlet "+" (at over-

pressure) or to the inlet "-" (at under-pressure). The output current is adjusted to 20mA by the RP2 trimmer

or the RP101 trimmer (only one of them is available). If necessary, the procedure according to points 3)

and 4) is repeated.

Find the updated version at www.simex.pl

version: 5/04

Dystrybutor:

SIMEX Sp. z o.o.

ul. Wielopole 11

80-556 Gdańsk

Poland

tel.: (+48) 58 762-07-77

fax: (+48) 58 762-07-70

http://www.simex.pl

e-mail: [email protected]

Questo manuale è adatto per i seguenti modelli

Altri manuali Simex Trasmettitore

Simex

Simex SPT-85 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
