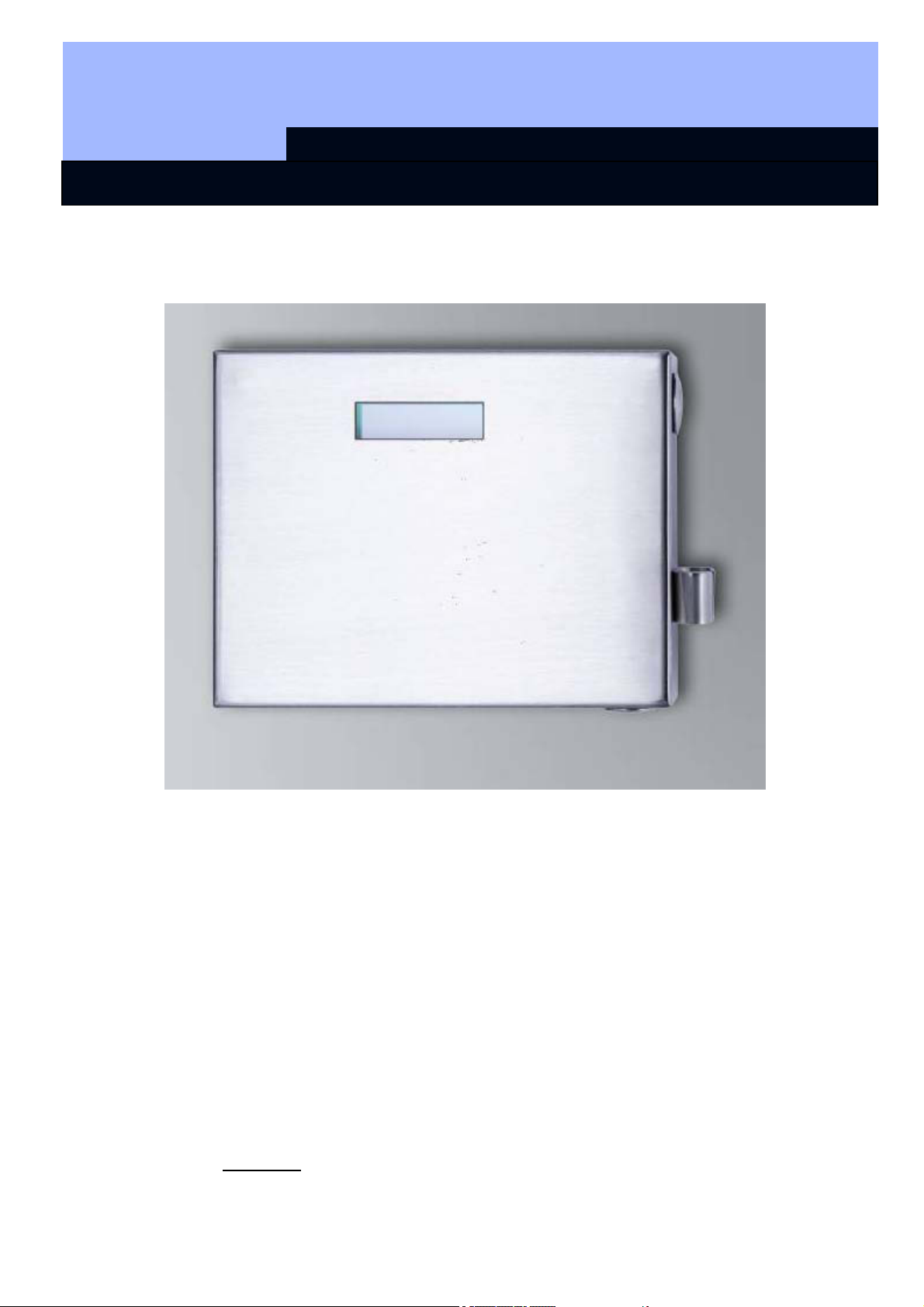

1.0 GENERAL INFORMATION
1.1. AREA OF USE
The transponder terminal is a combination between a wall-mounted reader and its
associated software application. This combination is used to re-programme trans-
ponders. It allows the administrator to prepare changes and updates to the trans-
ponder configuration which are implemented when the user activates the trans-
ponder, but the administrator does not need to present when the update actually
takes place.
1.2. PREREQUISITES
The following components are required to use the transponder terminal:
• LSM.BUSINESS an installed LSM Business Edition as a minimum
• LSM.ONLINE online module
• Installed and configured Comm Node server
• Server network connection
• Transponder terminal network connection
• Communication between server and transponder terminal;
you will need to take router and firewall configuration into account!
Note:
Please note that the program and its associated configuration tool are only available
in English.
Contact your IT department in advance regarding questions about setting up the in-
ternal network connection. System administrator rights are required for software in-
stallation and configuration.
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 2
2.0 INITIAL OPERATION OF TRANSPONDER TERMINAL
PROCEDURE
• Hardware configuration
• Software installation
• Configuration of software components
2.1. HARDWARE CONFIGURATION
To put the transponder terminal into operation, you need to connect it to an accessi-
ble IP network. We recommend using a DHCP server to ensure better availability.
The configuration can then be carried out either using the 'XTAdminXXL' program as
described in the next section or by entering the IP address in the browser (see Sec-
tion 2.1.5).
Note:
Any changes which differ from the configuration specified by SimonsVoss may
mean that the device switches to a non-defined status. This may result in the
device no longer being operable.
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 3
2.1.1 INSTALLATION OF THE XTADMINXXL APPLICATION
The XTAdminXXL tool can be used to configure the transponder terminal. This pro-
gram will enable you to look for the transponder terminal even if you do not know the
IP address. You can find the program at:
INFOCENTER – DOWNLOADS – ADDITIONAL DOWNLOADS
IINFOCENTER DOWNLOADSon the SimonsVoss internet site.

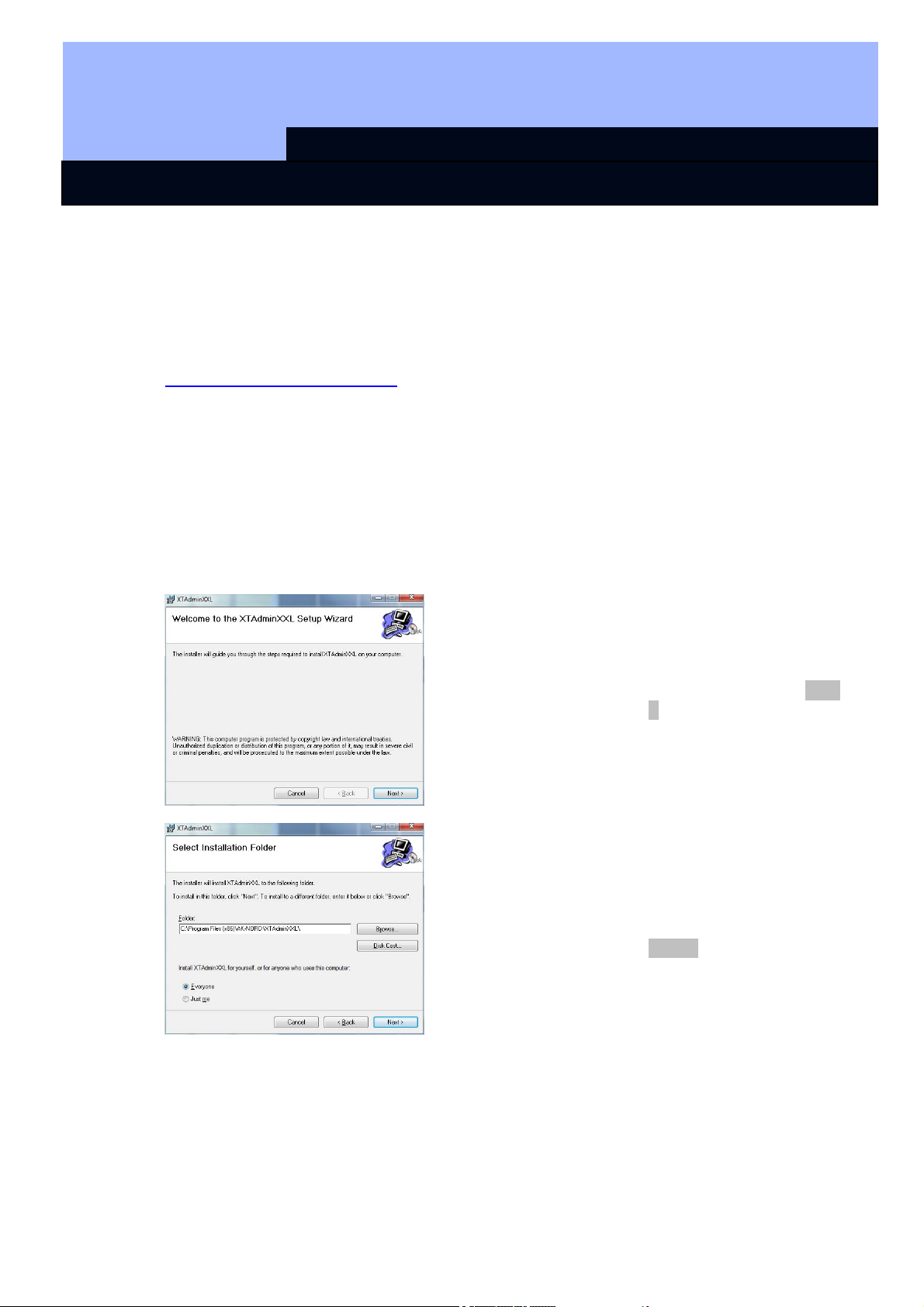

Launch for the installation routine:
Setup.exe
• Start the installation
• Process the individual steps
Note:
Please note that you need system administrator rights to install the trans-
ponder terminal.

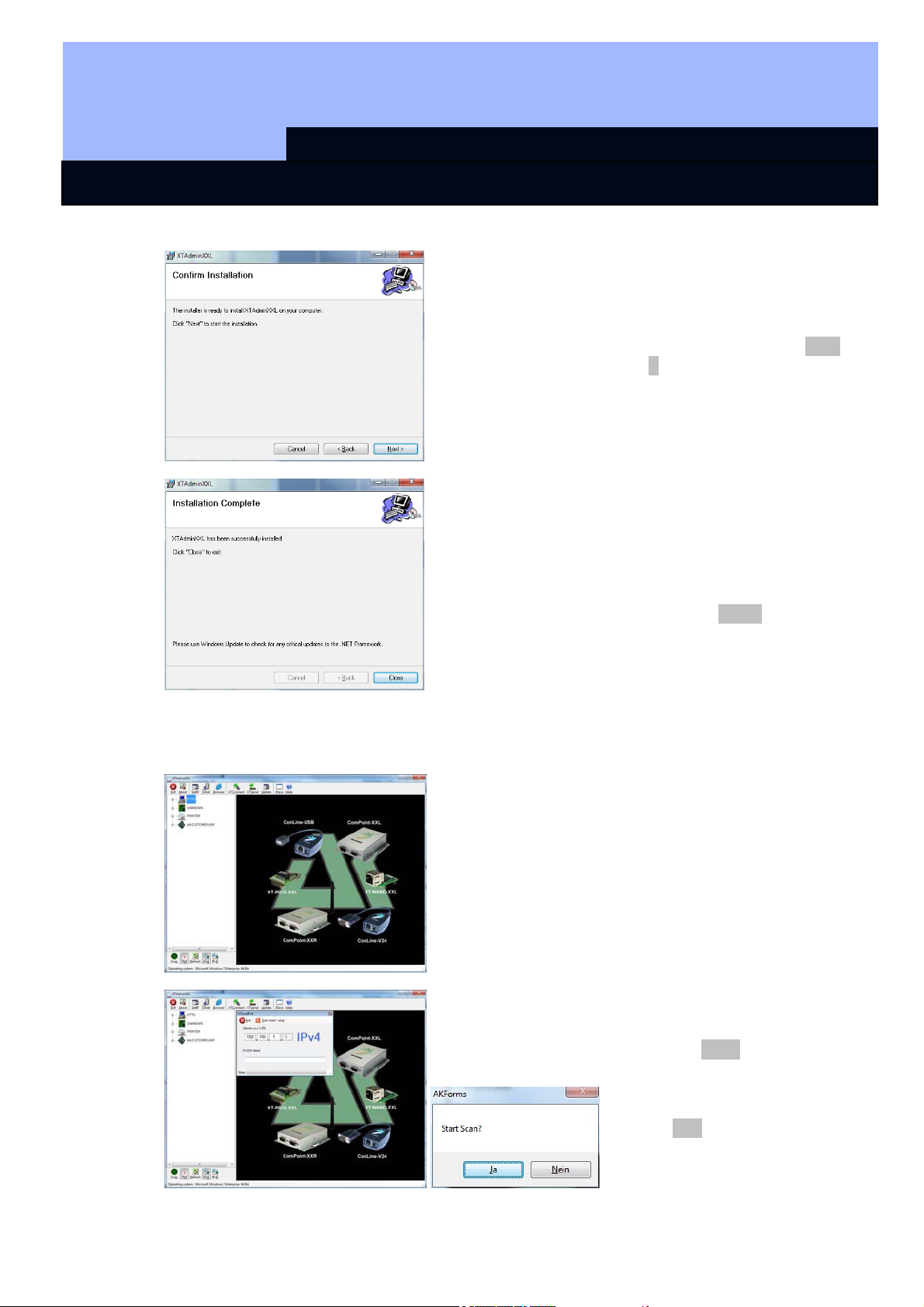

Confirm by pressing Next
> to start installation.
Select the installation fold-
er and confirm by pressing
Next > to start installation
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 4
Confirm by pressing Next
> to start installation.
Installation has now been
successfully completed.
Finish the installation by
pressing Close.
2.1.2 SETTING THE IP ADDRESS ON THE TRANSPONDER TERMINAL
Launch the 'XTAdminXXL' application.
Once the application is
launched, you will see the
configuration tool as
shown on the left.
Select Scan, then enter
the required network seg-
ment, start the scan and
accept prompt by clicking
on Yes
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 5

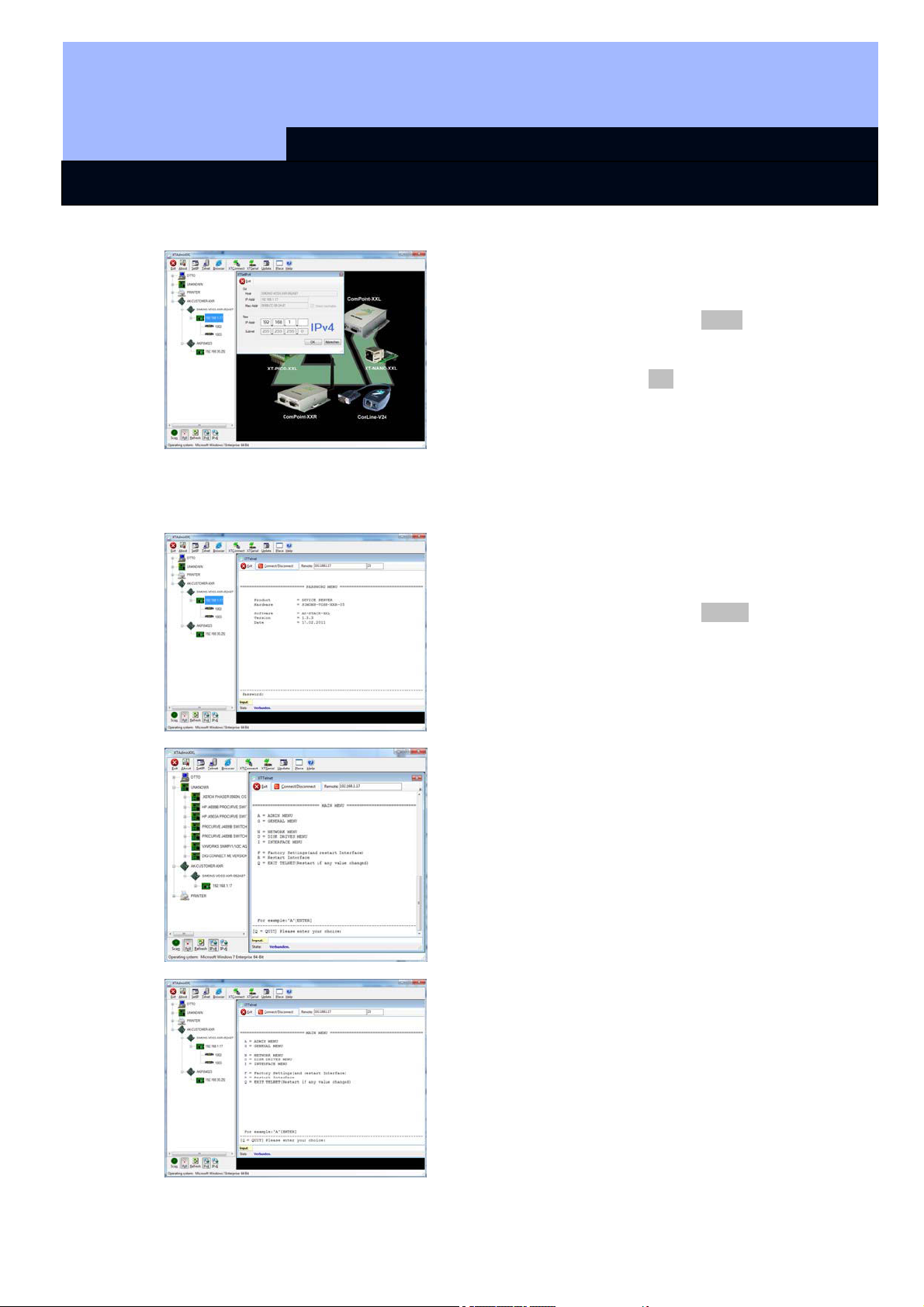

Select SetIP, then enter
the required IP address
and confirm by clicking on
OK.
2.1.3 SETTING UP THE STANDARD GATEWAY
Launch the 'XTAdminXXL' application.
Select Telnet and enter the
password 'XT' to register
the components.
First change the login
password for security rea-
sons by entering 'A', con-
firm by pressing 'Enter'
and then type in '7=*****' in
the prompt, whereby '*****'
represents your own
password and confirm by
pressing 'Enter'.
Select "N" for NETWORK
MENU and then confirm by
pressing 'Enter'
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 6

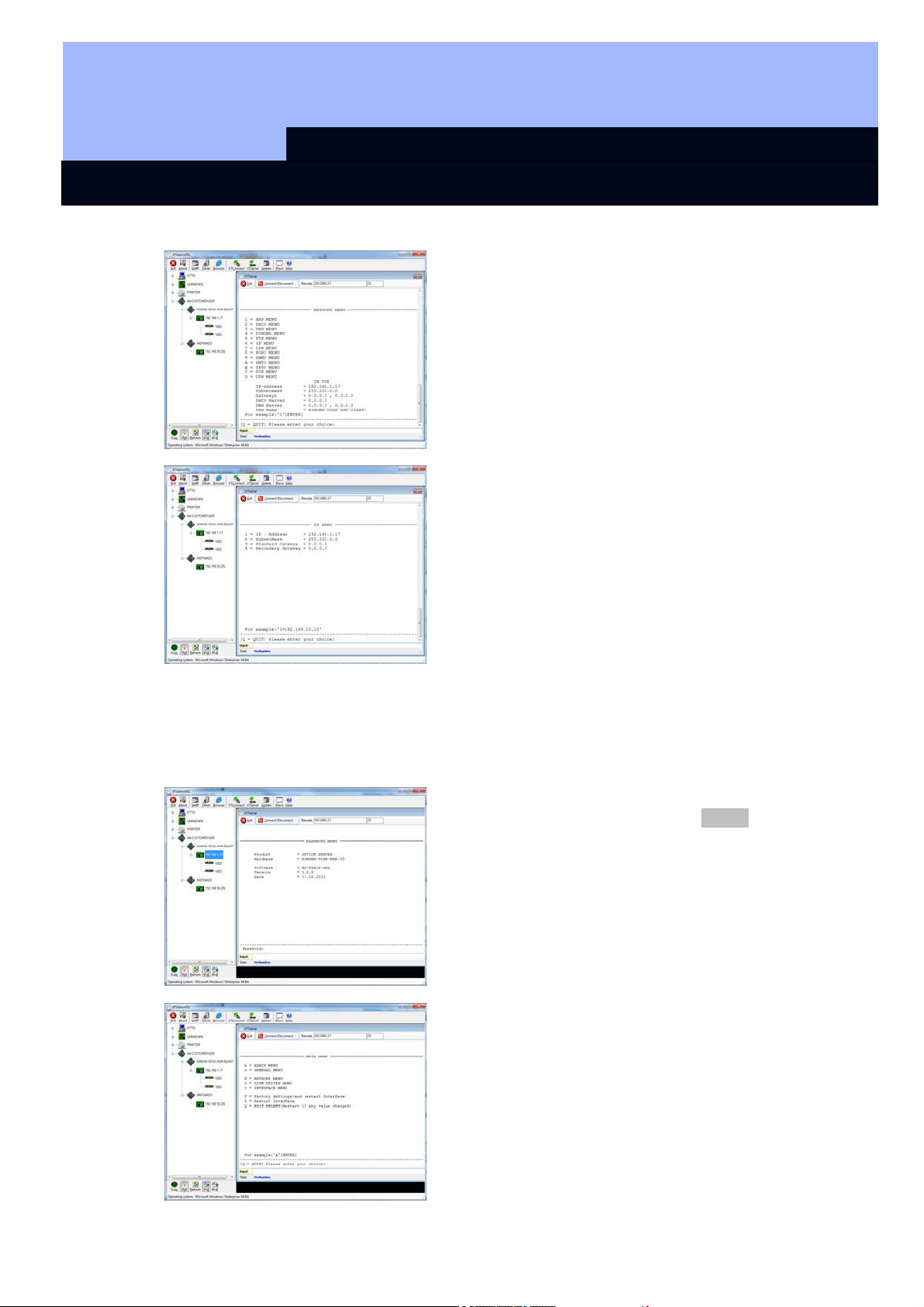

Select '6' for IP MENU and
then confirm by pressing
'Enter'
Please check the address
in Row 3. If necessary,
change the address by
entering
'3=XXX.XXX.XXX.XXX' in
the prompt and then con-
firm by pressing 'Enter'.
Then reboot the transponder terminal by pressing the button on the bottom, right-
hand side of the housing.
2.1.4 CONFIGURING THE SMART CD MODULE IN THE TRANSPONDER TERMINAL
Launch the 'XTAdminXXL' application.
Select Telnet, highlight the
IP address of the required
device in the left-hand tree
structure and then enter
the password 'XT' or the
new password that you
created to register the
components.
Select 'I' for INTERFACE
MENU and then confirm by
pressing 'Enter'
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 7

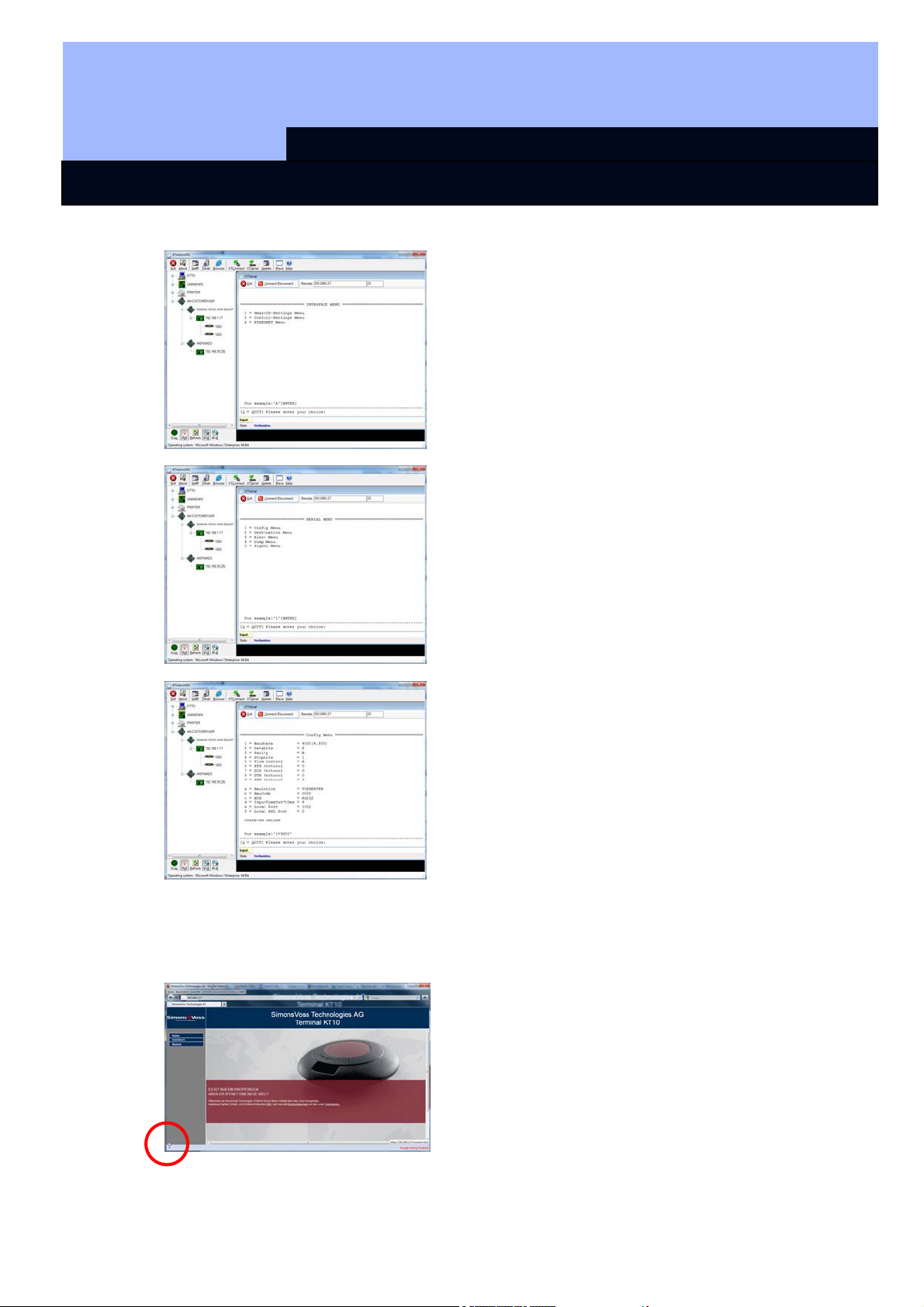

Select '1' for Smart CD
Settings MENU and then
confirm by pressing 'Enter'
Select '1' for Config Menu
and then confirm by press-
ing 'Enter'
Please check the value in
Row 'b=Emceed'. If neces-
sary, change the value in
'c000' by typing ‘b=c000’ in
the prompt and then con-
firm by pressing 'Enter'.
Then reboot the transponder terminal by pressing the button on the bottom, right-
hand side of the housing.
2.1.5 CONFIGURATION IN A BROWSER
Position the mouse in the
lower left-hand corner as
indicated. You can also
access the configuration
masks by clicking on the
link. The configuration pro-
cess is as described in the
previous section.
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 8
2.1.6 TESTING THE TRANSPONDER TERMINAL
The transponder terminal functions and settings can be tested using the 'TestTran-
sTerm.exe' software. You need to launch the software in the directory where the
TestTransTerm.exe file is saved.
This test enables you to check the readout from a G2 Lock (cylinder, Smart Relay re-
quired) and the event button function (right-hand side of the housing).
Possible launch parameters (prompt):
-h, --host <IP addr> : IP address of target host
--portUDP <port> : UDP communication port (default 1003)
--portTCP1 <port> : TCP1 communication port (default 1003)
--portTCP2 <port> : TCP2 communication port (default 1002)
-w, --waitCycle <millisec> : time interval between two test cycles(default 10000)
-c, --waitOnCD <millisec> : time interval for waiting of CD answer(default 7000)
-b, --waitOnButton <sec> : time interval for waiting of button press(default 5)
-r, --cycleCount <times> : the number of test cycles, "0" means undetermined workflow
(default: 0)
-?, --help : this message
Example:
D:\>TestTransTerm.exe -h 192.168.1.17 -w 4000 -c 3000 -b 5 -r 1
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 9
Example:
Example (everything written in a single row):
\TestTransTerm>TestTransTerm.exe -h
192.168.1.17 -w 4000 -c 3000 -b 5 -r 1
D:\>TestTransTerm.exe -h 192.168.1.17 -w 4000 -c 3000 -b 5 -r 1
2012/06/30 12:02:40: Sent: <STI>
2012/06/30 12:02:40: Recv: <00000 41>
2012/06/30 12:02:40: Sent: <STI>
2012/06/30 12:02:40: Recv: <11000 41>
2012/06/30 12:02:40: Sent: <TMP>
2012/06/30 12:02:40: Recv: < 41>
2012/06/30 12:02:40: Rear side temperature: 41
2012/06/30 12:02:41: Sent: <DP1>
2012/06/30 12:02:41: Recv: <DP1>
2012/06/30 12:02:41: Sent: <SM1>
2012/06/30 12:02:41: Recv: <SM1>
2012/06/30 12:02:41: Sent: <DPWOK 2012/06/30 12:02:41>
2012/06/30 12:02:41: Recv: <DPW>
2012/06/30 12:02:41: Sent: 10 02 0E 11 1E 00 0E F0 00 00 00 00 00 02 00 00 20 00
02 00 00 0A D5 10 03
2012/06/30 12:02:44: Recv: 0E 11 1E 00 20 DE 0A 20 16 00 1A 14 00 00 00 17 27
00 00 00 42 00 00 00 00 00 00 92 2F 09 88 00 65 95 30 8B 02 80 4A
2012/06/30 12:02:48: Now let's test the button...
2012/06/30 12:02:49: Button has been pressed OK!
Results:
Cycles : 1
Sockets : OK
Smart CD : OK
Button : OK
Temperature read : OK
Temperature value : 41 C
D:\>
Alternatively, you can also launch the software using a batch file (start.bat).
Version: Juli 2012 v1.6
MANUAL LSM–TRANSPONDERTERMINAL
Page 10
2.2. RESETTING TO ORIGINAL DELIVERY SETTINGS
Important:
Whenever you press this button, you will always need to re-configure the de-
vice. This may not be possible on site during installation.
The blue factory default reset button on the rear of the transponder terminal resets
the settings to their initial state. This will only function after a restart.
Procedure when switched off:
• Press and hold down factory default reset button
• Power on
• Wait until the message = 'Factory reset' appears
• Release factory default reset button
Procedure when switched on:
• Press and hold down factory default reset button
• Restart using the Telnet menu or the reset button on the lower wall of the
transponder terminal
• Wait until the message = 'Factory reset' appears
• Release factory default reset button
You should prevent this button being activated unintentionally.
2.3. SOFTWARE INSTALLATION
Two additional software components are required to use the transponder terminal:
• Service, which provides communication between the terminal and the data-
base
• Console, which is used to display status and configure the terminal
Launch for the installation routine:
TransTerm_setup_3_1.exe
• Start the installation
• Process the individual steps
Note:
Please note that you need system administrator rights to install the trans-
ponder terminal.
Version: Juli 2012 v1.6
