Simplicity 1700 Series Manuale utente

Parts Manual

Rev. B

Conquest / 1700 / 2700

Series Yard Tractors & Mower Decks RMO

. No. Descri

tion

20HP Product

1694746 Conquest, 20HP Hydro RMO

1694747 1720H, 20HP Hydro RMO

1694752 2720H, 20HP Hydro RMO

. No. Descri

tion

22HP Product

1694624 Conquest, 22HP Hydro RMO

1694625 Conquest, 22HP Hydro RMO (CE/Export)

1694626 1722H, 22HP Hydro RMO

1694628 2722H, 22HP Hydro RMO

2690264 Conquest, 22HP Hydro RMO and 54" Mower Deck

2690272 2722H, 22HP Hydro RMO and 54" Mower Deck

. No. Descri

tion

23HP Product

1694816 Conquest, 23HP Hydro RMO (CE/Export)

1694818 1723H, 23HP Hydro RMO

1694819 Conquest, 23HP Hydro RMO

1694820 2723H, 23HP Hydro RMO

2690414 Conquest, 23HP Hydro RMO and 54" Mower Deck

2690415 Conquest, 23HP Hydro RMO and 50" Mower Deck

2690417 2723H, 23HP Hydro RMO and 54" Mower Deck

2690702 Conquest, 23HP Hydro RMO and 50" Mower Deck

(CE/Export)

. No. Descri

tion

Mower Decks

1694038 44" Mower Deck

1694044 44" Mower Deck

1694173 44" Mower Deck (CE/Export)

1694039 50" Mower Deck

1694045 50" Mower Deck

1694174 50" Mower Deck (CE/Export)

1694366 54" Mower Deck

1694367 54" Mower Deck

TP 400-4204-B-CQ-SMA

1172

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame Group - Manual Steering .......................................................................................................................... 4

Steering Group - Manual Steering ....................................................................................................................... 8

Engine & Electric Clutch Group - 20HP Briggs & Stratton .................................................................................. 10

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin ........................................................... 12

Transmission Group ............................................................................................................................................. 14

Transmission SERVICE PARTS - Tuff Torq K-66L ............................................................................................. 18

Controls Group ..................................................................................................................................................... 24

Cruise Control Group ........................................................................................................................................... 28

Electrical Group .................................................................................................................................................... 30

Hood, Grille & Dash Group .................................................................................................................................. 34

Seat & Seat Deck Group ...................................................................................................................................... 36

Lift Group - Manual Lift ......................................................................................................................................... 38

Wheels & Tires Group .......................................................................................................................................... 40

Decals Group - Brand & Model ............................................................................................................................ 42

Decals Group - Safety & Common ...................................................................................................................... 44

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................ 46

44" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 48

44" Mower Deck - Housing, Arbors & Blades ...................................................................................................... 52

50" Mower Deck - Clutch & Support .................................................................................................................... 56

50" Mower Deck - Height Adjustment & Roller Bar ............................................................................................. 58

50" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 62

54" Mower Deck - Drive Group ............................................................................................................................ 66

54" Mower Deck - Height Adjustment & Roller Bar Group .................................................................................. 68

54" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 72

Not for

Reproduction

Frame Group - Manual Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986747

The above parts group applies to the following Mfg. Nos.:

2009

1694624 - Conquest

1694625 - Conquest

1694626 - 1722H

1694628 - 2722H

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

1694816 - Conquest

1694818 - 1723H

1694819 - Conquest

1694820 - 2723H

2690264 - Conquest

2690272 - 2722H

2690414 - Conquest

2690415 - Conquest

2690417 - 2723H

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame Group - Manual Steering

Footnotes

TOWER & SUPPORT ASSEMBLY1 1733139ASM 1

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/42 1923683SM 4

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/43 1960541SM 4

SUPPORT, Seat Deck4 1723528ASM 1

NUT, Hex Flange 3/8-16 Whiz Lock, Large5 1928352SM 2

NUT, Hex Flange Two-Way Lock, 1/2-136 1930644SM 2

BACKPLATE7 1722602ASM 1

CAPSCREW, Hex Head 1/2-13 x 1, Black8 1923114SM 2

CAPSCREW, Hex Head 3/8-16 x 1, Black9 1921210SM 2

FRAME ASSEMBLY, Front & Rear10 1726989ASM 1

NUT, Hex Flange Two-Way Lock, 3/8-1611 1930645SM 7

WASHER, 3/8, Black12 1922755SM 1

WASHER, 3/8, Black13 1960103SM 2

LINK, Drag14 1722541SM 1

NUT, Hex Jam 1/2-2015 1919262SM 1

JOINT, Ball16 1702779SM 1

SPACER, 3/8 x 1/2 x 5/817 1708236SM 1

CARRIAGE BOLT, 3/8-16 x 118 1931350SM 2

ROD, Tie19 1722626ASM 1

AXLE ASSEMBLY w/LH Spindle (Includes Ref. Nos. 22, 24, 41, 42 & 43)20 1722200ASM 1

SPACER, 25/64 x 5/8 x 5/16, Powder Metal21 1611705SM 2

BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal22 1721682SM 6

NUT, Hex Flange Two-Way Lock, 7/16-1423 1930650SM 2

FITTING, Lube24 2821133SM 3

SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30)25 1686985SM 1

CAPSCREW, 3/8-16 x 7/8, GR826 2823485SM 1

WASHER, Spring, 3/827 1663151SM 1

HUB & ARM ASSEMBLY28 1725112SM 1

KEY, Woodruff29 2830671SM 1

SPINDLE, LH30 1724264SM 1

CARRIAGE BOLT, 3/8-16 x 1-1/231 1931352SM 1

SPACER, 11/16 x 21/32 x 2 3/3232 1721752SM 1

CAPSCREW, Hex Head, 7/16-14 x 2 G833 1927531SM 2

HOOK, "J"34 1721918ASM 1

BUMPER, Black35 1721805ASM 1

BUMPER, Chrome35 1723502SM 1

SCREW, Truss Head Torque Drive, 5/16-18 x 7/836 1960086SM 4

CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/437 1930591SM 2

PLATE, Axle Wear38 1724801ASM 1

NUT, Hex Flange Whix Lick, 5/16-1839 1931277SM 2

The above parts group applies to the following Mfg. Nos.:

2009

1694624 - Conquest

1694625 - Conquest

1694626 - 1722H

1694628 - 2722H

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

1694816 - Conquest

1694818 - 1723H

1694819 - Conquest

1694820 - 2723H

2690264 - Conquest

2690272 - 2722H

2690414 - Conquest

2690415 - Conquest

2690417 - 2723H

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Not for

Reproduction

Frame Group - Manual Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986747

The above parts group applies to the following Mfg. Nos.:

2009

1694624 - Conquest

1694625 - Conquest

1694626 - 1722H

1694628 - 2722H

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

1694816 - Conquest

1694818 - 1723H

1694819 - Conquest

1694820 - 2723H

2690264 - Conquest

2690272 - 2722H

2690414 - Conquest

2690415 - Conquest

2690417 - 2723H

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame Group - Manual Steering

Footnotes

SPINDLE, RH40 1722199SM 1

WASHER41 1919394SM 1

RETAINING RING42 2832577SM 1

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/443 1933260SM 4

FITTING, Grease for Wear Plate44 2821133SM 2

WASHER, 5/845 1960035SM 2

CAPSCREW, Hex Head, 5/8-11 x 3-1/246 2860645SM 1

NUT, Hex Flange Two-Way Lock, 5/8-1147 2860646SM 1

PLATE, Axle48 1722212ASM 1

The above parts group applies to the following Mfg. Nos.:

2009

1694624 - Conquest

1694625 - Conquest

1694626 - 1722H

1694628 - 2722H

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

1694816 - Conquest

1694818 - 1723H

1694819 - Conquest

1694820 - 2723H

2690264 - Conquest

2690272 - 2722H

2690414 - Conquest

2690415 - Conquest

2690417 - 2723H

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Not for

Reproduction

Steering Group - Manual Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985890

The above parts group applies to the following Mfg. Nos.:

2009

1694624 - Conquest

1694625 - Conquest

1694626 - 1722H

1694628 - 2722H

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

1694816 - Conquest

1694818 - 1723H

1694819 - Conquest

1694820 - 2723H

2690264 - Conquest

2690272 - 2722H

2690414 - Conquest

2690415 - Conquest

2690417 - 2723H

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Steering Group - Manual Steering

Footnotes

STEERING WHEEL, Straight, Shaft1 1722318SM 1

CAP, Steering Wheel, SMI Logo2 1722319SM 1

CAP, Steering Wheel, Plain2 1725024SM 1

PIN, Spring, 5/16 x 2-1/23 1960540SM 1

COVER, Rubber, Upper Steering Shaft4 1722749SM 1

WASHER, 3/45 1960114SM 5

BUSHING, 15/32 x 7/8 x 7/8, Nylon6 2176440SM 2

NUT, Hex KEPS 5/6-187 1960636SM 2

PLATE, Mounting Steering8 1721736ASM 1

NUT, Push9 1933988SM 2

CARRIAGE BOLT, 5/16-18 x 1-1/410 1960655SM 2

GEAR & SHAFT ASSEMBLY, Steering11 1724470ASM 1

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black12 1960032SM 1

NUT, Hex Flange Two-Way Lock, 3/8-1613 1930645SM 1

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/414 1664847SM 2

SHAFT & PINION ASSEMBLY, Steering Manual15 1721626SM 1

RING, Clipring Extension16 1611710SM 1

BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing17 1722459SM 1

SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal18 1722461SM 1

NUT, Hex Flange Whiz Lock, 3/8-16, Small19 1931211SM 2

CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black20 1933260SM 2

CLIP, Hairpin21 1960033SM 1

The above parts group applies to the following Mfg. Nos.:

2009

1694624 - Conquest

1694625 - Conquest

1694626 - 1722H

1694628 - 2722H

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

1694816 - Conquest

1694818 - 1723H

1694819 - Conquest

1694820 - 2723H

2690264 - Conquest

2690272 - 2722H

2690414 - Conquest

2690415 - Conquest

2690417 - 2723H

2690702 - Conquest

TP 400-4204-B-CQ-SMA

Not for

Reproduction

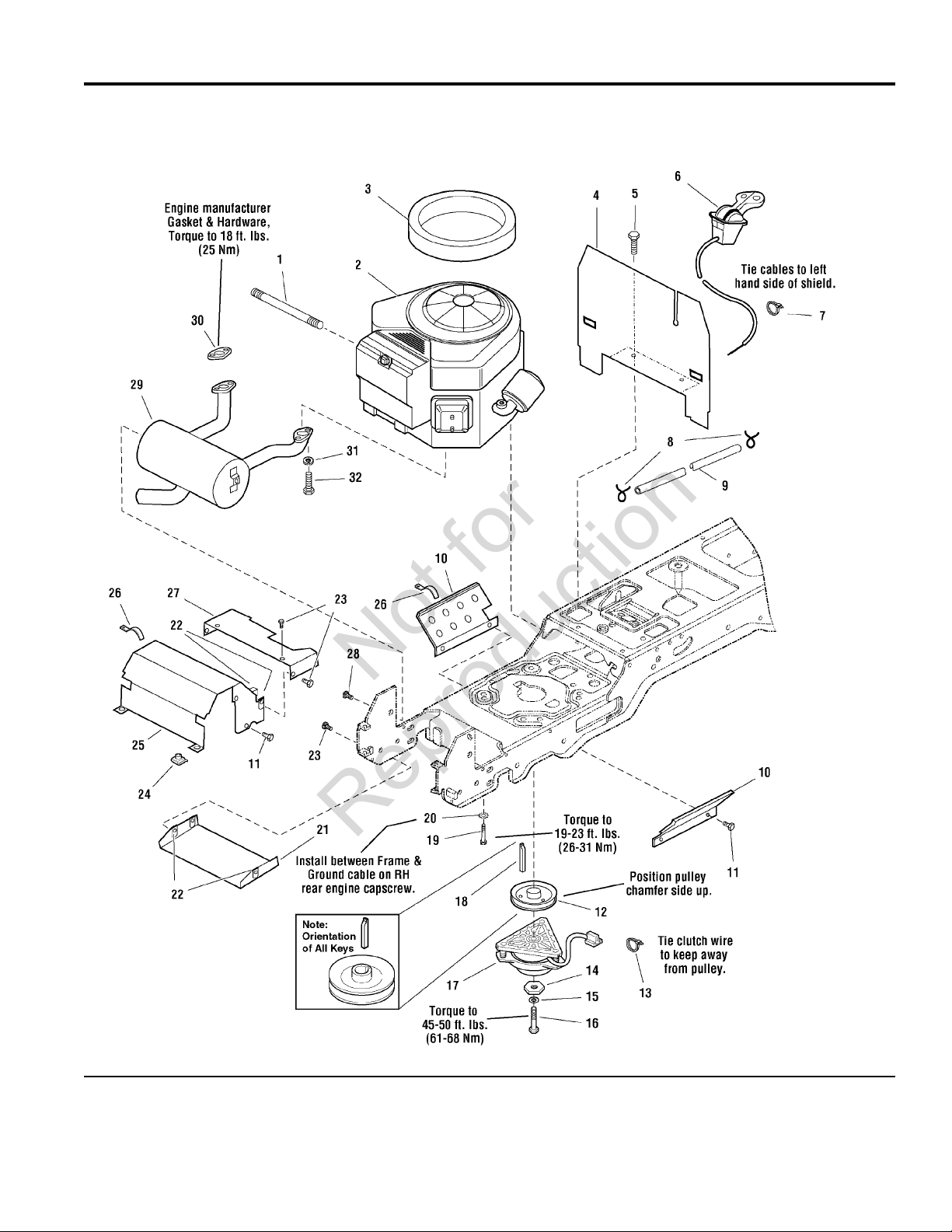

Engine & Electric Clutch Group - 20HP Briggs & Stratton

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985904

The above parts group applies to the following Mfg. Nos.:

2009

1694625 - Conquest

1694746 - Conquest

1694747 - 1720H

1694752 - 2720H

TP 400-4204-B-CQ-SMA

Not for

Reproduction

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Simplicity Taglia erba

Simplicity

Simplicity Champion Manuale utente

Simplicity

Simplicity 5900846 Manuale utente

Simplicity

Simplicity Broardmoor 2600, 1600, LT Series Manuale utente

Simplicity

Simplicity ZERO TURN TP 400-2169-01-ZT-SMA Manuale utente

Simplicity

Simplicity 1691034 Manuale utente

Simplicity

Simplicity Baron Series Manuale

Simplicity

Simplicity 4208 Series Manuale utente

Simplicity

Simplicity 1019 Manuale utente

Simplicity

Simplicity 3424 Manuale utente

Simplicity

Simplicity Regent 1692156 Manuale utente

Simplicity

Simplicity Wonder-Boy 450 Manuale utente

Simplicity

Simplicity 1968-1973 Manuale utente

Simplicity

Simplicity LEGACY Series Istruzioni operative

Simplicity

Simplicity 11-7-66 Scheda tecnica

Simplicity

Simplicity REGENT Regent / 2500 Manuale utente

Simplicity

Simplicity 917H-48 Manuale utente

Simplicity

Simplicity 12.5LTH38 Manuale utente

Simplicity

Simplicity 1570PS Manuale utente

Simplicity

Simplicity 12LTH Manuale utente

Simplicity

Simplicity 990198 Scheda tecnica

Simplicity

Simplicity ZT 1644 Manuale utente

Simplicity

Simplicity 5900800 Manuale utente

Simplicity

Simplicity Prestige 27HP Manuale utente

Simplicity

Simplicity 457 Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
