Simplicity 7800360 Axion Manuale utente

Parts Manual

Rev. 12/2008

Axion

Series Lawn Tractor & Mower Decks

TP 400-5008-00-ZT-S

. No. Descri

tion

18.5HP Product

7800360 Axion, 18.5HP ZT18533 Zero Turn Rider w/33" Mower

7800380 Axion, 18.5HP CZT18533 Zero Turn Rider w/33" Mower

. No. Descri

tion

21HP Product

7800374 Axion, 21HP ZT2142 Zero Turn Rider w/42" Mower

7800381 Axion, 21HP CZT2142 Zero Turn Rider w/42" Mower

. No. Descri

tion

26HP Product

7800375 Axion, 26HP ZT2650 Zero Turn Rider w/50" Mower

7800382 Axion, 26HP CZT2650 Zero Turn Rider w/50" Mower

7102825

Part No.:

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame, Body & Seat Group .................................................................................................................................. 4

Engine Group - 18.5 H.P. ..................................................................................................................................... 8

Engine Group - 21 H.P. ........................................................................................................................................ 12

Engine Group - 26 H.P. ........................................................................................................................................ 16

Transmission Group ............................................................................................................................................. 18

Controls Group ..................................................................................................................................................... 22

Electrical Group .................................................................................................................................................... 26

Wheel & Tire Group ............................................................................................................................................. 28

Decal Group ......................................................................................................................................................... 30

Wiring Schematic ................................................................................................................................................. 32

33" Mower Deck Group ........................................................................................................................................ 34

42" Mower Deck - Clutch & Support Group ......................................................................................................... 38

42" Mower Deck - Housing & Arbor Group .......................................................................................................... 40

50" Mower Deck - Clutch & Support Group ......................................................................................................... 42

50" Mower Deck - Housing & Arbor Group .......................................................................................................... 44

Mower Lift Group - 33" Deck ................................................................................................................................ 46

Mower Lift Group - 42" Deck ................................................................................................................................ 48

Mower Lift Group - 50" Deck ................................................................................................................................ 50

Not for

Reproduction

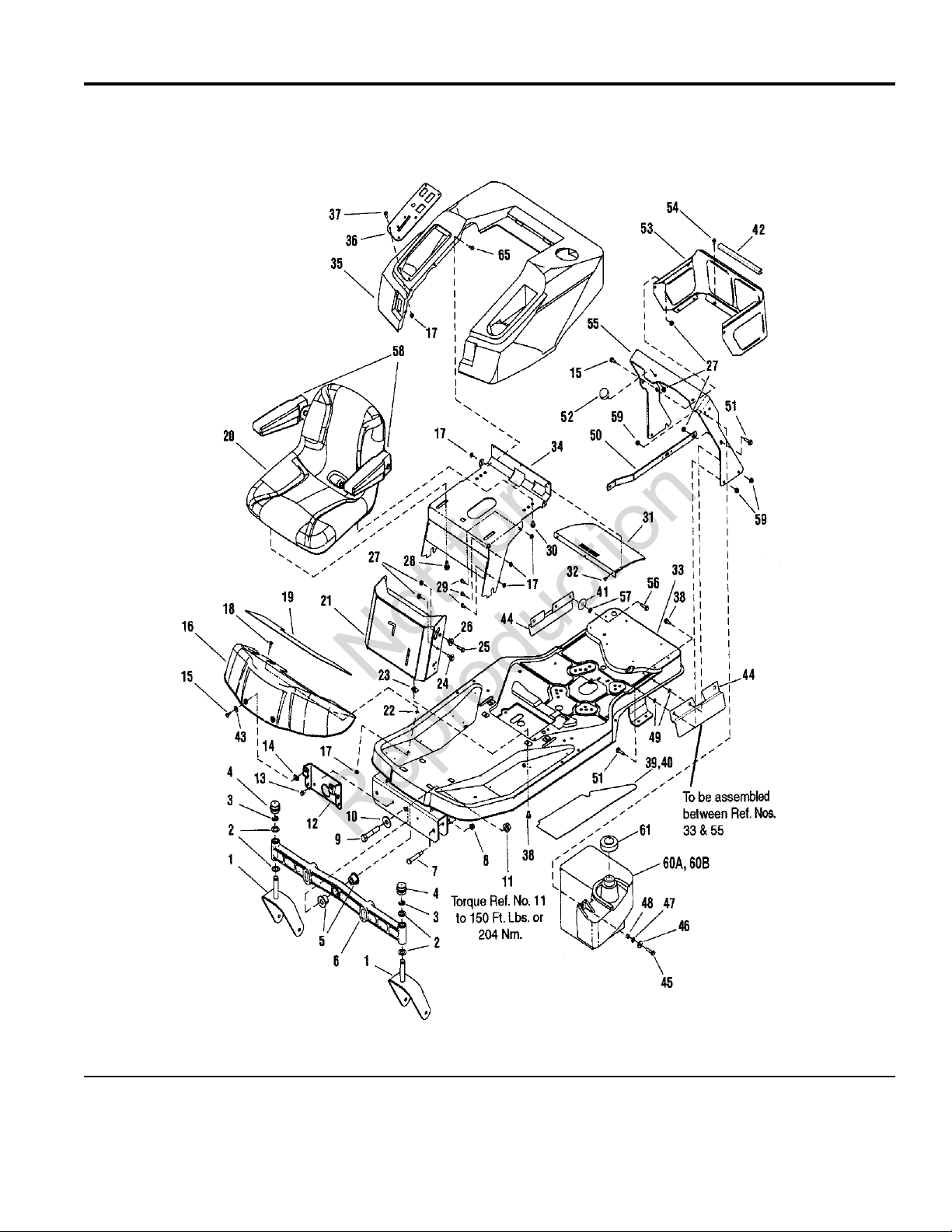

Frame, Body & Seat Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

2825fbsg

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800374 - Axion

7800375 - Axion

7800380 - Axion

7800381 - Axion

7800382 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame, Body & Seat Group

Footnotes

WELDMENT, Caster Yoke & Spindle- Black1 1733448ASM 2

WASHER, .75 ID x 1.60 OD x .05 Thick Flat (Black)2 1960160SM 4

KLIPRING, External for .750 Dia. Shaft3 1611710SM 2

CAP, Hub 1.481 I.D. x .62 Long Red Poly4 1734135SM 2

BUSHING, Axle Pivot PM Regent Yellow5 1730186SM 2

AXLE, Front Iron Casting Machined ZT 20076 1733426ASM 1

SHOULDER BOLT, 3/8-16 x 3" Long .50 Sh GR5 Black7 1733571SM 2

NUT, 3/8-16 Hex Flange Nyloc8 1960687SM 3

SCREW, 5/8-11 x 3-1/4" Hex Head Cap, GR5 Yellow9 2860744SM 1

WASHER, 0.64 I.D. x 1.75 O.D. x .11 Thick, Black10 1960035SM 1

NUT, Hex Flange 5/8-11 Two Way Lock Yellow11 2860646SM 1

BRACKET, Footrest Support, 12 Ga Sears- Black12 1733304ASM 1

SCREW, 5/16-18 x .62 Taptite13 1930601SM 2

SPEED NUT, 1/4-20 Lug Type .025/.150 Black14 1960368SM 2

SCREW, 5/16-18 x 1" Hex Head Cap15 1921333SM 2

PANEL, Footrest, 18 Ga ZT 7000 Gloss Orange16 1726025CSM 1

NUT, 1/4-20 Hex Flange Nyloc Black17 1960694SM 14

BOLT, 1/4-20 x 2" Round Head Short Square Neck, GR5 Black18 1931317SM 2

PAD, Footrest Center Black Vinyl Sears19 1726306SM 1

ASSEMBLY, Seat w/Arm Rests ZTR Sears20 1726018SM 1

PANEL, Front - Manual Brake & Deck Lift21 7300752ASM 1

RETAINER, 1/4" Bolt22 1960518SM 2

SPEED NUT, 5/16 -18 Lug Type .025/.150 B23 1935255SM 4

SHOULDER BOLT, 5/16-1824 009X67MA 2

BOLT, 5/16-18 x 1-1/4" Round Head Short Square Neck GR5 Black25 1960223SM 2

PIVOT, Hood (Powdered Metal)26 1728086SM 2

NUT, 5/16-18 Hex Flange Lock, Small - Black27 1931277SM 4

BOLT, 5/16-18 Idler Pivot28 1716654SM 2

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange29 1960295SM 6

SCREW, 5/16-18 x 3/4" Hex Flange Lock Dog Point30 1960738SM 2

SCREEN, Deck Top31 7102141SM 1

RIVET, .188 x .617 Large Flange32 1673320SM 3

WELDMENT, Frame- 33" ZT33 1735028ASM 1

WELDMENT, Frame- 42" & 50" ZT (Black)33 1733227ASM 1

SUPPORT, Seat Deck 12 GA ZTS Sears-Black34 1733965ASM 1

SEAT DECK, Orange Poly Sears ZTS35 1734144SM 1

PLATE, Control 12 GA ZTS 2007- Black36 1734252ASM 1

SCREW, 1/4-20 x 3/4" Truss Head Torx Black37 1960715SM 8

BOLT, 5/16-18 x 1" Hex Flange Lock YZ38 7091591SM 4

PAD, Footrest RH Black Vinyl w/Adhesive Sears39 1728986SM 1

PAD, Footrest LH Black Vinyl w/Adhesive Sears40 1728987SM 1

WASHER, .375 Flat (0.41 I.D. x 1.50 O.D. x .25 Thick) Black41 1960534SM 1

TRIM, 8"42 1735680SM 1

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800374 - Axion

7800375 - Axion

7800380 - Axion

7800381 - Axion

7800382 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

Frame, Body & Seat Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

2825fbsg

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800374 - Axion

7800375 - Axion

7800380 - Axion

7800381 - Axion

7800382 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame, Body & Seat Group

Footnotes

WASHER, 5/16" External Tooth Lock Washer Yellow43 2820426SM 2

GUARD, Debris 12 Ga Sears ZTR 2007- Black44 1734392ASM 2

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5 Black45 1921221SM 1

WASHER, 5/16" Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black46 1919381SM 1

WASHER 5/16" Internal/External Tooth Lock, BZ47 7090189SM 1

SPACER, .316 x .375 x .300/.31048 7024340SM 1

PUSH NUT, 5/16" Dia. Thread .625 O.D. Black (Pal)49 1933988SM 4

STRAP, Fuel Tank Brace50 1734323ASM 1

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5 Black51 1921977SM 5

BUMPER, Rubber 1.50 DIA 0.5 Thick Sears52 1726390SM 2

SHROUD, Rear 20 GA ZTR 14+16, Cor Black53 1715962ASM 1

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)54 1925003SM 6

SUPPORT, Seat Deck .250 Thick Sears- Black55 1733393ASM 1

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5 Black56 1920415SM 1

PUSH NUT, .375 Dia. Thread .781 O.D. Black (Pal)57 1931942SM 1

KIT, Arm Rest L.H. & R.H.58 1677021SM 1

NUT, 5/16-18 Hex Flange Nyloc59 1960686SM 9

ASSEMBLY, Fuel Tank (incl. below items 61, 63 & 64) used on 49-state models (excluding

California)

60A 7102378SM 1

ASS'Y, Fuel Tank (incl. below items 61 through 64) used on California models60B 7102688SM 1

ASSEMBLY, Fuel Cap (Vented)61 1734320SM 1

TUBE, Fuel Pickup (not shown)62 7102690SM 1

ELBOW, Gas Tank (not shown)63 1674792SM 1

BUSHING, Fuel (not shown)64 1726400SM 1

SCREW, 1/4-20 x 3/4" Hex Flange Lock Black65 1930594SM 6

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800374 - Axion

7800375 - Axion

7800380 - Axion

7800381 - Axion

7800382 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

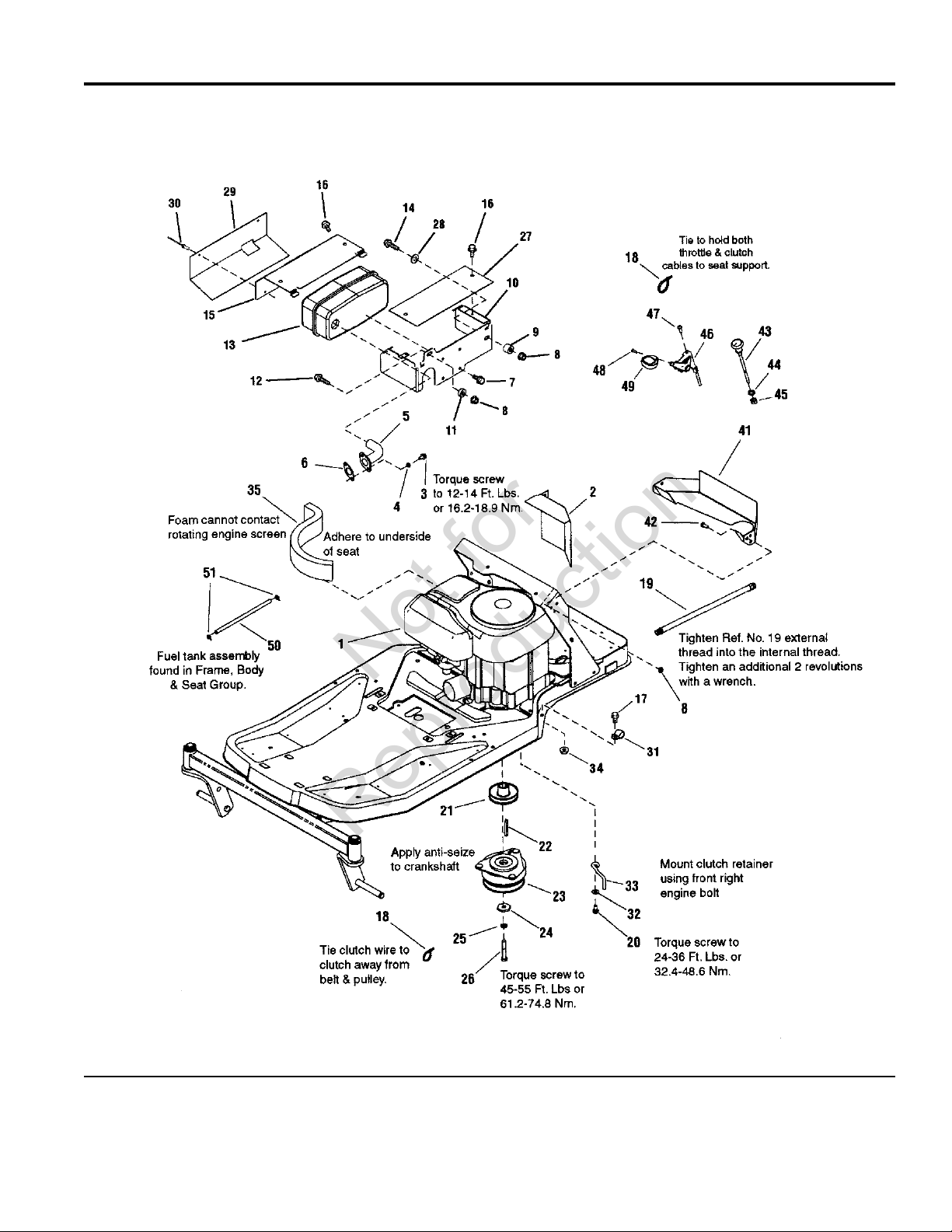

Engine Group - 18.5 H.P.

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

825eg185

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800380 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine Group - 18.5 H.P.

Footnotes

* ENGINE, 18.5 HP, Intek Mod. 31Q777-0117-B11 ----- 1

* ENGINE, 18.5 HP, B&S, Els-Calif. Mod. 31Q777-0118-G11 ----- 1

HEAT SHIELD, Inner2 1734150ASM 1

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR83 1936228SM 2

LOCKWASHER, Spring 5/16" Black4 1917356SM 2

WELDMENT, Exhaust Pipe5 1732259SM 1

GASKET, Exhaust B&S6 1731214SM 1

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange7 1960295SM 4

NUT, 5/16-18 Hex Flange Lock Large Black8 1927557SM 4

SPACER (.390 x .900 x .70) YZ9 1667812SM 1

BRACKET, Muffler/Heat Shield10 1732255SM 1

SPACER, .390 I.D. x .90 O.D. x .34 Long, Powdered Metal11 1667811SM 1

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5 Black12 1921977SM 1

MUFFLER ASSEMBLY, Single13 1732273SM 1

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5 Black14 1921221SM 1

HEAT SHIELD, Outer Single15 1727996SM 1

SCREW, #10 x 1/2" Hex Washer Head Self-Tap16 1960720SM 4

SCREW, 5/16-18 x 3/4" Hex Flange Lock17 1930591SM 1

TIE, Self Locking 3-5/8" Long18 2832747SM 2

HOSE, Oil Drain, 16-1/2" Long19 1726498SM 1

SCREW, 3/8-16 x 1-1/4" Hex Washer Head Taptite20 2828635SM 3

PULLEY ASSEMBLY, Engine21 1727816SM 1

KEY, .250 Square x .91 Long Parallel22 2154096SM 1

ELECTRIC CLUTCH, Ogura MA-GT-SN11S23 7029232SM 1

WASHER, Hex, .453 I.D. x 1-1/2"24 1708264SM 1

LOCKWASHER, Spring, .43825 1918199SM 1

SCREW, 7/16-20 x 2-3/4" Hex Head Cap, GR5, Black26 1960648SM 1

HEAT SHIELD27 1732885ASM 1

WASHER, 5/16" (.34 I.D. x 3/4" O.D.)28 1919326SM 2

HEAT SHIELD29 1733063SM 1

RIVET, Pop30 1675044SM 2

CLIP, Harness, 5/8"31 7900020SM 1

WASHER, 3/8", (.41 I.D. x .87 O.D. x .08 Thick)32 1924940SM 1

RETAINER, Clutch33 1734049SM 1

NUT, 5/16-18 Hex Whiz Lock Flange34 1931277SM 1

SEAL, Foam Air Duct, 1 x 2-1/2", 12" Long35 1734189SM 1

AIR DUCT, Inlet41 1734180ASM 1

SCREW, 5/16-18 x 3/4" Hex Head Cap, Black42 1921332SM 2

CABLE, Choke, 54"43 7100416SM 1

WASHER, 3/8" Internal Tooth Lock44 7090390SM 1

NUT, 3/8-24 Hex45 7091630SM 1

CONTROL, Throttle B&S Intek 16 HP Single46 7075449SM 1

SCREW, 1/4-20 x 5/8" Pan Head Taptite Torx47 7090999SM 2

Note: * Purchase engine components directly from engine manufacturer dealer.

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800380 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

Engine Group - 18.5 H.P.

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

825eg185

The above parts group applies to the following Mfg. Nos.:

2008

7800360 - Axion

7800380 - Axion

TP 400-5008-00-ZT-S

Not for

Reproduction

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Simplicity Taglia erba

Simplicity

Simplicity Conquest Garden Tractor & Mower Deck Manuale utente

Simplicity

Simplicity 3100 Series Manuale utente

Simplicity

Simplicity Axion / 150Z ZTR Series Manuale utente

Simplicity

Simplicity 2691481-00 Manuale utente

Simplicity

Simplicity Snapper 5900610 Manuale utente

Simplicity

Simplicity CONQUEST Conquest / 2700 Manuale utente

Simplicity

Simplicity 2690810 Manuale utente

Simplicity

Simplicity Broadmoor 535 Manuale utente

Simplicity

Simplicity Regent 1693264 Manuale utente

Simplicity

Simplicity 1695415 Manuale utente

Simplicity

Simplicity 4211H Manuale utente

Simplicity

Simplicity Sovereign 655-3314H Manuale di istruzioni

Simplicity

Simplicity 1693920 Manuale utente

Simplicity

Simplicity 12FC42 Manuale utente

Simplicity

Simplicity SunRunner 1691199 Manuale utente

Simplicity

Simplicity Citation 2690445 Citation Manuale utente

Simplicity

Simplicity 1690022 Manuale utente

Simplicity

Simplicity Regent Series Manuale utente

Simplicity

Simplicity Cobalt 2690479 Manuale utente

Simplicity

Simplicity 995621 Manuale utente

Simplicity

Simplicity FB Manuale utente

Simplicity

Simplicity Baron 2400 Series Manuale utente

Simplicity

Simplicity BROADMOOR 1600 Manuale utente

Simplicity

Simplicity 1691662 Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
