Simplicity ZT4000 Manuale utente

Not for

Reproduction

Parts Manual

Rev. 3/2009

ZT4000

Series Zero-Turn Rider & Mower Deck

TP 400-7340-M-50-S

. No. Descri

tion

24HP Product

5900707 ZT4000B2444, 24HP B&S Rider w/44" Mower

. No. Descri

tion

26HP Product

5900765 ZT4000B2648, 26HP B&S Rider w/48" Mower

5101297

Part No.:

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Main Frame & Front Suspension Group .............................................................................................................. 4

Rear Bumper & ROPS Group .............................................................................................................................. 6

Engine & PTO Group - 24HP & 26HP Briggs & Stratton ..................................................................................... 8

Instrument & Control Panel Group ....................................................................................................................... 10

Pump Drive Group ................................................................................................................................................ 12

Motion Control Group ........................................................................................................................................... 14

Hydraulic Group ................................................................................................................................................... 18

Hydraulic Mount Group ........................................................................................................................................ 20

Seat Mount & Floor Group ................................................................................................................................... 22

Fuel Tank & Mount Group .................................................................................................................................... 24

Parking Brake Group ............................................................................................................................................ 26

Rear Suspension Group ....................................................................................................................................... 28

Deck Lift Group .................................................................................................................................................... 30

Wheel & Tire Group .............................................................................................................................................. 34

Decals - Brand & Model ....................................................................................................................................... 36

Decals - Safety & Operation ................................................................................................................................. 38

44" & 48" Mower Deck Group - Hanger Chains ................................................................................................... 40

44" & 48" Mower Deck Group - Housing, Covers, Spindles & Blades ................................................................42

44" & 48" Mower Deck Group - Pulleys, Belts & Idler Arm .................................................................................. 44

44" & 48" Mower Deck Group - Rollers & Casters ............................................................................................... 46

44" & 48" Mower Deck Group - Striper Roller ...................................................................................................... 48

Not for

Reproduction

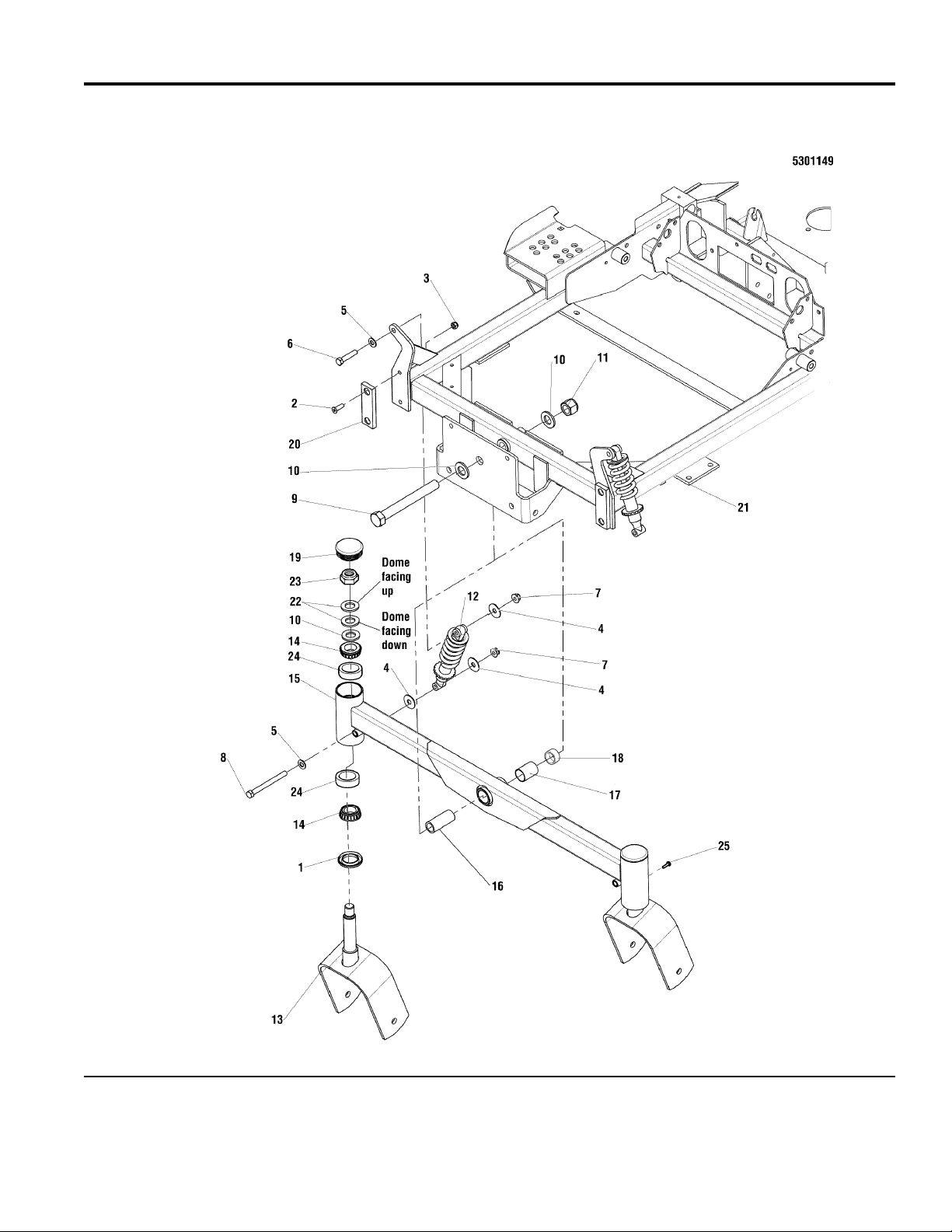

Main Frame & Front Suspension Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

5301149

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO. QTY.

Main Frame & Front Suspension Group

Footnotes

SEAL, GREASE1 5021072SM 2

SCREW, 5/16-18 X 1 FLAT HD SC2 5025303SM 4

NUT, 5/16-18 HEX NYLON LOCK3 5025057SM 4

WASHER, 3/8 FENDER4 5025165SM 6

WASHER, 3/8 SAE5 5025156SM 4

BOLT, 3/8-16 X 1-3/4 GD56 5025013X14SM 2

NUT, 3/8-16 HEX NYLOCK FLANGE7 5025394SM 4

BOLT, 3/8-16 X 4 GD5 YZ8 5025013X32SM 2

BOLT, 3/4-16 X 6-1/2 YZ GD59 5025265X52SM 1

WASHER, 3/4" SAE10 5025160SM 4

NUT, 3/4-16 HEX NYLON LOCK11 5025284SM 1

SHOCK, SPRING ASSEMBLY12 5023483SM 2

WELD, CASTER YOKE, IS500Z - ORG13 5402539CSM 2

BEARING, TAPERED ROLLER, 1"14 5020884SM 4

WELD, FRONT PIVOT, CITATION - ORG15 5402536CSM 1

SPACER, .75 X 1.00 X 2.3816 5047489SM 1

PIVOT BEARING, 1.00" X 1.125" OD X 1.50"17 5022852SM 1

PIVOT BEARING, 1.00 X 1.125 OD X .5018 5100358SM 1

CAP, CASTER SPINDLE, LOW PROFILE19 5100882SM 2

PAD, FRICTION, .375 X 1.25 X 4.0020 5100930SM 2

WELD, IS500 MAIN FRAME - ORG21 5403394CSM 1

WASHER, BELLEVILLE - 1.500 X .75522 5025449SM 4

NUT, 3/4-16, HEX JAM NYLON LOCK23 5025448SM 2

BEARING CUP24 5020883SM 4

BOLT, 1/4-28 X 1/2, GD5 YZ25 5025457SM 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S

Not for

Reproduction

Rear Bumper & ROPS Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

5301150

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO. QTY.

Rear Bumper & ROPS Group

Footnotes

PLUG, PANEL, 1.25 - BLACK1 5023484SM 6

SEAT BELT, RETRACTING - ASSM2 5100139SM 1

SCREW, 1/2-13 X 1.00, SHCS3 5100267SM 2

MOUNT, SEAT BELT - RH - ORG4 5400847CSM 1

PLATE, SEAT BELT ANCHOR - LH - ORG5 5400844CSM 1

SPACER, .52 X 1.00 X .756 5045178SM 1

SPACER, .515 X 1.00 X .2187 5100520SM 1

ROPS, IS500Z8 5101730SM 1

BOLT, 1/2-13 X 1-3/4, HHCS GD59 5100268SM 2

NUT, 1/2-13 HEX NYLOCK FLANGE10 5025396SM 10

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, YZ11 5025017X26SM 6

WASHER, 1/2 SAE12 5025158SM 6

PLATE, HEAT SHIELD - IS500Z - ORG13 5402618CSM 1

BODY CLIP, 5/16-18 X 1/2 DEEP14 5022308SM 2

WASHER, 5/16 SAE15 5025155SM 2

BOLT, 5/16-18 X 1 GD5 YZ16 5025011X8SM 2

WELD, BUMPER - IS500Z - ORG17 5402547CSM 1

CAP, VINYL - .750 X .50 - BLK18 5101049SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S

Not for

Reproduction

Engine & PTO Group - 24HP & 26HP Briggs & Stratton

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

5301152

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO. QTY.

Engine & PTO Group - 24HP & 26HP Briggs & Stratton

Footnotes

BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ1 5047632SM 1

BOLT, 5/16-18 X 1-3/4 GD5 YZ2 5025011X14SM 2

NUT, 5/16-18 HEX NYLOCK FLANGE3 5025392SM 6

WASHER, 5/16" INT. TOOTH LOCK4 5025188SM 2

CLUTCH ANCHOR PAD5 5043636SM 1

WASHER, .34 X 1.25 X 10 GA6 5044617SM 3

ANCHOR, CLUTCH7 5046416CSM 1

BOLT, 5/16-18 X 2 GD5 TFL8 5025055X16SM 1

BOLT, 5/16-18 X 1 GD5 YZ9 5025011X8SM 2

BOLT, 5/16-18 X 3/4 GD510 5025011X6SM 2

KEY, 1/4 SQ. X 1.0011 5050407X8SM 1

PULLEY, CRANKSHAFT12 5100914SM 1

GROMMET, 7/813 5021379SM 2

WASHER, 5/16 SAE14 5025155SM 8

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)15 5025139SM 1

ENGINE-24HP B&S, ELS #44M777-0113-E1 (24HP Models Only)16 - 1

CLUTCH, # 5219-34A, ELECTRIC, IS500Z17 5100915SM 1

MUFFLER, B&S-ELS 22-26HP18 5100907SM 1

CLAMP, VINYL INSULATED19 5021500SM 1

WASHER, 1/4 SAE20 5025154SM 1

NUT, 1/4-20 HEX NYLOCK FLANGE21 5025391SM 1

BOLT, 1/4-20 X 3/4 GD5 YZ22 5025010X6SM 1

HOSE, OIL DRAIN23 5048681SM 1

PRE CLEANER (SV)24 792303 1

AIR CLEANER W/ PRE CLEANER (SV) (Includes Ref. No. 24)25 792105 1

BOLT, 5/16-18 X 1-1/2" GD5 YZ26 5025011X12SM 2

OIL FILTER (NOT ILLUSTRATED)27 696854 1

ENGINE-26HP B&S, ELS #44M777-0124-G1 (26HP Models Only)28 - 1

WIRE LOOM, 1/2" PUSH-LOCK, 1.00" (Used on engine oil drain.)29 5050833X11SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S

Not for

Reproduction

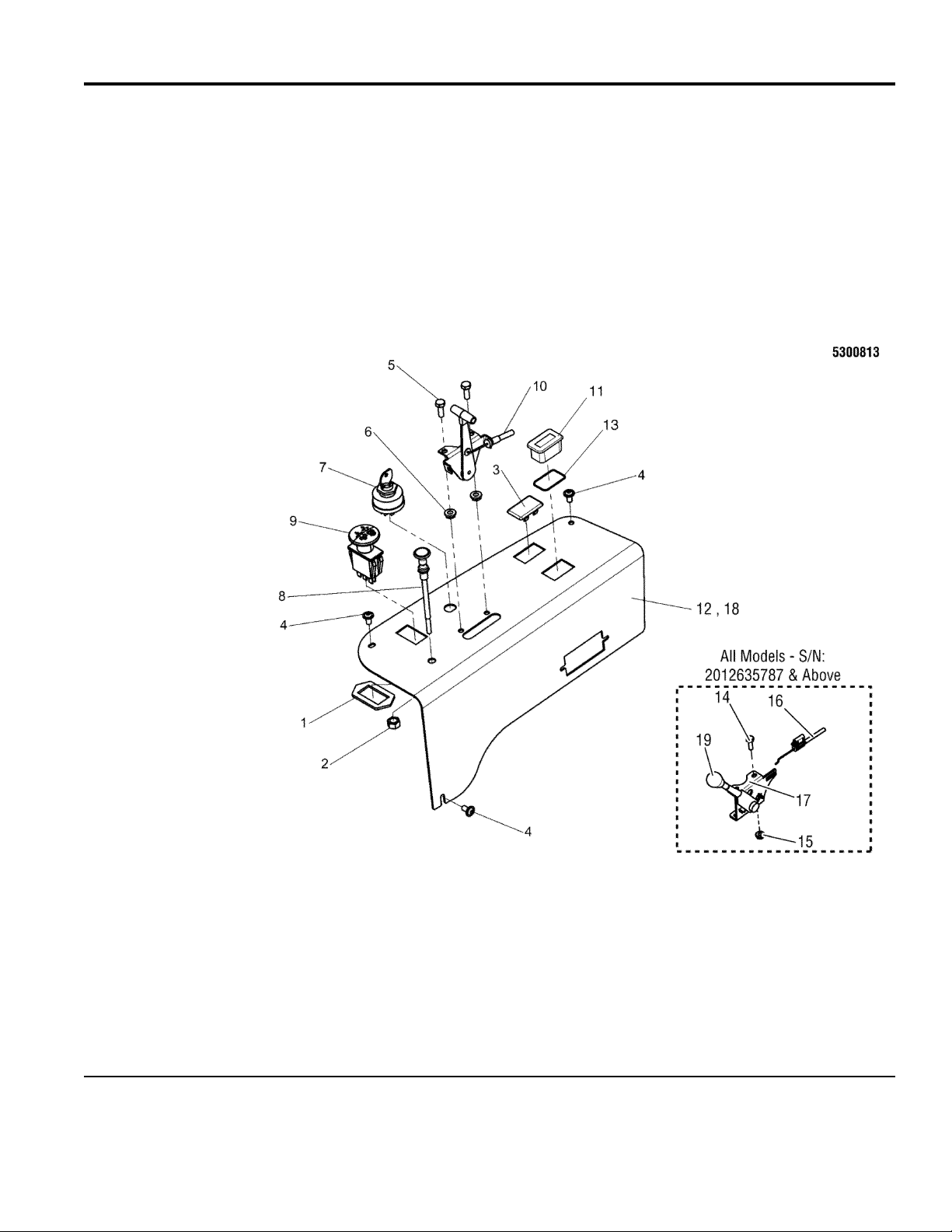

Instrument & Control Panel Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

5300813

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

5900707 - ZT4000B24

5900765 - ZT4000B26

TP 400-7340-M-50-S
