Simplicity 514RT Manuale utente

Parts Manual

Rev. 8/2001

TP 400-2407-00-RT-S

55HHPPRREEAARRTTIINNEETTIILLLLEERR

AANNDD

AATTTTAACCHHMMEENNTT

551144RRTT

MMffgg..NNoo..DDeessccrriippttiioonn

1693705 514RT, 5HP Rear Tine Tiller

AATTTTAACCHHMMEENNTT

MMffgg..NNoo..DDeessccrriippttiioonn

1692878 Hiller/Furrower

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

TP-400-2407-00-RT-S

Table of Contents

REAR TINE TILLERS

Handle Bar Group......................................................2

Hood, Drag Stake & Tine Group................................4

Engine Mounting, Belts & Wheels Group..................6

Shifting Mechanism Group .......................................8

Transmission Group................................................10

Wheel & Tiller Shaft Group .....................................12

Decal Group ............................................................14

ATTACHMENT:

Hiller/Furrower Attachment.....................................16

REFERENCE INFORMATION:

Torque Specification Chart..............Inside Back Cover

TP-400-2407-00-RT-S

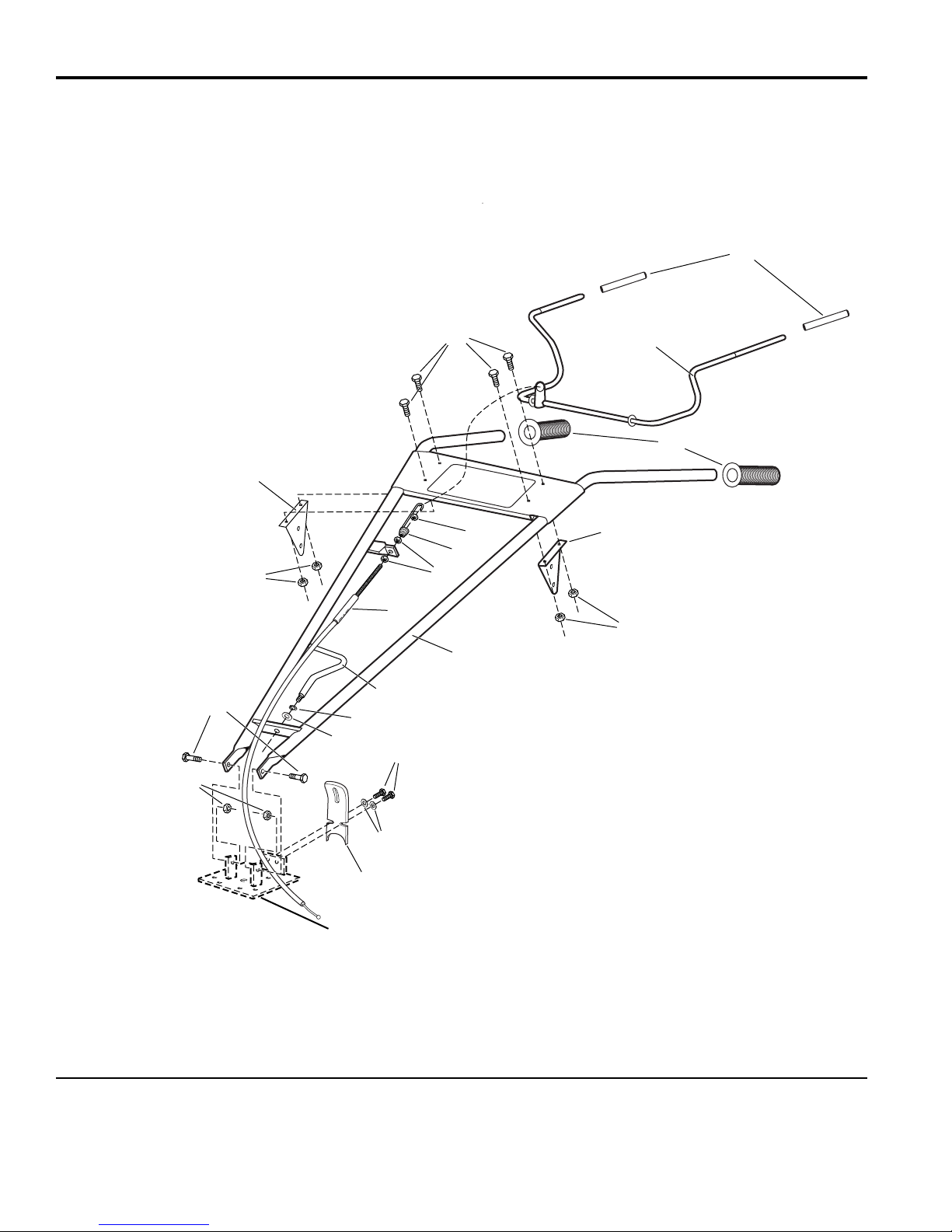

Handle Bar Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985764

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

See Transmission Group

111

TP-400-2407-00-RT-S

Handle Bar Group

1 1716731 4 CAPSCREW, Hex Head, 5MM X .8MM X 10MM

2 1716699 2 HANDLE GRIP, Drive Control Lever

3 1721520 1 LEVER, Drive Control

4 1719038 2 HANDLE GRIP

5 1716723 1 BRACKET, Drive Control Lever LH

6 1716732 4 NUT, Hex Nylok

7 1721518 1 HANDLE BAR ASSEMBLY, w/Tab

8 1933896 1 NUT, Hex Nylok

9 1716720 1 SPRING, Forward Cable Adjustment

10 920438 2 NUT, Hex Jam, 5/16”, 24NF, 2B

11 1719037 1 CABLE ASSEMBLY

12 1721517 1 CLAMP

13 1916965 1 LOCKWASHER, Spring 3/8”

14 1924940 1 WASHER, 3/8”

15 1716780 2 CAPSCREW, Hex Flange Head, 5/16”-18 x 3/4”

16 1960044 2 WASHER, 5/16”

17 1721519 1 PLATE, Height Adjust

18 1916950 2 NUT, Hex, 3/8”-16NC, 2B

19 1921210 2 CAPSCREW, 3/8”-16 x 1” G5

20 1716722 1 BRACKET, Drive Control Lever RH

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

TP-400-2407-00-RT-S

Hood, Drag Stake & Tine Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985763

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

TP-400-2407-00-RT-S

Hood, Drag Stake & Tine Group

1 1721510 1 LEVER, Depth Regulator

2 1716743 1 KNOB, T handle, Drag Stake

3 1716742 1 PIN, Detent 5/16”-18 x 1”

4 1921958 2 CAPSCREW, 1/4”-20 x 1/2” G5

5 1721512 1 HOOD

6 1917356 2 LOCKWASHER, Spring 5/16”

7 1920787 2 CAPSCREW, 5/16”-18 x 1/2” G5

8 1921971 2 CAPSCREW, 3/8”-16 x 1 3/4” G5

9 1721513 1 TINE ASSEMBLY, LH

10 1916950 2 NUT, Hex, 3/8”-16NC, 2B

11 1935048 2 NUT, Hex Flange Head, 5/16”-18 Two, Way Lock

12 1721514 1 TINE ASSEMBLY, RH

13 1716701 2 CAPSCREW, Hex Flange Head, 5/16”-18 x 1/2”

14 1721511 1 BRACKET, Depth Regulator

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

TP-400-2407-00-RT-S

Engine Mount, Belts & Wheels Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985762

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

BRUSH BAR OPTION

2919

435

182

115

22 9

23 11

232325

TP-400-2407-00-RT-S

Engine Mount, Belts & Wheels Group

1 1917372 2 NUT, Hex, 5/16”-18NC, 2B

2 1917356 9 LOCKWASHER, Spring 5/16”

3 1960044 2 WASHER, 5/16”

4 1716784 1 COVER, Belt

5 1921978 2 CAPSCREW, 5/16”-18 x 2” G5

6 960164 1 WASHER, 5/8”

7 1721524 1 WHEEL & TIRE ASSEMBLY, Right

7 1721525 1 WHEEL & TIRE ASSEMBLY, Left

8 1716776 2 PIN, Lock

9 905850 2 KEY, Parrallel

10 1716768 1 PULLEY, Transmission

11 1716770 2 WASHER

12 1921515 2 CAPSCREW, 5/16”-24 x 3/4” G5

13 1960470 4 CAPSCREW, Hex Socket Head, 5/16”-18 x 11/4” G8

14 1716753 1 BRACKET, Engine Mount LH

15 1935048 8 NUT, Hex Flange Head, 5/16”-18 TWO, WAY Lock

16 1716752 1 BRACKET, Engine Mount RH

17 1716767 1 GUIDE, Belt Forward

18 1716756 1 CAPSCREW, 5/16”-24 x 1/2”

19 1922127 4 CAPSCREW, 5/16”-18 x 1 3/4” G5

20 * 1 ENGINE, 5.0HP Tecumseh - Engine Model 135392, Engine Type 1320-E1

21 1716765 1 V-BELT

22 1716762 1 SPACER, Engine Pulley

23 1716764 1 PULLEY, Engine, Forward

24** 1721528 1 BUMPER, Guard

25** 1922127 4 CAPSCREW, 5/16”-18 x 13/4” G5

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* See your local Tecumseh distributor for Parts & Service.

** The bumper guard is not standard with the 5HP tiller, but it is an option, just order the bumper guard (Ref# 24)

and 4 capscrews (Ref# 25).

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

TP-400-2407-00-RT-S

Shifting Mechanism Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985761

The above parts group applies to the following Mfg. Nos.:

1693705 514RT, Rear Tine Tiller

See Transmission Group

16 15

18 4

89101112
