Simplicity 7HP Series Manuale utente

Not for

Reproduction

Parts Manual

Rev. 04/2009

Rear Tine Tillers

7HP Series

TP 400-2635-02-RT-S

. No. Descri

tion

7HP Product

1694162 7016 RT, 7HP Tiller

1694909 7016 RT, 7HP Tiller

1730320

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Handle Bar Group ................................................................................................................................................ 4

Hood, Drag Stake & Tine Group .......................................................................................................................... 6

Engine, Belts & Wheels Group ............................................................................................................................ 8

Transmission Group ............................................................................................................................................. 12

Wheel & Tiller Shaft Group .................................................................................................................................. 14

Decal Group ......................................................................................................................................................... 16

Hiller/Furrower Attachment .................................................................................................................................. 18

Not for

Reproduction

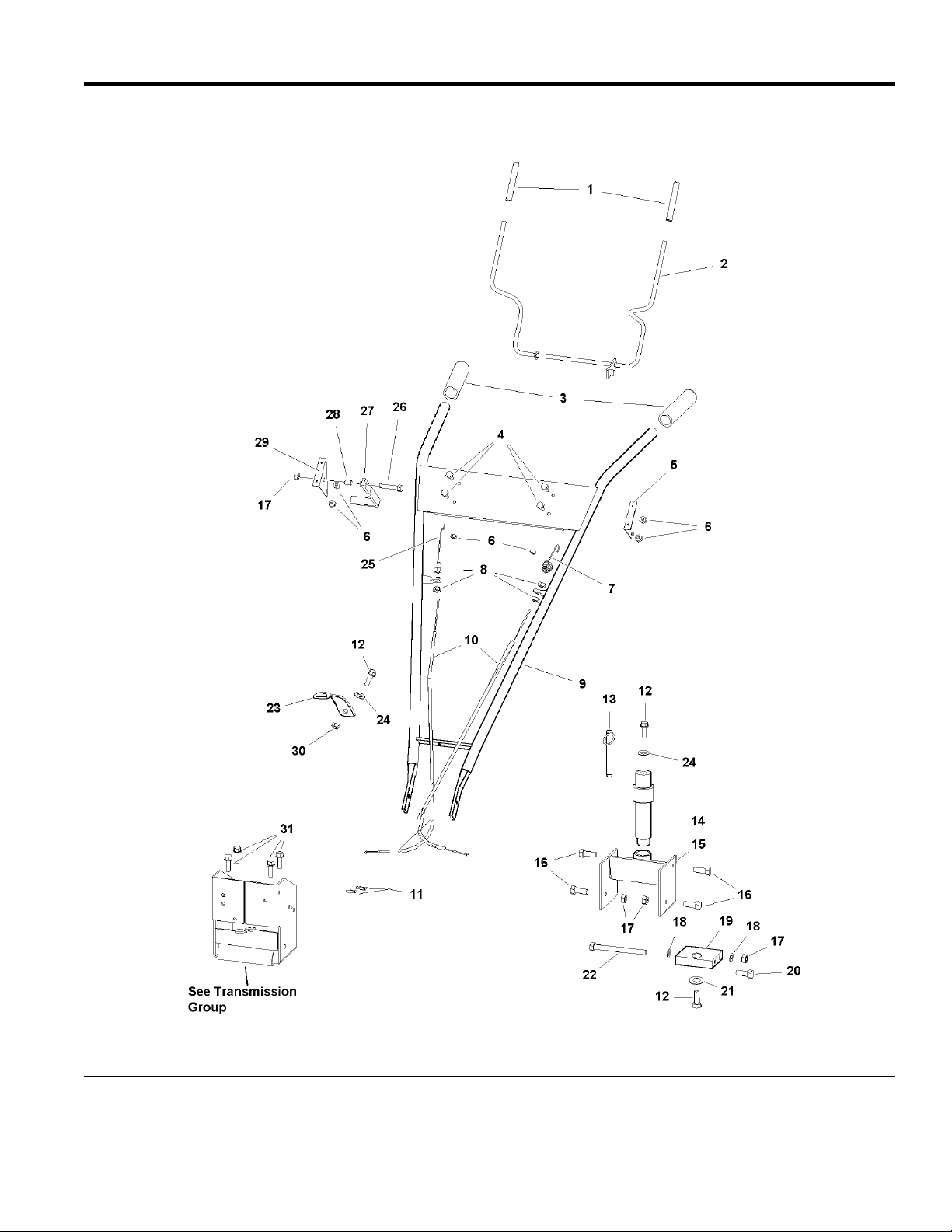

Handle Bar Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986100

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Handle Bar Group

Footnotes

HANDLE GRIP, Drive Control Lever1 1716699SM 2

LEVER, Drive Control2 1722325SM 1

HANDLE GRIP3 1719038SM 2

SCREW, Pan Head Phillips #10-24 x 1/24 1960392SM 4

BRACKET, Drive Control Lever LH5 1716723SM 1

NUT, Hex Nylock, 10-246 1933896SM 6

SPRING, Forward Cable Adjustment7 1716720SM 1

NUT, Hex Jam, 5/16-248 2820438SM 4

HANDLE BAR ASSEMBLY9 1723692SM 1

CABLE ASSEMBLY10 1719037SM 2

C-CLAMP11 1719063SM 2

CAPSCREW, Hex Head, 5/16-18 x 3/412 1921332SM 3

PIN, Detent13 1723703SM 1

PIVOT ROD ASSEMBLY14 1723695SM 1

PIVOT MOUNT ASSEMBLY15 1723696SM 1

CAPSCREW, Hex Head, 3/8-16 x 116 1921210SM 4

NUT, Hex, 3/8-1617 1916950SM 5

WASHER18 1924940SM 2

PIVOT, Handle Bar Mount19 1723694SM 1

CAPSCREW, Hex Head, 3/8-16 x 1-1/420 1920415SM 1

WASHER21 1716770SM 1

CAPSCREW, Hex Head 3/8-16 x 422 1922648SM 1

PIVOT, Hnadle Bar Height Adjustment23 1723697SM 1

WASHER24 1960044SM 2

LINK, Reverse25 1716729SM 1

CAPSCREW, Hex Head, 5/16-18 x 1-1/426 1921977SM 1

HANDLE, Reverse27 1716725SM 1

BUSHING, Pivot, 5/1628 1716704SM 1

BRACKET, Drive Control Lever RH29 1716722SM 1

NUT, Hex Flange Tow Way Lock, 5/16-1830 1935048SM 2

BOLT, Hex Flange Head, 5/16-18 x 3/431 1921332SM 4

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S

Not for

Reproduction

Hood, Drag Stake & Tine Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986105

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Hood, Drag Stake & Tine Group

Footnotes

PIN, DETENT 5/161 1723703SM 1

LEVER, Depth Regulator2 1723705SM 1

CAPSCREW, Hex Head, 1/4-20 x 1/23 1921958SM 2

HOOD, Tiller, No Decal4 1722329SM 1

LOCKWASHER, 5/165 1917356SM 2

CAPSCREW, Hex Head, 5/16-18 x 1/26 1920787SM 2

CAPSCREW, Hex Head, 3/8-16 x 17 1921210SM 16

HOLDER, Tine Blade Left and Right8 1716741SM 2

CAPSCREW, Hex Head, 3/8-16 x 1-3/49 1921971SM 2

LOCKWASHER, 3/810 1916965SM 18

NUT, Hex Centerlock, 3/8-1611 1930645SM 18

TINE BLADE, Left Side12 1716739SM 8

TINE BLADE, Right Side13 1716737SM 8

BOLT, Hex Flange Head, 5/16-18 x 1/214 1716701SM 2

REPLACEMENT KIT, Tine Blade Holder & Tines (Includes Reference Nos. 7, 8, 9, 10, 11,

12, and 13)

15 1716749SM 1

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S

Not for

Reproduction

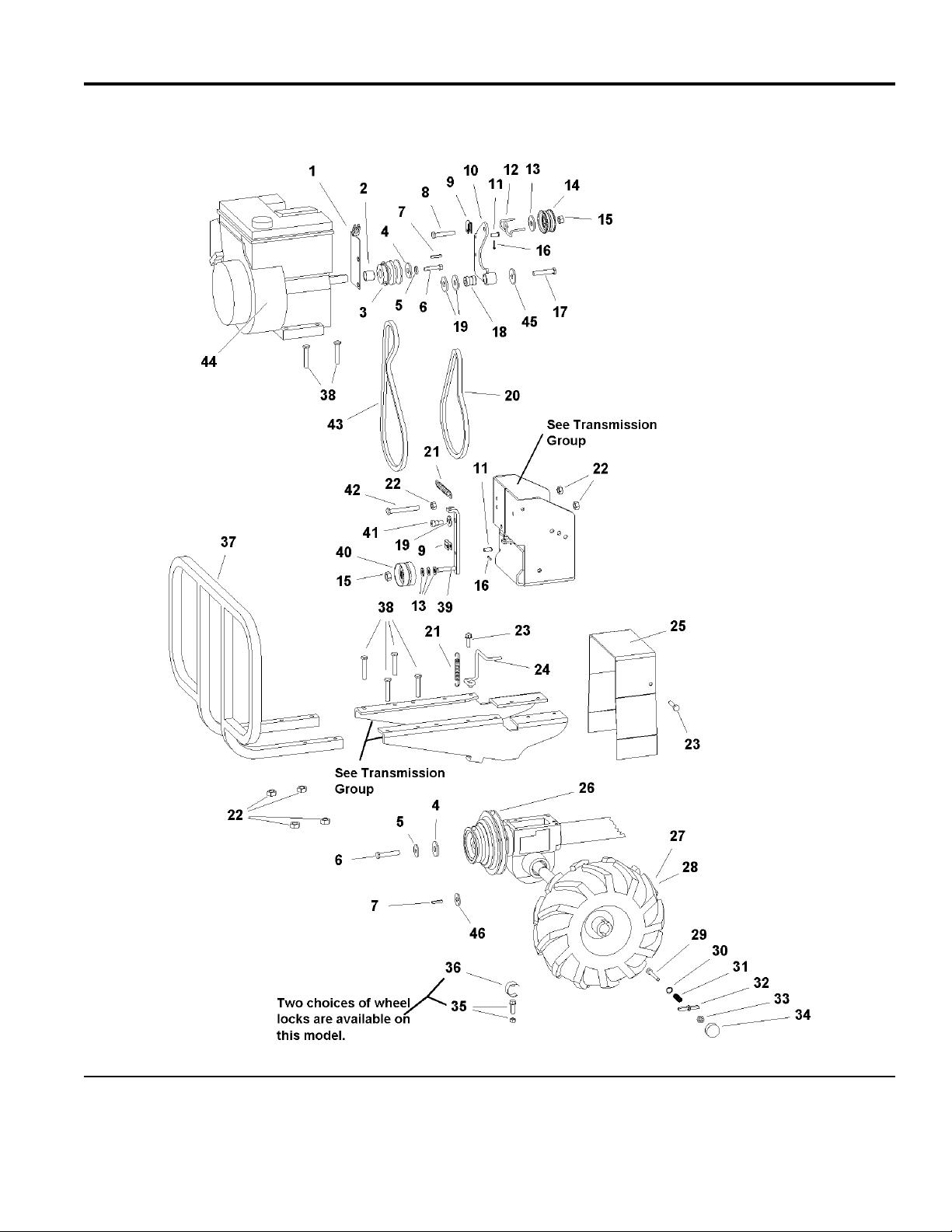

Engine, Belts & Wheels Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986106

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine, Belts & Wheels Group

Footnotes

BRACKET, Engine1 1722157SM 1

SPACER, Engine2 1723711SM 1

PULLEY, Engine 2 Groove3 1722158SM 1

WASHER4 1716770SM 2

LOCKWASHER, Spring 5/165 1917356SM 2

CAPSCREW, Hex Head, 5/16-24 x 3/46 1921515SM 2

KEY, Parallel7 2805850SM 2

CAPSCREW, Hex Head, 3/8-24 x 28 1960345SM 1

YOKE, Cable9 1716728SM 2

ARM, Pivot10 1722159SM 1

PIN, LINK Forward/Reverse11 1716702SM 2

GUIDE, Belt Reverse12 1722162SM 1

WASHER, 3/813 1924940SM 4

PULLEY, Idler Reverse14 1716805SM 1

NUT, Hex Center Lock, 3/8-1615 1930645SM 2

PIN, Cotter16 1716703SM 2

BOLT, Flat Head, 5/16-24 x 1-1/217 1723710SM 1

PIVOT18 1722160SM 1

WASHER, 5/1619 1960044SM 3

V-BELT, Forward20 1716766SM 1

SPRING, Idler Arm21 1716802SM 2

NUT, Hex Flange 5/16-1822 1935048SM 7

BOLT, Hex Flange Head, 5/16-18 x 3/423 1921332SM 3

GUIDE, Belt Forward24 1722161SM 1

COVER, Belt25 1722165SM 1

PULLEY, Transmission 2 Groove26 1722163SM 1

WHEEL & TIRE ASSEMBLY, Tiller LH27 1716773SM 1

WHEEL & TIRE ASSEMBLY, Tiller RH28 1716775SM 1

CAPSCREW, Hex Socket Head, 1/4-20 x 2-3/3229 1716782SM 2

WASHER, 1/430 1960151SM 2

SPRING31 1716781SM 2

PIN, Lock32 1716778SM 2

NUT, Hex KEPS 1/4-2033 2828372SM 2

KNOB, Lock Out Set of Two34 1716777SM 1

SETSCREW, Wheel Lockout35 1722185SM 2

CLAMP, C Wheel Lockout36 1722171SM 2

BUMPER, Guard37 1721528SM 1

CAPSCREW, Hex Head, 5/16-18 x 1-3/438 1922127SM 8

ARM, Idler Forward39 1722166SM 1

PULLEY, Forward Idler40 1716803SM 1

Note* See your local Briggs & Straton distributor for Parts & Service.

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S

Not for

Reproduction

Engine, Belts & Wheels Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986106

The above parts group applies to the following Mfg. Nos.:

2009

1694162 - 7016 RT

1694909 - 7016 RT

TP 400-2635-02-RT-S
