Simplicity 6HP 120492 Manuale utente

Not for

Reproduction

Parts Manual

Rev. 04/2009

6HP Rear Tine Tillers

And Attachment

TP 400-2488-01-RT-S

. No. Descri

tion

6HP Product

1693704 616RT, 6HP Rear Tine Tiller

. No. Descri

tion

Attachment

1692878 Hiller / Furrower

1730818

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Handle Bar Group ................................................................................................................................................ 4

Hood, Drag Stake & Tine Group .......................................................................................................................... 6

Engine Mount, Belts & Wheels Group ................................................................................................................. 8

Transmission Group ............................................................................................................................................. 10

Wheel & Tiller Shaft Group .................................................................................................................................. 12

Decal Group ......................................................................................................................................................... 14

Hiller/Furrower Attachment .................................................................................................................................. 16

Hiller/Furrower Attachment .................................................................................................................................. 18

Shifting Mechanism Group ................................................................................................................................... 20

Not for

Reproduction

Handle Bar Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985769

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Handle Bar Group

Footnotes

HANDLE GRIP, Drive Control Lever1 1716699SM 2

LEVER, Drive Control Walk-Behind Tiller2 1716721SM 1

GRIP, Handle Black3 1721516SM 2

HANDLE BAR ASSEMBLY4 1716718SM 1

BRACKET, Drive Control Lever, RH5 1716722SM 1

NUT, Hex Nylock6 1716732SM 4

BRACKET, Drive Control Lever, LH7 1716723SM 1

NUT, Hex Nylock8 1933896SM 2

SPRING, Froward Cable Adjustment9 1716720SM 1

CLAMP, Handle Bar Tilt10 1716709SM 2

NUT, Hex Flange 5/16"- 1811 1935048SM 7

NUT, Hex Jam 5/16"12 2820438SM 4

CABLE ASSEMBLY13 1719037SM 2

KNOB, Handle Bar Tilt Lever14 1716708SM 1

LEVER, Handle Bar Tilt15 1716707SM 1

STOP, Handle Bar Tilt Lever16 1716714SM 1

CAPSCREW, Hex Head, 8MM x16MM17 1716715SM 1

FITTING, Lube18 1716855SM 1

CAPSCREW, Hex Head, 10MM x 30MM19 1716716SM 2

CAPSCREW, 5/16"- 18 x 2-3/4" G520 1923141SM 2

SPRING, Handle Bar Swivel21 1716710SM 1

MOUNT, Handle Bar Stem, LH22 1716719SM 1

MOUNT, Handle Bar Stem, RH23 1716706SM 1

NUT, Hex Nylok 10MM24 1716717SM 2

LEVER, Handle Bar Swivel Walk-Behind Tiller25 1716712SM 1

KNOB, Handle Bar Swivel Lever26 1716711SM 1

STEM, Handle Bar27 1716713SM 1

FRICTION PAD, Tilt28 1716705SM 2

CARRIAGE BOLT, 5/16"- 18 x 2" G529 1931339SM 4

CAPSCREW, Hex Head, 5MM X .8MM X 10MM30 1716731SM 4

CAPSCREW, Hex Head 5/16-18 x 2 G531 1921978SM 1

BUSHING, Pivot 5/16"32 1716704SM 1

PIN, Cotter33 1716703SM 1

HANDLE, Reverse34 1716725SM 1

LINK, Reverse35 1716729SM 1

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S

Not for

Reproduction

Hood, Drag Stake & Tine Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985768

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Hood, Drag Stake & Tine Group

Footnotes

GRIP, Handle, Black1 1719038SM 1

LEVER, Drag Stake, Walk-Behind Tiller2 1716745SM 1

KNOB, T Handle, Drag Stake3 1716743SM 1

PIN, DETENT, 5/16"- 18 x 1"4 1716742SM 1

CAPSCREW, 1/4"- 20 x 1/2" G55 1921958SM 2

HOOD6 1721515SM 1

NUT, Hex Flange 5/16"- 18 Two, Way Lock7 1935048SM 2

CAPSCREW, 3/8"- 16 x 1" G58 1921210SM 16

TINE BLADE, Left Side9 1716739SM 8

HOLDER, Tine Blade LH+RH10 1716741SM 2

NUT, Hex 3/8"- 16NC11 1916950SM 18

CAPSCREW, 3/8"- 16 x 1-3/4" G512 1921971SM 2

LOCKWASHER, Spring 3/8"13 1916965SM 16

CAPSCREW, 5/16"- 18 x 1" G514 1921333SM 2

TINE BLADE, Right Side15 1716737SM 8

CAPSCREW, Hex Flange Head, 5/16"- 18 x 1/2"16 1716701SM 2

BRACKET, Depth Regulator RT17 1721511SM 1

REPLACEMENT KIT, Tine Blade Holder18 1716749SM 1

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S

Not for

Reproduction

Engine Mount, Belts & Wheels Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985767

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine Mount, Belts & Wheels Group

Footnotes

NUT, Hex 5/16" - 181 1917372SM 2

LOCKWASHER, Spring 5/16"2 1917356SM 10

WASHER, 5/16"3 1960044SM 2

COVER, Belt4 1716784SM 1

CAPSCREW, Hex Head 5/16-18 x 2 G55 1921978SM 2

WASHER, 5/8"6 2860164SM 1

CAPSCREW, Hex Flange Head, 5/16"- 18 x 3/4"7 1921332SM 2

NUT, Hex Flange 5/16"- 18 Two, Way Lock8 1935048SM 10

WHEEL & TIRE ASSEMBLY, Tiller LH9 1716773SM 1

WHEEL & TIRE ASSEMBLY, Tiller RH9 1716775SM 1

CAPSCREW, Hex Socket Head, 1/4"- 20 x 2-5/32"10 1716782SM 2

SPRING11 1716781SM 2

WASHER, 1/4"12 1960151SM 2

RING, Snap13 1716779SM 2

KNOB, Wheel Lock Out14 1716777SM 2

NUT, Hex Keps 1/4" - 2015 2828372SM 2

KNOB, Lock Out Set of Two16 1716778SM 1

KEY, Parrallel17 2805850SM 2

PULLEY, Transmission18 1716769SM 1

WASHER19 1716770SM 2

CAPSCREW, 5/16"- 24 x 3/4" G520 1921515SM 2

CAPSCREW, Hex Socket Head, 5/16"- 18 x 11/4" G821 1960470SM 4

BRACKET, Engine Mount LH22 1716753SM 1

BUMPER, Guard23 1721528SM 1

CAPSCREW, 5/16"- 18 x 1 3/4" G524 1922127SM 8

BRACKET, Engine Mount RH25 1716752SM 1

CAPSCREW, 5/16"- 24 x 1/2"26 1716756SM 1

GUIDE, Belt Forward27 1721527SM 1

ENGINE, 6HP Briggs & Stratton - Engine Model 120492, Engine Type 0119-E128 * 1

SCREW, Set 1/4"- 20 x 1/4"29 1716758SM 1

KEY, Woodruff30 2805121SM 1

PULLEY, Engine, Reverse31 1716757SM 1

PULLEY32 1716761SM 1

CAPSCREW, Hex Head, 5/16"- 24 x 1-1/2"33 1716760SM 1

V-BELT, Reverse34 1721523SM 1

V-BELT, Forward35 1716766SM 1

SPACER, Engine Pulley36 1716762SM 1

PULLEY, Engine, Forward37 1716764SM 1

Note* See your local Briggs & Stratton distributor for Parts & Service.

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S

Not for

Reproduction

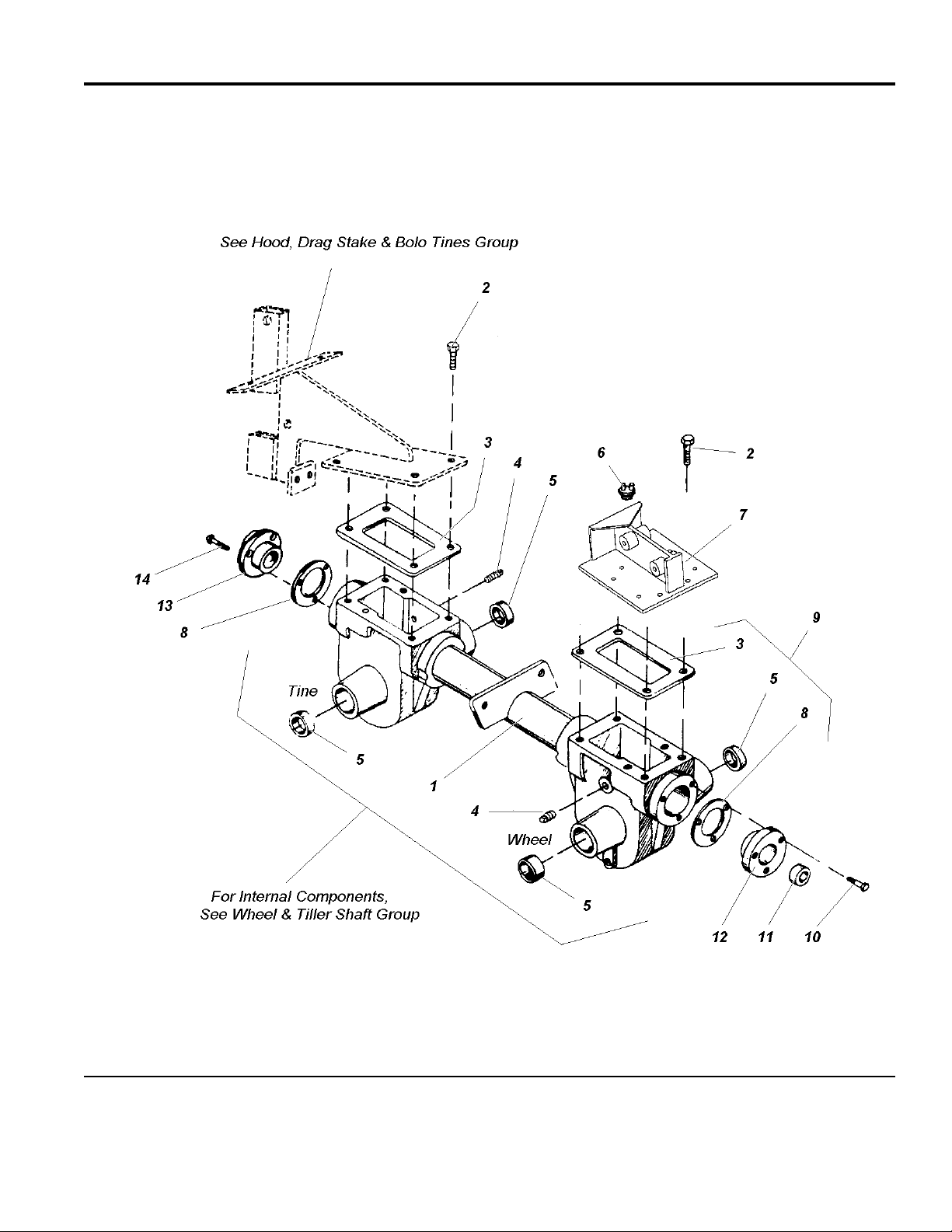

Transmission Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985159

The above parts group applies to the following Mfg. Nos.:

2009

1693704 - 616RT

TP 400-2488-01-RT-S
