Simplicity SPORT Manuale utente
Owner’s Manual
1
Getting Started
Important Safety Instructions 2
Polarization Instructions 3
Description of the Vacuum 4
Operation 6
Attachment Cleaning
Cleaning Tools 8
Adjusting the Suction Power for Tool Cleaning 9
Using the Blower Exhaust Port 9
Micro Tool Kit and Angle Adapter 10
Maintenance and Care
Replacing the Vacuum Bag 11
When to Change the Filter 12
Replacing the Charcoal Filter 12
Problem Solving Guide
Troubleshooting 13
Visit Simplicity Vacuums Online 13
How to Contact Your Authorized Retailer 13
Key Replacement Parts 13
For Best Performance 13
Warranty 14
CONTENTS
2SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
IMPORTANT:
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the instructions, or for uses other
than those for which it was intended.
WARNING:
To reduce the risk of fire, electric shock, damage or injury:
• Do not leave appliance when plugged
in. Unplug from outlet when not in use
and before servicing.
• WARNING: ELECTRIC SHOCK COULD
OCCUR IF USED OUTDOORS OR ON
WET SURFACES.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or
plug. If appliance is not working as it
should, has been dropped, damaged,
left outdoors, or dropped into water,
return it to your Authorized Retailer
for service.
• Do not pull or carry by cord, use cord
as a handle, close a door on the cord,
or pull cord around sharp edges or
corners. Do not run appliance over
cord. Keep cord away from heated
surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with
wet hands.
• Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches
or hot ashes.
• Do not use without vacuum bag and/or
filter in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids, such as gasoline,
or use in areas where they may be
present.
• Do not attempt to service the unit while
appliance is plugged in.
3
Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, this product is equipped with a polarized
alternating current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact a qualified electrician to replace the obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
POLARIZATION INSTRUCTIONS
4
1
6
7
13
5
2
4
8
9
11
10
12
3
15
14
16
DESCRIPTION OF THE VACUUM
5
1 Carrying Handle
2 Crevice Tool
3 Deluxe Dusting Brush
4 Shoulder Strap
5 Upholstery Tool
6 Bag Compartment Cover and Retaining Latch
7 Suction Intake Port
8 Suction Relief Ring
9 Hose Assembly
10 Cleaning Tools Holder
11 Blower Exhaust Port
12 Main On/Off Power Switch
13 Extension Wands
14 Rug/Floor Tool
15 Micro Tool Kit
16 Adjustable Angle Adapter
DESCRIPTION OF THE VACUUM
6

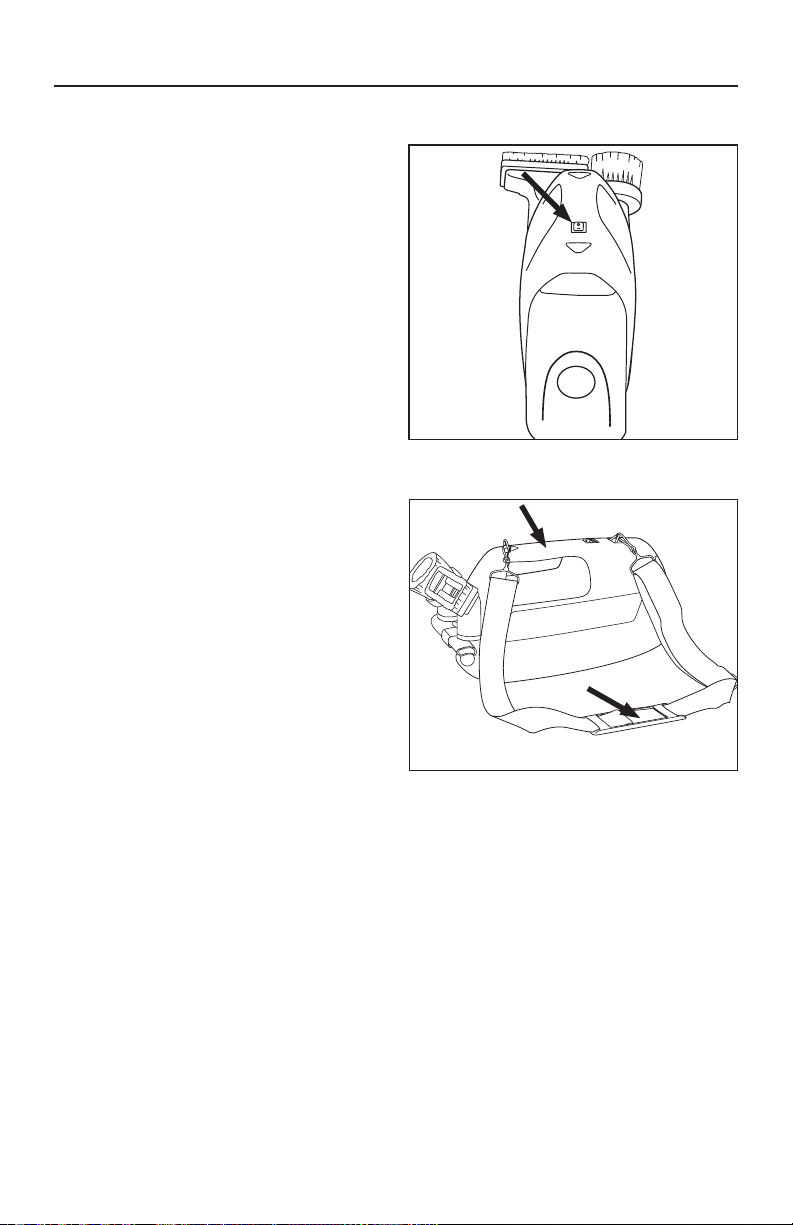

Turning the Vacuum On/Off
(Fig. 1)
• To start the vacuum cleaner, flip the
“On/Off” switch located on the handle
to the “On” (I) position.
• To stop the vacuum cleaner, flip
the “On/Off” switch to the “Off”
(O) position.
• Turn the vacuum cleaner off before
unplugging from the electrical outlet.
Carrying the Vacuum (Fig. 2)
To safely transport your vacuum use the
carry handle and/or the shoulder strap.
OPERATION
Fig. 1
Fig. 2
7

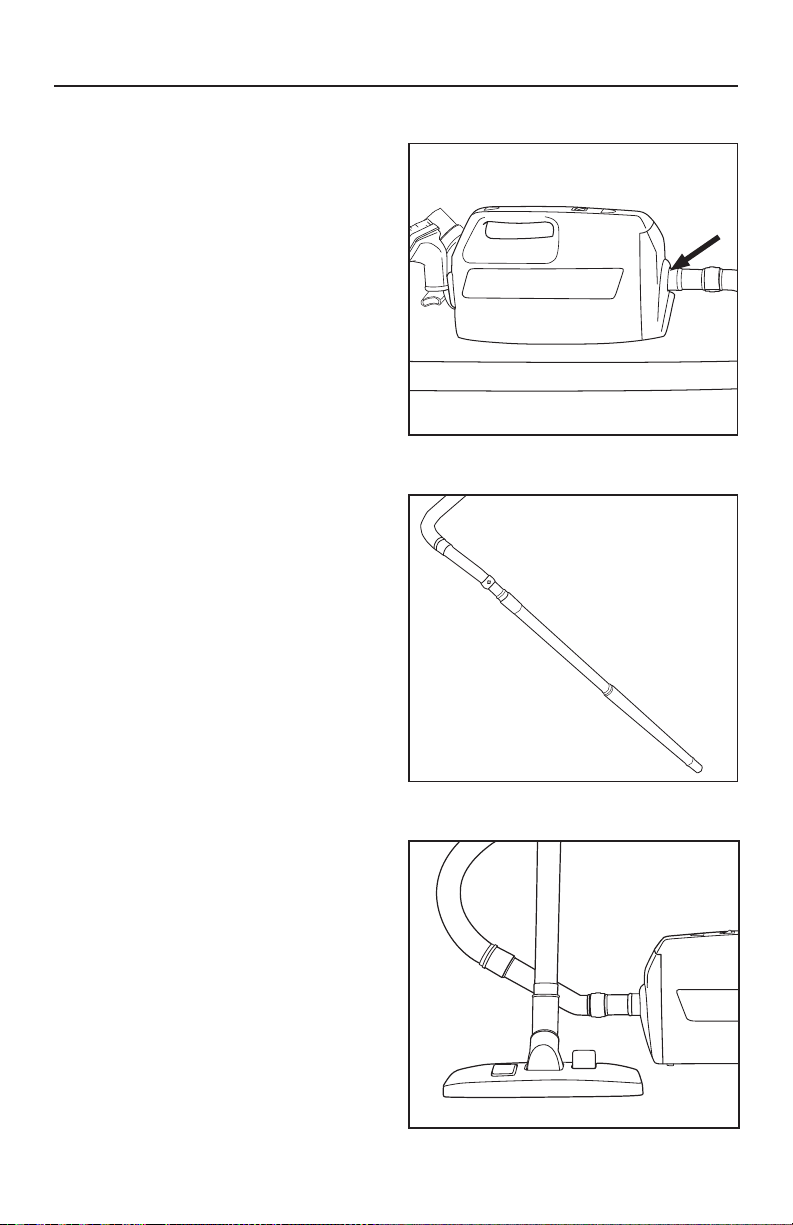

Vacuuming Floors
With the cleaning tools and vacuum
wands, your vacuum is a comprehensive
cleaning system.
• Attach the vacuum hose to the suction
intake port and twist to lock into
place (Fig. 3).
• Attach the extension wand(s) to
the curved handle end of the hose
(Fig. 4).
• Attach the rug/floor tool to the
end of the extension wand(s)
for cleaning floors and area rugs
(Fig. 5).
NOTE: You can connect any of the
cleaning tools to the end of the extension
wand(s) and twist for a secure fit.
To remove the cleaning tool from the
extension wand(s) simply twist and
pull apart.
OPERATION
Fig. 3
Fig. 4
Fig. 5
8
Cleaning Tools
Your vacuum is equipped with a deluxe
dusting brush, upholstery tool and
crevice tool.
• Attach the vacuum hose to the suction
intake port and twist to lock into place
(Pg. 7, Fig. 3).
• Attach the extension wand(s) to
the curved handle end of the hose
(Pg. 7, Fig. 4).
• Insert any of the tools onto the end
of the wand(s). Tools can be attached
directly to the vacuum hose when
the extension wands are not needed.
Dusting Brush (Fig. 6)
Ideal for table tops, shelves, blinds
or baseboards.
Upholstery Tool (Fig. 7)
Ideal for soft surfaces like chairs
and couches.
Crevice Tool (Fig. 8)
Ideal for tight places like between seat
cushions or corners.
Cleaning Tools Holder (Fig. 9)
Your vacuum is equipped with a
convenient holder for the cleaning tools.
• Slide the holder onto the clip above
the blower exhaust port and attach the
tools onto the holder.
Fig. 8
Fig. 7
Fig. 6
Fig. 9
ATTACHMENT CLEANING
