IMPoRtAnt sAFetY InstRUCtIons
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the
instructions or for uses other than those for which it
was intended.
To reduce the risk of fire, electric shock or injury:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
• WARNING: ELECTRIC SHOCK COULD
OCCUR IF USED OUTDOORS OR ON
WET SURFACES.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If
appliance is not working as it should, has
been dropped, damaged, left outdoors,
or dropped into water, return it to your
Authorized Retailer for service.
• Do not pull or carry by cord, use cord as
a handle, close a door on the cord, or pull
cord around sharp edges or corners. Do
not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with
wet hands.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair and anything that
may reduce air ow.
• Keep hair, loose clothing, ngers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Do not use without vacuum bag and/or
lters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or
combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.
sAVe tHese InstRUCtIons.
IMPoRtAnt:
3

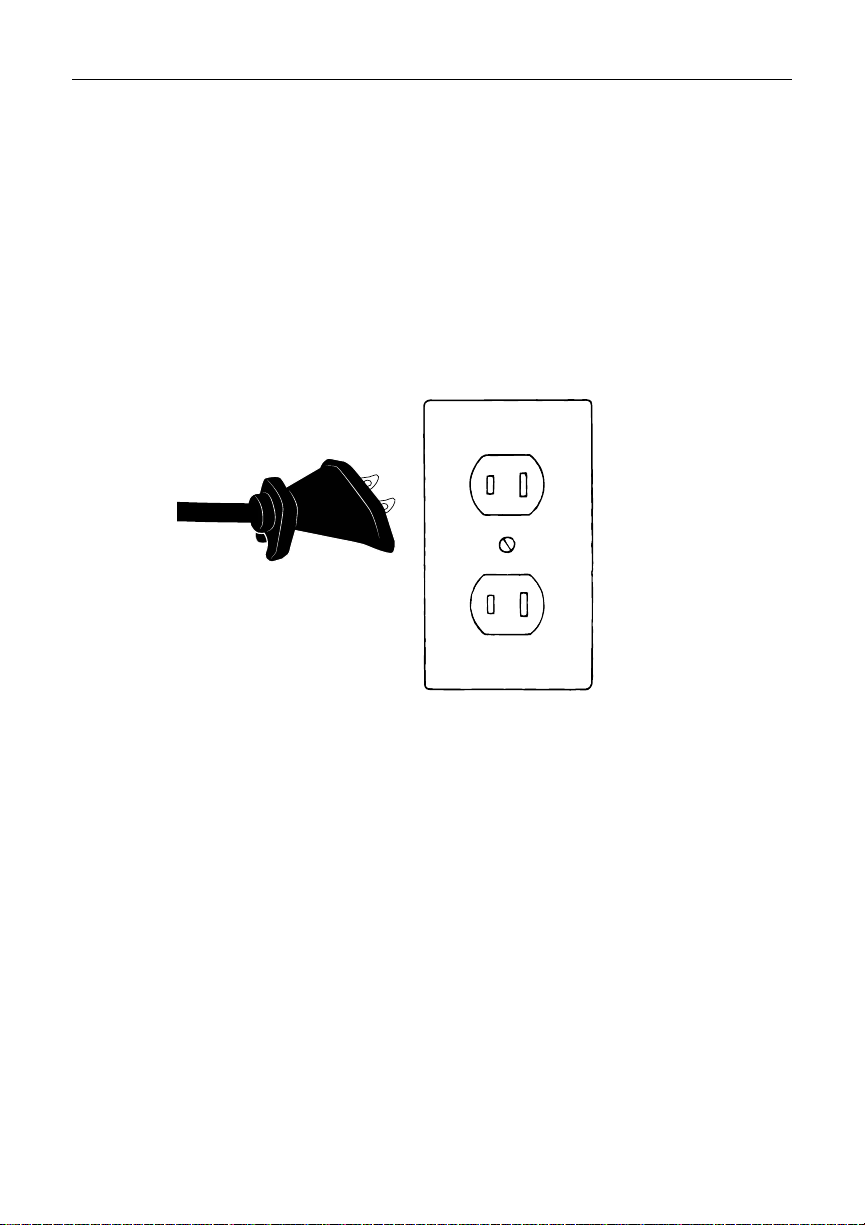

POWER CORD, 2-WIRE POLARIZED CORD
To reduce the risk of electric shock, this product is equipped with a polarized alternating
current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician
to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.
PolARIzAtIon InstRUCtIons
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to
cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to
cause birth defects or other reproductive harm.
4
DesCRIPtIon oF tHe VACUUM
11
7
3
9
13
14
5
4
2
6
1
8
10
12
5
DesCRIPtIon oF tHe VACUUM
1 Ergonomic Handle
2 Carrying Handle
3Bag Compartment Cover (to Replace Vacuum Bag)
4 Vacuum Nozzle
5 Furniture Guard
6Power Cord
7 Main On/Off Power Switch
8 Suction Control Dial
9 Combination Dusting/Upholstery Brush (Models S20SC & S20E)
10 Crevice Tool (Models S20SC & S20E)
11 Handle Release Pedal
12 Thermal Motor Protection Reset Button
13 Quick Release Upper Cord Hook
14 Ready Reach™ Tools (Models S20SC & S20E)
6
AsseMblIng tHe VACUUM
Attaching The Handle To The Vacuum
The vacuum cleaner and the handle are
packed separately.
• After first removing the handle screw,
position the handle behind the vacuum
cleaner and level with the top of the unit.
Hold the power cord down and away
from the vacuum while the handle is being
attached.
• On the bottom of the handle are two
“T-shaped” rails that slide forward onto
two guides located on the top of the
vacuum cleaner. Line up the handle so
that the “T” rails will slide into the guides
and push the handle forward (Fig. 1).
• Insert the handle screw and tighten
securely (Fig. 2).
• Turn the upper cord storage hook to
the upright position and wind the power
cord around the cord storage hooks
when storing the vacuum cleaner (Fig. 3).
Fig. 1
Fig. 2
Fig. 3
7
oPeRAtIon

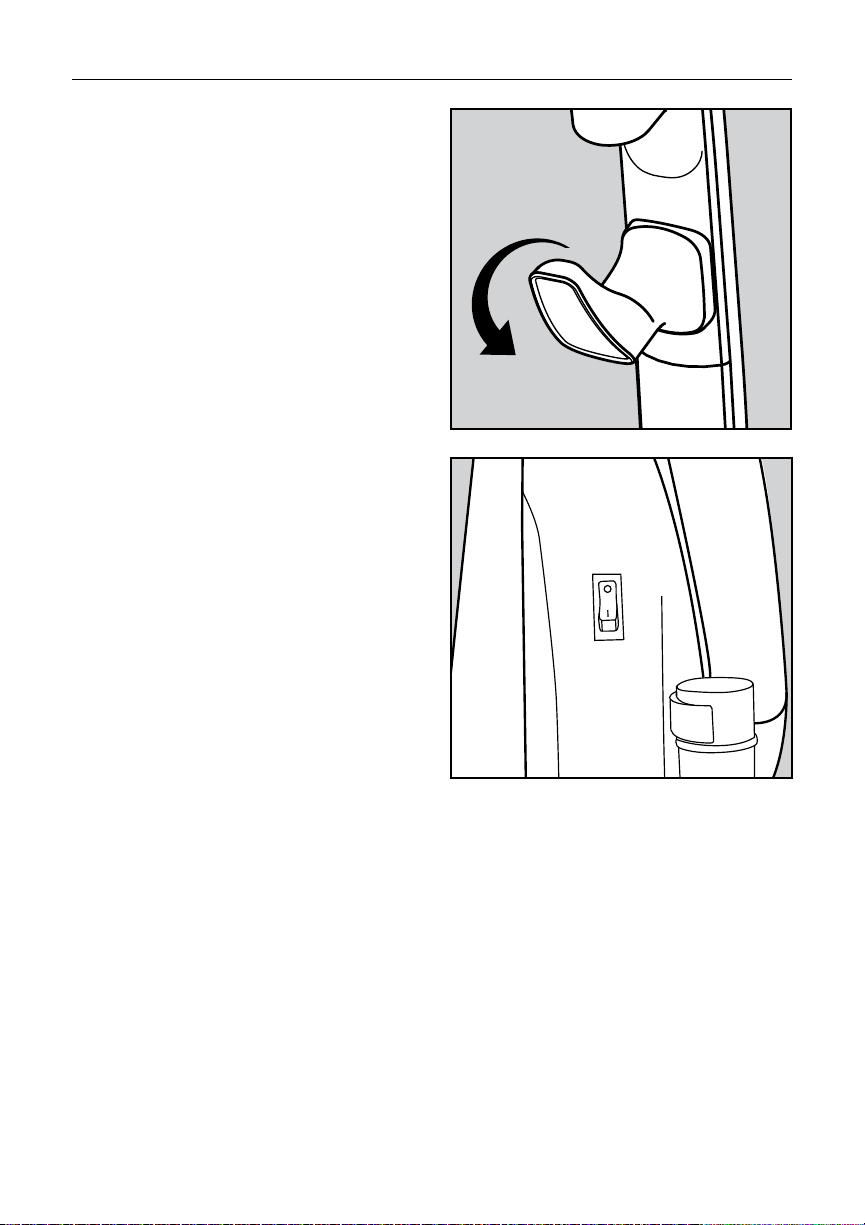

Unwinding the Power Cord
• The upper cord hook rotates to allow for
quick access to the power cord.
Turning the Vacuum On/Off
• To start the vacuum cleaner, flip the
“on/off” switch located on the side of
the bag compartment to the “on” position
as indicated on the switch.
• To stop the vacuum cleaner, flip the
“on/off” switch to the “off” position
as indicated on the switch.
• Turn the vacuum cleaner off before
unplugging from the electrical outlet.
8

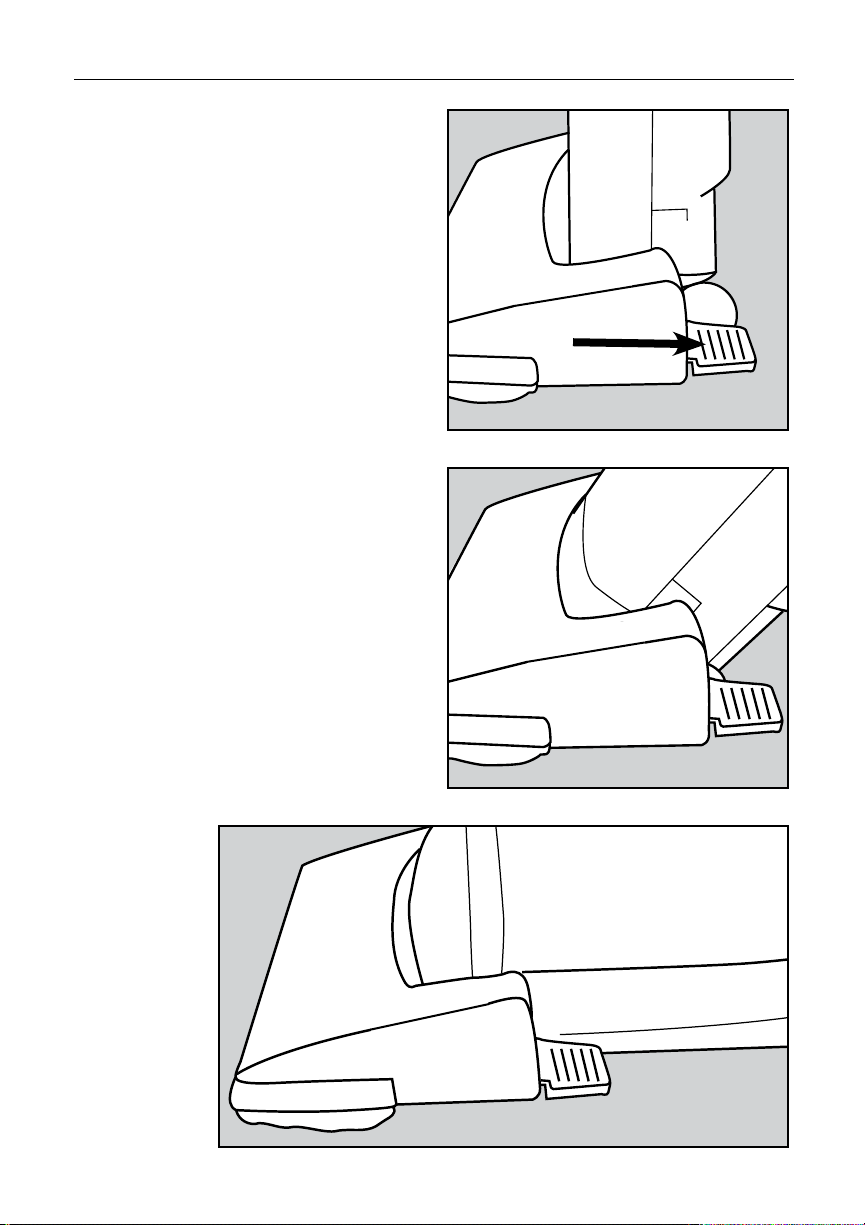

Vacuuming Under Furniture
Your Simplicity Symmetry will lie flat on the
floor for effective cleaning under beds
and tables (Fig. 1).
• Press the foot pedal release once for
normal vacuum cleaning (Fig. 2).
• Press the foot pedal release a second
time to enable the vacuum to lay flat
on the floor (Fig. 3).
oPeRAtIon
Fig. 1
Fig. 2
Fig. 3
