Simrad EQ42 Manuale utente

02244.30

M A N U A L

M A N U A LM A N U A L

M A N U A L

SIMRAD EQ42/50/52

Echosounder

183-0300-202 English

EQ42/50/52 Echosounder Table of contents

1. Introduction and system

familiarization

1.1 Introduction and system

familiarization, 5

1.2 Safety summary, 6

2. Fundamentals & initial start-up

2.1 PAGE and WINdow system, 7

2.2 Key functions, 10

2.3 Menu bar, 11

2.4 Menu layout, 12

2.5 Initial start-up, 13

2.6 Turn power off, 14

3. Position menu

3.1 Position display, 15

4. Navigation menu

4.1 Highway display, 17

4.2 Navigation setup, 17

5. Operation of the EQ40/50/52

Echosounder menu

5.1 Echosounder display, 19

5.2 Bottom expansion, 21

5.3 VRM expansion, 22

5.4 A-scope, 23

5.5 Variable range marker, 24

5.6 Depth & temperature diagram, 24

5.7 Echosounder setup, 26

5.8 Presentation setup, 28

6. Miscellaneous menu

6.1 DSC alarm, 29

7. SPECIAL menu

7.1 Speed alarm, units &

language, 31

7.2 Interface setup NMEA, 33

7.3 Alarm output, 36

7.4 Decca lanes, 37

7.5 Loran C, 38

7.6 Display color, 39

7.7 Factory settings, 40

8. Principles of operation

8.1 Parts of an echosounder, 41

8.1.1 Display screen, 41

8.1.2 Processor, 41

8.1.3 Receiver/transmitter, 41

8.1.4 Transducer, 41

8.2 How the EQ42/50/52 works, 42

8.2.1 Transducer beamwidth, 43

8.2.2 Effects of the vessel’s

speed, 44

9. Installation and service

9. Installation notes, 45

9.1 Installation of EQ42, 47

9.2 Installation of EQ50, 49

9.3 Installation of EQ52, 51

9.4 Place of installation of

display unit, 53

9.5 Installation of DS42/50, 53

9.5.1 Operation of DS42/50, 54

9.6 Electrical connections, 55

9.6.1 Power supply connections, 56

9.6.2 Fuse, 56

9.6.3 Transducer connection, 56

9.6.4 NMEA0183 interface, 58

9.6.5 Optional connections, 58

9.6.6 Universal connection cable for

unspecified transducers, 58

EQ42/50/52 Echosounder Table of contents

9.7 Basic transducer and cable

information, 59

9.7.1 Transducers, 60

9.7.2 Determining the position

for the transducers, 63

9.8 Preventive maintenance, 65

9.9 Repair and service, 65

9.10 Troubleshooting, 66

9.11 Specifications, 67

Appendix A

Glossary of terms, 69

Index, 73

CE Declaration

International warranty, 77

List of Simrad distributors

EQ42/50/52 Introduction and safety summary Chapter 1

1.1 Introduction and system familiarization

Congratulations on your purchase of SIMRAD EQ42/50/52 MKII

Echosounder and Fishfinder. Great care has been taken to create this

innovative video sounder … both in design and performance.

The EQ42/50/52 MKII is a unique new slim-line product in the Simrad

Marine Line, and is available with a 10” ATFT (EQ42), 14” TFT

(EQ50), or 15” TFT (EQ52) large LCD display in color.

The echosounder system with selectable frequencies will provide an

impression of Bottom expansion, VRM expansion, A-scope and White

line.

DS42/50/52 Dual Station for the EQ42/50/52 is available in 10” ATFT

color, 14” or 15” TFT color.

How to use this manual? The manual is written for the products:

EQ42, EQ50 and EQ52, which all share the same type of software.

From hereon, these models are referred to as: EQXX.

It is a good idea if you make yourself familiar with the key functions,

menu structure and rotation of pages (screens) described in chapter 2

before you start out, and then proceed with section 2.5 Initial start-up.

For quick location of a certain term, please check the “Glossary of

terms” and the “Index” at the back of the manual.

How to interpret special marked key symbols, etc. in the manual:

+/- Either the + (plus) or – (minus) key may be applied.

0-9 Alpha-numeric keys for insertion of figures.

A-Z Alpha-numeric keys for insertion of letters.

)Emphasizes important points.

3,7 Indicates that you should press the keys [3] and [7] to obtain what is

written in italic next to the keys.

EQ42/50/52 Introduction and safety summary Chapter 1

1.2 Safety summary

Precaution The operating unit should not be exposed to direct sunlight,

as “boiling”the display may cause too high temperatures internally and

subsequently damage parts of the unit beyond repair.

Quality service personnel The EQXX is sealed and does not contain

any user serviceable parts. Opening of the unit will void its warranty.

Touching electrical parts inside may cause bodily harm or death. If the

unit is not working properly, check sections 9.8 Preventive maintenance,

9.9 Repair and service, and 9.10 Troubleshooting. If your EQXX requires

servicing or repair, call your authorized SIMRAD dealer.

Power source, fuse and power cable Check that the DC power

supplied to the unit is within the range of 10 to 32 volts. Note that the

appropriate fuse must be employed (see the fuse rating in section 9.11

Specifications). Ensure that the power cord is firmly attached.

Grounding The EQXX is a sophisticated piece of electronic equip-

ment. To reduce electrical interference and risk of electrical shock,

properly ground the unit to the ship’s ground using the ground screw on

the back of the unit.

Glossary of terms If you have never used an echosounder before or if

you are unsure of how a term is used in this manual, then turn to

Appendix A –Glossary of terms.

Default settings All user implemented data in the EQXX can be erased

by making a reset of the unit and thus return to factory default settings.

Principles of operation The scientific principles of operation of the

EQXX are explained in chapter 8. Principles of operation.

EQ42/50/52 Fundamentals & initial start-up Chapter 2

2.1 Fundamentals of the PAGE and WINdow system

The EQXX Echosounder has a multi-function screen data presentation

system. You can choose to have a full screen, or a screen divided into

e.g. an echo display and two data/echo displays, etc.

The display which is currently activated is indicated by a highlighted

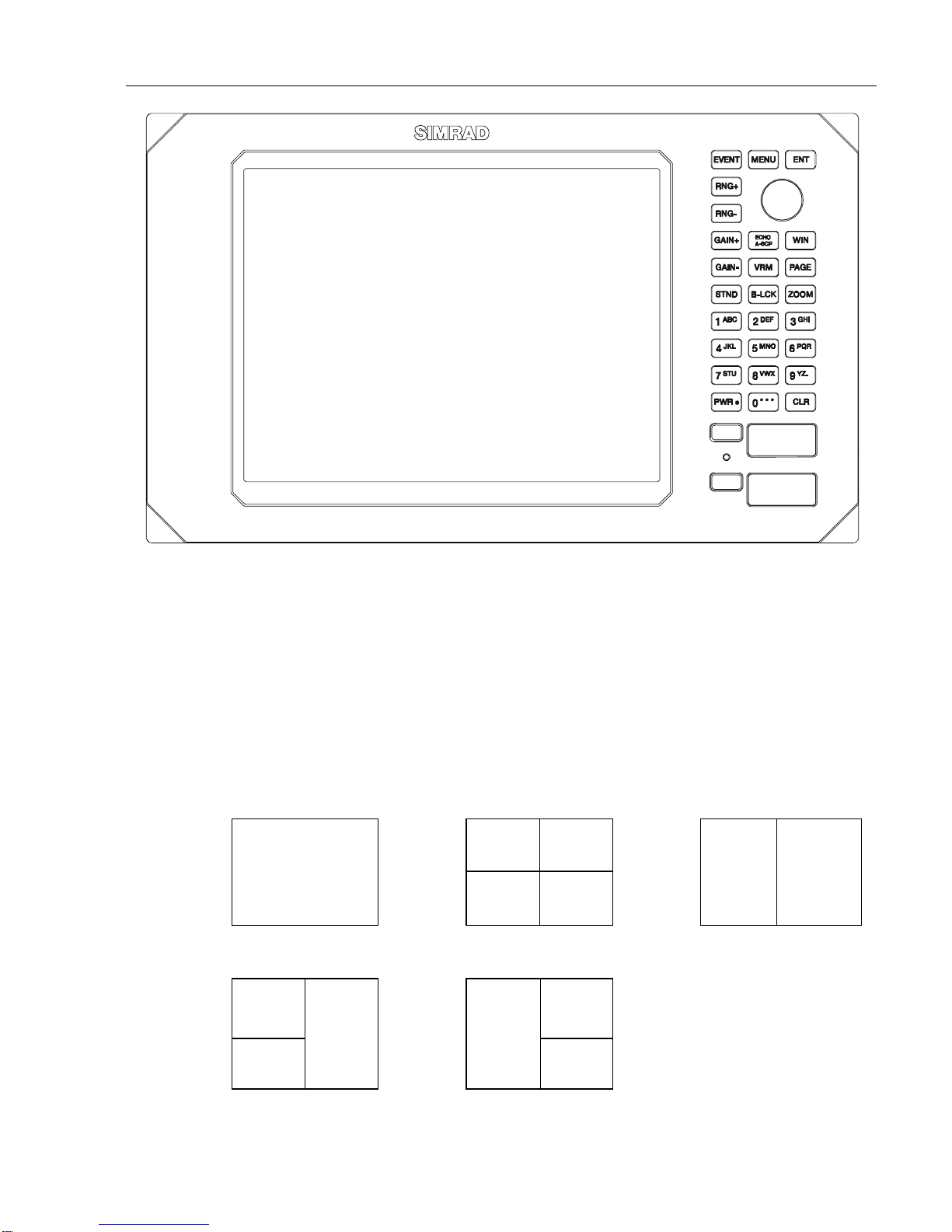

frame around the active window. There are five screen combinations to

choose from:

WINdow 0

1. Full (1/1) screen. 2. Four ¼ displays. 3. Two ½ displays.

4. & 5. Combination displays of one ½ and two ¼ displays.

)WINdows 5 and 6 are dedicated for echo displays and related setup.

EQ42/50/52 Fundamentals & initial start-up Chapter 2

As many as 4 screen combinations or full

screens can be saved in four pages.

Press the [PAGE] key to toggle between the

four pages, or hold the [PAGE] key depressed

to start a rotation of the four pages.

Press [PAGE] again to return to manual

operation.

To mix and match the various echo and data displays you wish to have

in the PAGE and WINdows pesentation, you will first need to know

what is pre-set from the factory:

PAGE Scroll through the four pre-set pages to see if you wish to exchange

any of the displays with a different one.

Example of how to edit a pre-set page:

window

5window

We pretend that in this page, window 2 contains the

navigation display (highway), window 3 an echo

display in 50kHz, and window 5 an echo display in

200kHz.

You now wish to insert the “Echosounder setup”display in window 3

instead of the echo display in 50kHz. This is the procedure:

WIN Press the [WIN] key until the frame around window 3 is highlighted

MENU Call up the menu bar, and…

3,8 then call up the ECHO menu and select “Echosounder setup”

- you will now have the “Echosounder setup”display in window 3

instead of the echo display in 50kHz.

Example of how to edit a full screen to four ¼ displays:

We pretend that you are looking at a full screen which you wish to

divide into four ¼displays. This is the procedure:

MENU First call up the menu bar, and…

1then call up the POS menu - see example next page.

EQ42/50/52 Fundamentals & initial start-up Chapter 2

POSITION

WIN

_1_

POS

_1_Position

What you do now will determine

which WINdow the display you are

about to select will appear in.

Press the [WIN] key repeatedly to

scroll through the window system.

WIN Press the [WIN] key once to select window 1

-which is the left top quarter of the screen.

1Select the Position display

- you will now have the position display presented in window 1.

The rest of the windows in this page i.e. window 2, 3 and 4 will contain

the displays which were pre-set from the factory. They can all be

exchanged with new displays at your choice.

)However, the same display can not appear twice on the same page,

so in case you are trying to select the same display in a second

window, this is what will happen:

As per above example, you have selected the Position display in

window 1, but it may just happen that the Position display was pre-set

to window 2 –therefore window 2 will now show the legend: “Select

display via MENU.”

You may select the same display to appear on different pages, but not

on the same page.

EQ42/50/52 Fundamentals & initial start-up Chapter 2

2.2 Key functions

A description of the key functions is available at the start-up display in

the Quick guide. Some of the key functions are general and can be

applied at any time, other key functions are related to a certain menu(s)

and can only be applied when in the appropriate menu.

WIN Toggles between windows. The active window will have a highlighted

frame. Only activated windows are operable.

PAGE Toggles between four pre-selected pages (screens). Hold two seconds

for automatic rotation of pages. Press again for normal operation.

MENU Turns the menu bar on/off. Exits any data display without taking any

action.

ENT Opens for/confirms insertion and editing of data. Gives access to setup

displays related to main displays.

Moves cursor in data displays. Activates and moves variable range

marker (VRM) up/down. Moves left and right in the menu bar.

CLR Deletes data in enter or edit mode.

EVENT Placing a vertical line at the current ping for indication of e.g. fish.

Sending out WPL via NMEA –see “Event marker”, Appendix A.

PWRPress and hold the [PWR] keytoturnonthepower.Activatesmenufor

setting light, contrast or display colors i.e. Daylight display, Night dis-

play or custom made display. Hold two seconds to turn the power off.

RNG+

RNG-

RANGE+ (plus) and RANGE- (minus) will adjust the scale/range of

depth. +/–will toggle between available values.

GAIN+

GAIN-

GAIN+ (plus) and GAIN- (minus) will adjust presentation of received

echo. Press + till noise appears in “water”,thenpress–till noise just

disappears again.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Simrad Equipaggiamento marittimo

Simrad

Simrad ITI - INSTALLATION REV C Manuale utente

Simrad

Simrad ES80 Manuale utente

Simrad

Simrad SX90 - DATASHEET FOR NAVAL AND COAST GUARD REV... Manuale utente

Simrad

Simrad IS40 Manuale utente

Simrad

Simrad B&G h2000 Manuale utente

Simrad

Simrad CE34 ChartSounder Manuale utente

Simrad

Simrad GC80 EXPANDED Manuale utente

Simrad

Simrad EQ44 Istruzioni per il montaggio

Simrad

Simrad IS20 Combi Manuale utente

Simrad

Simrad SimNet Guida rapida

Simrad

Simrad ER60 - REV B Manuale utente

Simrad

Simrad SX90 - DATASHEET FOR NAVAL AND COAST GUARD REV... Manuale utente

Simrad

Simrad ES70 - DOWNLOAD AND INSTALLATION REV B Manuale utente

Simrad

Simrad SN90 Manuale utente

Simrad

Simrad TP10 Manuale utente

Simrad

Simrad AP70 MK2 Manuale utente

Simrad

Simrad NSS evo3 Manuale utente

Simrad

Simrad GC80 Compact MK2 Manuale utente

Simrad

Simrad EM - TECHNICAL NOTE 2000 Manuale utente

Simrad

Simrad EQ 50 Manuale utente

Simrad

Simrad ES60 - DATASHEET REV A Manuale utente

Simrad

Simrad CS90 Manuale utente

Simrad

Simrad AP70 Manuale utente

Simrad

Simrad ITI TWIN RIG - QUICK REFERENCE GUIDE REV A Manuale utente

Manuali Equipaggiamento marittimo popolari di altre marche

Clarion

Clarion CMS2 Manuale di riparazione

EBS

EBS M7000 Manuale utente

Kongsberg

Kongsberg M3 Bathy Manuale utente

NPK

NPK SCS-1002 Manuale utente

Furuno

Furuno FE-800 Manuale utente

Harken

Harken 1561 Manuale utente

Notifier

Notifier FS-BSO Manuale utente

Raymarine

Raymarine ST40 Manuale utente

E2S

E2S E2XS112UL Manuale utente

R2Sonic

R2Sonic 2026 Manuale utente

COBHAM

COBHAM SAILOR 6000 Manuale utente

Clarion

Clarion GR10BT Manuale di riparazione

Raymarine

Raymarine Maxiview ST80 Guida utente

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Istruzioni per il montaggio

Raymarine

Raymarine ST60 Tridata Guida utente

olympia electronics

olympia electronics ΒS-531/1/MAR Manuale utente

Sonic

Sonic 2024 Manuale utente

Quicksilver

Quicksilver 88688A25 Manuale
