Sinew VPS-300D Manuale utente

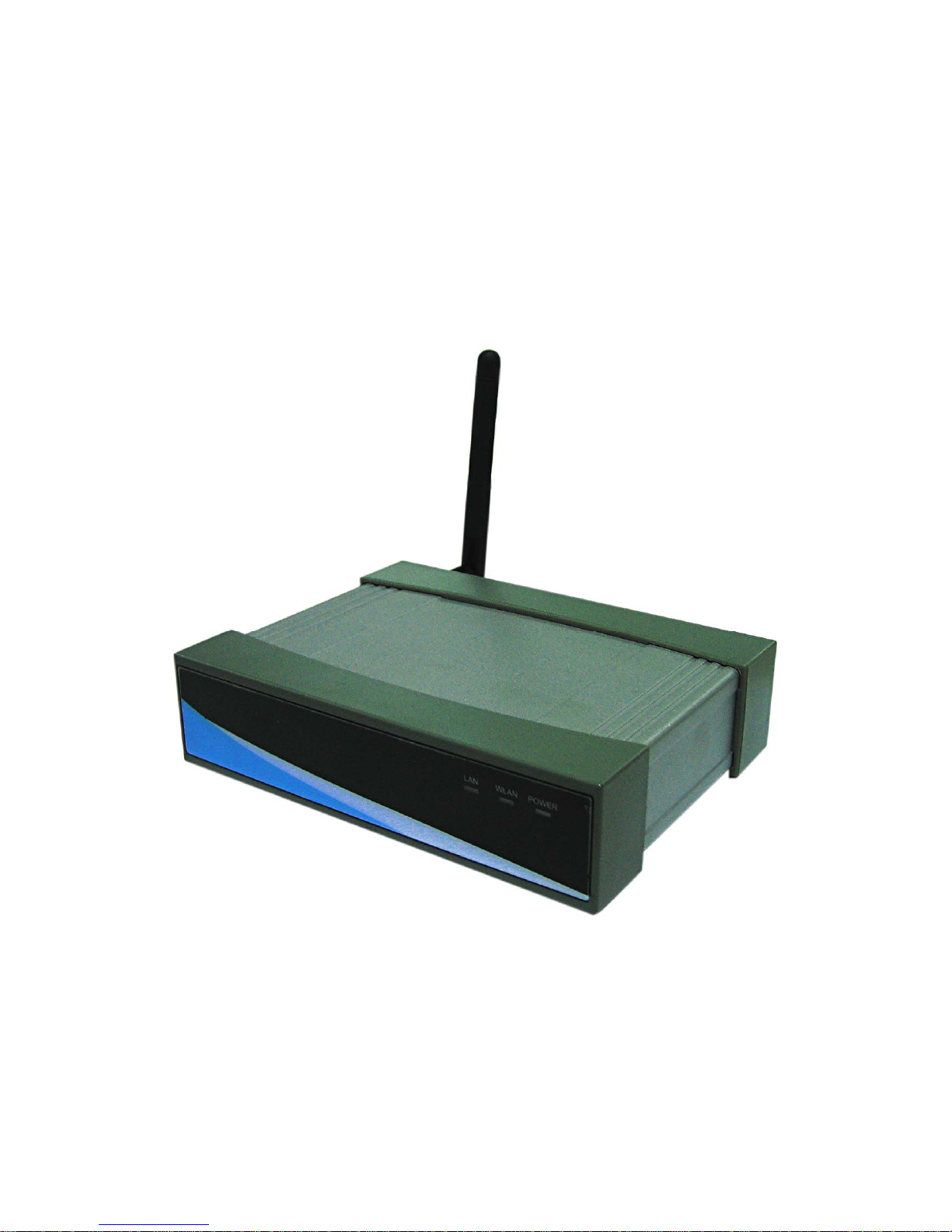

VPS-300D

Video Presentation System

Version: 1.0 Date: Nov. 3rd, 2009

Table of Contents

Overview

.....................................................................................................3

Specification

..............................................................................................5

Quick Start

.................................................................................................6

Client Utility

..............................................................................................9

4.1

Starting Program

.................................................................................9

4.2

......................................................................................................10

4.3

Buttons Description

..........................................................................10

4.4

Start/Stop Presentation

................................................................. 11

4.5

Open Admin Web Page

.................................................................... 11

4.6

Searching Server

...............................................................................12

4.7

Make VPS Token

................................................................................13

4.8

System Information

.........................................................................15

4.9

VPS for PDA

.........................................................................................15

4.10

Exit Program

...................................................................................16

Web Management

.................................................................................16

5.1

Home Page

...........................................................................................16

5.2

Download Software

..........................................................................17

5.3

Conference Control

...........................................................................18

5.4

..............................................................................20

5.5

System Status

.....................................................................................20

5.6

Network Setup

...................................................................................21

5.7

Projection Setup

................................................................................23

5.8

Change Passwords

............................................................................24

5.9

Reset to Default

.................................................................................25

5.10

Firmware Upgrade

........................................................................26

5.11

Reboot System

...............................................................................27

5.12

Logout

................................................................................................27

Appendix

...................................................................................................28

6.1

Accessories

..........................................................................................28

6.2

Packaging Specification

..................................................................28

6.3

Wall Mounting Instruction (Optional)

.......................................29

1.Overview

VPS is a must-have device for your meeting room! It turns your existing

"wired" projector into a "high-end wireless" projector. With the revolutionary

Plug-and-Show, 4-to-1 split screen and PDA wireless projection features, VPS

makes every of your presentation and meeting efficient and successful.

Plug & Show

With the accompanied Plug & Show USB Token, wireless presentation becomes

easy! Just link your PC/Laptop to VPS (through WLAN or Ethernet), plug the

token into a USB port, and in seconds, your screen will be wireless projected to

the connected projector!

4-to-1 Split Screen Projection

With this 4-to-1 split screen feature, up to four PC screens can be projected to

one projector in the same time. Thus you can easily do side-by-side

comparison from four PC / PDAs to increase meeting productivity!

PDA wireless Projection

You don't have to bring the laptop for business presentation anymore. Just

connect your PDA phone to VPS through WiFi, and start your professional and

stylish presentation right away!

Conference control

VPS supports Conference Control function for easily moderating the conference.

The conference moderator can control projection from connected PCs through

a web-based control page. So you can streamline your meeting/presentation

to be more fluent and in order.

¾Features

■Support Windows Vista, XP, 2000 and Mobile 5/6

■Plug and Show! No installation required … just plug in the

accompanied token to a USB port, and hassle free presentation can be

started in seconds.

■4-to-1 split screen projection! Turn one projector into four, increase

meeting productivity right away.

■PDA wireless projection! PC-less stylish presentation becomes

possible!

■Conference control! Allows moderators to streamline grand meetings.

■Provide session security login, wireless WEP key and Gatekeeper

function to protect presentation contents and keep good security to

office networks.

2.Specification

Dimension 117mm(W) x 140mm(D) x 27mm(H)

Weight 279g

Wireless Standards IEEE 802.11g

LAN Standards IEEE 802.3u

Data Rate Wireless: up to 54Mbps

LAN: 10/100 Mbps with auto MDI/MDIX

Wireless Channels 11 (US, Canada)

13 (Europe)

14 (Japan)

Protocol TCP/IP

IP Configuration Automatic: DHCP

Manual: static IP address

Management Web-based Configuration

Security IEEE Standard 64/128 bit WEP

Antenna Detachable antenna with SMA connector

Transmission Power 2dBi external dipole antenna

Receiving Sensitivity – 65dBm @ 54Mbps

– 80dBm @ 11Mbps at 10-5 BER

Wireless Link Coverage Up to 300 feet/100 meters, depends on

environment

Supported PC/NB

Resolution Color Depth

16/32 bit color depth

Supported PC/NB

Resolution

SVGA (800x600), XGA (1024x768), WXGA

(1280x768)

Supported Output

Resolution

SVGA (800x600). XGA (1024x768), WXGA

(1280x768)

Supported Operation

System

Windows Vista/XP/2003/2000, Windows Mobile

5.0

Supported Windows

Account Right

Administrator, Limited User, Guest

Power DC5V, 2.5A

Interfaces 15-pin VGA, RJ-45, Power switch, Reset button

Environmental conditions Operating temperature: 0~40°C

3.Quick Start

1) Connect projector VGA cable to VPS box VGA connector and turn on

projector power.

2) Turn on VPS box.

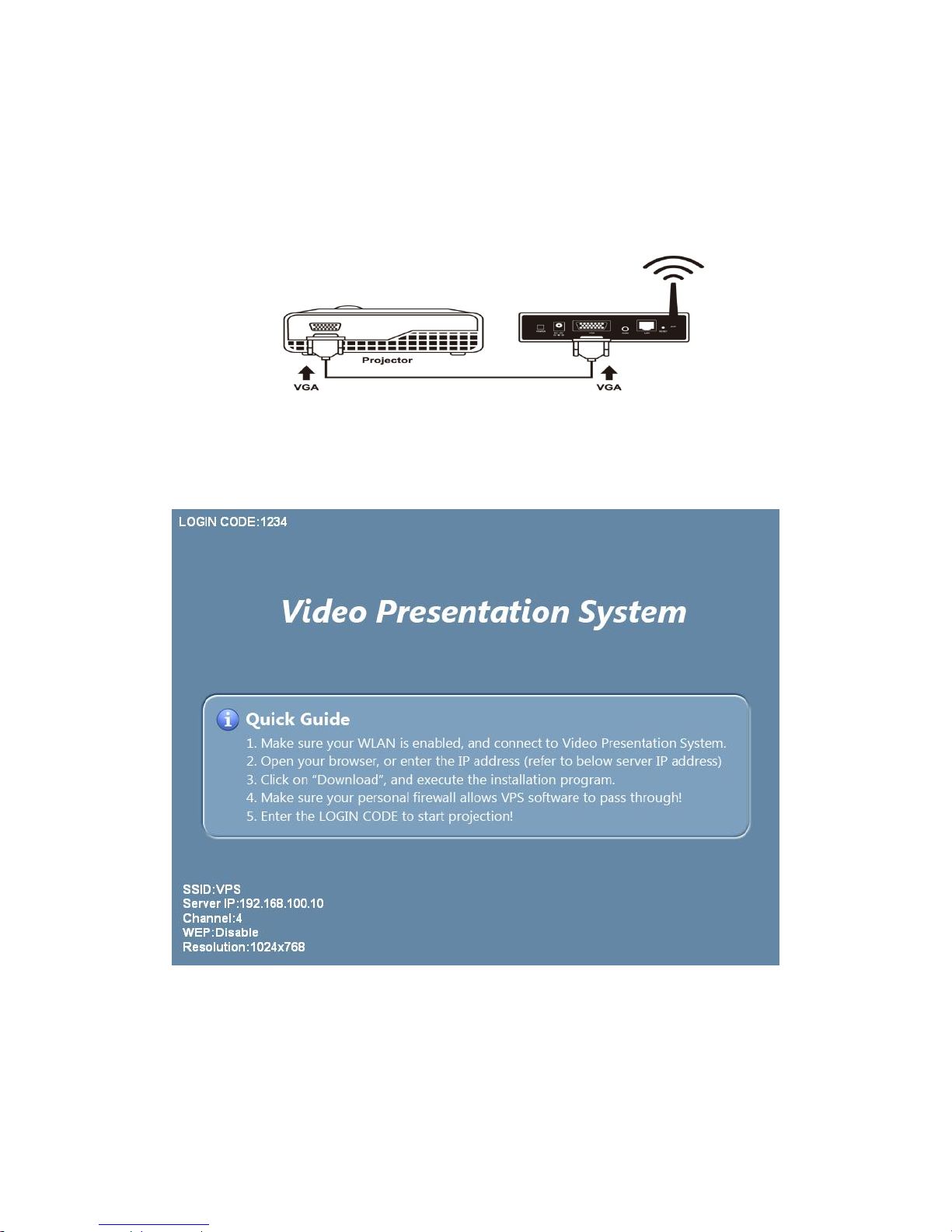

♦When Projector shows the default menu on the screen as below, it

indicates the VPS box is ready now.

3) Make sure your PC WLAN is enabled already, and connect your PC with VPS

box.

4) Open your browser and it will redirect to VPS main page automatically, or

you can enter the IP address to access the VPS web home page.

♦The default IP address of VPS is 192.168.101.15 or refers to the IP

address shown on the left corner of projector screen.

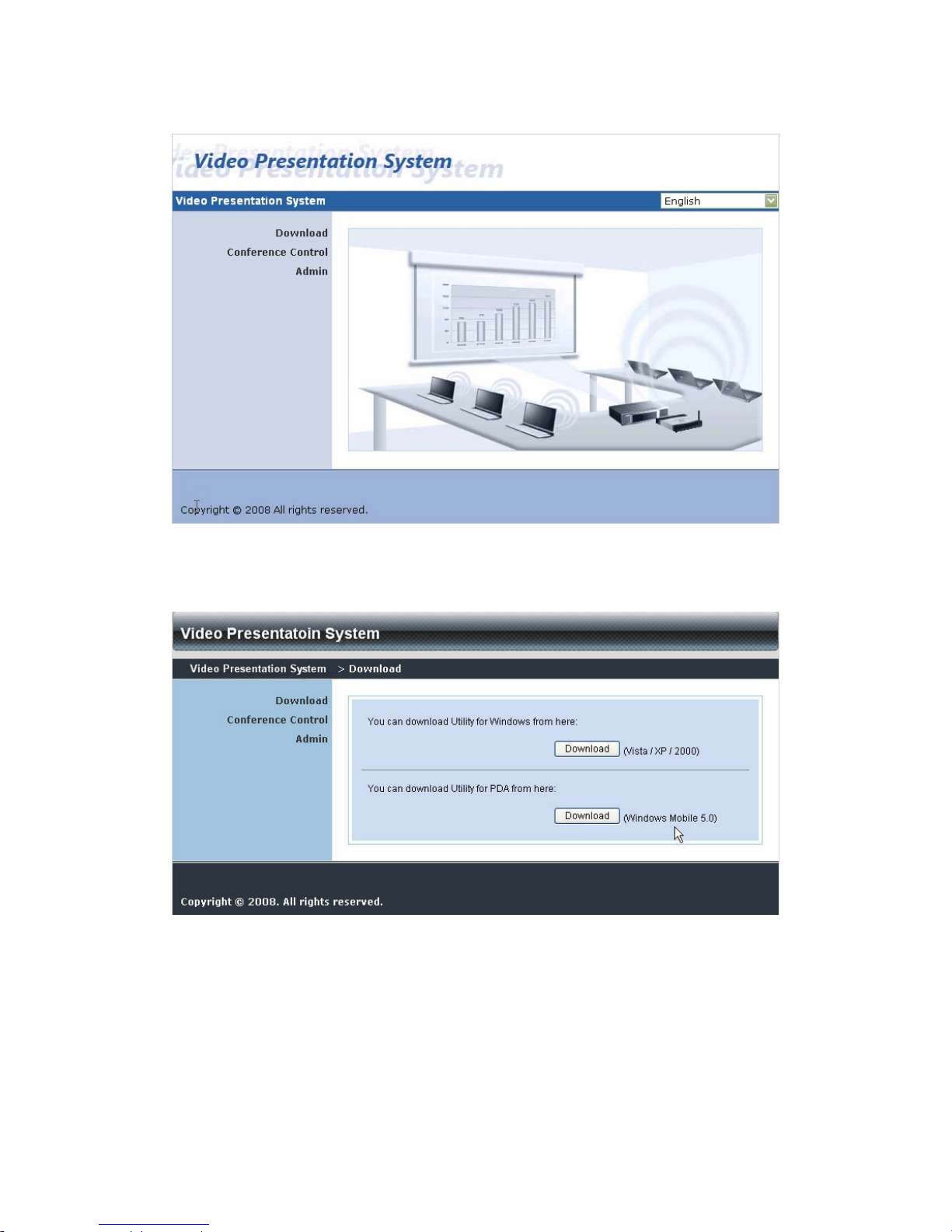

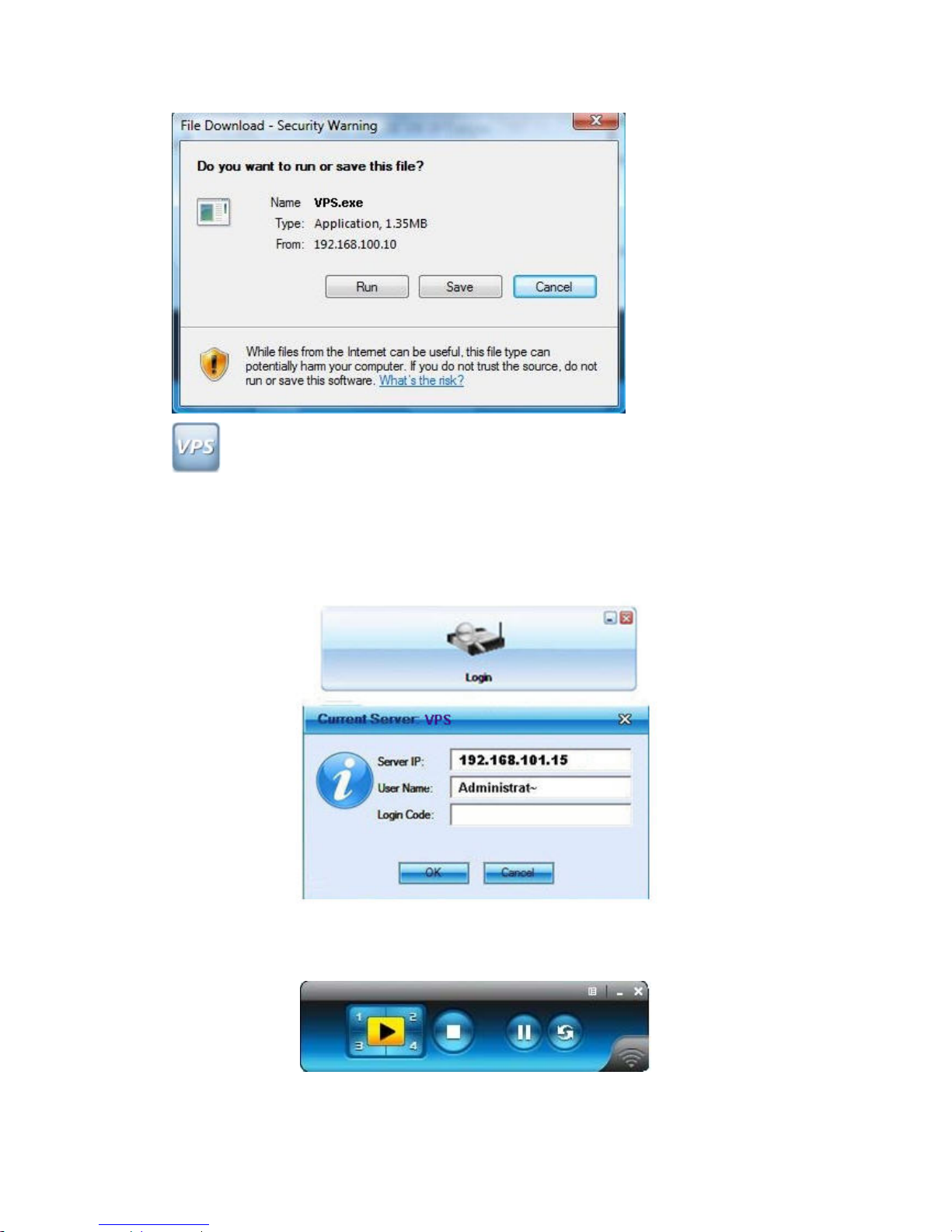

5) Download the client software. Please select the” Windows Vista / XP /

2000” or ”Windows Mobile 5.0” and execute the installation program.

♦ After install the program, VPS shortcut will come out on the PC screen.

6) Make sure your personal firewall allows VPS software to pass through.

7) Enter the LOGIN CODE and

♦You can see the login code on the projector screen

8) Click the “Play” button to start projection!

4.Client Utility

4.1 Starting Program

After you download VPS Windows program via web page successfully, then

follow below steps to start.

1) Click VPS icon to execute the program.

2) Program start to search for VPS box automatically,

3) If VPS box founded then “Login Code” dialog box will be pop up on the PC

screen.

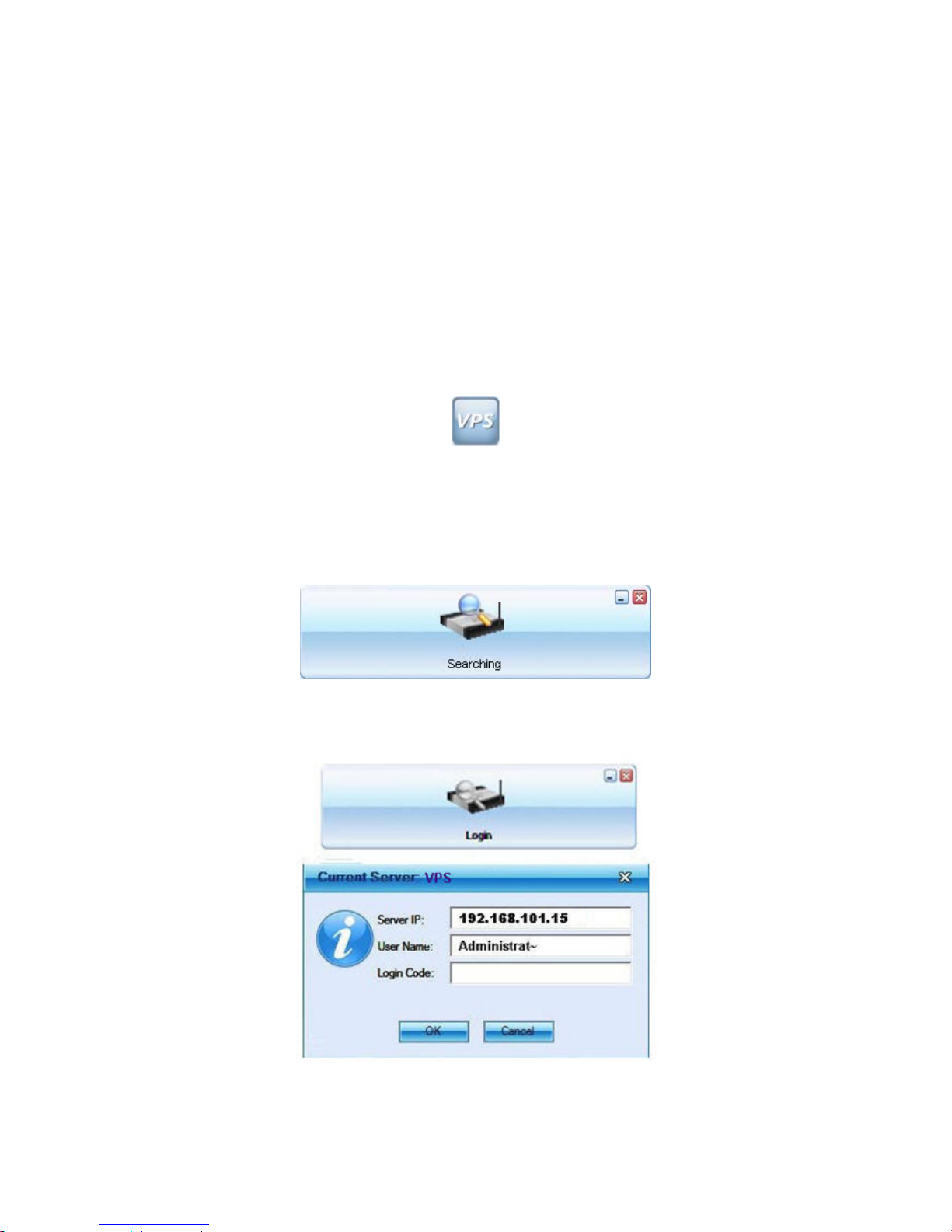

zSearching for VPS box

zVPS box is founded and enter login code to start.

4.2 Login

1) After “Login Code” dialog box shown, enter login code to start presentation.

2) You can see the login code shown on the projector screen.

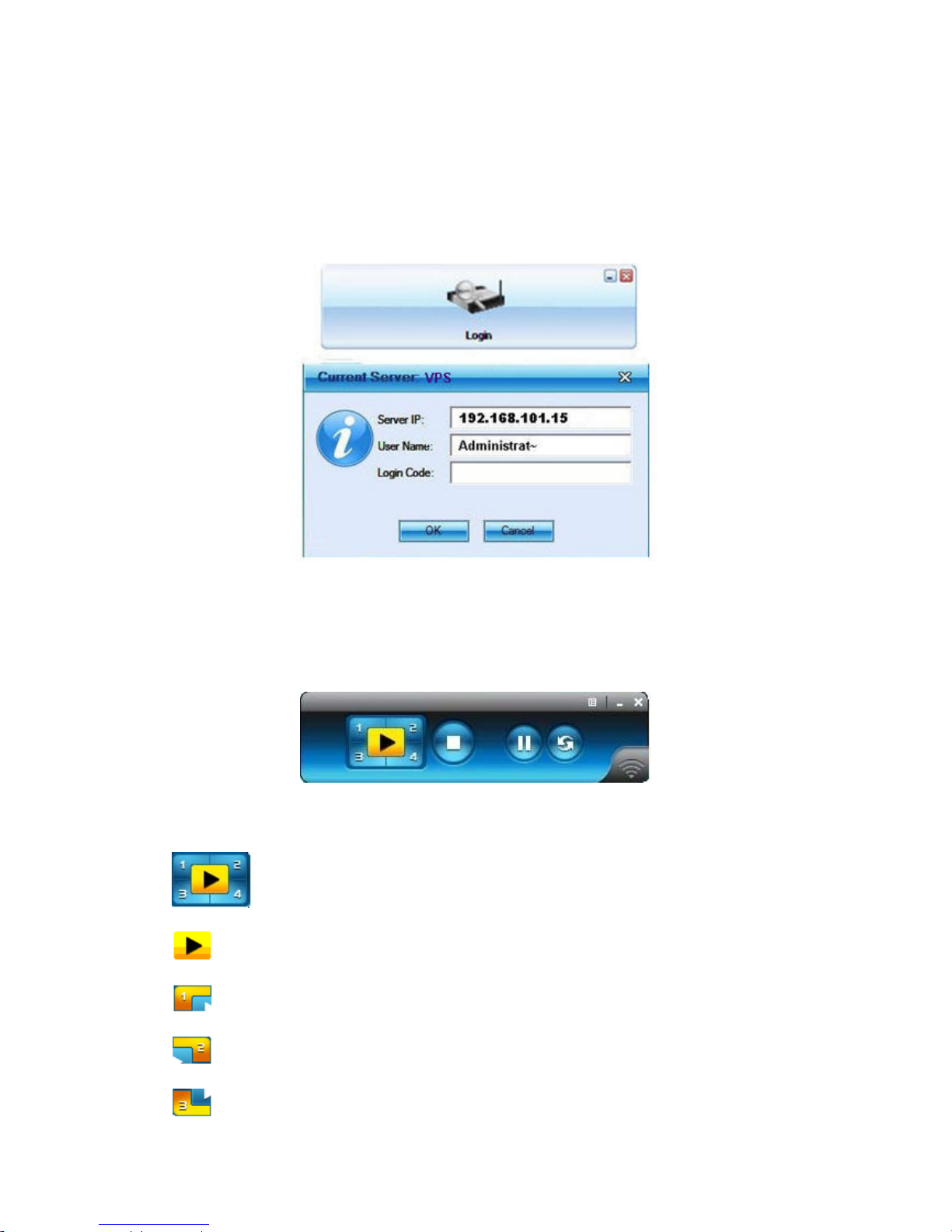

4.3 Buttons Description

1) After login successfully, you will see main UI of VPS application.

2) Click following buttons to manipulate VPS Application.

Project desktop screen to Full screen or split screen

Full Screen projection

Project to Split #1

Project to Split #2

Project to Split #3
