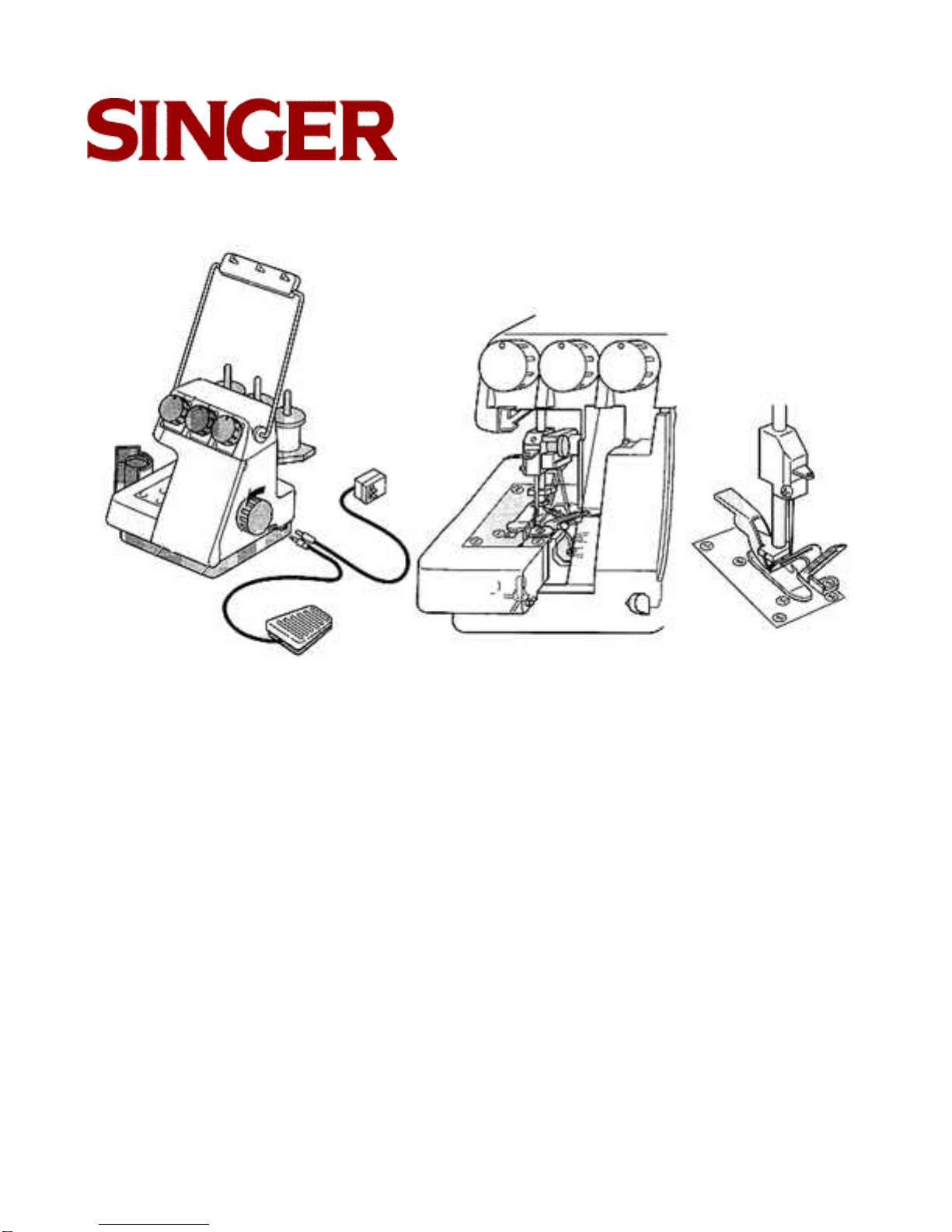

INSTRUCTION MANUAL

TS+ TS380+

Previous Page | Next Page

TABLE OF CONTENTS

•MAIN PARTS

•ACCESSORIES

•TRIALSEWING

•ADJUSTING THREAD TENSION

• PREPARATION FOR THREADING

•TYING ON THREADING

•THREADING PATH A

•THREADING PATH B

•THREADING PATH C

•PREPARATION FOR FORMING

THREAD CHAIN

• FORMING THREAD CHAIN

• STARTTO SEW

• SECURING TAILCHAINS

•TURNING SQUARE CORNER

• HEMMING FUNCTION

• JOIN TWO PIECES OF FABRIC

• CARING FOR YOUR MACHINE

• CHANGING NEEDLE

• PERFORMANCE CHECKLIST

IMPORTANT SAFEGUARDS

•Never bend loopers and needle while

threading and sewing.

•Before connecting machine be sure voltage

on AC adaptor matches your electrical out-

let

•Disconnect AC adaptor from socket outlet

when changing needle or when leaving

machine unattended

•Do not pull fabric while sewing as this may

bend needle and cause needle breakage or

damage to machine

•Handle foot switch with care and avoid

dropping it on floor Be sure not to place

anything on top of it

•Check machine is threaded correctly before

sewing

TS+ TS380+

Table of Contents Previous Page | Next Page

MAIN PARTS

1. Thread guide holder

2. Thread guide helps to ensure a smooth

flow of thread.

3. Spool pin and cap holds top thread

supply and prevents thread tangling.

4. Tension dial controls thread tension. Do

not adjust these dials until threading is

checked.

5. AC adaptor (9V 650mA) supplies power

for your machine.

6. Foot switch runs machine.

7. Sewing speed selector Low and high

8. Handwheel provides a means for raising

or lowering the needle.

9. Front cover, covers mechanism.

Threading diagram is displayed on right

side of machine when the cover is

removed

10. Accessory box.

TS+ TS380+

Table of Contents Previous Page | Next Page

MAIN PARTS continued...

11. Needle clamp body holds needle in

machine.

12. Presser bar.

13. Thread guide.

14. Needle-Style 2020 size 14

15. Seam guide keeps seam moving evenly.

16. Lower looper forms lower stitch.

17. Upper looper forms upper stitch.

18. Presser foot holds fabric against feed

system.

19. Presser foot lifter lets you raise and lower

presser foot. Press down to lift foot.

20. Internal threading light (turns off when

foot switch is plugged into machine)

TS+ TS380+

Table of Contents Previous Page | Next Page

ACCESSORIES

TS+ TS380+

Table of Contents Previous Page | Next Page

TRIAL SEWING

Take machine out of carton.

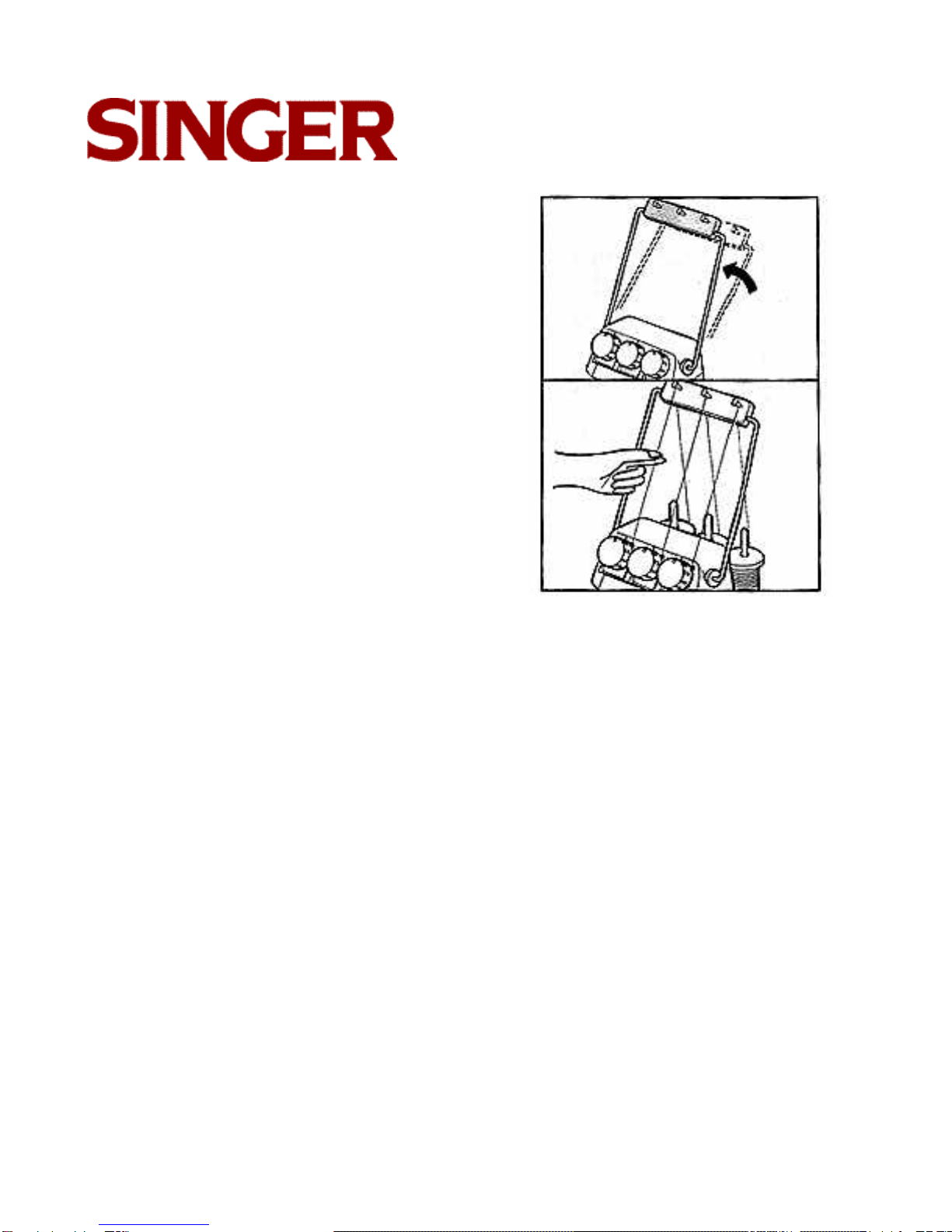

Swing thread guide holder up until a slight

sound is heard that indicates you have

reached the operating position.

Straighten all threads between thread spools

and tension dials until thread are taut.

Check thread to make sure it is not tangled

under spool or spool stand.

TS+ TS380+

Table of Contents Previous Page | Next Page

TRIAL SEWING continued...

•Plug in adaptor and foot switch.

(If not already plugged in)

Note: Internal threading light turns

off when foot switch is plug-

ged into machine.

•Press foot switch to continue sewing fabric

(under presser foot).

•Lightly guide fabric while sewing.

Note: Seam guide is preset for

proper width and sewing angle.

•When seam is complete, continue sewing,

lightly pulling fabric towards left rear corner

of machine chaining off and forming thread

tail.

•Cut thread tail between presser foot and

fabric.

TS+ TS380+

Table of Contents Previous Page | Next Page

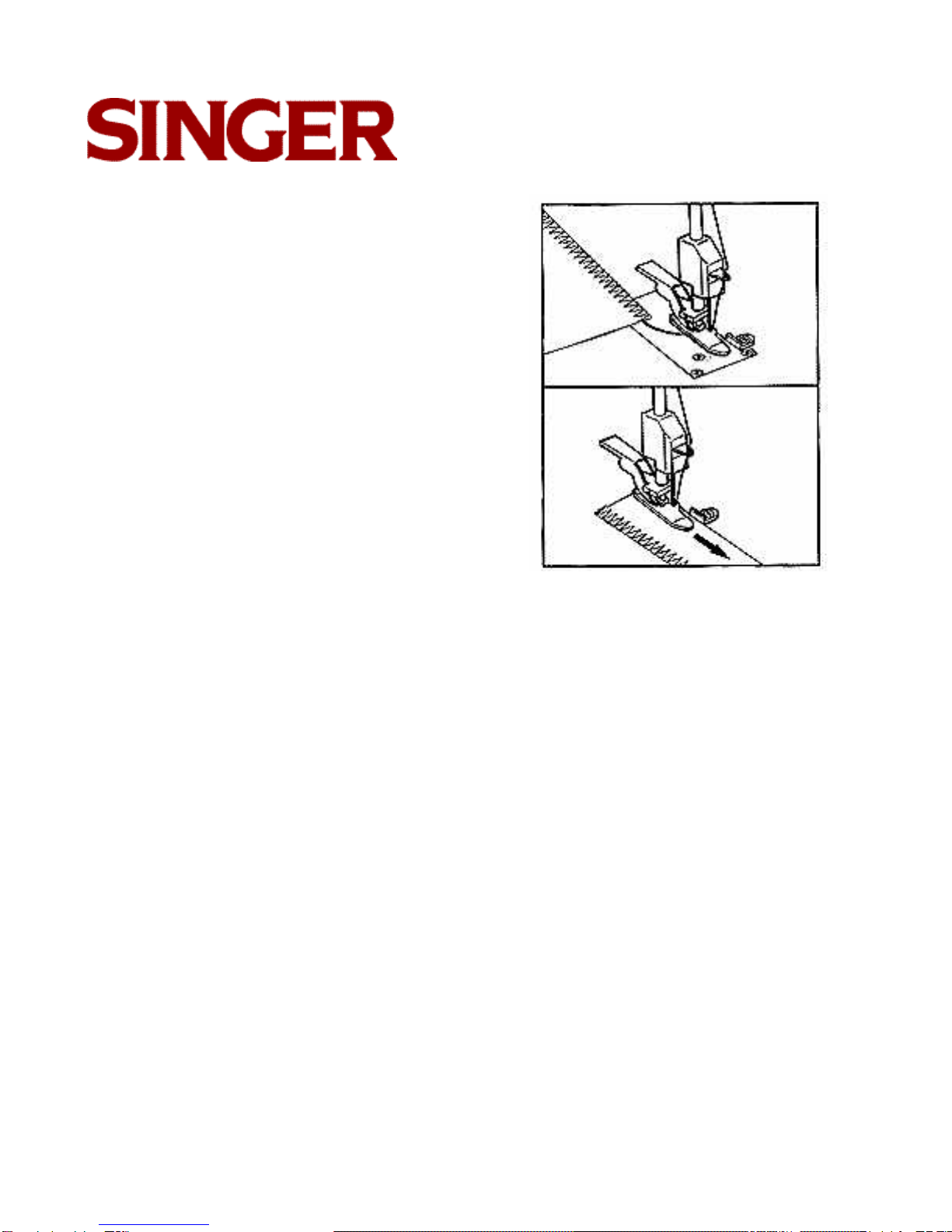

SEW OTHER SIDE

• Lower needle clamp body to lowest setting.

• Use presser foot lifter to raise presser foot.

•Place other side of fabric under presser foot

and sew.

•When seam is complete, continue sewing,

lightly pulling fabric toward left rear corner of

machine chaining off and forming thread tail

for next sewing.

TS+ TS380+

Table of Contents Previous Page | Next Page

ADJUSTING THREAD TENSION

•Thread tension of your machine has been preset at factory to suit most sewing applications

But some threads and fabrics require readjusting thread

tension to improve stitch appearance and prevent skipping.

•Adjust thread tension by slightly turning tension dial.

•Always double check threading before trying to adjust thread tension.

•Make a test sample to find a proper tension before sewing on your fabric.

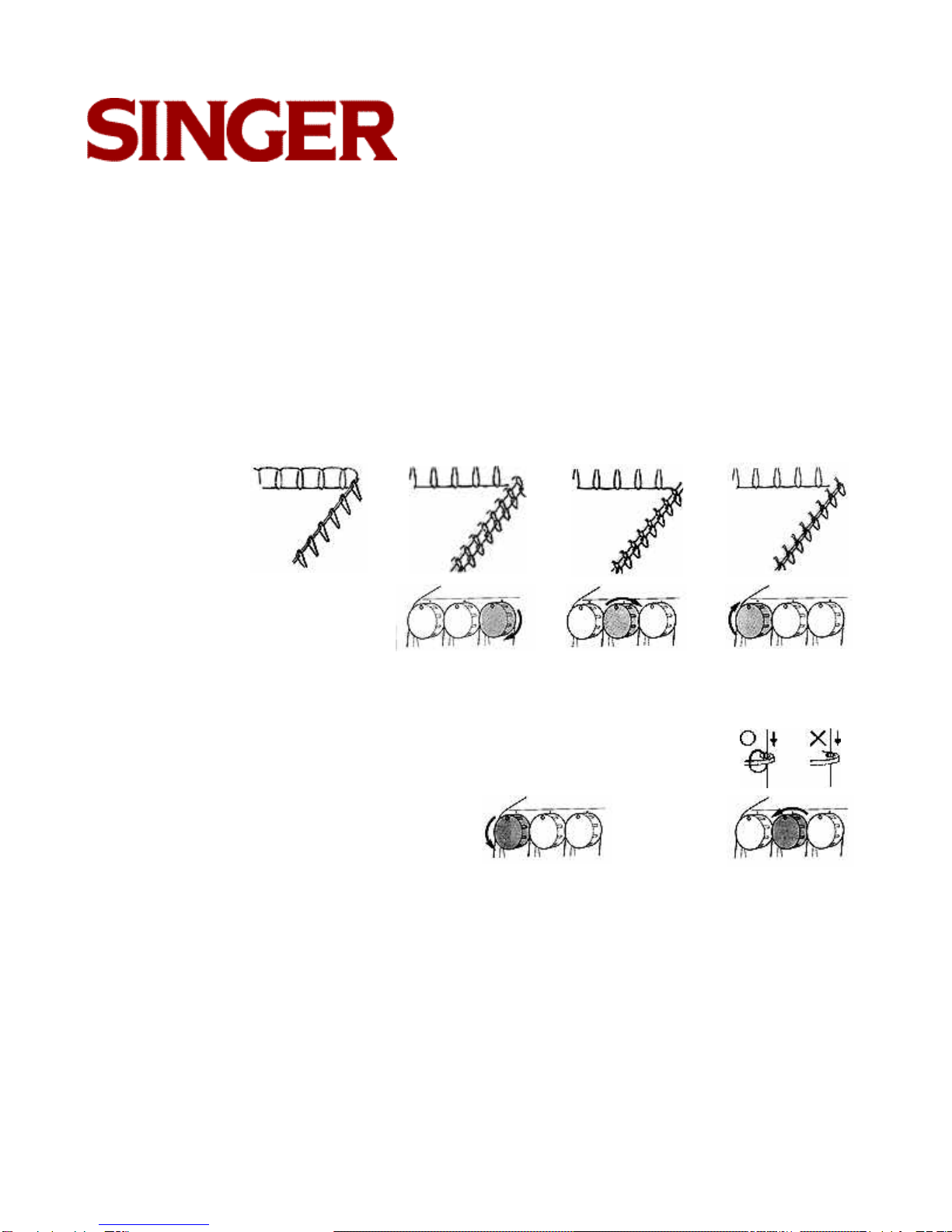

SITUATION PROPER

TENSION

LOWER LOOPER

THREAD TOO

LOOSE

NEEDLE THREAD

TOO LOOSE

UPPER LOOPER

THREAD TOO

LOOSE

CHARACTERISTIC

ALTERNATIVE

ADJUSTMENT

ADJUSTMENT --

Turn lower looper

thread tension dial

clockwise to a tighter

setting..

Turn upper looper

thread tesnsion dial

clockwise to a tighter

setting.

Turn needle thread

tension dial clockwise

to a tighter setting.

Turn needle thread tension dial counter-

clockwise to a looser setting.

Turn upper thread

tension dial counter-

clockwise to a looser

setting.

TS+ TS380+

Table of Contents Previous Page | Next Page

PREPARATION FOR THREADING

• Your machine comes threaded. If you wish to change thread, an easy method for threading

is tying on threads. (refer to page 5)

•If machine runs out of thread, it is necessary to rethread machine. (refer to page 6)

•Swing thread guide holder up to operating position. Remove front cover by lifting gently at

tab on right side.

•Connect AC adaptor (only) to turn on light for threading.

•For best sewing performance use proper spool cap.

How To Fix On The Sewing Machine Thread Spools

• Put the three threaded spools into the spool pins.

•Then slide the thread caps (large size) firmly against rim of spool to prevent thread tangling.

How To Fix On The Overlock

Machine Thread Spools

•Pull the left & right spool pins outwards to

proper position.

•Put the three threaded spools into the spool

pins.

•Then slide the thread caps (small size) firmly

into the center of spools to secure the spools.
