Siqura BL2002M1-EI Manuale utente

Unpack

Connector Definition

Installation Notices Connectors

Pan/Tilt/Rotate

Cabling through Junction Box

BL2002M1-EI

2MP Network Bullet Camera

Quick Start Guide

Find additional manuals, the datasheet,

the EU Declaration of Conformity, and

the latest firmware for this product at:

Siqura.com/downloads/software

Quick Start Guide

Note 1: Subject to modification. Actual product and accessories may differ in appearance.

Vision 2.0 (01112019)

BL2002M1-EI QSG

Security Torx

NOTE:

IT IS NOT RECOMMENDED TO CONTINUOUSLY (24/7) RECORD WITH THE MICRO

SD CARD, AS THE CAMERA MAY NOT SUPPORT LONG-TERM CONTINOUS DATA

READ/WRITE. CONTACT THE MANUFACTURER OF THE MICRO SD CARD FOR

INFORMATION REGARDING THE RELIABILITY AND THE LIFE EXPECTANCY.

Screws(4x) &

Plastic Screw

Anchors (4x)

CAUTION:

INSTALLATION SHALL BE PERFORMED BY QUALIFIED PERSONNEL ONLY.

INSTALLATION SHALL BE IN ACCCORDANCE WITH LOCAL PROCEDURES.

INSTALLATION WITH POE SHALL BE IN UNEXPOSED NETWORKS.

BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW OF THE RISK OF

EXPLOSION.

IF YOU USE AN EXTERNAL POWER SUPPLY, CONTACT SIQURA TO MAKE SURE

THAT THE POWER SUPPLY HAS THE PROPER POWER SPECIFICATIONS.

MAKE SURE THAT THE POWER SUPPLY COMPLIES WITH LPS REQUIREMENTS.

Camera Unit

BNC Connector

1234

No.

Connector Definition

Alarm I/O

Alarm I/O connection

Audio

Audio Line in/Out

-45 Port

(Contact Siqura for a

compatible PoE

injector.)

For network and PoE connections

Power (DC12V)

Power connection

SD Card Slot

Insert the SD card into the card slot to store

videos and snapshots. Do not remove the SD card

when the camera is powered on.

Reset Button

Press the button with a proper tool for at least 20

seconds to restore the system.

Table 1 Connector definition

Pin Pusher

Pipe Cover

Mounting Adapter

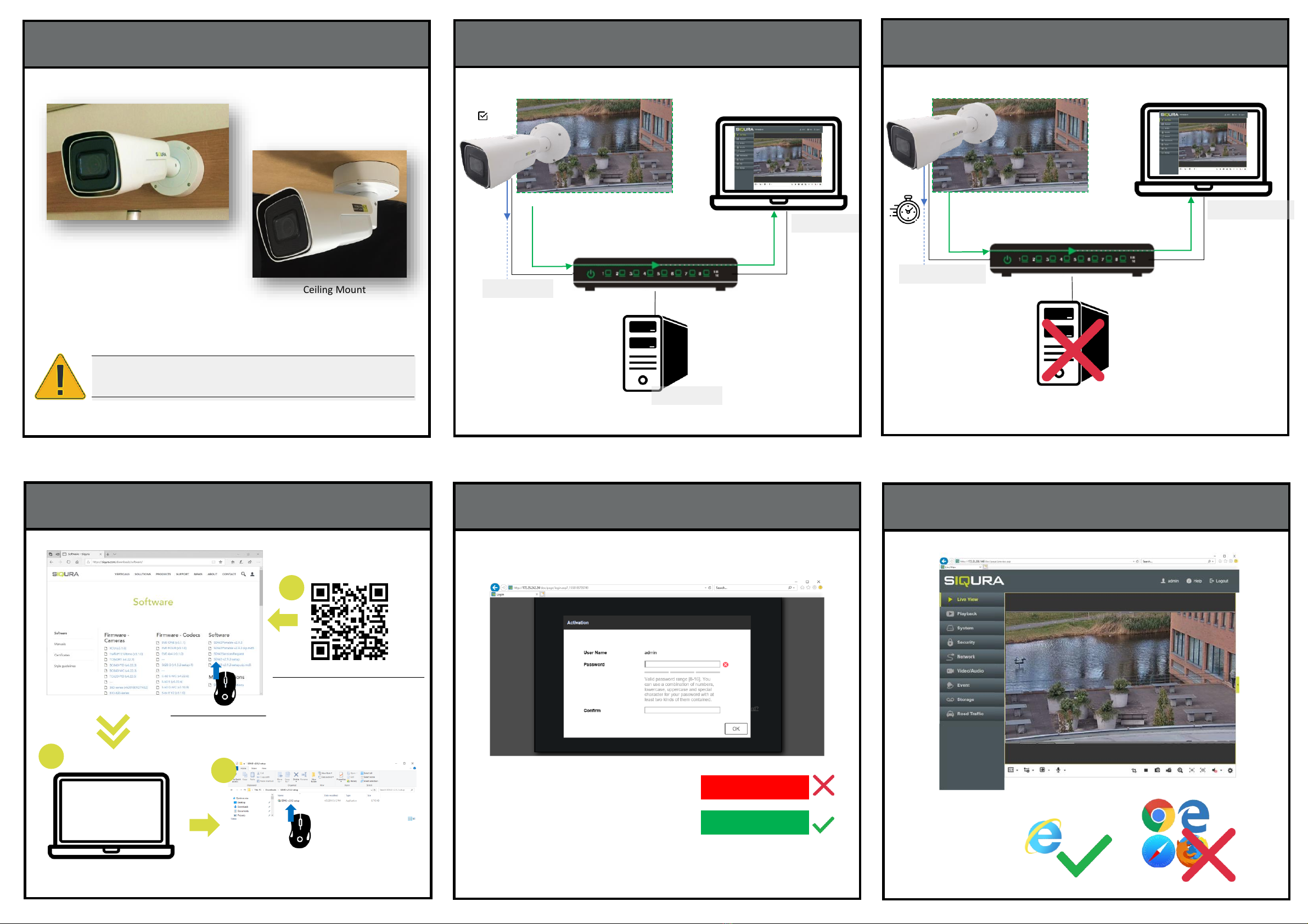

Accessing the camera –Fixed IP address

Auto detect with SDM2 Browser-based Viewer

IP = 192.168.0.x

Network Switch

DHCP Server

Siqura.com/downloads/software

SDM2-vx.xx-setup.zip

IP = 192.168.0.x

30s

1st time camera login

qwer1234

x6W@oM0a!9#F

Set a strong password

IP = 10.x.y.z

Network Switch

DHCP Server

IP = 10.x.y.z

DHCP

Accessing the camera - DHCP Server

Mounting

Wall/Pole Mount

Ceiling Mount

NOTE:

OTHER THAN MOUNTING ABOVE, OTHER MOUNTING MAY CAUSE POTENTIAL

WATER LEAKAGE AT CAMERA, WHICH IS NOT INCLUDED IN WARRANTY.
