Sitecom WL-367 Manuale utente
WL-358/359/363/367
Wireless ADSL2+ router
Annex-A (WL-358,WL-359,WL-363) & Annex-B (WL-367)
ser Manual
Version: 1.0
T
ABLE OF
C
ONTENTS
1
KEY FEATURES .................................................................................................................... 4
2
PACKAGE CONTENTS ....................................................................................................... 5
3
PRODUCT LAYOUT............................................................................................................. 6
4
SYSTEM REQUIREMENTS............................................................................................... 8
5
MODEM/ROUTERPLACEMENT..................................................................................... 9
6
SETUP LAN, WAN ............................................................................................................... 9
7
PC NETWORK ADAPTER SETUP................................................................................ 10
BRINGING UP THE WL-35 /359/363/367...................................................... 13
9
INITIAL SETUP WL-35 /359/363/367 ............................................................. 13
10
CONFIGURATION WIZARD......................................................................................... 23
11
WIRELESS SETTINGS .................................................................................................... 25
12
FIREWALL SETTINGS .................................................................................................... 35
13
ADVANCED SETTINGS................................................................................................... 42
14
TOOLBOX SETTINGS ...................................................................................................... 54
Introduction
Congratulations on your purchase of the WL-358,359,363 or 367 Wireless
ADSL2+ Modem. The Modem is fully compliant with 802.11n. This modem is
also fully compliant with 802.11g & 802.11b. This modem provide the best
performance when used in combination with 802.11n client adapters.
The WL-358,359,363 or 367 is not only a Modem or Wireless Access Point,
but can also be used to connect wired-Ethernet devices.
For data protection and privacy, the modem can encode all wireless
transmissions with WEP, WPA, and WPA2 encryption. By default, the modem
is secured with a WPA2(AES) encryption key. (The WPA2-key is printed on the
label underneath the modem.)
With a built-in DHCP Server & powerful SPI firewall the modem protects your
computers against intruders and known Internet attacks, and also provides
safe VPN pass-through.
1Key Features
Features Advantages
IEEE 802.11b/g/n compliant Fully Interoperable with IEEE
02.11b / IEEE 02.11g / 02.11n
compliant devices
Four 10/100 Mbps Fast Ethernet
Port (Auto-Crossover)
To connect four wired PC's as well.
Firewall supports Virtual Server
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
Avoids the attacks of Hackers or
Viruses from Internet
Support 802.1x authenticator,
802.11i (WPA/WPA2, AES), VPN
pass-through
Provide mutual authentication
(Client and dynamic encryption keys
to enhance security
Integrated modem (Annex B) Fully compatible with the fastest
ADSL2+ connections up-to-date.
2Package Contents
Open the package carefully, and make sure that none of the items listed
below are missing. Do not discard the packing materials, in case of return;
the unit must be shipped back in its original package.
1. WL-358,359,363 or 367 modem/router
2. 220V ~ 240V Power Adapter
3. Quick Install Guide
4. CD ( ser’s Manual)
5. Warranty card
6. TP cable

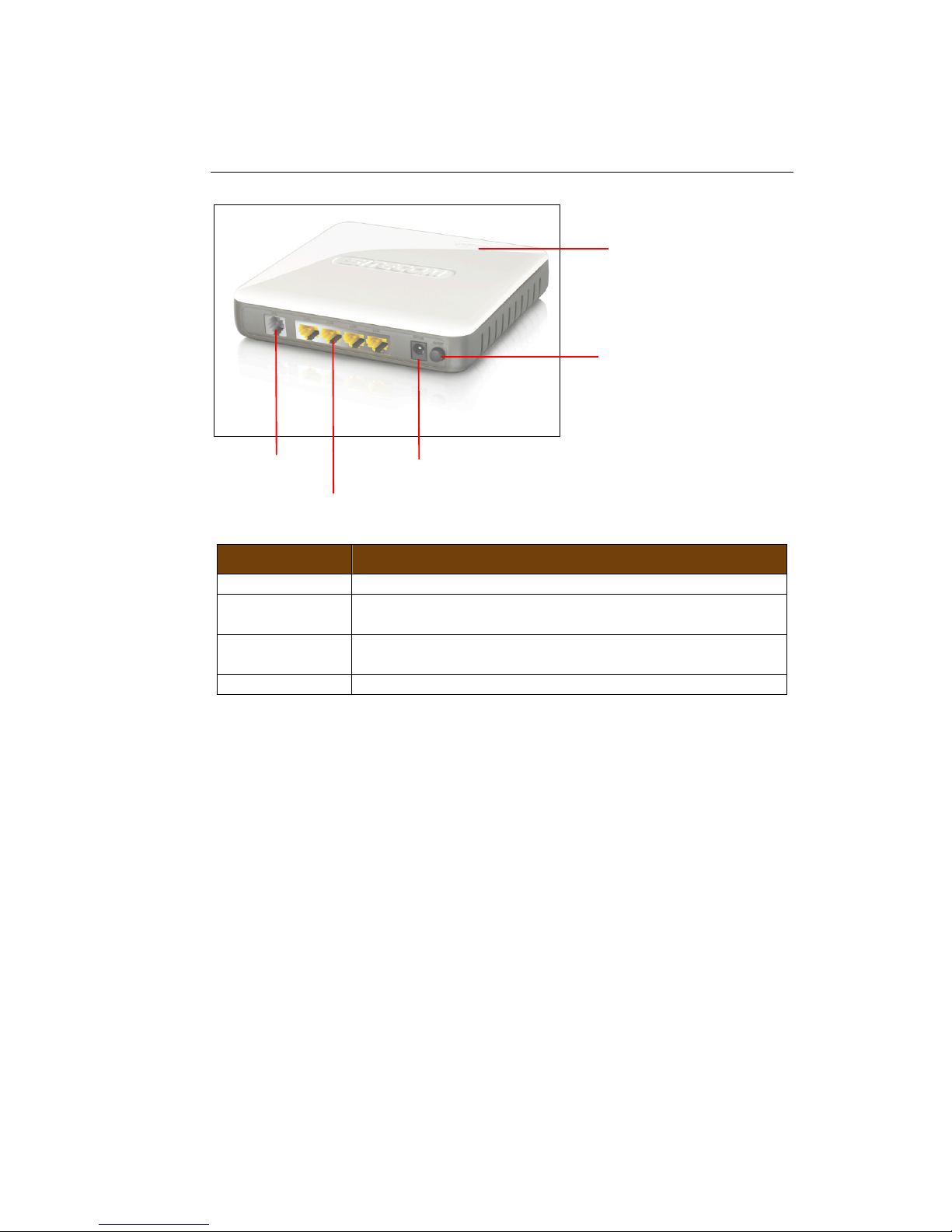

3Product Layout
Port Description
ADSL Connect your telephone/ADSL cable this port
LAN Connect the cable from your PC or network device
to this ports.
Power
connector Connect your power adapter to this port.
Power button Turn the modem On or Off.
Power connector
LAN / computer connections
Modem connection
WPS/Reset butto
n
Power button
Back label
The back label describes the corresponding LED indications and port functionality.
LED Description
Power Lights up when powered ON. Blinks on
TEST/RESET
ADSL Lights up when an ADSL cable is
connected.
Internet Lights up when internet connection is P.
WLAN Lights up in Blue when WLAN is enabled.
Blinks on traffic
OPS Blinks when OPS mode is on
LAN1~4 When a LAN cable is connected the
corresponding light lights up.
4System Requirements
To begin using the WL-358/359/363/367, make sure you meet the
following as minimum requirements:
•PC/Notebook.
•1 Free Ethernet port.
•Wi-Fi card/ SB dongle (802.11 b/g/n) – optional.
•Annex B, ADSL internet connection.
•PC with a Web-Browser (Internet Explorer, Safari, Firefox,
Opera)
•Ethernet compatible CAT5 cables.
5MODEM/ROUTER Placement
You can place the modem on a desk or other flat surface, or you can
mount it on a wall. For optimal performance, place your Wireless
Broadband Modem/Router in the center of your office (or your home)
in a location that is away from any potential source of interference,
such as a metal wall or microwave oven. This location must be close to
a power connection and the ADSL/phone line should not be over 2
meters long.
6Setup LAN, WAN
Modem connection
LAN / computer connections
7PC Network Adapter setup
Windows XP
•Go to [Start Menu], [Control panel], [Network Connections].
•Right-mouse-click on the [Local Area Connection]) icon, and select
[properties]
•Select [Internet Protocol (TCP/IP)] =>Click [Properties].
•Select the [General] tab.
The Modem/Router supports DHCP. Please select both [Obtain an IP
a ress automatically] and [Obtain DNS server a ress automatically].
