SIMPLY CLEVER

ŠKODA Fabia

Owner's Manual

Layout of this Owner's Manual

(explanations)

This Owner's Manual has been systematically designed to make it easy for you to

search for and obtain the information you require.

Chapters, table of contents and subject index

The text of the Owner's manual is divided into relatively short sections which are

combined into easy-to-read chapters. The chapter you are reading at any particular

moment is always specified on the bottom right of the page.

The Table of contents is arranged according to the chapters and the detailed Sub-

ject index at the end of the Owner's Manual helps you to rapidly find the informa-

tion you are looking for.

Direction indications

All direction indications such as “left”, “right”, “front”, “rear” relate to the direction of

travel of the vehicle.

Units of measurement

All values are expressed in metric units.

Explanation of symbols

Denotes a reference to a section with important information and safety

advice in a chapter.

Denotes the end of a section.

Denotes the continuation of a section on the next page.

Indicates situations where the vehicle must be stopped as soon as possi-

ble.

® Denotes a registered trademark.

Notes

WARNING

The most important notes are marked with the heading WARNING. These

WARNING notes draw your attention to a serious risk of accident or injury.

CAUTION

A Caution note draws your attention to the possibility of damage to your vehicle

(e.g. damage to gearbox), or points out general risks of an accident.

For the sake of the environment

An Environmental note draws your attention to environmental protection aspects.

This is where you will, for example, find tips aimed at reducing your fuel consump-

tion.

Note

A normal Note draws your attention to important information about the operation

of your vehicle.

Preface

You have opted for a ŠKODA – our sincere thanks for your confidence in us.

You have received a vehicle with the latest technology and range of amenities. Please read this Owner's

Manual carefully, because the operation in accordance with these instructions is a prerequisite for proper use

of the vehicle.

If you have any questions about your vehicle, please contact a ŠKODA Service Partner.

We wish you much pleasure with your ŠKODA and pleasant motoring at all times.

Your ŠKODA AUTO a.s. (hereinafter referred to as ŠKODA) £

The on-board literature

The on-board literature for your vehicle consists of this “Owner's Manual” as well

as a “Service schedule” and the “Help on the road” brochure.

Depending on the vehicle model and equipment, other additional operating man-

uals and instructions may be provided (e.g. an operating manual for the radio).

If one of the publications listed above is missing, please contact a ŠKODA Service

Partner.

The Owner's Manual

These operating instructions describe all possible equipment variants without

identifying them as special equipment, model variants or market-dependent

equipment.

Consequently, this vehicle does not need to contain all of the equipment compo-

nents described in this Owner's manual.

The level of equipment of your vehicle refers to your purchase contract of the ve-

hicle. For more information, contact your local ŠKODA retailer.

The illustrations can differ in minor details from your vehicle; they are only inten-

ded for general information.

The Service Plan:

›includes vehicle data including information on service work performed;

›is a record of services provided;

›is provided for entries relating to the mobility warranty (valid only for some

countries);

›serves as warranty certificate of the ŠKODA dealer.

The service records are one of the conditions for warranty claims.

Please always present the Service schedule when you take your car to a ŠKODA

specialist garage.

If the Service Schedule is missing or worn, please contact the ŠKODA specialist

garage that regularly services your car. You will receive a duplicate, in which the

previously carried out service work is confirmed by the ŠKODA specialist garage.

The Help on the Road brochure

The brochure contains the important emergency telephone numbers as well as

telephone numbers and contact addresses of ŠKODA Service Partners in different

countries.

Table of Contents

Abbreviations

Using the system

Cockpit 7

Overview 6

Instruments and Indicator Lights 8

Instrument cluster 8

Multifunction display (onboard computer) 12

MAXI DOT (information display) 15

Warning lights 17

Unlocking and locking 25

Vehicle key 25

Locking/unlocking the vehicle without central

locking 26

Central locking system 27

Remote control 29

Anti-theft alarm system 31

Interior monitor and towing protection 31

Emergency locking of the doors 32

Boot lid 32

Electrical power windows 34

Electric sliding/tilting roof 36

Lights and visibility 38

Lights 38

Interior light 43

Visibility 44

Windscreen wipers and washers 44

Rear window 47

Seats and Stowage 49

Front seats 49

Head restraints 51

Rear seats 52

Boot 53

Variable loading floor in the luggage

compartment (Combi) 57

Net partition (Combi) 58

Bicycle carrier in the luggage compartment 60

Roof rack system 62

Cup holders 63

Ashtray 64

Cigarette lighter, 12-volt power socket 64

Storage compartments 65

Clothes hooks 69

Parking ticket holder 69

Heating and air conditioning system 70

Air outlet vents 71

Heating 71

Air conditioning system (manual air conditioning

system) 73

Climatronic (automatic air conditioning

system) 76

Starting-off and Driving 79

Starting and stopping the engine 79

Brakes and brake assist systems 81

Shifting (manual gearbox) 85

pedals 85

Parking aid 85

Cruise control system (CCS) 86

START/STOP 88

Automatic gearbox 90

Communication 95

Mobile phones and two-way radio systems 95

Universal telephone preinstallation GSM II 95

Voice control 99

Multimedia 101

Safety

Passive Safety 103

General information 103

Correct seated position 104

Seat belts 107

Airbag system 111

Description of the airbag system 111

Front airbags 112

Side airbags 113

Head airbags 114

Deactivating airbags 115

Transporting children safely 117

Child seat 117

Driving Tips

Driving and the Environment 121

The first 1 500 km 121

Catalytic converter 121

Economical and environmentally friendly

driving 122

Environmental compatibility 124

Driving abroad 125

Avoiding damage to your vehicle 125

Driving through water on the street 126

Towing a trailer 127

General Maintenance

Taking care of and cleaning the vehicle 129

Taking care of your vehicle 129

Table of Contents

Inspecting and replenishing 136

Fuel 136

Engine compartment 138

Vehicle battery 145

Wheels and Tyres 150

Tyres 150

Accessories, changes and replacement of parts 157

Introductory information 157

Changes and impairments of the airbag

system 157

Do-it-yourself

Do-it-yourself 158

First-aid kit and warning triangle 158

Fire extinguisher 158

Vehicle tool kit 158

Changing a wheel 159

Breakdown kit 162

Jump-starting 165

Towing the vehicle 166

Fuses and light bulbs 168

Fuses 168

Bulbs 171

Technical data

Technical data 177

Introductory information 177

Data on the vehicle sticker and the type plate 177

Dimensions 178

Specifications and engine oil capacity 179

Vehicle-specific details per engine type 180

Index

4Table of Contents

Abbreviations

Abbreviation Definition

rpm Engine revolutions per minute

ABS Anti-lock brake system

AG Automatic gearbox

TCS Traction control

CO2 in g/km discharged quantity of carbon dioxide in grams per driven kilo-

meter

DPF Diesel particle filter

DSG Automatic double clutch gearbox

EDL Electronic differential lock

ESC Electronic Stability Control

kW Kilowatt, measuring unit for the engine output

MG Manual gearbox

MFD Multifunction display

N1 Panel van intended exclusively or mainly for the transporta-

tion of goods

Nm Newton meter, measuring unit for the engine torque

TDI CR Diesel engine with turbocharging and common rail injection

system

TSI Petrol engine with turbocharging and direct injection Ð

Abbreviations

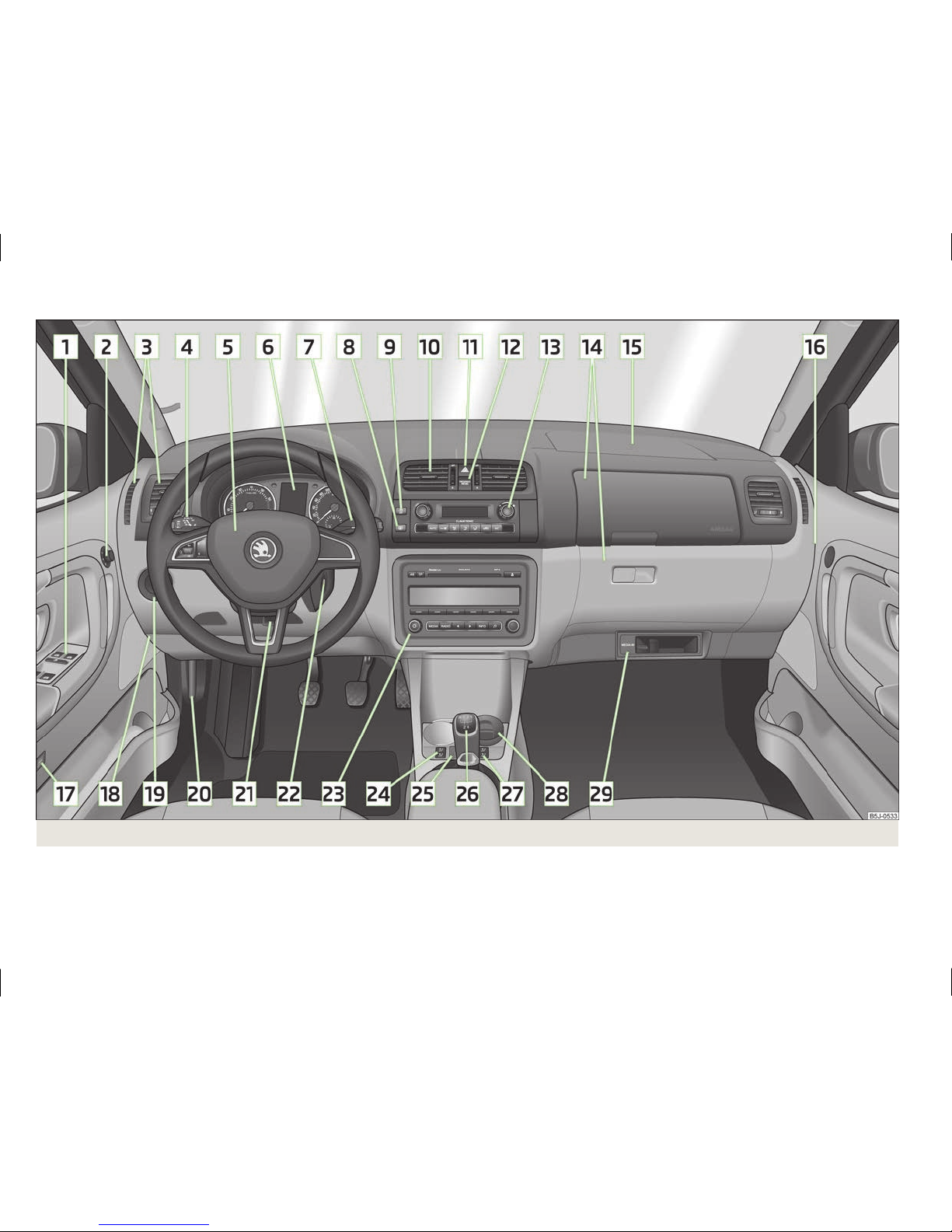

Fig. 1 Cockpit

6Using the system

Using the system

Cockpit

Overview

Electrical power windows 34

Electric exterior mirror adjustment 48

Air outlet vents 71

Lever for the multifunction switch:

›Turn signal light, headlight and parking light, headlight flasher 42

›Speed regulating system 86

Steering wheel:

›With horn

›With driver’s front airbag 112

›With pushbuttons for radio, navigation system and mobile

phone 95

Instrument cluster: Instruments and warning lights 8

Lever for the multifunction switch:

›Multifunction display 12

›Windscreen wiper and wash system 45

Switch for rear window heater 44

TCS switch 84

Air outlet vents 71

Switch for hazard warning lights 42

Warning light for the deactivated front seat passenger airbag 115

Depending on equipment fitted:

›Operating controls for the heating 71

›Operating controls for the air conditioning system 73

›Operating controls for Climatronic 76

Storage compartments on the front passenger side 66

Front passenger airbag 112

Key-operated switch for the front seat passenger airbag 115

Switch depending on equipment fitted:

›Boot lid remote release 33

›Interior monitor 31

Fuse box in the dashboard 169

Light switch and headlamp beam adjustment 38, 41

Bonnet release lever 140

Lever for adjusting the steering wheel 80

Ignition lock 81

Depending on equipment fitted:

›Radio

›Navigation system

Rocker switch for front left seat heating 50

Central locking system 29

Depending on equipment fitted:

›Gearshift lever (manual gearbox) 85

›Selector lever (automatic gearbox) 91

Rocker switch for front right seat heating 50

Depending on equipment fitted:

›Ashtrays 64

›Storage compartment 67

MDI 102

Note

The arrangement of the controls and switches and the location of some items on

right-hand drive models may differ from that shown in » Fig. 1. The symbols on

the controls and switches are the same as for left-hand drive models. Ð

Cockpit

Instruments and Indicator Lights

Instrument cluster

äIntroduction

This chapter contains information on the following subjects:

Overview 8

Engine revolutions counter 9

Speedometer 9

Coolant temperature gauge 9

Fuel gauge 9

Counter for distance driven 10

Service Interval Display 10

Digital clock 11

Recommended gear 11

WARNING

■Concentrate fully at all times on your driving! As the driver you are fully re-

sponsible for road safety.

■Never operate the controls in the instrument cluster while driving, only

when the vehicle is stationary! Ð

Overview

Fig. 2 Instrument cluster

First read and observe the introductory information and safety warn-

ings on page 8.

Engine revolutions counter » page 9

Display:

›With counter for distance driven » page 10

›With service interval display » page 10

›With digital clock » page 11

›With multifunction display » page 12

›With information display » page 15

Speedometer » page 9

Coolant temperature gauge » page 9

Button for display mode:

›Setting the hours/minutes

›Activating/deactivating the second speed in mph or km/h

›Service interval - Display of the number of days, kilometres or miles re-

maining until the next Inspection Service 1)

Button for:

›Reset trip counter for the distance driven

›Resetting Service Interval Display £

1) Valid for countries where the values are indicated in British measuring units.

8Using the system

Altri manuali per 2000 Fabia

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Skoda Automobile

Skoda

Skoda FABIA 2017 Manuale utente

Skoda

Skoda ROOMSTER - 05-2009 Manuale utente

Skoda

Skoda 2009 Yeti Manuale utente

Skoda

Skoda SUPERB IV Manuale utente

Skoda

Skoda 2014 Yeti Manuale utente

Skoda

Skoda SUPERB - MANUAL ADDENDUM 11-10 Guida alla configurazione

Skoda

Skoda Fabia II 2007 Manuale di istruzioni

Skoda

Skoda ROOMSTER Guida alla configurazione

Skoda

Skoda SUPERB - 05-2010 Manuale utente

Skoda

Skoda YETI - 05-2010 Manuale utente

Skoda

Skoda OCTAVIA RS Manuale utente

Skoda

Skoda 2014 Rapid Spaceback Manuale utente

Skoda

Skoda 2014 Fabia Manuale utente

Skoda

Skoda SUPERB - 2007 Manuale utente

Skoda

Skoda OCTAVIA SCOUT - Manuale utente

Skoda

Skoda Karoq 2019 Manuale utente

Skoda

Skoda 2009 Yeti Manuale utente

Skoda

Skoda 2000 Fabia Manuale di istruzioni

Skoda

Skoda Octavia II 2004 Manuale di istruzioni

Skoda

Skoda FABIA - BROCHURE ACCESSORIES Manuale utente

Skoda

Skoda ROOMSTER Manuale utente

Skoda

Skoda Fabia Manuale utente

Skoda

Skoda 2000 Fabia Manuale utente

Skoda

Skoda SUPERB 2018 Manuale utente

Manuali Automobile popolari di altre marche

Toyota

Toyota 2000 Tundra Manuale utente

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Chevrolet

Chevrolet 2012 Malibu Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente
