Skope HB260 Manuale utente

nstallation and Operating nstructions

MAN5955 Rev. 1.0 March 2006 edition

HB260/HB400

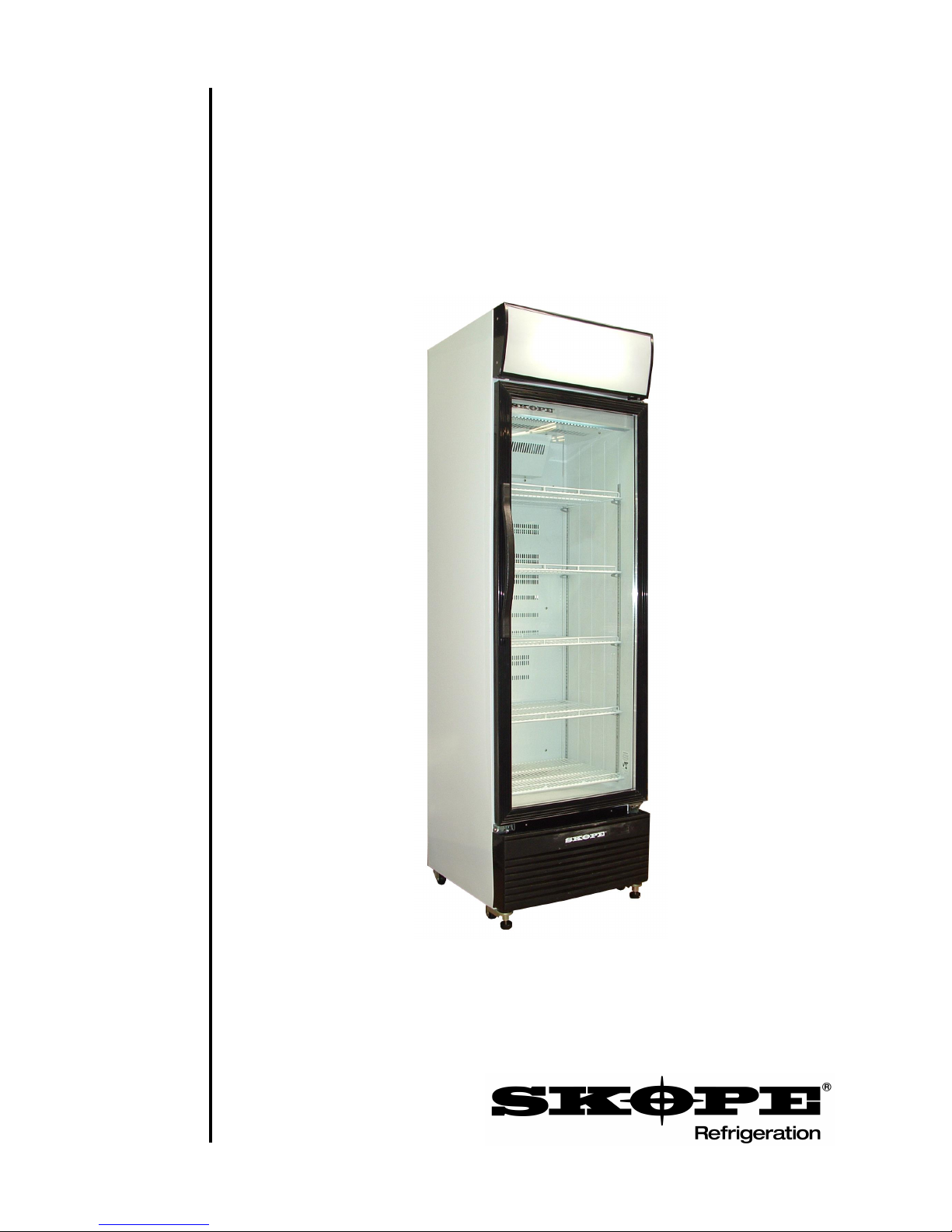

SKOPE Single Door Vertical Cooler

HB260/HB400

SKOPESingle Door Vertical Cooler

New Zealand

SKOPE INDUSTRIES LIMITED

PO Box 1091,Christchurch

NewZealand

Freephone: 0800 947 5673

Fax: (03) 983 3896

E-mail: enquiry@skope.co.nz

Website: www.skope.co.nz

Australia

SKOPE AUSTRALIA PTY LTD

A.C.N. 000 384 270

PO Box 7543,Baulkham Hills B.C.

NSW 2153, Australia

Freephone: 1800 121 535

Fax: 1800 121533

E-mail: enquiry@skope.com.au

Website: www.skope.com.au

CONTACT ADDRESSES

HB260/HB400

SKOPESingle Door Vertical Cooler

HB260/HB400

SKOPE SingleDoorVertical Cooler

Installation and Operating Instructions

MAN5955

Rev. 1.0 March 2006 edition.

SKOPE IndustriesLimited.

SKOPE IndustriesLimited reserve the

right toalter specifications without notice.

is a registeredtrade

mark of SKOPE Industries Limited.

TRADE MARK NFR NGEMENT

TheSKOPE trade mark onthis product is infringedif the owner, for thetime

being, does any of the following:

•Applies thetrade mark to theproduct aftertheir state, condition,get-up

or packaging has been altered in anymanner

•Alters, removes (includingpart removal) or obliterates (includingpart

obliteration) thetrademark ontheproduct

•Applies any other trade mark to the product

•Addsto the product any writtenmaterial that is likely to damage the

reputation ofthetrademark

Noticeof the above contractual obligations passes to:

•Successors or assigns of the buyer

•Future owners ofthe product

HB260/HB400

SKOPESingle Door Vertical Cooler

1NSTALLAT ON

1.1Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.2Positioning of Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

1.3Before Operating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2OPERAT ON

2.1Cabinet Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2.2Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2.3Temperature Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . .12

3MA NTENANCE

3.1Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.2Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.3Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

TABLE OF CONTENTS

iii

6HB260/HB400

SKOPE Single Door Vertical Cooler

1.1Safety nformation

When using any electrical appliance, safety precautions should

always be observed. Read these instructions carefully and retain for

future reference.

When used by, or near, young

children or infirmpersons, close

supervision is necessary. Young

children should be supervised to

ensure that they do not play with the

appliance.

Only use this appliance with voltage

specified on the rating label.

Regulations require that all

electrical work be carried out by

authorised persons. For your own

safety and that of others, ensure

this is done.

Disconnect the cabinet from the

power supply before cleaning the

cabinet.

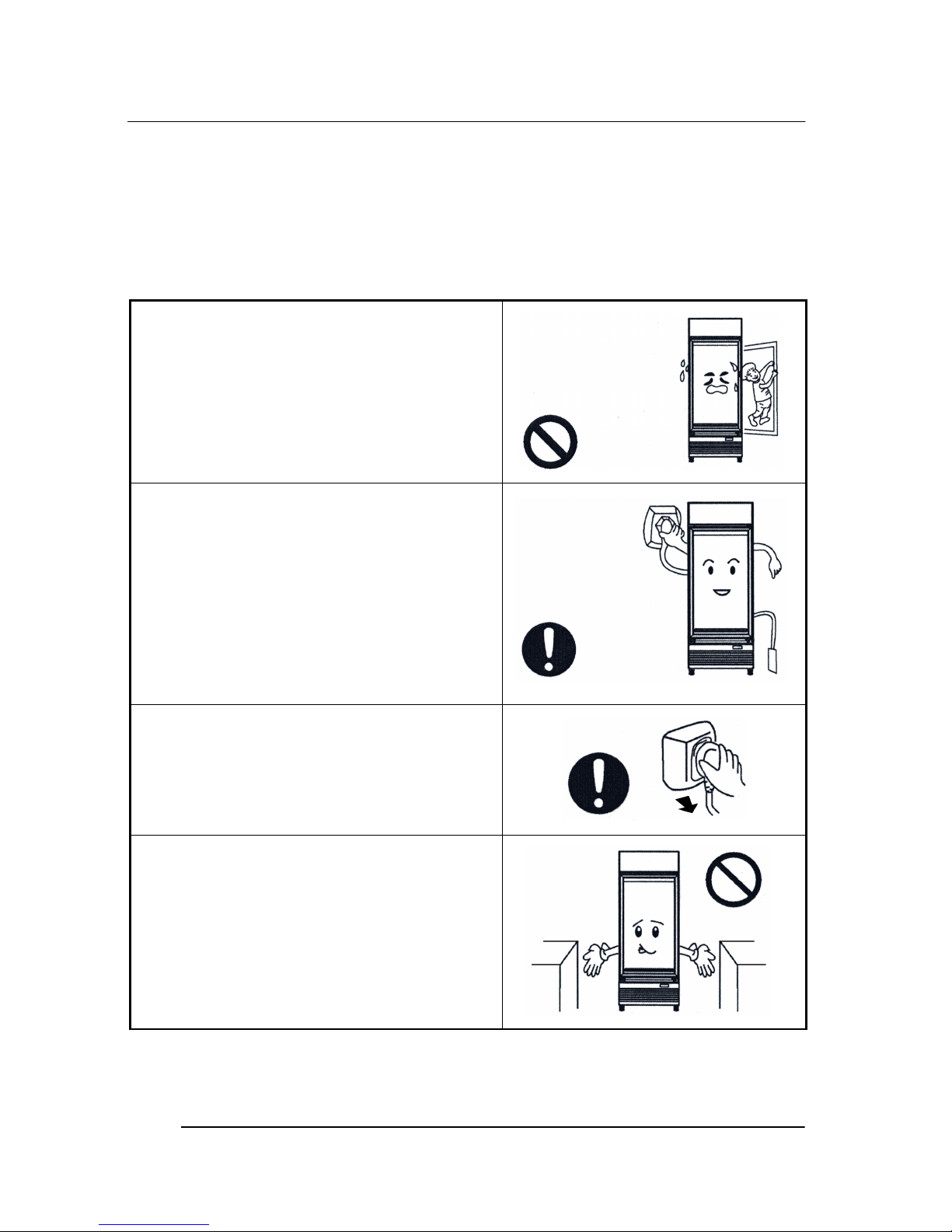

Ensure adequate ventilation of the

refrigeration system.

Do NOT cover the grilles or block

the entry or exhaust of airflow by

placing objects up against the

refrigeration unit.

NSTALLAT ON

HB260/HB400

SKOPESingle Door Vertical Cooler

Be careful not to touch moving parts

or hot surfaces.

Do NOT probe any opening.

If the supply cord becomes

damaged, it must be replaced by a

SKOPE authorised service agent,

or similarly qualified person.

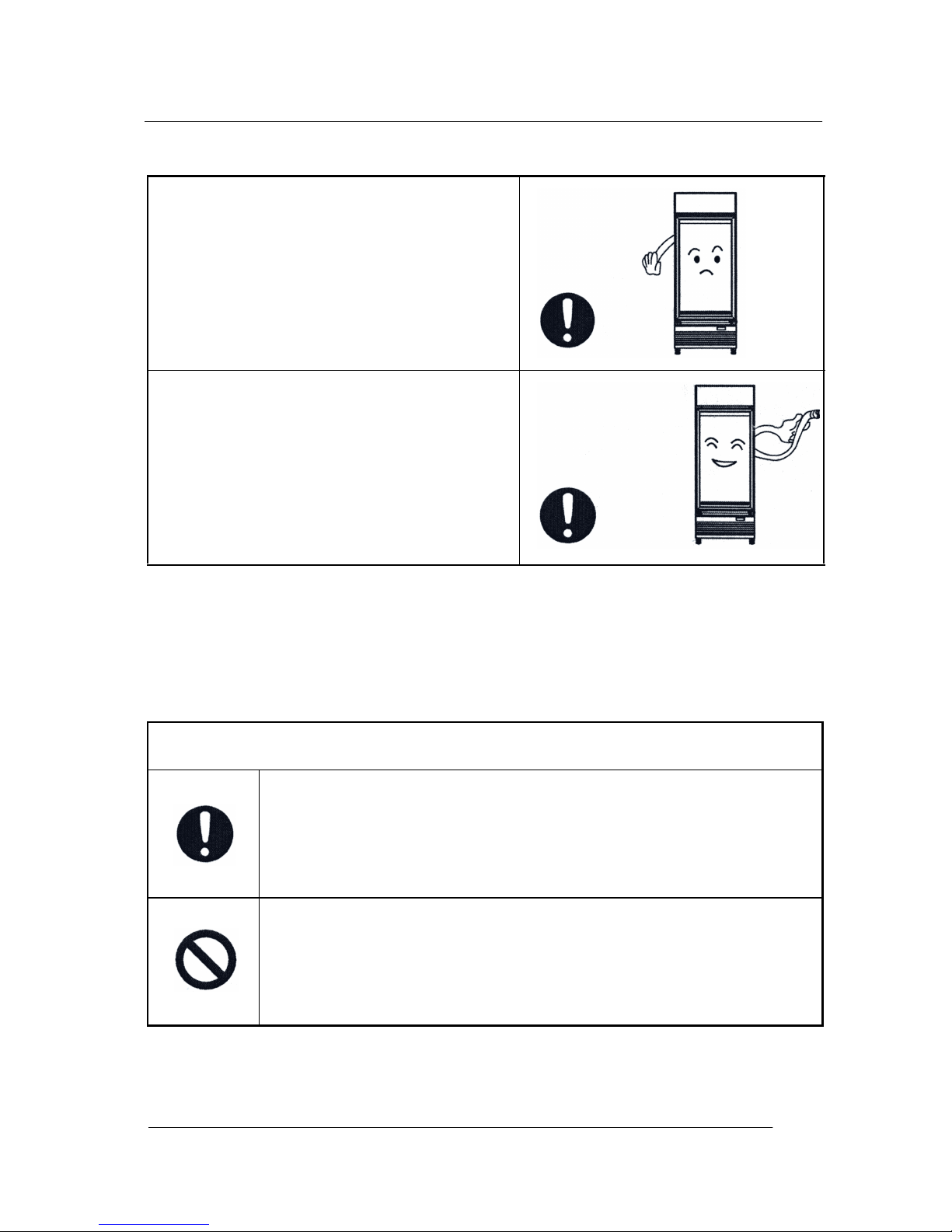

The meaning of the safety symbols used in this manual:

The content with this ‘Warning’ symbol is in association

with product safety and user’s personal safety.

Operation should be strictly in accordance with the

warning material.

The content with this ‘Forbid’ symbol is operation that is

absolutely forbidden, otherwise it may cause damage

to equipment or to user’s personal safety.

NSTALLAT ON

8HB260/HB400

SKOPE Single Door Vertical Cooler

1.2Positioning of Machine

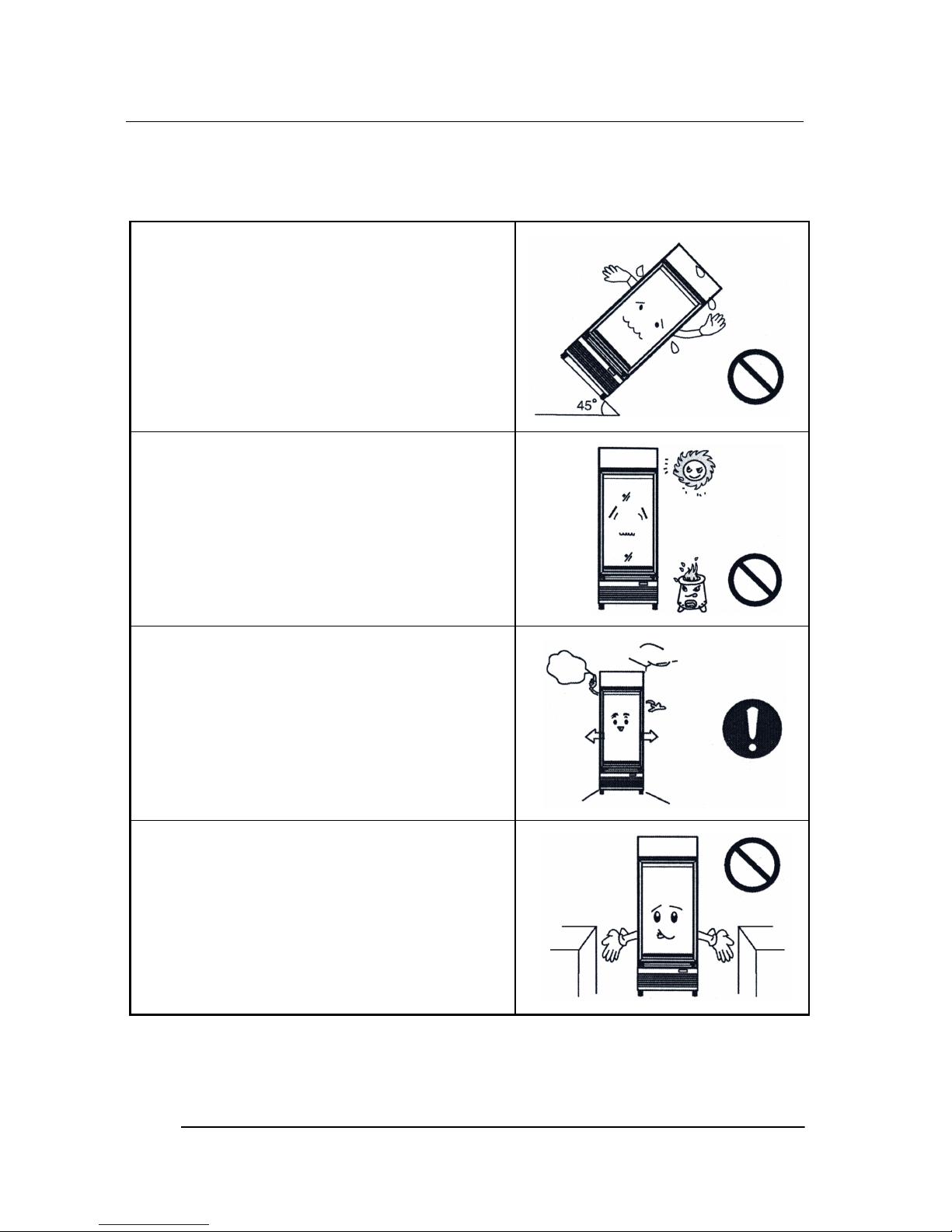

The cooler must be positioned on a

level surface to ensure the cabinet is

stable, as well as to prevent the

condensate tray from overflowing.

When being moved the cabinet

should not be angled more than 45°.

When installing the cooler, avoid

direct sunlight, hot surfaces and

warm drafts etc.

Normal maximum operating

conditions are 40°C at 75% RH.

For efficient operation of the cooler, it

is essential that adequate ventilation

be provided around the refrigeration

unit.

A gap of at least 50mmshould be

kept between the back and wall.

Never store cardboard cartons or

other items in front of the

refrigeration unit. The ventilation

slots in the front and rear of the

cabinet must be kept clear at all

times.

NSTALLAT ON

HB260/HB400

SKOPESingle Door Vertical Cooler

1.3Before Operating

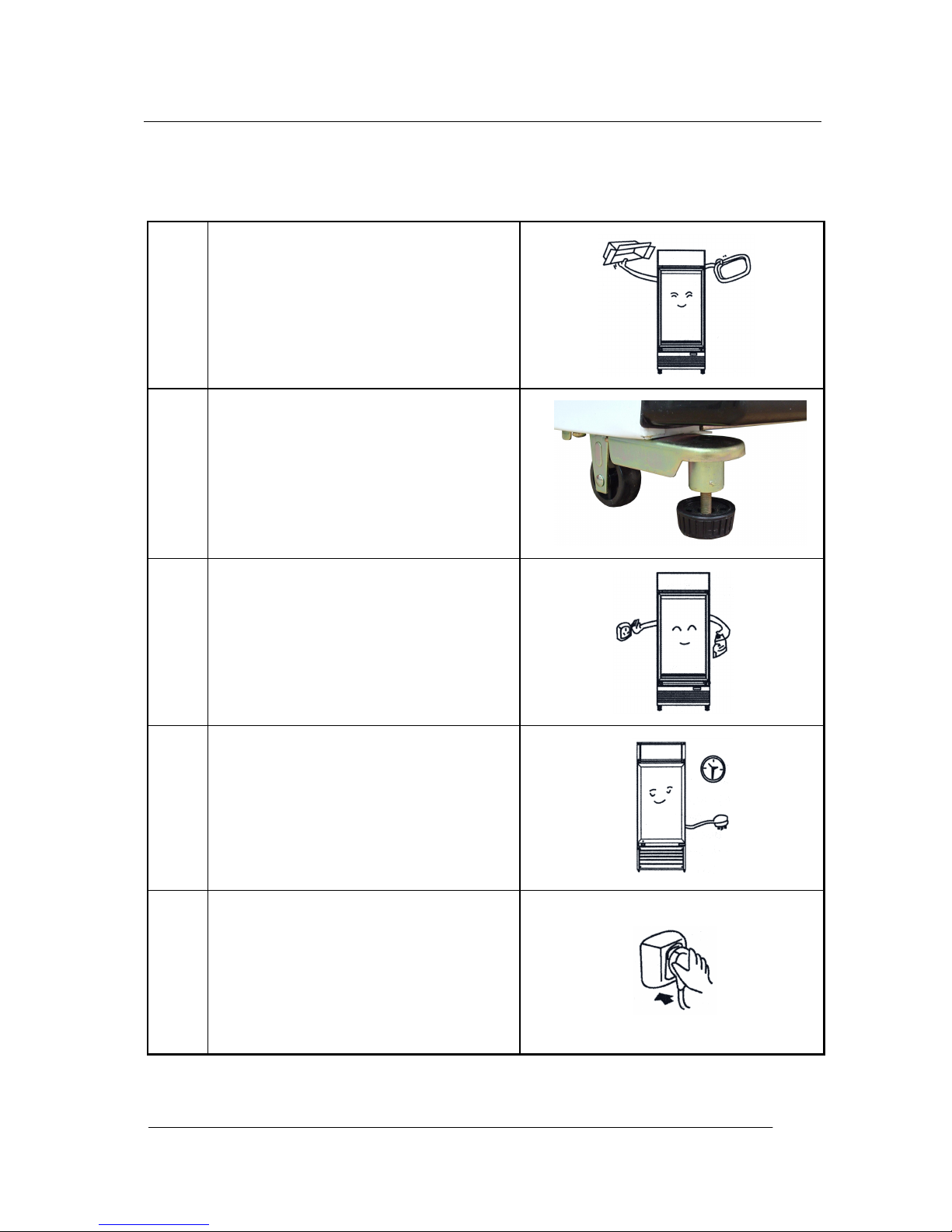

1.Unpack all the packing

material fromthe cabinet,

including the foam base.

2.Ensure both the front

stabiliser feet are screwed

firmly down to floor level.

3.Clean the cooler before

using, by wiping both the

interior and exterior of the

cabinet with a damp cloth.

4.After moving the cooler, allow

the cabinet to stand for at

least 30 minutes before

connecting to the power

supply.

5.Connect the cabinet to the

mains power supply and

check operation of the

refrigeration unit and cabinet

lighting.

NSTALLAT ON

10 HB260/HB400

SKOPE Single Door Vertical Cooler

2.1Cabinet Operation

Connect the cabinet to the mains power supply and check operation

of the refrigeration unit and cabinet lighting.

Refrigeration Unit

The refrigeration unit evaporator and condenser fans should all

operate continuously from the time the cabinet is plugged in. This

may be verified by checking air movement inside the cabinet and out

of the top of the front kick panel.

Lighting

The sign light and cabinet interior light will both go on when the

cabinet is plugged in, and will stay on permanently. The fluorescent

lights will require aperiod of time to stabilise following initial start up.

OPERAT ON
