LYNX

Modulating Condensing - High Efficiency

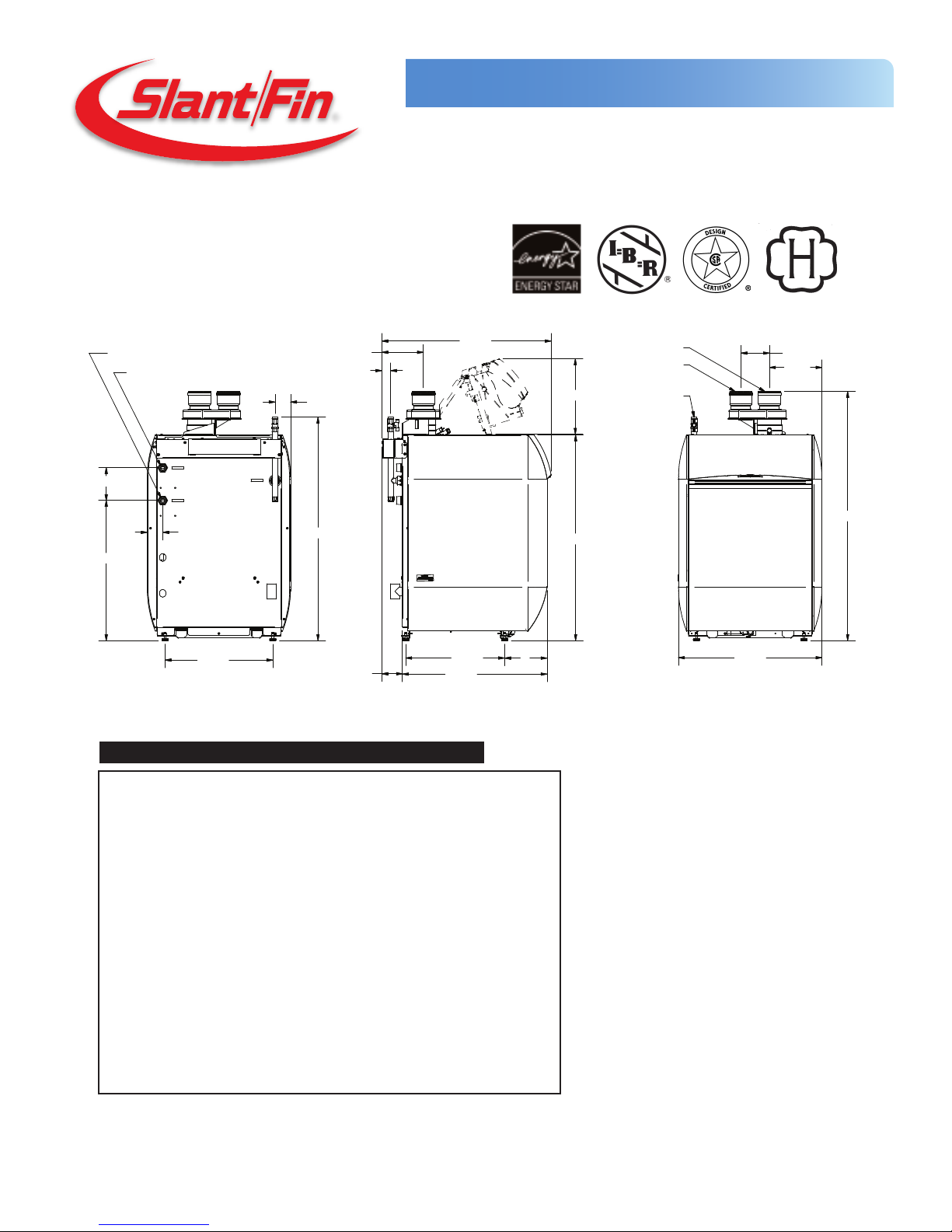

DIMENSIONS – GAS BOILERS

®

REAR VIEW SIDE VIEW FRONT VIEW

33 7/8

12 3/8

27 7/8

67/8

11/2

33/8 23 3/4

16 1/4 723 5/8

23

53/8

21/2

85/8

43/4

41

17 3/4

VENT CONNECTION

AIR INTAKE

CONNECTION

GAS SHUTOFF

VALVE

1/2" NPT

(FEMALE)

25/8

36 3/4

WATER OUTLET (SUPPLY) - 1" NPT (MALE)

WATER INLET (RETURN) - 1" NPT (MALE)

SPECIFICATIONS FOR LX-85 BOILER

Fuel Rate Input: 85,000 BTUH maximum

25,000 BTUH minimum

Boiler Water Volume: .75 gallon (6.25 lbs)

Water Piping Connections: 1" NPT (male)

Gas Piping Connection: 1/2" NPT (female)

Vent Connection: 3" nominal I.D. pipe (PVC, CPVC or stainless steel)

Air Intake Connection: 3" nominal I.D. pipe (PVC, CPVC or stainless steel)

Weight of Boiler (uncrated): 105 lbs.

Gas orifice size: Natural Gas - No orifice used *

Propane - 0.190" diameter **

*Note: No orifice changes are required for high altitude installations.

**See page 43 for conversion procedure to propane.
