SMART-AVI DPN-4P Manuale utente

4 Port DisplayPort USB

KVM Switch with Mic Audio and

USB 2.0 Support

ACCESS & CONTROL

UP TO 4 COMPUTERS

FROM A SINGLE WORKSTATION

Quick Start Guide

VIDEO

Format DisplayPort 1.2

Maximum Pixel Clock 165 MHz

Input Interface (TX) (4) DisplayPort

Output Interface (RX) (1) DisplayPort

Resolution Up to 4K (3840x2160 @60Hz)

DDC via AUX

Equalization Automatic

Input Cable Length Up to 15 ft.

Output Cable Length Up to 15 ft.

AUDIO

Input Interface (4) 3.5 mm Mic Audio

Output Interface (1) 3.5 mm Mic Audio

Impedance 600 0hm

Frequency Responce 20 Hz to 20 kHz

Nominal Level 0-1.0 V

Common Mode Rejection at 60 dB

USB

Signal Type USB 2.0

Input Interface (TX) (4) USB Type B

Output Interface (RX) (2) USB 1.1 Type A K/M

(2) USB 2.0 Type A Transparent

CONTROL

Front Panel

Buttons, Select/Switch between

Video & Audio sources and view the

current selected channel

Hot Keys Via Keyboard

OTHER

Power External 100-240 VAC/5VDC2A

Dimensions 2” H x 6” D x 12.75” W

Weight 3.75 lbs

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Emulation Keyboard and mouse only

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

DPN-4P

WHAT’S IN THE BOX

PART NO. Q-TY DESCRIPTION

DPN-4P-S 1

4-Port DisplayPort KVM

Switch with USB 2.0 and

Mic Audio Support

PS5VD2A-WMT 1 PS5VD2A Power Supply

Quick Start Guide 1

OVERVIEW

The DPN-4P is a dedicated multi-platform KVM switch

capable of managing up to 4 different computers with a

DisplayPort monitor, with one USB keyboard & mouse.

The USB emulation technology utilized by the DPN-4P

enables immediate hotkey source switching through a

remote USB keyboard and mouse. The DPN-4P uses

DisplayPort connectors providing high resolutions of up to

4K (3840x2160 @ 60Hz) with zero pixel loss from TMDS

signal correction.

FEATURES

• Zero pixel loss with TMDS signal correcon

• Support all USB 2.0 Devices

• Control Sun, Mac or PC computers from a common

KVM console

• Compable with all major soware including

Windows, Linux, Mac OS, Sun OS, Unix

• Rack mountable in a standard 19 inch rack (with

oponal rack brackets)

• Microphone Support

• Hot-key commands for quick channel selecon

• Complete keyboard emulaon for error free boong

• Top quality 4K (3840 x 2160 @ 60 Hz)

1. Ensure that power disconnected from the DPN-4P

2. Connect the DisplayPort cables, USB cables (male-A to male-B) from the computers to the respective input port on the

DPN-4P

3. Optionally connect Audio cables (3.5 mm jack) from the computers to the input ports on the DPN-4P

4. Connect the USB keyboard and mouse to the two USB ports marked for them on the right

5. Connect the DisplayPort monitor to the OUT connectors on the DPN-4P

6. Optionally connect a microphone to the out jack on the DPN-4P

7. Optionally connect up to two USB devices to the DPN-4P

8. Power on the DPN-4P

Note: The two USB ports on the right are dedicated for keyboard and mouse emulation. The two on the left are for other

USB peripherals (ash drives, printers, etc.)

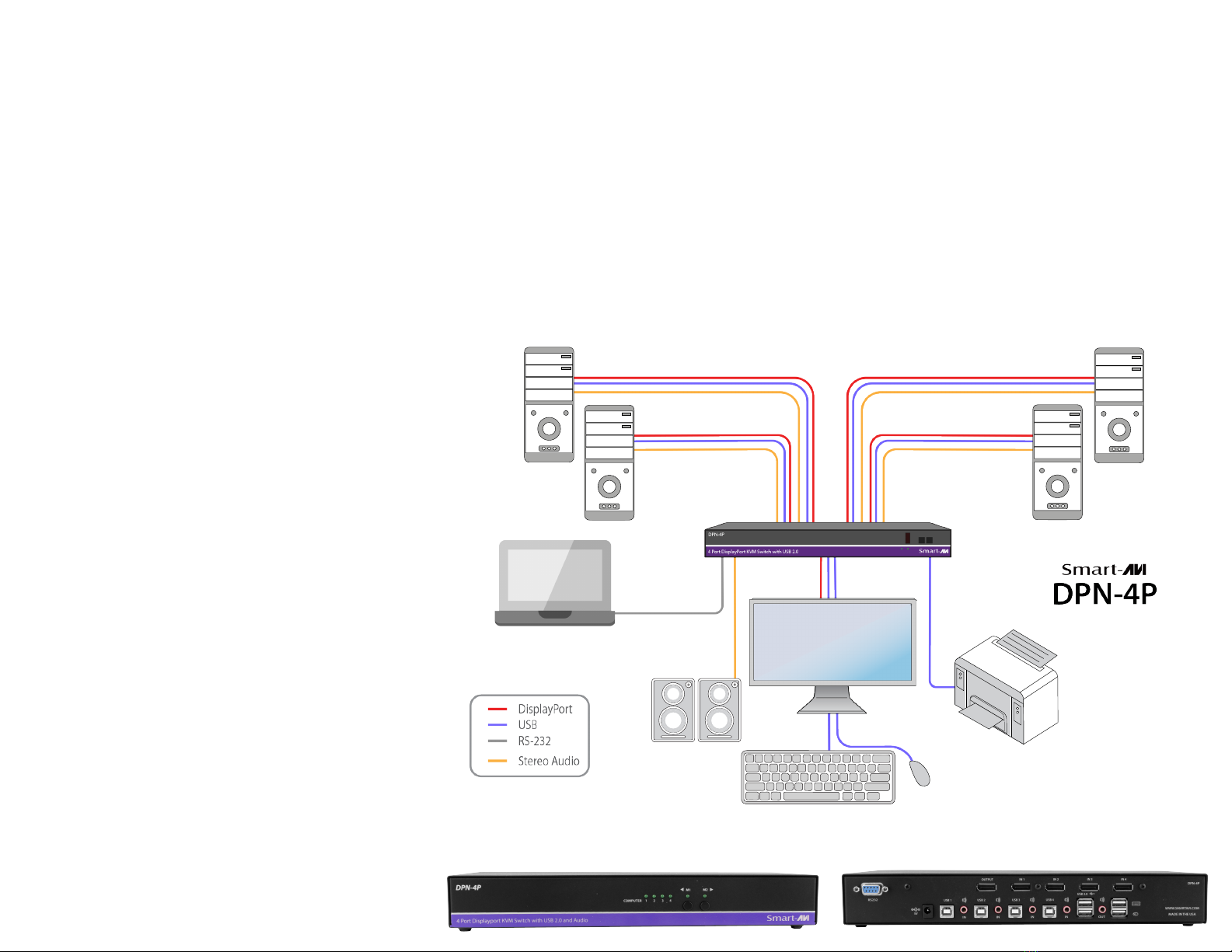

HARDWARE INSTALLATION

DPN-4P FRONT DPN-4P BACK

RS-232 Control
