SMART Board™ 685ix

Premium Interactive

Whiteboard System

(Appliance-Based)

Installation on the

FUWM-600 Wall Mount

Product registration

If you register your SMART product, we’ll notify you of new features and

software upgrades.

Keep the following information available in case you need to contact

SMART Technical Support.

Serial number: ___________________________________________________

Date of purchase: ___________________________________________________

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Trademark notice

SMART Board, the SMART logo and smarttech are trademarks or registered trademarks of SMART Technologies ULC in

the U.S. and/or other countries. Phillips is a registered trademark of Phillips Screw Company. All other third-party product

and company names may be trademarks of their respective owners.

transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written

consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not

represent a commitment on the part of SMART.

Portions of the software that ships with this product are copyrighted by Intel Corporation.

Portions of the software that ships with this product are copyrighted by ParaGraph, a business unit of Vadem.

Patent No. US5448263; US6141000; US6320597; US6326954; US6337681; US6540366; US6741267; US6747636;

US7151533; US7289113; US7499033; US7626577; US7687736; CA2058219; CA2252302; Other patents pending;

Important information

Before you install and use your SMART Board™ 685ix premium appliance-based

interactive whiteboard system, read and understand the safety warnings and cautions

in this user’s guide. This information describes the safe and correct operation of your

SMART Board interactive whiteboard and its accessories and helps prevent injuries

and equipment damage.

If you own a SMART product other than a SMART Board 685ix premium interactive

whiteboard system, refer to the installation guide for your product for relevant

warnings and maintenance instructions.

NOTE

In this document, the term “interactive whiteboard” refers to your interactive

whiteboard and its accessories and options.

Safety warnings and cautions

WARNINGS

• Failure to follow the installation instructions included with your interactive

whiteboard, or found in this guide, could result in personal injury or product

damage.

• Two people are required to safely mount your interactive whiteboard or

projector on a wall mount because they might be too heavy for one person to

safely maneuver alone. When you lift your interactive whiteboard, you and

your assistant should stand on either side of the screen, supporting its weight

at the bottom corners while balancing the top with your other hands.

• Do not leave cables on the floor where they can be a tripping hazard. If you

must run a cable over the floor, lay it in a flat, straight line and secure it to the

floor with tape or a cable management strip of a contrasting color. Handle

cables carefully and avoid excessive bending.

• To reduce the risk of fire or electric shock, do not expose your SMART Board

interactive whiteboard to rain or moisture.

• There are no user-serviceable parts inside the pen tray. Only qualified

personnel should disassemble the pen tray’s printed circuit boards, and this

procedure must be done with proper electrostatic discharge (ESD) protection.

ii | IMPORTANT INFORMATION

CAUTIONS

• If you need to lean your interactive whiteboard against a wall before you

mount it, make sure that it remains in an upright position, resting on its pen

tray brackets, which are designed to sustain your interactive whiteboard’s

weight.

• Do not rest your interactive whiteboard on its side or on the top of its frame.

• Do not add any extra weight or excessive pressure to a wall-mounted

interactive whiteboard or its pen tray. SMART designed the brackets

to support only the weight of your interactive whiteboard during normal use.

• For operating safety and to avoid damage to your interactive whiteboard,

connect its USB connector only to a computer that has a USB compliant

interface and that bears the USB logo. In addition, the USB source computer

must be compliant with CSA/UL/EN 60950 and bear the CE mark and CSA

and/or UL mark(s) for CSA/UL 60950.

Other precautions

To ensure operating safety and to avoid product damage, observe the following

precautions.

• Don’t set up and use your interactive whiteboard in an area with excessive levels

of dust, humidity or smoke.

• If your SMART product requires replacement parts, make sure that the service

technician uses replacement parts specified by SMART Technologies or parts

with the same characteristics as the original.

• Be aware that security cable locks aren’t designed to be a solid protection

measure because the lock can be torn out. However, potential thieves might be

reluctant to try to sell a product with a broken security cable lock hole, which

would readily identify it as a stolen item.

Contents

Important information ..............................................................................................i

Safety warnings and cautions...........................................................................i

Other precautions......................................................................................ii

1Installing your SMART Board 685ix premium interactive whiteboard system

(appliance-based) ................................................................................................. 1

In this chapter ................................................................................................. 1

Before installing the SMART Board 685ix interactive whiteboard system ...... 2

Environmental requirements .................................................................... 2

Verify the installation of the FUWM-600 wall mount and the

SMART Hub SE240/VE220 ..................................................................... 2

Mounting your SMART Board 685ix interactive whiteboard system on a

FUWM-600 wall mount ................................................................................... 3

Important .................................................................................................. 3

Tools required .......................................................................................... 3

Installing the projector mount and wall mount bracket ............................. 4

Installing the SMART Hub SE240/SE220’s power and USB cables ........ 6

Installing the projector cables................................................................... 7

Installing SBA speakers and cables......................................................... 8

Installing additional cables ....................................................................... 9

Installing the UX60 projector .................................................................... 9

Securing the cables................................................................................ 10

Installing the control module cable ......................................................... 11

Mounting the interactive whiteboard....................................................... 11

Completing your installation.......................................................................... 12

Aligning your interactive whiteboard with the projector .......................... 12

Installing the control module .................................................................. 13

iv | CONTENTS

Installing the pen tray ............................................................................. 13

Configuring the projector to turn on or off............................................... 14

Configuring the hub to control the projector ........................................... 14

Orienting your interactive whiteboard system ........................................ 15

AHardware environmental compliance .................................................................. 17

Waste Electrical and Electronic Equipment regulations (WEEE directive) ... 17

Restriction of Certain Hazardous Substances (RoHS directive)................... 17

Packaging ..................................................................................................... 17

China’s Electronic Information Products regulations .................................... 18

U.S. Consumer Product Safety Improvement Act ........................................ 18

BCustomer support................................................................................................ 19

Online information and support..................................................................... 19

Training......................................................................................................... 19

Technical support ......................................................................................... 19

Shipping and repair status ............................................................................ 19

General inquiries........................................................................................... 20

Warranty ....................................................................................................... 20

Registration................................................................................................... 20

Chapter 1

Installing your SMART Board 685ix

premium interactive whiteboard

system (appliance-based)

IMPORTANT

• Use the instructions in this guide to install your interactive whiteboard, control

module and UX60 projector on the FUWM-600 wall mount.

• The instructions in your SMART Board 685 interactive whiteboard box do not

include instructions for installing the UX60 projector or control module, and

the instructions in the SMART Board 685ix and SBD685 Interactive

Whiteboard System document do not show how to mount the interactive

whiteboard or projector on the wall mount.

• Refer to the FUWM-600 SE240/VE220 installation instructions included with

the wall mount, document 99-01032-20, to install the wall mount.

In this chapter

Refer to these topics for information about mounting your SMART Board 685ix

interactive whiteboard system (appliance-based) on its FUWM-600 wall mount.

•Before installing the SMART Board 685ix interactive whiteboard system on

page 2

–Environmental requirements on page 2

–Verify the installation of the FUWM-600 wall mount and the SMART Hub

SE240/VE220 on page 2

•Mounting your SMART Board 685ix interactive whiteboard system on a

FUWM-600 wall mount on page 3

–Tools required on page 3

–Installing the projector mount and wall mount bracket on page 4

–Installing the SMART Hub SE240/SE220’s power and USB cables on page 6

–Installing the projector cables on page 7

2| INSTALLING YOUR SMART BOARD 685IX PREMIUM INTERACTIVE

WHITEBOARD SYSTEM (APPLIANCE-BASED)

–Installing SBA speakers and cables on page 8

–Installing additional cables on page 9

–Installing the UX60 projector on page 9

–Securing the cables on page 10

–Installing the control module cable on page 11

–Mounting the interactive whiteboard on page 11

•Completing your installation on page 12

–Aligning your interactive whiteboard with the projector on page 12

–Installing the control module on page 13

–Installing the pen tray on page 13

–Configuring the projector to turn on or off on page 14

–Configuring the hub to control the projector on page 14

–Orienting your interactive whiteboard system on page 15

Before installing the SMART Board 685ix

interactive whiteboard system

Environmental requirements

Before installing your system, refer to the environmental requirements in the SMART

Board™ 685ix Interactive Whiteboard System Configuration and User’s Guide,

document 99-00984-20, provided with your system.

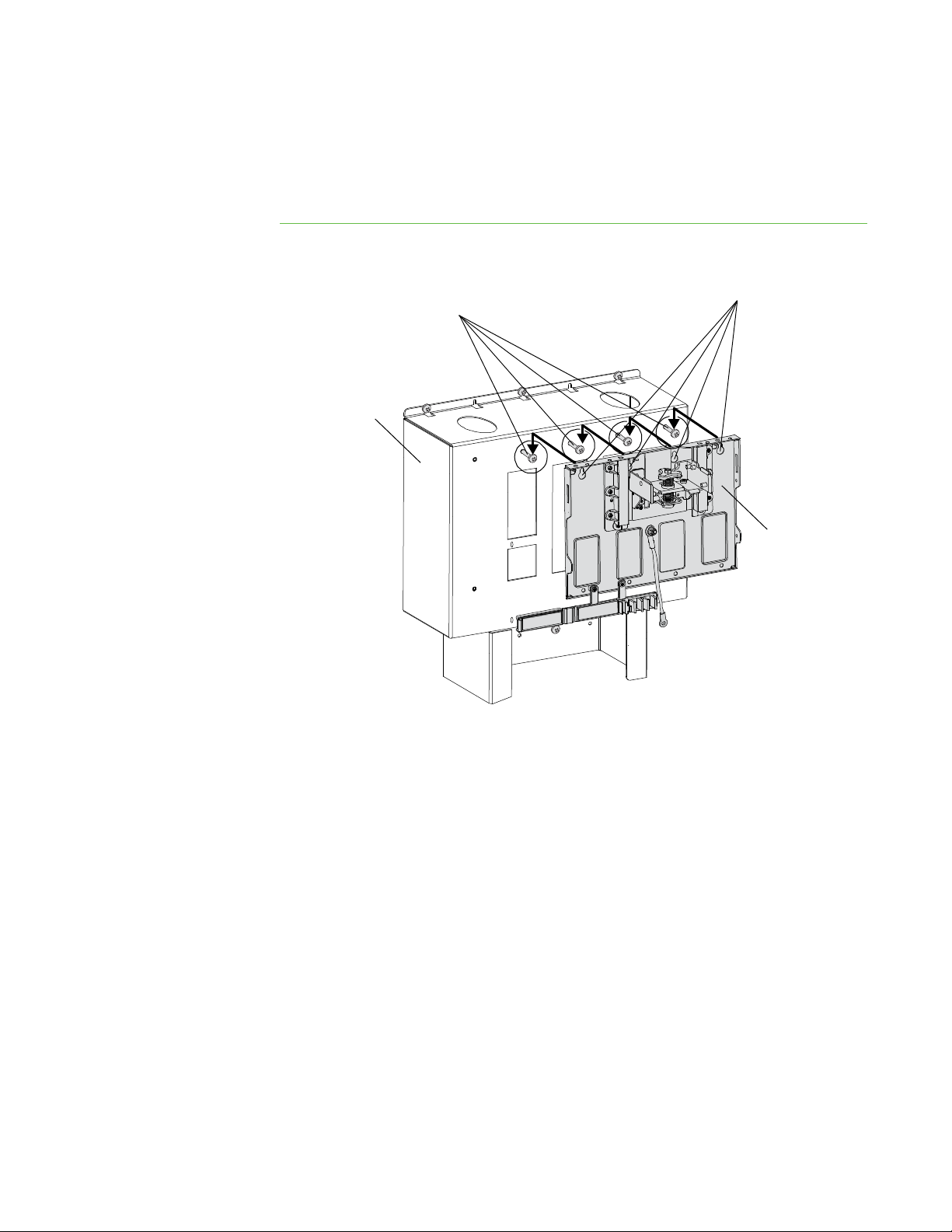

Verify the installation of the FUWM-600 wall mount and the

SMART Hub SE240/VE220

You must complete the installation of the FUWM-600 wall mount and the SMART Hub

SE240 or VE220 before you can install the UX60 projector, the SMART Board 685

interactive whiteboard and the control module. Refer to the FUWM-600 SE240/VE220

installation guide, document 99-01032-20, provided with your FUWM-600 wall mount

unit for more information.

NOTE

Because you can install the SMART Board 685ix interactive whiteboard system in

several configurations, several components included with the system, such as the

Extended Connection Panel (ECP), remain unused when you complete the

installation outlined in this guide.

3| INSTALLING YOUR SMART BOARD 685IX PREMIUM INTERACTIVE

WHITEBOARD SYSTEM (APPLIANCE-BASED)

Mounting your SMART Board 685ix

interactive whiteboard system on a

FUWM-600 wall mount

Important

Before mounting your interactive whiteboard system on the FUWM-600 wall mount,

carefully read and observe the following instructions for operating safety and to avoid

damage to your product.

WARNINGS

• Failure to follow these instructions could result in personal injury and product

damage.

• Two people are required to safely mount your UX60 projector and interactive

whiteboard on the wall mount because they could be too heavy for one

person to safely maneuver alone. When you lift your interactive whiteboard,

you and your assistant should stand on either side of the screen, supporting

its weight at the bottom corners while balancing the top with your other hands.

• Do not leave cables on the floor where they can be a tripping hazard. If you

must run a cable over the floor, lay it in a flat, straight line and secure it to the

floor with tape or a cable management strip of a contrasting color. Handle

cables carefully and avoid excessive bending.

Tools required

To mount your interactive whiteboard on the FUWM-600 wall mount, you need the

following tools, which aren’t included:

• a Phillips® No. 2 screwdriver (all screws must be tightened by hand)

• a stepladder

CAUTIONS

• If you need to lean your interactive whiteboard against a wall before you

mount it, make sure that it remains in an upright position, resting on its pen

tray brackets, which are designed to sustain your interactive whiteboard’s

weight.

• Do not rest your interactive whiteboard on its side or on the top of its frame.

4| INSTALLING YOUR SMART BOARD 685IX PREMIUM INTERACTIVE

WHITEBOARD SYSTEM (APPLIANCE-BASED)

Installing the projector mount and wall mount bracket

To install the projector mount, use the screws labelled f (×7) shown on page 27 of the

FUWM-600 SE240/VE220 installation guide.

To install the projector

mount

1. Using a Phillips No. 2 screwdriver, insert four screws into the four top-right holes

of the projector support leaving the screw heads 1/4" (6 mm) from its surface.

2. Place the projector mounting plate keyholes over the screws, and then tighten

the screws.

Projector

Mounting

Plate

Screws (×4) Keyholes (×4)

Projector

Support

Altri manuali per 685ix

Indice

Altri manuali SMART Board Lavagna interattiva

SMART Board

SMART Board 690 Manuale utente

SMART Board

SMART Board Board E70 Manuale utente

SMART Board

SMART Board In-WallRear Projection SMART Board Manuale utente

SMART Board

SMART Board Board 600iv Manuale utente

SMART Board

SMART Board 600i4 Manuale utente

SMART Board

SMART Board Board 600 Series Manuale utente

SMART Board

SMART Board M685ix2 Manuale utente

SMART Board

SMART Board 7000 series Manuale utente

SMART Board

SMART Board 600i3 Manuale utente

SMART Board

SMART Board Board E70 Manuale utente

SMART Board

SMART Board 3000i Manuale utente

SMART Board

SMART Board 6052i Manuale utente

SMART Board

SMART Board M600 series Manuale utente

SMART Board

SMART Board 400 series Guida all'installazione

SMART Board

SMART Board 800ixe-MP Manuale utente

SMART Board

SMART Board 600i Series Manuale dell'operatore

SMART Board

SMART Board 480iv2 Manuale utente

SMART Board

SMART Board Board 800ix2 Manuale utente

SMART Board

SMART Board 600 Series Manuale utente

SMART Board

SMART Board X800ix Manuale utente

SMART Board

SMART Board 685ix Manuale utente

SMART Board

SMART Board Board E70 Manuale utente

SMART Board

SMART Board 600ix Manuale utente

SMART Board

SMART Board Board 480 Manuale utente

Manuali Lavagna interattiva popolari di altre marche

SMART

SMART KAPP42 Manuale utente

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manuale utente

Buhl

Buhl LyteBoard Manuale utente

SMART

SMART SBX880 Manuale utente

Legamaster

Legamaster e-SCREEN ETX Manuale utente

Seneca

Seneca eno Manuale utente

BenQ

BenQ RP840G Manuale utente

SMART

SMART Sympodium IC-150 Manuale utente

Olivetti

Olivetti OLIBOARD Manuale utente

Turning Technologies

Turning Technologies MOBIVIEW Manuale utente

Panasonic

Panasonic UB-5335 Manuale utente

Dukane

Dukane ITP84 Manuale utente

Bretford

Bretford EDUIMS Guida alla configurazione

Panasonic

Panasonic Panaboard UB-5315 Manuale utente

Plus

Plus M-11S Manuale utente

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manuale utente

Returnstar Interactive Tech

Returnstar Interactive Tech IQBoard DVT V7.0 Manuale utente

AVer

AVer CP series Manuale utente
