Smarthome®SELECT™

Bluetooth®Wireless Stereo Audio Receiver and Amplifier

INTRODUCTION

The Smarthome SELECT Bluetooth Wireless Stereo Audio Receiver and Amplifier is a multi-functional compact device. It

allows you to stream audio via a wireless Bluetooth connection and play audio via the 35-Watt digital amplifier (speakers

sold separately). It gives you the flexibility to put an audio system anywhere you have access to a power outlet and want

to put speakers – perfect for the home, garage, office, and classroom or conference room.

This device also features an RCAL/R Channel Audio input, a 3.5mm Stereo Audio Input, and an optional Microphone input.

For added convenience a Remote Control and an IR receiver cable are included so you can switch inputs (between

Bluetooth, wired audio or microphone), adjust the volume, bass and treble, all while keeping the unit conveniently tucked

away in an entertainment cabinet, closet or other space, with only the IR receiver being exposed.

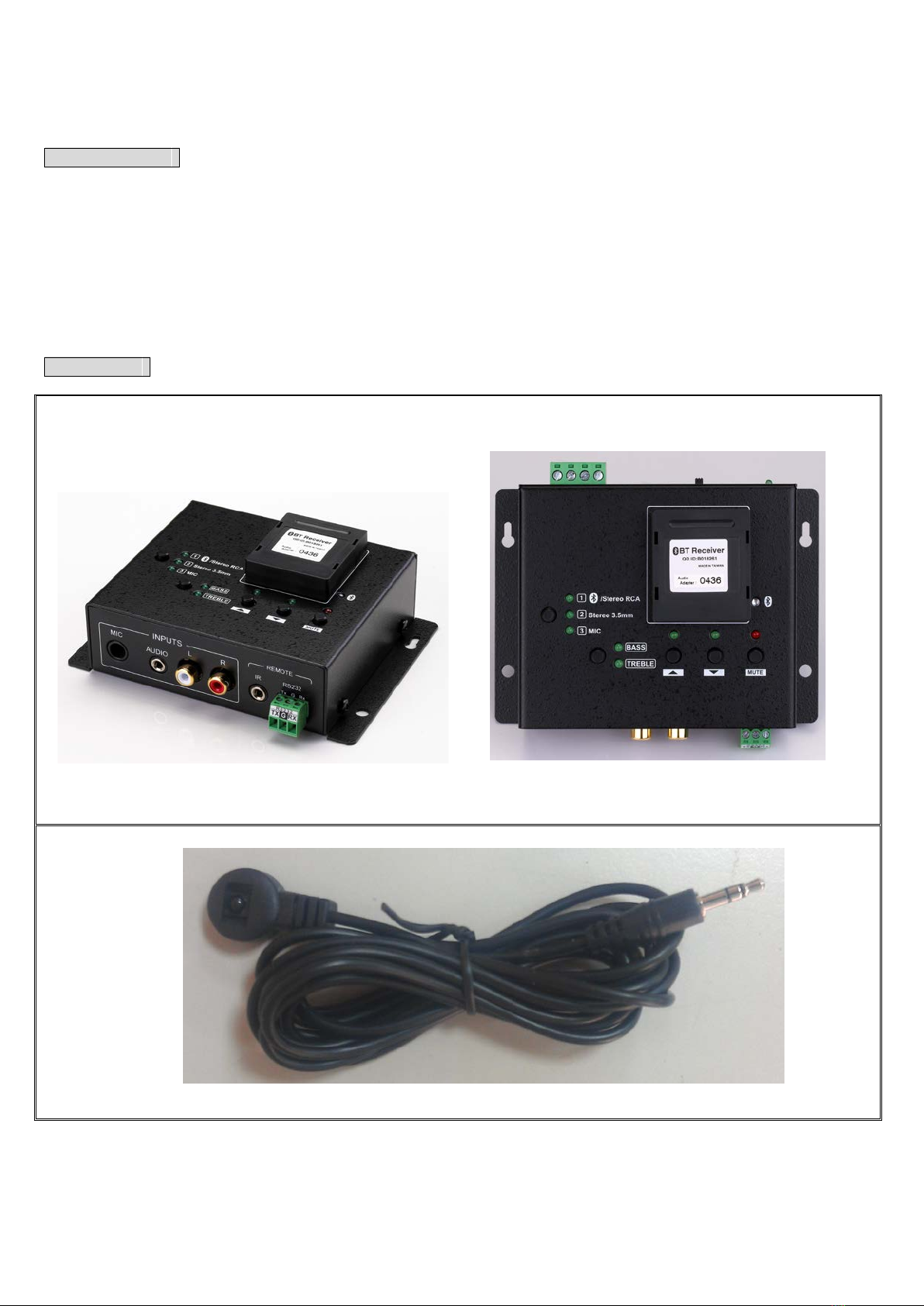

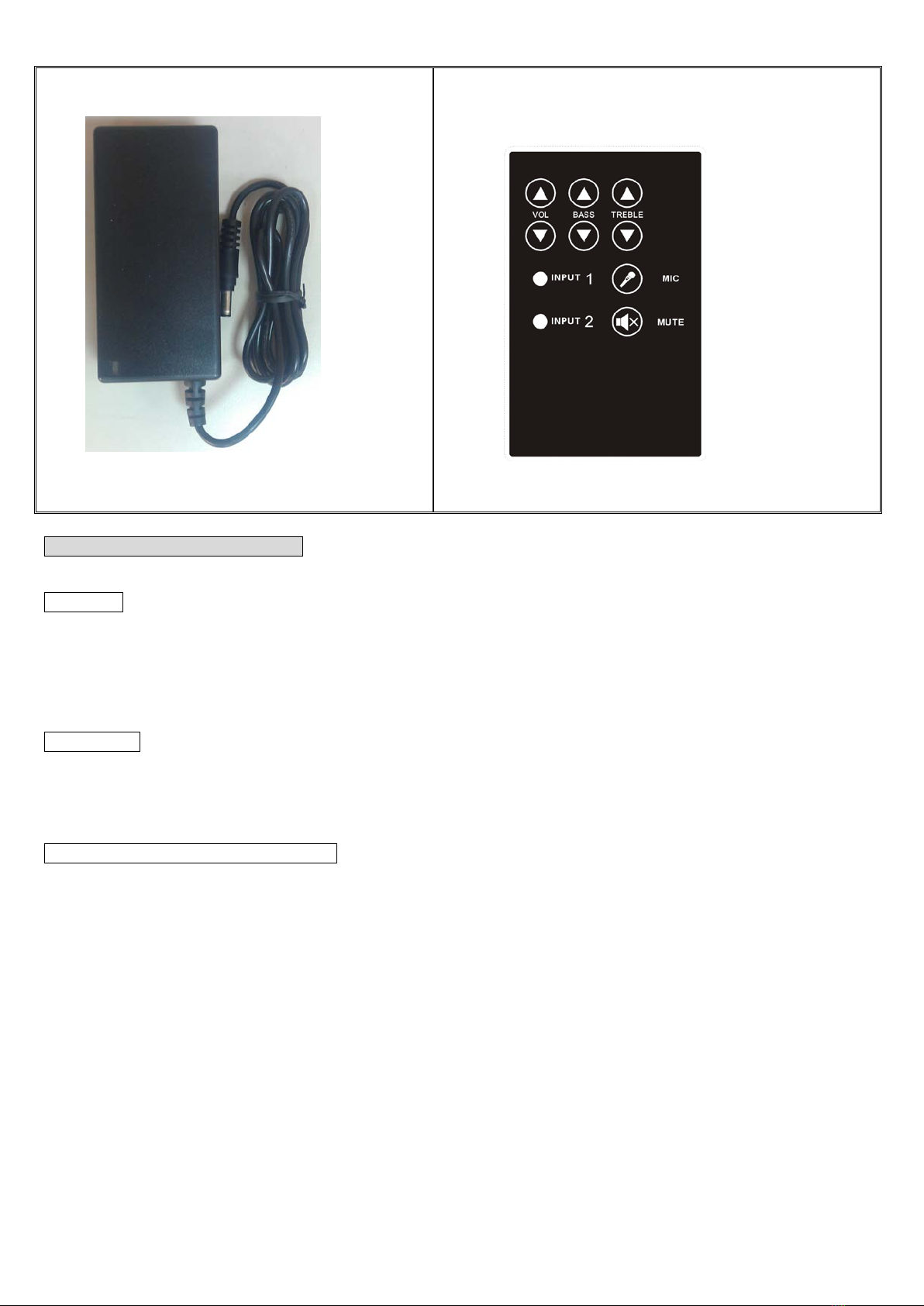

PARTS LIST

Wireless Receiver and Amplifier

IR Receiver

24V 2.5A Power Supply

Remote Control

SPECIFICATIONS AND FEATURES:

INPUTS:

1x - Stereo audio input via 2x - RCAs in parallel connection with wireless Bluetooth input

1x - Stereo audio input via 3.5mm jack

1x - Microphone input via 6.3mm jack

OUTPUTS:

1x - Loop via 3.5mm jack with unit link up to 3units or external amplifier

1x - 4-Pin screw connectors for speakers out

3 SELECTABLE SPEAKERS OUTPUT:

•STEREO

•MONO

•BRIDGE

Specification

Audio General

Frequency Response 40Hz ~ 20kHz Input Sensitivity 1.7V

Volume Control Range 75dB SNR >80dB

Bass Control Range 12dB Treble Control Range 12dB

Power Output

2x -15W(RMS) @ 4Ω(Stereo)

2x - 7W(RMS) @ 8Ω(Stereo)

1x - 35W(RMS) @ 8Ω (Bridge)

Stereo Channel

Separation <50dB

THD <1% @ 1kHz

（

）

<10% @ 1kHz (max power)

Audio Input Audio Output

Input MIC

Stereo Audio Output 1 Amplifier (Speaker)

1 Stereo audio (Loop)

Input Connector

RCA

3.5mm jack

6.5mm jack

Output Connector 4-P screw connector

3.5mm jack

Input Impedance >20kΩ(Stereo Audio )

600Ω (MIC)

Speaker Output

Impedance

4Ω(Stereo & Mono)

8Ω(Bridge)

Loop Output

Impedance >20kΩ

Bluetooth Receiver Module

Version 2.1 EDR (3M/bps) Profile Support A2DP profile

Reception Range Up to 30 feet (depending on

environmental conditions)

Control Parts

RS-232

Pin Configurations 2=TX, 3=RX, 5=GND

General

Power Supply DC 24V, 2.5A Product Weight 397g ~ VAB-1201

Case Dimension 125mm(L) x 90mm(W) x 45mm(H) ~ (Bluetooth module included)

CONTROL INTERFACES:

Source selection with 3 different inputs are available as stated below, control of volume up and down, along with treble and

bass, can be reached over any one of the interfaces, including the unit keypads, IR Remote Control (through the Remote

Control and IR Receiver) or RS-232.

Source selection over remote control:

•Input 1: Stereo RCA (default source)

•Input 2: Stereo 3.5mm

•MIC

Sound levels and tone settings using the Remote Control:

•The overall volume level (0 lowest ~ 20 highest), factory preset value at 5

oBass (L.1 lowest ~ L.9 highest), factory preset value at 5

oTreble (H.1 lowest ~ H.9 highest), factory preset value at 5

oMute: No signal output

Note: The unit has a memory function for all of the above controls including Source Selection, level of Volume, Bass,

Treble, and Mute while power is shut down. But all these can be reset to default settings again, simply press and hold the

“Mute” button for 3 seconds until red LED illuminates steadily after flashing 3 times. This reset function over the Mute key

can be done using the keypad on the main unit or via the Remote Control.

BLUETOOTH RECEIVER MODULE:

•This Wireless Stereo Audio Receiver and Amplifier supports play back of audio signals from Bluetooth-enabled

devices such as a smartphone, tablet, PC or other device supporting Bluetooth Version 2.1 and A2DP profile

•A blue LED indicator light shows modes of operation over the Bluetooth receiver:

oBlinking to indicate pairing mode

oSteady light to indicate the connection is complete between Bluetooth-enabled device and the receiver

•Unique 4-digit alpha-numeric ID is used for identifying each individual receiver when multiple units are used in one

house

•Reception Range: up to 30 feet depending on housing structure and environmental conditions

•For indoor use only. Keep away from extreme temperatures, humidity, and moisture.

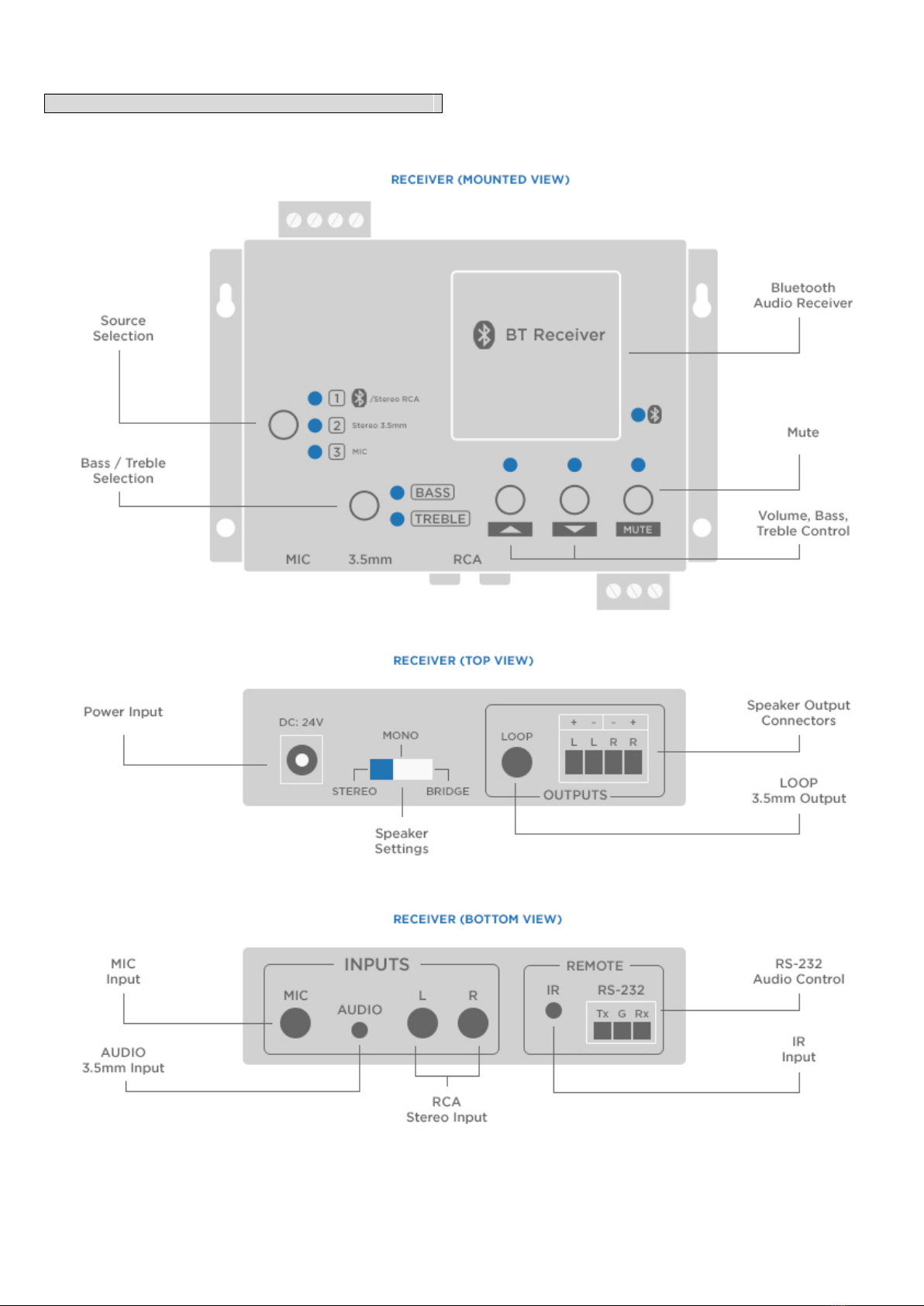

INPUTS, OUTPUTS, CONTROLS, AND INDICATORS:

INSTALLATION AND WIRING DIAGRAMS:

INSTALLATIONS:

Step 1: Audio Connection

Connect line level audio devices such as MP3, CD, DVD, notebook…etc., to the unit using the RCA L/R, stereo 3.5mm or

MIC input. This device is also equipped with a Bluetooth receiver that will allow you to connect a wireless audio source

from Bluetooth-enabled devices.

Notes:

The wireless audio input is in parallel with dual-RCA input; if both signals are present at the same time then two sources

will be mixed together.

Step 2: Speaker Connection

4 connectors for 14~22 AWG cable (R+, R-, L+, L-).

Step 3: Power Connection

Connect the provided power supply to the 24V input on the unit, and then plug in the power supply to an available outlet.

Note: Minimum power requirement of 24V at current rating 2.5A – use of an alternative power supply that does not meet

the minimum recommendations may cause power supply failure or shutdown due to overheating or power overload.

Step 4: IR receiver connection

Plug in the IR Receiver to the IR input jack – this will give you remote control of source selection, volume control up and

down, treble and bass up and down, and more, all using the Remote Control.

OPERATIONS:

Press “Mute” button (LED will disappear) to put the receiver into “WORKING MODE”

It is suggested to play your audio source with the volume set a half and then increase the volume to a desirable level.

Procedures of pairing your Bluetooth device:

•Switch source to input 1

•Place your Bluetooth device within 1m of this unit

•Perform pairing procedure from your Bluetooth device to detect the unit - the ID name of “Audio adapter XXXX” will

appear on the list of your Bluetooth device. If not, switch to a different source and then go back to the Bluetooth

source input, this will reset the Bluetooth function, and then repeat the pairing operation.

•Select “Audio adapter XXXX” on the display of the Bluetoothdevice

•Input passkey/pin code “0000” (required for first time connection from a Bluetooth device)

•Start the Bluetooth connection from the Bluetooth device

Note: The wireless receiver is capable of storing up to 8 pairings. Additionally, it is able to automatically reconnect to the

last paired device

Notes on Bluetooth operations

1) Working mode/sleep mode:

There are 3 minutes of working time for the Bluetooth pairing connection from the time when the wireless receiver is

powered on and enters into a working mode.

If there is no pairing connection made within 3 minutes, the wireless receiver will enter into a sleep mode and the pair

option will no longer be available until the Bluetooth receiver has been reset via a power off and power on (unplug and

then plug in again).

The Bluetooth receiver will wake up manually by any one of the previously 8 paired devices for a connection even if the

wireless receiver is in sleep mode.

2) Automatic connection:

The wireless receiver will be in search mode within a few seconds of being powered on to sense and connect

automatically to the previously last paired device.

3) Memory function:

The Bluetooth receiver is capable of storing up to 8 pairings; any new pairings over 8 will delete the previous pairing in

order from first paired to last paired.

4) The Bluetooth connection between the wireless receiver and the Bluetooth device might be disconnected when it is

out of the 10 meter (~30 feet) reception range. The wireless receiver is able to automatically connect to the Bluetooth

device once they are within the reception range (within in 30seconds).

IR control through RS232 interface with reference picture pasted below from the computer:

RS232 Pins Configuration over the connector:

＝

TX , 3

＝

RX , 5

＝

GND

Assembling & set up control software:

Step 1: Wire the connector cable according to above configuration. Make sure the wiring of TX/RX is not reserved which

TX should be connected to PIN-2 and RX to PIN-3 for avoiding the control not working.

Step 2: Plug in connector to PC end.

Step 3: Set baud rate to 9600 in your PC and install control software from the provided CD until your PC appears on the

display of the Control Panel as shown above right.

Step 4: Press “Connect” to give the unit access with RS232 control and then press the “Refresh” button to update the

control of volume, bass, treble and source.

Notes:

a) With RS232 control, there will be a maximum of 9 units to be linked through one PC by manual setting from COM1

to COM9 as the assigned ports.

b) With RS232 connection made via cable, please ensure that 2

＝

TX , 3

＝

RX.

RS232 communication ASCII CODE protocol:

Note: The coding system: 8n1: 1 start bit + 8 data bits + 1 stop bit per byte = 10 bits per byte.

The serial port speed/baud rate: 9600

Group Command Function Description Feedback Code

Source Switch Setting

1A1 Switching the source to input 1 A:1->1←

2A1 Switching the source to input 2 A:1->2←

3A1 Switching the source to input 3 A:1->3←

Mute Setting 1A0 Mute All Mute All←

0A0 unMute All UnMute All←

Step Setting

600% Volume Up Volume:15←

601% Volume Down Volume:15←

602% Base Up Base:02←

603% Base Down Base:02←

604% Treble Up Treble:03←

605% Treble Down Treble:03←

Initialization 609% Initialization, back to the default setting

A:1->1←

Volume:00←

Base:05←

Treble:05←

Request

690% Checking the working status

A:1->1←

Volume:15←

Base:02←

Treble:03←

691% Checking the Source status A:1->1←

692% Checking the Volume status Volume:15←

693% Checking the Base status Base:02←

694% Checking the Treble status Treble:03←

7[x][x]% Preset Volume, [x][x] is arranging from [0][0] to [1][9],

20 degree in total Volume:15←

8[x][x]% Preset Base, [x][x] is arranging from [0][1] to [0][9], 9

degree in total Base:02←

9[x][x]% Preset Treble, [x][x] is arranging from [0][1] to [0][9],

9 degree in total Treble:03←

EX:

MUTE ALL: 1A0

Volume Up: 600%

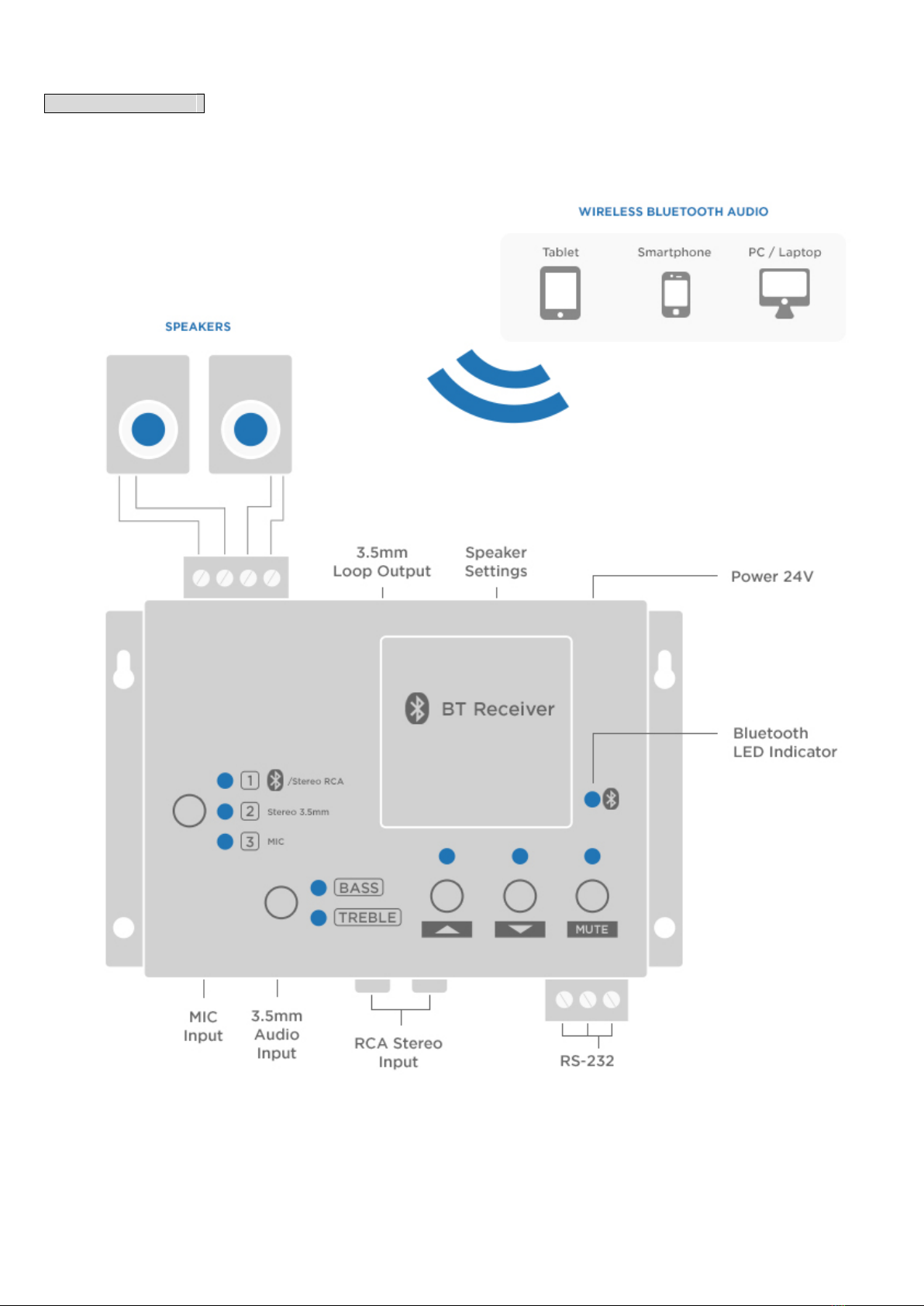

WIRING DIAGRAMS:

A) TYPICAL BLUETOOTH APPLICATION
