SMARTBoard™ 480iv

Interactive whiteboard system

Configuration and user’s guide

Product registration

If you register your SMART product, we’ll notify you of new features and software upgrades.

Keep the following information available in case you need to contact SMARTSupport.

Serial number:

Date of purchase:

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Trademark notice

SMARTBoard, SMARTNotebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMARTTechnologiesULC in the U.S.

and/or other countries. DLP, TexasInstruments, BrilliantColor and DLPLink are trademarks of TexasInstruments. Windows, InternetExplorer and Microsoft are either

registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Blu-ray is a trademark of the Blu-ray Disc Association. The Bluetooth

wordmark is owned by the Bluetooth SIGInc. and any use of such marks by SMARTTechnologies ULC is under license. All other third-party product and company names

may be trademarks of their respective owners.

into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to change without notice

and does not represent a commitment on the part of SMART.

One or more of the following patents: US6320597; US6326954; US6540366; US6741267; US6803906; US6954197; US7151533; US7184030; US7236162; US7342574;

US7379622; US7532206; US7619617; US7629987; US7692625; US7751671; US7757001; USD612396; USD616462; USD617332; and USD636784. Other patents pending.

07/2011

Important information

Before you install and use your SMART Board™ 480iv interactive whiteboard system, read and

understand the safety warnings and precautions in this user’s guide and the included warnings

document. These safety warnings and precautions describe the safe and correct operation of your

interactive whiteboard system and its accessories, helping you to prevent injuries and equipment

damage. Ensure that your interactive whiteboard system is always being used correctly.

In this document, “SMART Board 480iv interactive whiteboard system” refers to your SMART Board

480 interactive whiteboard and its SMART V25 projector, accessories and optional equipment.

The SMART V25 projector included with your system is designed to work only with certain

SMARTBoard interactive whiteboard models. Contact your authorized SMART reseller

(smarttech.com/where) for more information.

Safety warnings, cautions and important

information

W W A R N I N G

lFailure to follow the installation instructions shipped with your SMART product could result in

personal injury and damage to the product.

lTo reduce the risk of fire or electric shock, do not expose the SMART product to rain or

moisture.

lTwo people are required to mount your SMART product because it may be too heavy for one

person to safely maneuver.

When you lift your interactive whiteboard, you and your assistant should stand on either side

of the screen, supporting its weight at the bottom while balancing the top with your other

hands.

lWhen mounting the projector boom on a framed or hollow wall, attach both the mounting

bracket and the safety tether to a stud to safely support the projector’s weight. If you use only

drywall anchors, the drywall can fail, resulting in possible personal injury, and damage to the

product which may not be covered by your warranty.

lDo not leave cables on the floor where they can be a tripping hazard. If you must run a cable

over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable

management strip of a contrasting color. Handle cables carefully and avoid excessive

bending.

lDo not climb (or allow children to climb) on a wall- or stand-mounted SMARTBoard

interactive whiteboard.

Do not climb on, hang from or suspend objects from the projector boom.

Climbing on the interactive whiteboard or projector boom could result in personal

injury or product damage.

lFor warnings related to the projector’s 3D support, see smarttech.com/support/3Dwarnings.

C C A U T I ON

lDo not operate this unit immediately after moving it from a cold location to a warm location.

When the unit is exposed to such a change in temperature, moisture can condense on the

lens and crucial internal parts. Allow the system to stabilize to room temperature before

operation to prevent possible damage to the unit.

lDo not place the unit in hot locations, such as near heating equipment. Doing so could cause

a malfunction and shorten the life of the projector.

lAvoid setting up and using the SMART product in an area with excessive levels of dust,

humidity and smoke.

lDo not place your SMART product in direct sunlight or near any appliance that generates a

strong magnetic field.

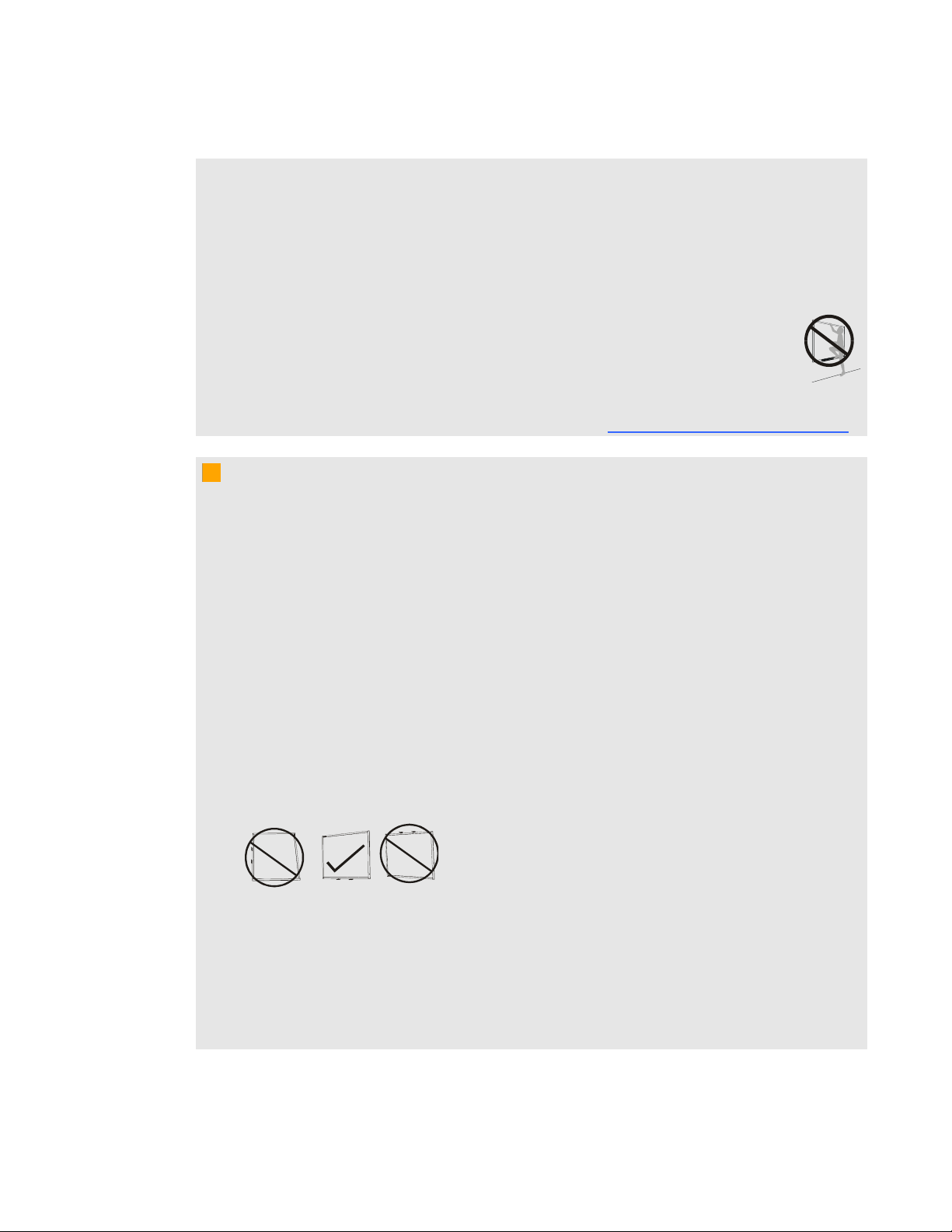

lIf you need to lean the interactive whiteboard against a wall before you mount it, make sure it

remains in an upright position.

Do not rest the interactive whiteboard on its side or on the top of the frame.

lYou must connect the USB cable that came with your SMARTBoard interactive whiteboard

to a computer that has a USB compliant interface and that bears the USB logo. In addition,

the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark

and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid

damage to the SMARTBoard interactive whiteboard.

I M P O R T A N T I N F O R M A T I O N

lDo not block the projector’s ventilation slots and openings.

lAvoid putting the projector into Standby mode during the lamp ignition phase because this

can lead to premature lamp failure. Keep the projector lamp on for a minimum of 30 minutes

before putting it into Standby mode to preserve the lamp life.

lIn a high altitude location over 1800 m (6000'), where the air is thin and cooling efficiency is

reduced, use the projector with the fan mode set to High.

lCycling power to the projector repeatedly can lock or damage your SMART product. After

you put the product into Standby mode, wait at least 30 minutes for cooling before starting

the product again.

lDo not adjust any settings in the service menu other than those listed in the following

procedures. Changing other settings might damage or affect the operation of your projector

and may invalidate your warranty.

lBefore you clean the SMART V25 projector, press the Power button twice on the

Extended Control Panel (ECP) or remote control to put the system into Standby mode, and

then allow the lamp to cool for 30 minutes.

lDo not spray cleaners, solvents or compressed air near any part of the projector because

they can damage or stain the unit. Spraying the system could spread a chemical mist on

some of the projector’s components and lamp, resulting in damage and poor image quality.

lDo not allow liquids or commercial solvents of any kind to flow into the projector.

lWhen transporting your SMART product, repack it with as much of the original packaging as

possible. This packaging was designed with optimal shock and vibration protection.

lIf your SMART product requires replacement parts, make sure the service technician uses

replacement parts specified by SMARTTechnologies or parts with the same characteristics

as the original.

I M P O R T A N T I N F O R M A T I O N

iii

I I M P O R T A N T

lUse the instructions included with your SMART V25 projector to install your interactive

whiteboard and projector. The instructions in your SMARTBoard interactive whiteboard box

do not include instructions for installing the SMART V25 projector.

lMake sure an electrical socket is near your SMART product and remains easily accessible

during use.

lUsing your SMART product near a TV or radio could cause interference to the images or

sound. If this happens, move the TV or radio away from the projector.

lIf you have peripheral devices that do not use a 4-pin mini-DIN connector or an RCA

composite video jack, or if your device has an audio connection that does not use RCA

jacks, you may need to purchase third-party adapters.

lKeep your remote control in a safe place because there is no other way to access menu

options.

lPut your SMART product into Standby mode before cleaning it.

lFollow these guidelines to clean the projector:

oWipe the exterior of the projector with a lint-free cloth.

oIf necessary, use a soft cloth moistened with a mild detergent to clean the projector

housing.

oDo not use abrasive cleaners, waxes or solvents.

oAvoid touching the lens. If it is necessary to clean the lens:

oUse liquids or commercial solvents (such as glass cleaners) to clean the lens,

but do not spray them directly on the system.

oUse protective gloves and dip a lint-free cloth (such as Purestat PW2004) in an

anti-static solvent (such as Hyperclean EE-6310).

oGently wipe the lens from the center to the edge.

lDisconnect the product from its power source when it’s not used for a long period.

I M P O R T A N T I N F O R M A T I O N

Environmental requirements

Before you install your SMART Board 480iv interactive whiteboard system, review the following

environmental requirements.

Environmental

requirement

Parameter

Operating temperature l5°C to 35°C (41°F to 95°F) from 0 m to 1800 m (0' to 6000')

l5°C to 30°C (41°F to 86°F) from 1800 m to 3000 m (6000' to 9800')

Storage temperature l-20°C to 70°C (-4°F to 158°F) at 5% to 90% relative humidity (non-

condensing)

Humidity l30% to 80% relative humidity, non-condensing

l5% to 85% relative humidity at 0 m to 3000 m (0' to 9800')

Water and fluid

resistance

lIntended for indoor use only. Doesn’t meet any salt-spray or water

ingress requirements.

lDon’t pour or spray liquids directly onto your interactive whiteboard,

the SMART V25 projector or any of its sub-components.

Dust lIntended for use in office and classroom environments. Not for

industrial use where heavy dust and pollutants can cause

malfunctions or impaired operation. Periodic cleaning is required in

areas with heavier dust.

lDesigned for pollution degree 1 (P1) as per EN61558-1, which is

defined as “No pollution or only dry non-conductive pollution”.

Electrostatic discharge

(ESD)

lEN61000-4-2 severity level 4 for direct and indirect ESD

lNo malfunction or damage up to 8kV (both polarities) with a 330

ohm, 150 pF probe (air discharge)

lUnmated connectors meet no malfunction or damage up to 4kV

(both polarities) for direct (contact) discharge

Cables lAll SMART Board 480iv interactive whiteboard system cables

should be shielded to prevent potential accidents and degraded

video and audio quality.

Conducted and radiated

emissions

lEN55022/CISPR 22, Class A

I M P O R T A N T I N F O R M A T I O N

Contents
Important information i
Safety warnings, cautions and important information i
Environmental requirements v
Chapter 1: About your interactive whiteboard system 1
SMART Board 480iv interactive whiteboard system features 2
Included accessories 4
Optional accessories 4
Chapter 2: Installing your interactive whiteboard system 5
Choosing a location 5
Choosing a height 6
Securing the interactive whiteboard system 6
Installing your audio system 6
Routing the cables 7
Installing SMART software 8
Chapter 3: Using your interactive whiteboard system 9
Using your projector 9
Using your interactive whiteboard 21
Chapter 4: Integrating other devices 23
Video format compatibility 23
Connecting peripheral sources and outputs 25
Chapter 5: Maintaining your interactive whiteboard system 27
Maintaining your interactive whiteboard 27
Focusing and adjusting the projector image 27
Replacing the projector lamp 28
Chapter 6: Troubleshooting your interactive whiteboard system 37
Correcting image alignment issues 38
Diagnosing issues using the interactive whiteboard system indicators and controls 38
Resolving network communication issues 43
Resolving audio issues 43
Resolving video issues 44
Resolving image issues 44
Accessing the service menu 49
Locating serial numbers 51
vii

Transporting your interactive whiteboard system 51
Appendix A: Remotely managing your interactive whiteboard system 53
Web page management 54
Connecting your room control system to the SMART V25 projector 58
Projector programming commands 60
Simple Network Management Protocol (SNMP) 70
Appendix B: Hardware environmental compliance 71
Waste Electrical and Electronic Equipment regulations (WEEE directive) 71
Restriction of Certain Hazardous Substances (RoHS directive) 71
Batteries 71
Packaging 72
China’s Electronic Information Products regulations 72
U.S. Consumer Product Safety Improvement Act 72
Index 73
C O N T E N T S
viii

Altri manuali per SMART Board 480iv

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Smart Technologies Lavagna interattiva

Smart Technologies

Smart Technologies SMART Board V280 Manuale utente

Smart Technologies

Smart Technologies SMART Board 600i5 Manuale utente

Smart Technologies

Smart Technologies SMART Board 600i4 Manuale utente

Smart Technologies

Smart Technologies 1710 Manuale utente

Smart Technologies

Smart Technologies SBID-MX365 Manuale utente

Smart Technologies

Smart Technologies SMART Board 2000i Projector replacement Manuale elenco delle parti

Smart Technologies

Smart Technologies SMART kapp iQ Pro 55 Manuale di servizio

Smart Technologies

Smart Technologies Smart Board Manuale utente

Smart Technologies

Smart Technologies HAWM-600i2 Manuale utente

Smart Technologies

Smart Technologies SMART Board 4000i Manuale utente

Smart Technologies

Smart Technologies SB800ix3 Manuale utente

Smart Technologies

Smart Technologies SMART Board 800i5-SMP Manuale utente

Smart Technologies

Smart Technologies SMART Board 480iv Manuale utente

Smart Technologies

Smart Technologies SB680i2-SE240 Manuale utente

Smart Technologies

Smart Technologies SMART Board 800ixe-SMP Manuale utente

Smart Technologies

Smart Technologies SMART Board 4000i Manuale utente

Smart Technologies

Smart Technologies SMART Board X800 Series Manuale utente

Smart Technologies

Smart Technologies SMART Board 400iv Manuale utente

Smart Technologies

Smart Technologies Parts Kit for SMART Board 580 Manuale utente

Smart Technologies

Smart Technologies Smart Board Istruzioni operative

Smart Technologies

Smart Technologies Board 660 Manuale utente

Smart Technologies

Smart Technologies SMART Board 8070ie-SMP Manuale utente

Smart Technologies

Smart Technologies SMART Board 680i3 Manuale utente

Smart Technologies

Smart Technologies SMART Board 2000i-DVX Manuale utente

Manuali Lavagna interattiva popolari di altre marche

SMART

SMART KAPP42 Manuale utente

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manuale utente

Buhl

Buhl LyteBoard Manuale utente

SMART Board

SMART Board 680 Manuale utente

SMART

SMART SBX880 Manuale utente

Legamaster

Legamaster e-SCREEN ETX Manuale utente

SMART Board

SMART Board SBM685ix2 Manuale utente

Seneca

Seneca eno Manuale utente

BenQ

BenQ RP840G Manuale utente

SMART

SMART Sympodium IC-150 Manuale utente

Olivetti

Olivetti OLIBOARD Manuale utente

Turning Technologies

Turning Technologies MOBIVIEW Manuale utente

Panasonic

Panasonic UB-5335 Manuale utente

Dukane

Dukane ITP84 Manuale utente

Bretford

Bretford EDUIMS Guida alla configurazione

Panasonic

Panasonic Panaboard UB-5315 Manuale utente

Plus

Plus M-11S Manuale utente

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manuale utente
