SmartVent Positive2 Manuale utente

Distributed by Simx Limited

PO Box 14 347, Panmure, Auckland, NZ.

Technical Support (09) 259 1662 | e: [email protected] | w: www.smartvent.co.nz

Specifications are subject to change without notice.

PUB1522 2004

Contact: 0800 140 150

[email protected]

User Manual

Your guide to a healthier home

HOME VENTILATION SYSTEMS

Warning

- This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Isolate the mains supply before attempting to replace the system’s air filter.

SMARTVENT POSITIVE2 SYSTEM

Contents

Find Your Way Around Your Controller ...................................................... 4

How the System Works ........................................................................... 5

Quick Setup Guide .................................................................................. 6

Screens and Navigation

Standby Screen .................................................................................. 8

Home Screen ..................................................................................... 8

Home Screen Icons ............................................................................ 9

Settings............................................................................................. 11

Settings Map ..................................................................................... 12

Scheduler Navigation......................................................................... 14

Ventilation.......................................................................................... 15

Heat Transfer..................................................................................... 17

Tempering Heater .............................................................................. 20

Time-Date Setting ............................................................................. 23

Scheduler Time Setting .....................................................................24

Recycle ............................................................................................. 25

Advanced Settings ............................................................................ 26

Advanced Settings Detail................................................................... 27

Maintenance........................................................................................... 28

Troubleshooting...................................................................................... 29

Error Codes............................................................................................ 31

Glossary ................................................................................................. 32

Technical Specifications.......................................................................... 33

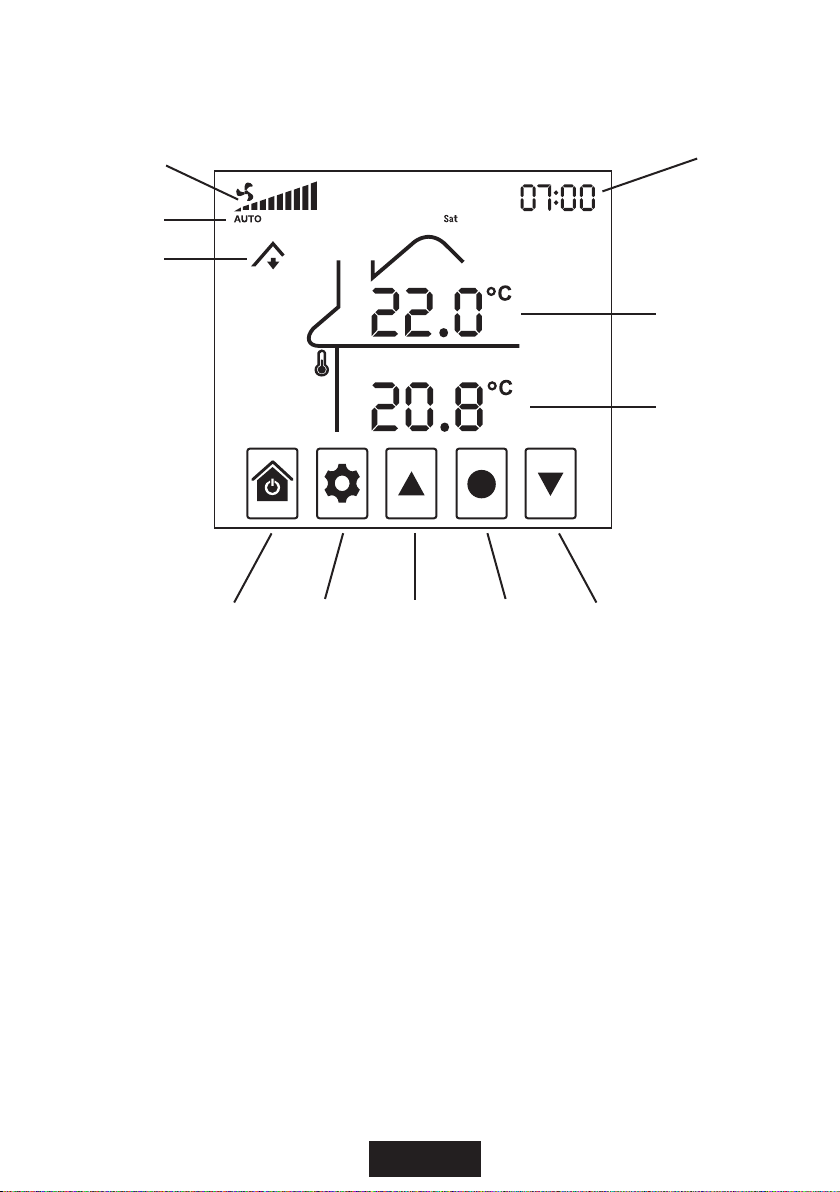

Find your way around your controller

Fan Speed

SelectMenu



SettingsPower/

Home

Fresh Air

Temperature

Clock

Mode

Current Room

Temperature



Air Source

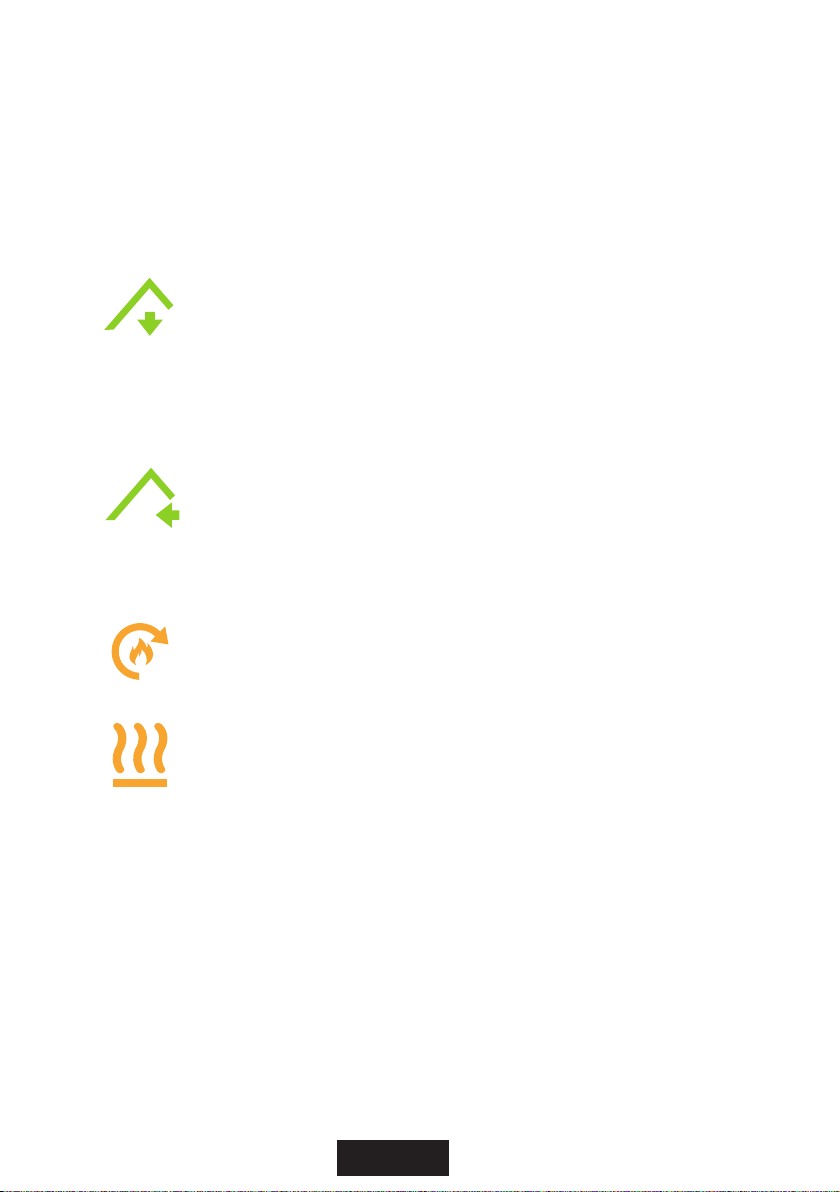

The SmartVent Positive2 System

SmartVent Positive2 is a positive pressure system which uses

air taken from the roof cavity to ventilate your home.

System Enhancements1)

Summer Feature

Adds outside air as second air source option so that your

system can provide continued quality ventilation in warmer

months and especially so when the roof cavity air temperature

exceeds that of the outside air.

Heat Transfer

Used to transfer any excess heat from your lounge to your

bedrooms.

Tempering Heaters

Designed for situations where supply air temperatures are too

cool.

When system enhancements are added, your system can offer greater options

in how it operates.

The options can override or influence one another as in the following examples.

Example: When the environment in your home meets your chosen heat transfer

condition the ventilation and tempering heater functions deactivate.

Example: When the system is ventilating and conditions are met for the heater

to turn on, the speed of the fan will be influenced by the heater function.

1) For more information about SmartVent system enhancements, contact 0800 140 150 or email [email protected]

How the System Works

Some features covered in this instruction manual are only available when

installed and activated. Contact SmartVent for more information if you are

interested in adding additional features to your system.

Quick Setup Guide

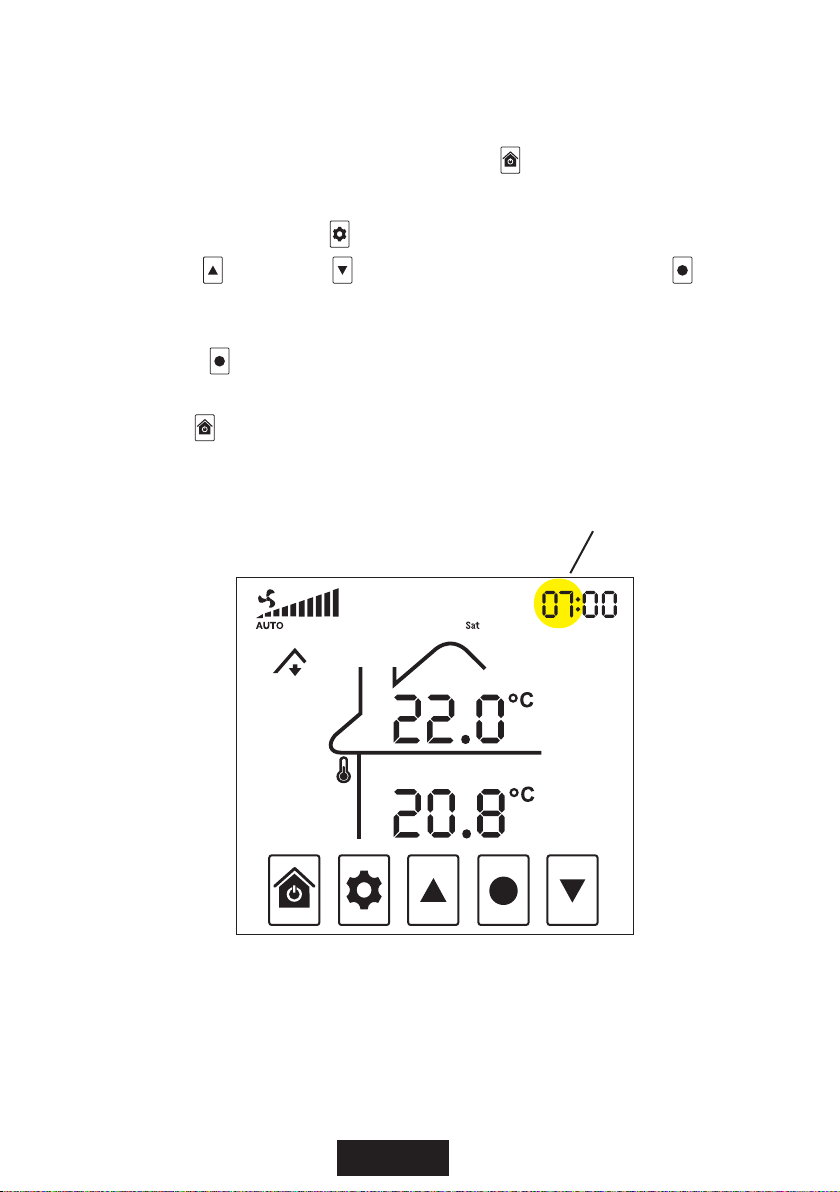

1 - Switch On

- Power on the system by pressing POWER .

2 - Set the Clock

- Hold down SETTINGS for 3 seconds until the time flashes.

- Use UP and DOWN to adjust the value and use SELECT to go

to the next parameter.

- Set up the Hour, Minutes, Day of Week, Year, Month then Date. Pressing

SELECT

after setting up Date will save your changes1).

- You can choose to set up the Scheduler Times2) at this point or press

HOME

to exit.

1) Refer to page 23 for more detailed instructions

2) This step is only available if a heat transfer kit or tempering heater is installed

Yellow highlight means

that icon is flashing

Quick Setup Guide (cont’d)

3 - Set Ventilation Mode and Temperature

- Press SETTINGS , then SELECT to enter Ventilation Mode settings.

- Press UP to switch between MAN (Manual)1) or AUTO (Automatic)2)

ventilation modes.

- Choose AUTO and press SELECT .

- Press UP and DOWN to change the desired indoor SET

Temperature3).

- Press SELECT to confirm and save settings.

1) Manual ventilation mode provides individual control of fan speed and air source (see page 16)

2) Auto ventilation mode allows the controller to decide the speed and air source control (see page 15)

3) Your preferred indoor air temperature

Standby Screen

When your SmartVent Positive2 controller is first powered on, the standby screen

will be shown. Press POWER to turn the system ON.

Home Screen

Home Screen Icons

System Fan Speed

Ventilation Mode (AUTO/MANUAL)

Air Source Indicator

Heat Transfer Indicator

Tempering Heater Indicator

Recycle Indicator

Home and Power

Settings

Select

Down

SET (Set temperature is shown instead

of the fresh air temperature)

Fresh Air Temperature

Current Room Temperature

Key Lock On

Rental Mode On

COMs (flashes when communicating

with ceiling controller)

ALERT (Error code will appear at the

time slot)

Time (24 hour clock - up to four

scheduled per day)

Scheduler Period and Day

(up to four scheduled per day)

MENUMENU
