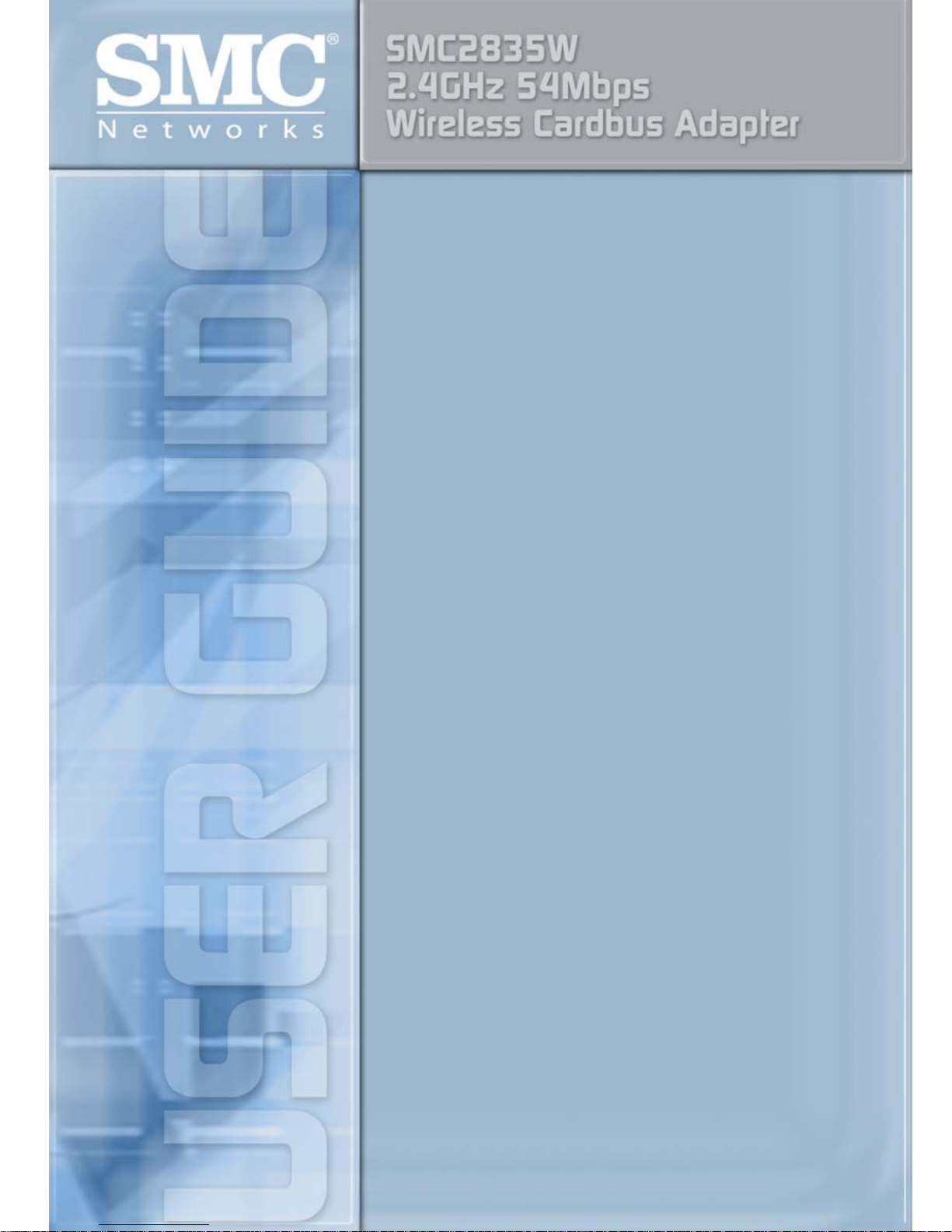

SMC Networks 2835W V2 Manuale utente

38 Tesla

Irvine, CA 92618

Phone: (949) 679-8000

EZ Connect g 2.4 GHz 54 Mbps

Wireless Cardbus Adapter

User Guide

The easy way to make all your network connections

March 2004

Revision Number:

E032004 R01. F1.0

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents

or other rights of third parties which may result from its use. No license is granted by

implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to

change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EZ Connect and EZ Hub are trademarks of SMC

Networks, Inc. Other product and company names are trademarks or registered trademarks

of their respective holders.

COMPLIANCES

Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this

equipment. This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 centimeters (8 inches) between the radiator and your

body. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Wireless 2.4 GHz Band Statements:

As the SMC2835W Wireless Cardbus can operate in the 2412-2462 MHz

frequency band it is limited by the FCC, Industry Canada and some other

countries to indoor use only so as to reduce the potential for harmful interference

to co-channel Mobile Satellite systems.

COMPLIANCES

The term “IC:” before the radio certification number only signifies that Industry

Canada technical specifications were met.

Industry Canada - Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus as set out in the interference-causing equipment standard

entitled “Digital Apparatus,” ICES-003 of Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables

aux appareils numériques de Classe B prescrites dans la norme sur le matérial

brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie.

Australia/New Zealand AS/NZS 4771

Contact SMC at:

SMC Networks, Inc.

38 Tesla

Irvine, CA 92618

Phone: (949) 679-8000

ACN 066 352010

OMPLIANCES

iii

EC Conformance Declaration

SMC contact for these products in Europe is:

SMC Networks Europe,

Edificio Conata II,

Calle Fructuós Gelabert 6-8, 2o, 4a,

08970 - Sant Joan Despí,

Barcelona, Spain.

Marking by the above symbol indicates compliance with the Essential Require-

ments of the R&TTE Directive of the European Union (1999/5/EC). This equip-

ment meets the following conformance standards:

• EN 60950 (IEC 60950) - Product Safety

• EN 300 328 - Technical requirements for 2.4 GHz radio equipment

• EN 301 489-1 / EN 301 489-17 - EMC requirements for radio equipment

Countries of Operation & Conditions of Use in the European

Community

This device is intended to be operated in all countries of the European Commu-

nity. Requirements for indoor vs. outdoor operation, license requirements and

allowed channels of operation apply in some countries as described below:

Note: The user must use the configuration utility provided with this product to

ensure the channels of operation are in conformance with the spectrum

usage rules for European Community countries as described below.

• This device requires that the user or installer properly enter the current country

of operationin thecommand lineinterface as describedinthe userguide, before

operating this device.

• This device will automatically limit the allowable channels determined by the

current country of operation. Incorrectly entering the country of operation may

result in illegal operation and may cause harmful interference to other system.

The user is obligated to ensure the device is operating according to the channel

limitations, indoor/outdoor restrictions and license requirements for each

European Community country as described in this document.

• ThisdevicemaybeoperatedindoorsoroutdoorsinallcountriesoftheEuropean

Community using the 2.4 GHz band: Channels 1 - 13, except where noted

below.

- In Italy the end-user must apply for a license from the national spectrum

authority to operate this device outdoors.

- In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz

band: Channel 13.

- In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band:

Channels 1 - 7.

0560

COMPLIANCES

Wichtige Sicherheitshinweise (Germany)

1. Bitte lesen Sie diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Sie

keine Flüssigoder Aerosolreiniger. Am besten eignet sich ein angefeuchtetes

Tuch zur Reinigung.

4. Die Netzanschlu ßsteckdose soll nahe dem Gerät angebracht und leicht

zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen

oder Fallen könnte Beschädigungen hervorrufen.

7. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor

Überhitzung schützt. Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt

werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann.

Es sollte auch nichts auf der Leitung abgestellt werden.

10.Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.

11.Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom

Stromnetz trennen. Somit wird im Falle einer Überspannung eine

Beschädigung vermieden.

12.Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten

in das Gerät gelangen. Dies könnte einen Brand bzw. elektrischen Schlag

auslösen.

13.Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen

Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.

14.Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen

und von einer qualifizierten Servicestelle zu überprüfen:

a. Netzkabel oder Netzstecker sind beschädigt.

b. Flüssigkeit ist in das Gerät eingedrungen.

c. Das Gerät war Feuchtigkeit ausgesetzt.

d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert

oder Sie mit Hilfe dieser Anleitung keine Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.

f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

OMPLIANCES

15. Stellen Sie sicher, daß die Stromversorgung dieses Gerätes nach der EN

60950 geprüft ist. Ausgangswerte der Stromversorgung sollten die Werte von

AC 7,5-8V, 50-60Hz nicht über oder unterschreiten sowie den minimalen

Strom von 1A nicht unterschreiten.

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000

beträgt 70dB(A) oder weniger.

California Proposition 65 Warning

This product or components of this product contains a chemical(s) known to the

State of California to cause cancer and/or birth defects or other reproductive

harm.

COMPLIANCES
