SMCWTVA100 Quick Installation Guide (English)

Dual Band 300Mbps Wireless TV Adapter

Declaration of Conformity (DoC) can be obtained form www.smc.com -> Support -> Download

The SMCWTVA100 has 5 connectivity modes, explained as follows.

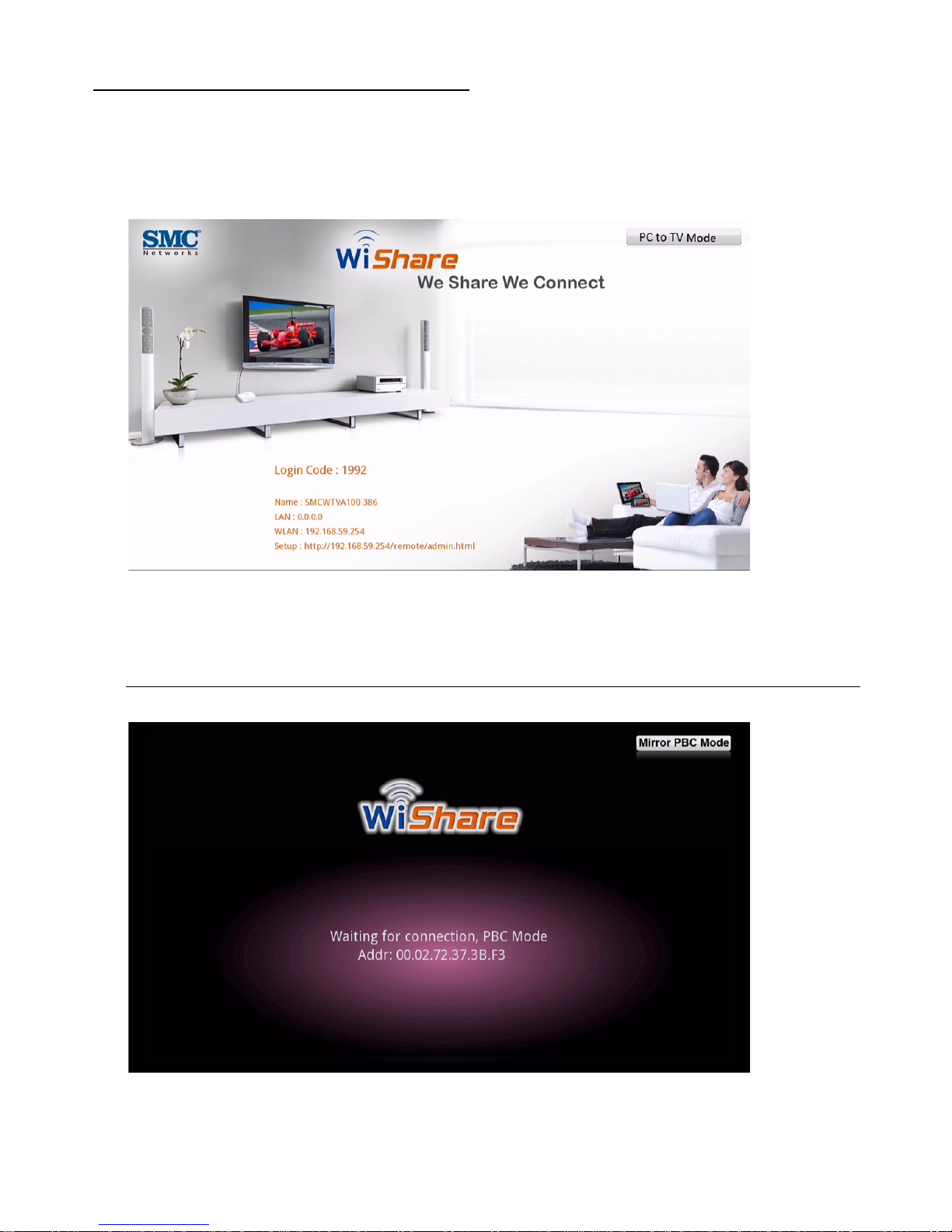

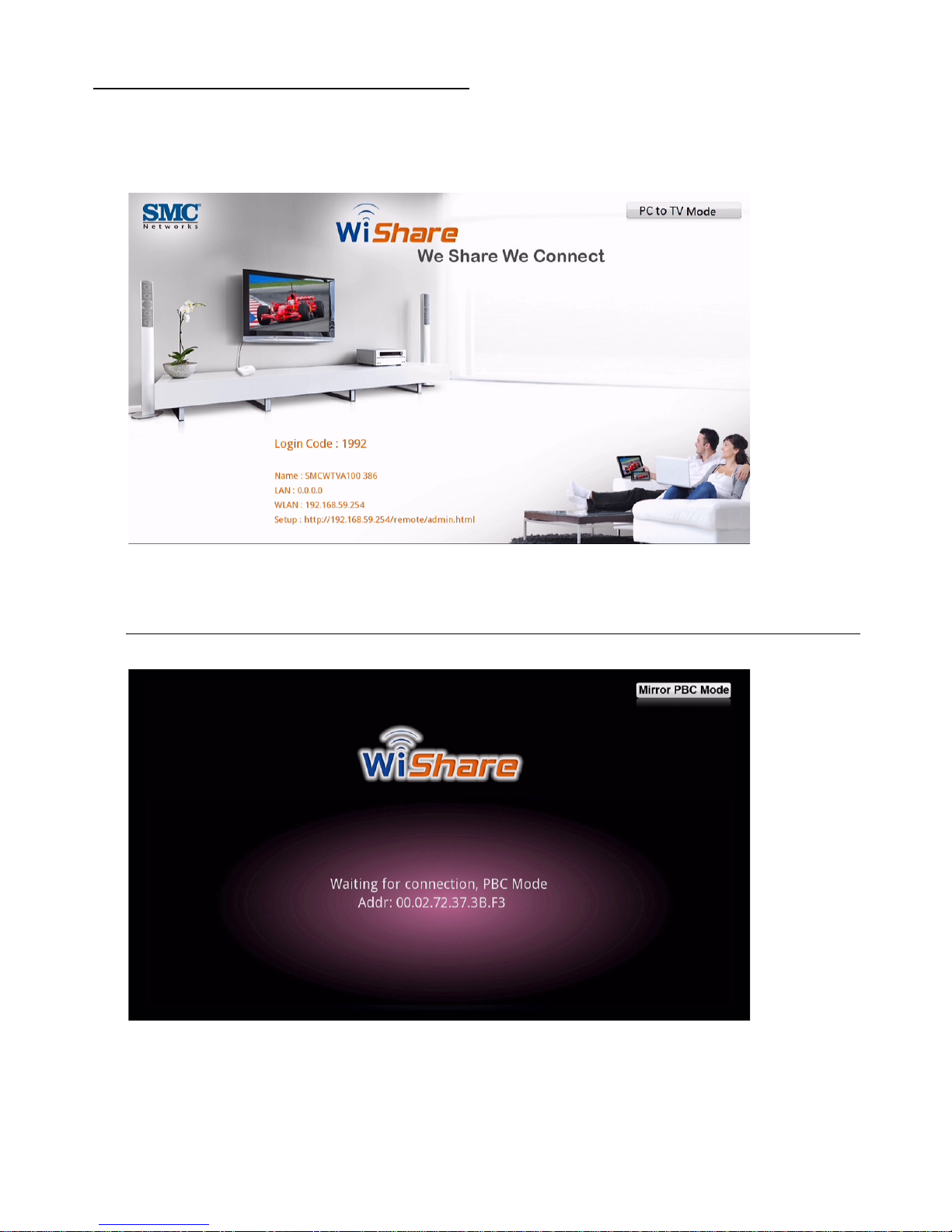

1.PC to TV Mode

After installing the “PC to TV” software from the CD, your Win7/8 PC screen can be transferred to

either a TV or Projector. Display anything from web surfing, documents, AV multimedia, or even

on-line PC TV through the SMCWTVA100 directly to your TV.

2.Mirror PBC Mode

Using an Android smartphone device (smartphone, tablet) that supports Miracast functionality, you

can use this feature to transfer the device screen to either a TV or projector without any password

authentication.

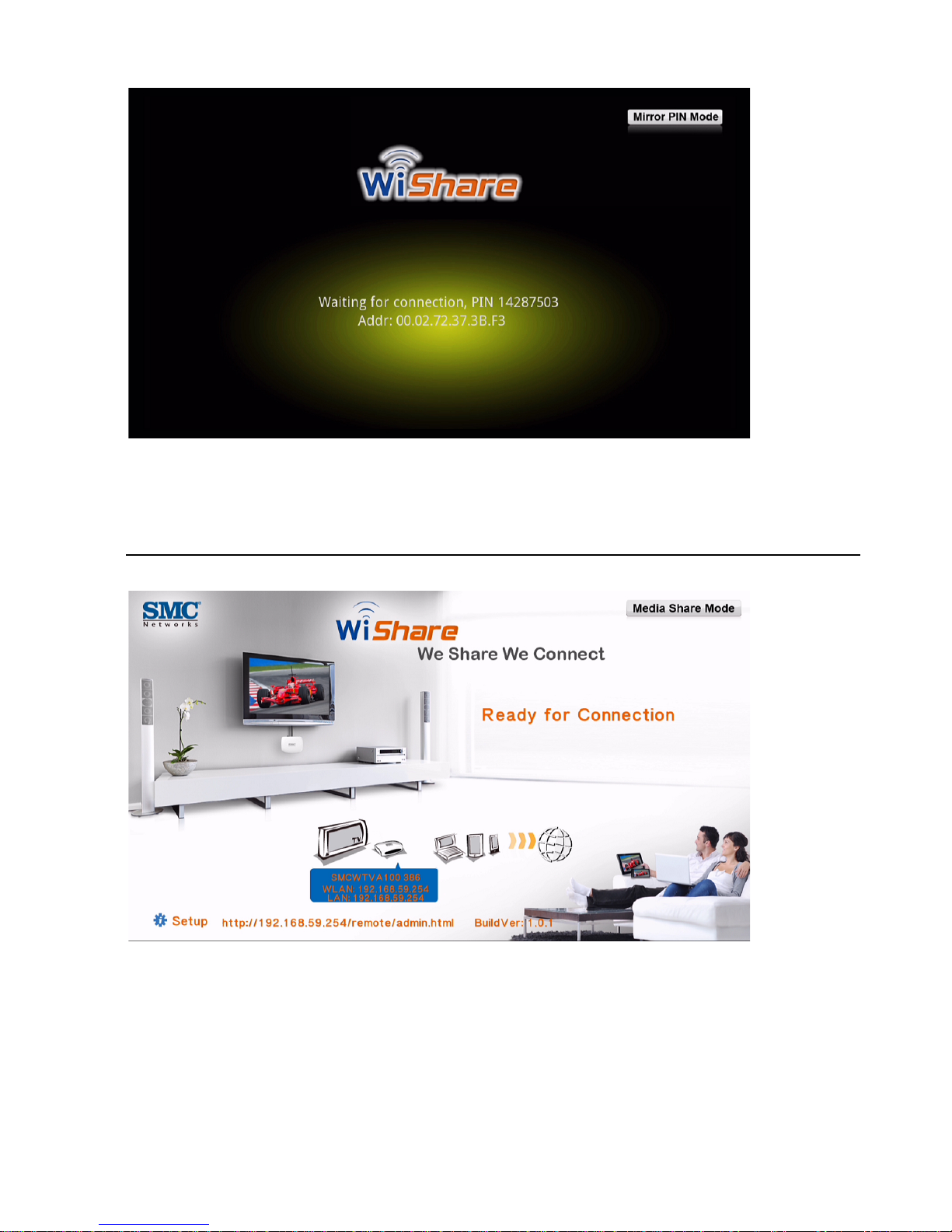

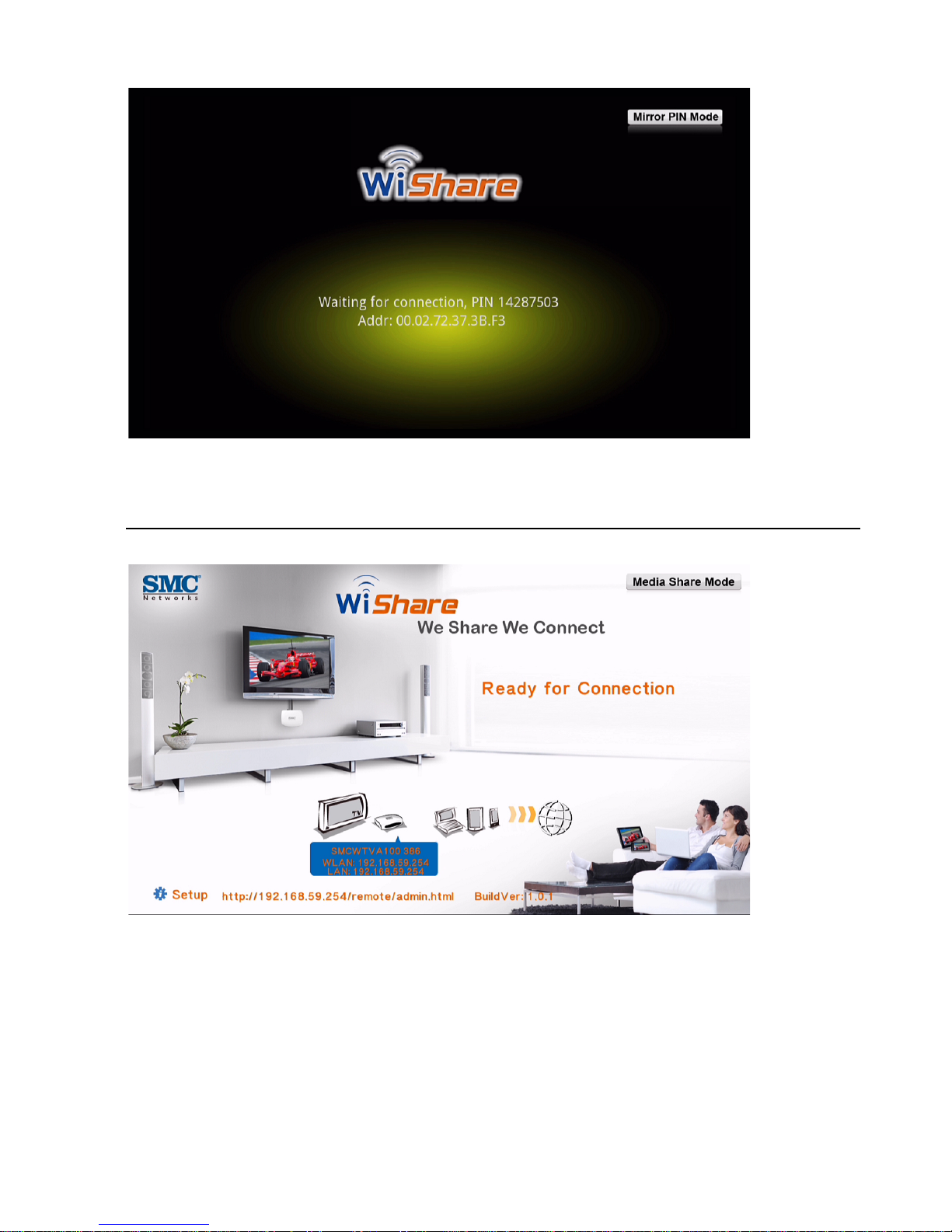

3.Mirror PIN Mode

Using an Android smartphone device (smartphone, tablet) that supports Miracast functionality; you

can use this feature to transfer the device screen to either a TV or projector with password

authentication.

4.Mediashare Mode

Mediashare mode also shares device content but uses DLNA technology. Using DLNA compatible apps

or applications, Mediashare mode can share pictures, music and movies on a TV or projector from

your Android, Windows, or Apple device. Suggested Apps: Windows—Airfun, Apple—iMediaShare,

Android—iMediaShare Lite or your favorite DLNA app.

5.NAS Mode

The NAS mode displays media directly from a USB flash drive that is connected to the SMCWTVA100

USB port.

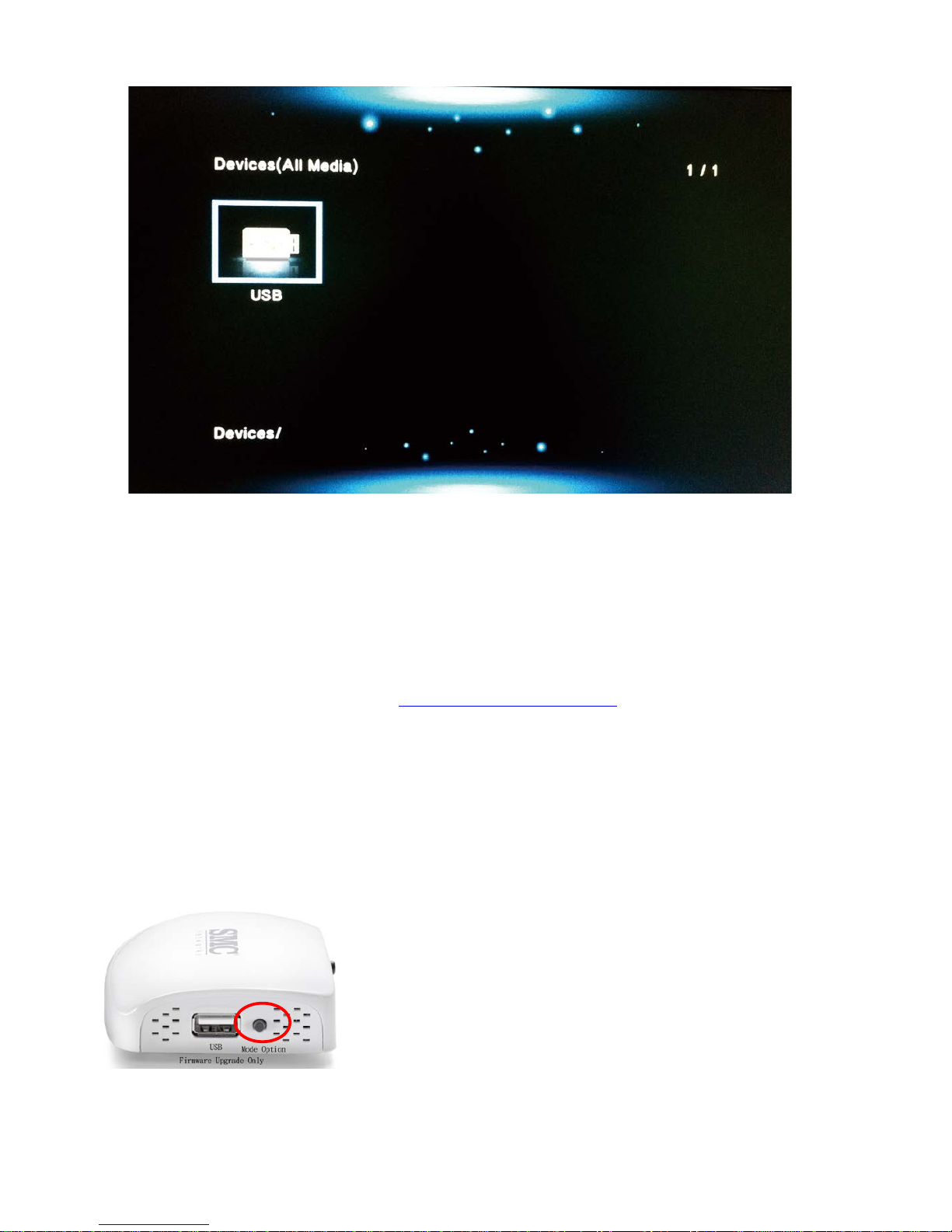

Quick NAS Mode Procedure (for further details, refer to the User Guide)

1. First copy your picture, music or movie files onto your USB flash drive.

2. Open the USB cover and plug your USB memory device into the SMCWTVA100’s USB slot and after a

few moments you will see the USB folder appear on your TV screen.

3. Connect your smartphone, tablet or PC to the SMCWTVA100 over Wi-Fi

4. Using your device’s browser, link to http://192.168.59.254/remote and use the remote controller to

navigate and launch the files on the USB flash drive!

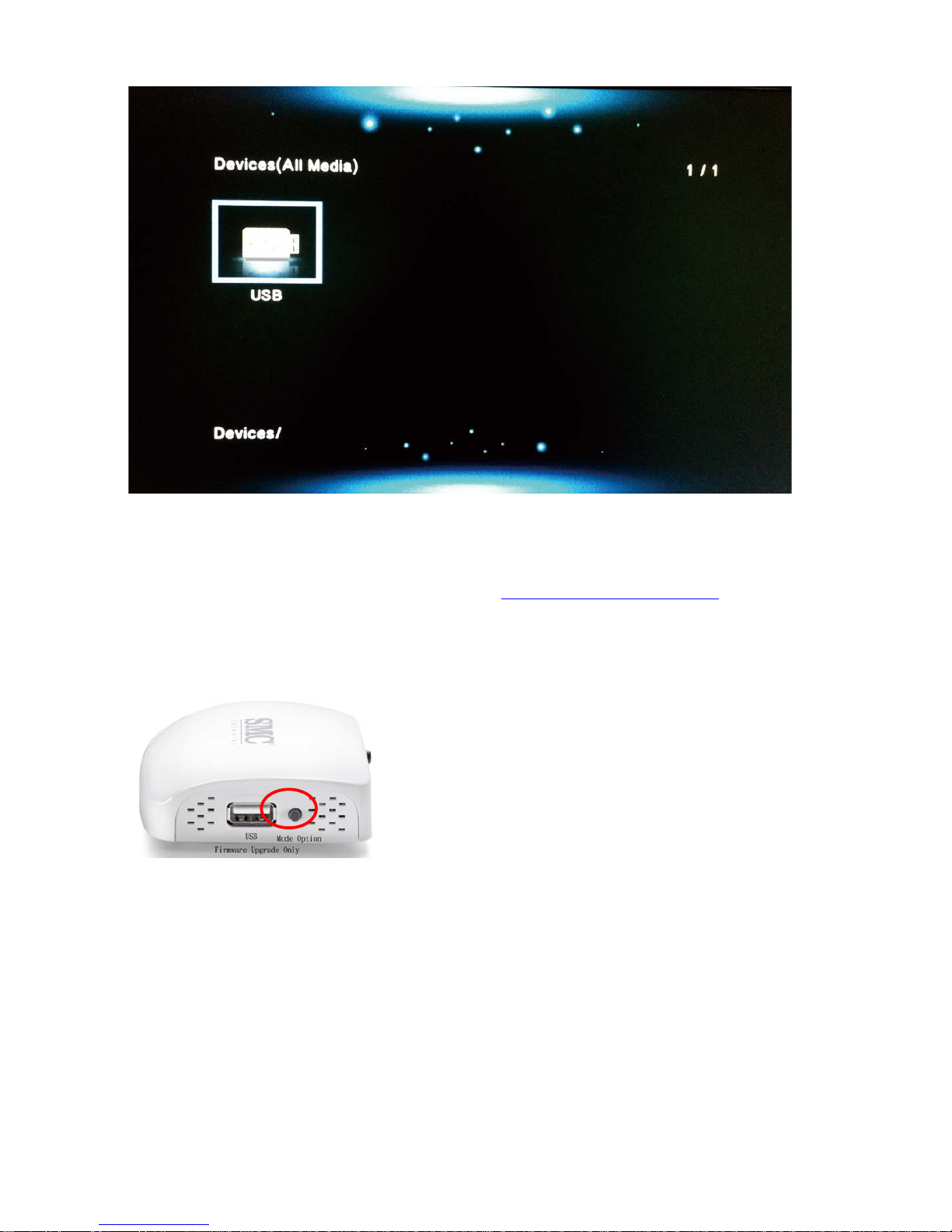

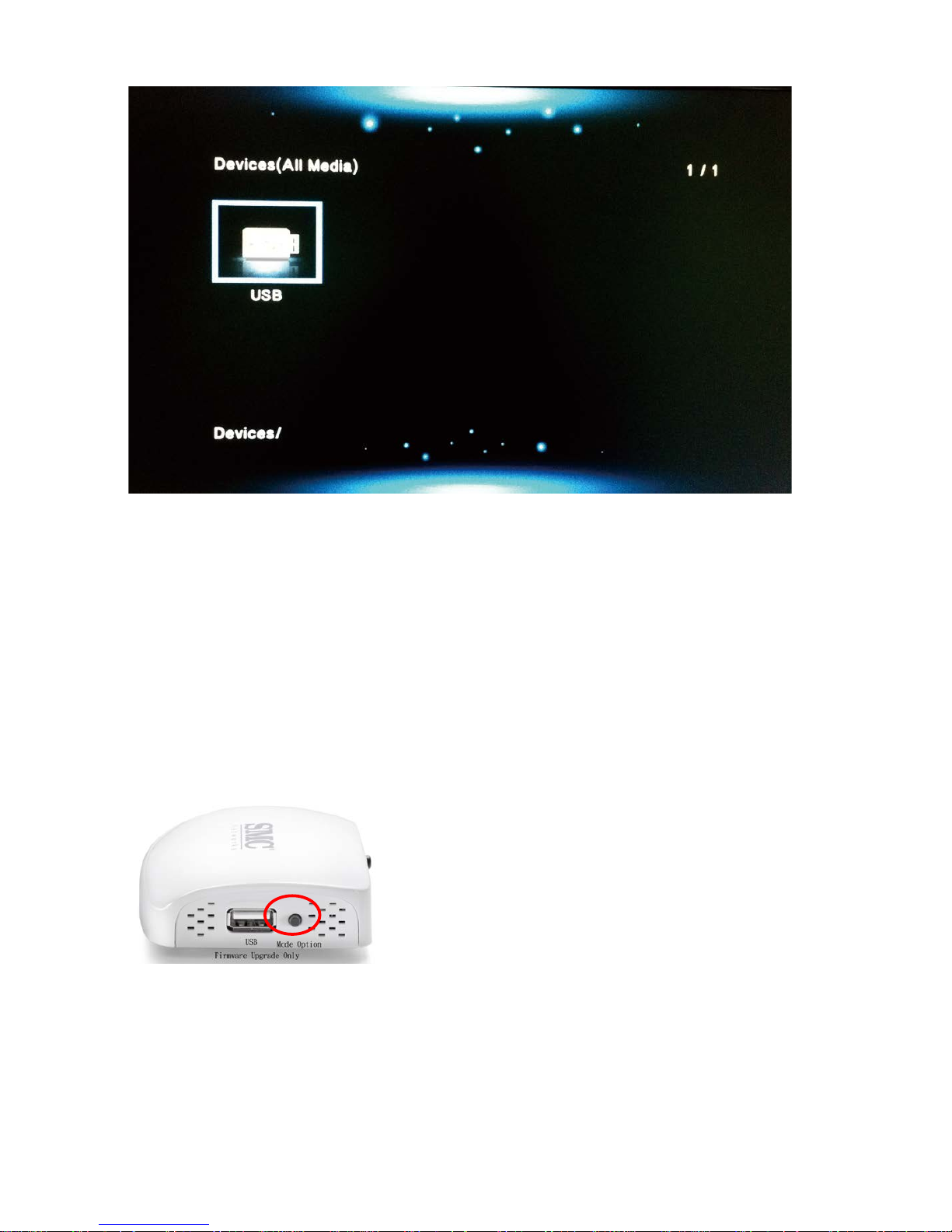

How to Change the Mode

Push the “Mode Option” button twice to toggle to the desired mode (five modes total). The

SMCWTVA100 default mode is PC to TV. When you toggle the device with the Mode Option button,

the mode selected is displayed on your TV after a few moments. The NAS mode is only accessible

when a USB device is plugged into the SMCWTVA100’s USB port.

Note: This Quick Installation Guide will help you to setup the PC to TV settings. To setup other modes,

refer to the User Guide documentation.

SMCWTVA100

快速安裝

(

繁體中文

)

SMCWTVA100

提供

個操作模式

1. PC to TV

模式

在Window7/8 平台筆記型電腦，透過本產品及 PC to TV 軟體，可將您的筆記型電腦桌面畫面，

完整投影到電視或投影機上。讓您輕鬆享受大螢幕的網路電視。

2.Miracast PBC

模式

支援 Miracast 功能的 Android 4.2 智慧手機/平板，將畫面完整投影到電視或投影機上，不需要額

外輸入密碼驗證。

3.Miracast PIN

模式

支援 Miracast 功能的 Android 4.2 智慧手機/平板，將畫面完整投影到電視或投影機上，需要額外

輸入密碼驗證。.

4.Mediashare

模式

支援 DNLA 功能.透過安裝 Airfun 或第三方免費軟體，讓您的 Window/Apple/Android 上的電腦、

手機、平板，可以分享照片、音樂與影像多媒體內容，並投影到電視或投影機上。

建議應用程式: Window(Airfun) , Android, Apple (Imediashare)

外接

USB

碟多媒體播放模式

將圖片、音樂、影片存放於 USB 碟，開啟 SMCWTVA100 右側 USB 埠保護蓋，並將 USB 碟插入，

幾秒後螢幕就會出現 USB 資料夾的圖示。

1. 首先將您的照片/音樂和電影文件複製到 USB 隨身碟

2. 將USB 隨身碟插入 SMCWTVA100 的USB 孔後, 就可以看到 USB 的文件夾

3. 使用您的手機通過 Wi-Fi 無線連接的 SMCWTVA100（SSID）。

4. 連接 http://192.168.59.254/remote, 用您的瀏覽器中的遠端搖控器來操作畫面

操作模式切換

切換不同模式可以按 Mode Option 鍵來做切換，SMCWTVA100 的出廠預設模式為「PC to TV」模

式。

其他操作模式設定

本快速安裝手冊會先帶領您完成 PC to TV 模式之設定使用說明，其餘模式與設定會在使用手冊

( User Manual )上詳細說明。

SMCWTVA100 Quick Installation Guide ()

SMCWTVA100  5  :

1. PC to TV :

 PCtoTV  CD      TV 

     TV  SMCWTVA100

2.  Mirror PBC :

 Android (/)  Miracast

    

3.  Mirror PIN :

 Android (/)  Miracast

4.  Mediashare

 Mediashare    DLNA         

 Android/Windows  Apple    

 :  Windows  Airfun  Android, Apple  Imediashare

5.  NAS : ( USB )

1.     USB 

2.  USB   USB  SMCWTV100  USB 

3.    SMCWTVA100(SSID)  Wi-Fi

4.    http://192.168.59.254/remote



 “Mode Option”   SMCWTVA100  PC to TV

  (PC to TV)  

SMCWTVA100 Quick Installation Guide (Italiano)

Dual Band 300Mbps adattatore TV wireless

La Dichiarazione di Conformità (DoC) è reperibile sul sito www.smc.com -> Supporto -> Download

SMCWTVA100 ha 5 modalità:

1. PC to TV Mode:

Dopo l'installazioe del software PCtoTV dal CD, è possibile trasferire lo schermo del Notebook o del PC

su TV o proiettore in Windows7/8. Navigare in internet, presentare file o guardare la TV online

attraverso SMCWTVA100

2. Mirror PBC Mode:

se i dispositivi Android (telefono cellulare / Tablet) supportano la funzione Miracast, è possibile usare

questa nuova funzionalità per trasferire lo schermo al televisore o al proiettore senza autenticazione

password
