SMC Networks EZ Networking SMC8013WG Manuale utente

EZ Connect™Wireless Cable Modem Gateway

Install Guide

SMC8013WG

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents

or other rights of third parties which may result from its use. No license is granted by

implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to

change specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, California 92618

Trademarks

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents

or other rights of third parties which may result from its use. No license is granted by

implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to

change specifications at any time without notice.

TABLE OF CONTENTS

CHAPTER 1 | Introduction

Features and Benefits

Package Contents

Minimum Requirements

CHAPTER 2 | Getting to know the Wireless Cable Modem Gateway

LED Indicators

Rear Panel Description

Resetting and Restoring the Wireless Cable Modem Gateway

CHAPTER 3 | Installation

Basic Installation Procedure

CHAPTER 4 | Configuring your Computer

Configuring Windows 95/98/Me

Configuring Windows 2000

Configuring Windows XP

Configuring a Macintosh Computer

CHAPTER 5 | Configuring the Wireless Cable Modem Gateway

Browser Configuration

Disable Proxy Connection

Accessing the Wireless Cable Modem Gateway Web Management

CHAPTER 6 | Navigating the Web-based Administration

Making Configuration Changes

System

LAN

NAT

Firewall

Status

APPENDIX A | Troubleshooting

APPENDIX B | Technical Specifications

APPENDIX C | Compliances

APPENDIX D | Technical Support

CHAPTER 1 | Introduction

Congratulations on your purchase of the EZ Connect™ Wireless Cable Modem Gateway. SMC is

proud to provide you with a powerful yet simple communication device for connecting your

local area network (LAN) to the Internet.

1.1 | Features and Benefits

•EZ 3-Click Installation Wizard - A new and improved way to install your Gateway

Modem. In 3 simple clicks, you will be connected to the Internet.

•Internet connection to cable modem service via an integrated cable modem port

•Local network connection via 10/100 Mbps Ethernet ports or 11/22 Mbps wireless

interface.

•802.11b Turbo Compliant - interoperable with multiple vendors.

•DHCP for dynamic IP configuration, and DNS for domain name mapping.

•Firewall with Stateful Packet Inspection, client privileges, hacker prevention, DoS, and

NAT.

•Virtual Private Network (VPN) support using PPTP, L2TP, or IPSec pass-through

•User-definable application sensing tunnel supports applications requiring multiple

connections

•Built-in Parental controls allow you to limit certain web sites – configurable by time

and date.

•Email alerts when the users network is being compromised

•Easy setup through a web browser on any operating system that supports TCP/IP

•Compatible with all popular Internet applications

1.2 | Package Contents

Before installing the EZ Connect™ Wireless Cable Modem Gateway, verify that you have the

items listed under below. Also be sure that you have the necessary cabling. If any of the items

are missing or damaged, contact your local SMC distributor.

•1 - Wireless Cable Modem Gateway

•1 - Power adapter (9V/1A)

•1 - CAT-5 Ethernet cable

•1 - USB Cable

•Installation CD, including:

oUser Guide

oUSB Drivers

oBSafe Online© Parental Control Software

If possible, retain the carton and original packing materials in case there is a need to return

the product.

Please register your product on SMC’s web site at http://www.smc.com.

1.3 | System Requirements

You must meet the following minimum requirements:

•Provisioned Internet access from an ISP that has approved the SMC8013WG

•A computer equipped with a wired or wireless network adapter with TCP/IP installed.

•A Java-enabled web browser, such as Microsoft Internet Explorer 5.5 or above, or

Netscape Communicator 5.0 or above.

•Windows 98 Second Edition or higher is required for USB driver support.

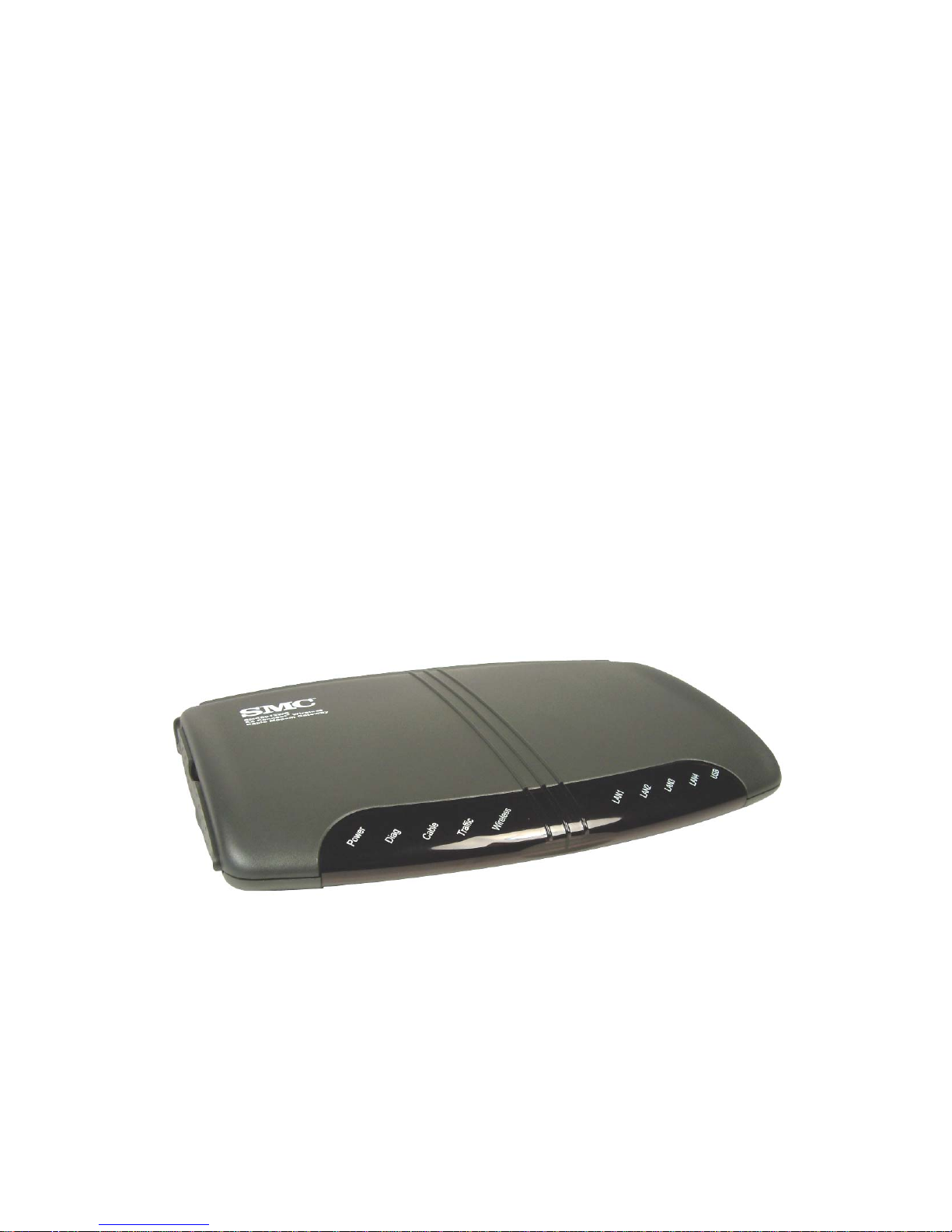

CHAPTER 2 | Getting to Know the Wireless Cable Modem

Gateway

The EZ Connect™ Wireless Cable Modem Gateway is the perfect all in one solution, for the

home or business environment. This full-featured device has:

•An approved DOCSIS 1.1 Cable modem

•Advanced SPI Firewall Gateway

•High-speed Turbo 11/22 Mbps Wireless Access Point

•Comprehensive LEDs for network status and troubleshooting

•Reset Button

•4 – 10/100 Mbps Auto-Sensing LAN ports with Auto-MDI MDIX feature

•1 – USB 1.1 LAN Port for PC connectivity

Note: Cable modems provide up to 38 Mbps downstream and 10 Mbps upstream. However, you

should note that the actual rate provided by specific service providers may vary dramatically

from these upper limits.

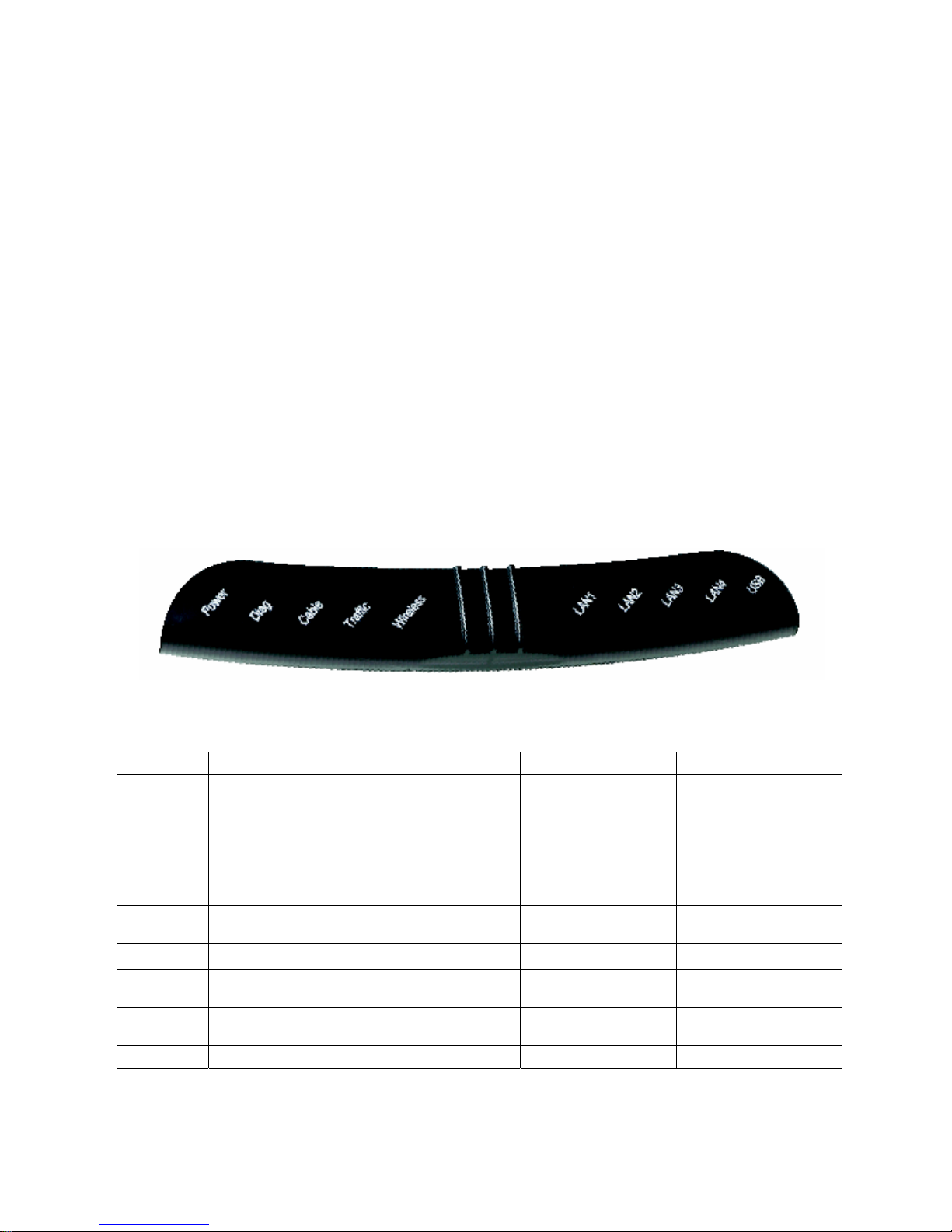

2.1 | LED Indicators

The EZ Connect™ Wireless Cable Modem Gateway includes LED indicators on the front panel

that simplify installation and network troubleshooting.

The Wireless Cable Modem Gateway includes LED indicators on the front panel that simplify

installation and network troubleshooting.

LABEL LED COLOR ON FLASHING OFF

Power Green Power is supplied to the

Gateway N/A Power is not

supplied to the

Gateway

Diag Amber System Failure. Reboot

Gateway N/A Normal Operation

Cable Green Successfully connected to

cable network Attempting to

connect to network N/A

Traffic Green Cable Modem has finished

CMTS registration Attempting to

Wireless Green Good Wireless Link Data transmitting No Wireless Link

LAN (1-4) Amber Connected at 10 Mbps Data transmitting No Ethernet link

detected

LAN (1-4) Green Connected at 100 Mbps Data transmitting No Ethernet link

detected

USB Green USB port connected Data transmitting No USB link detected

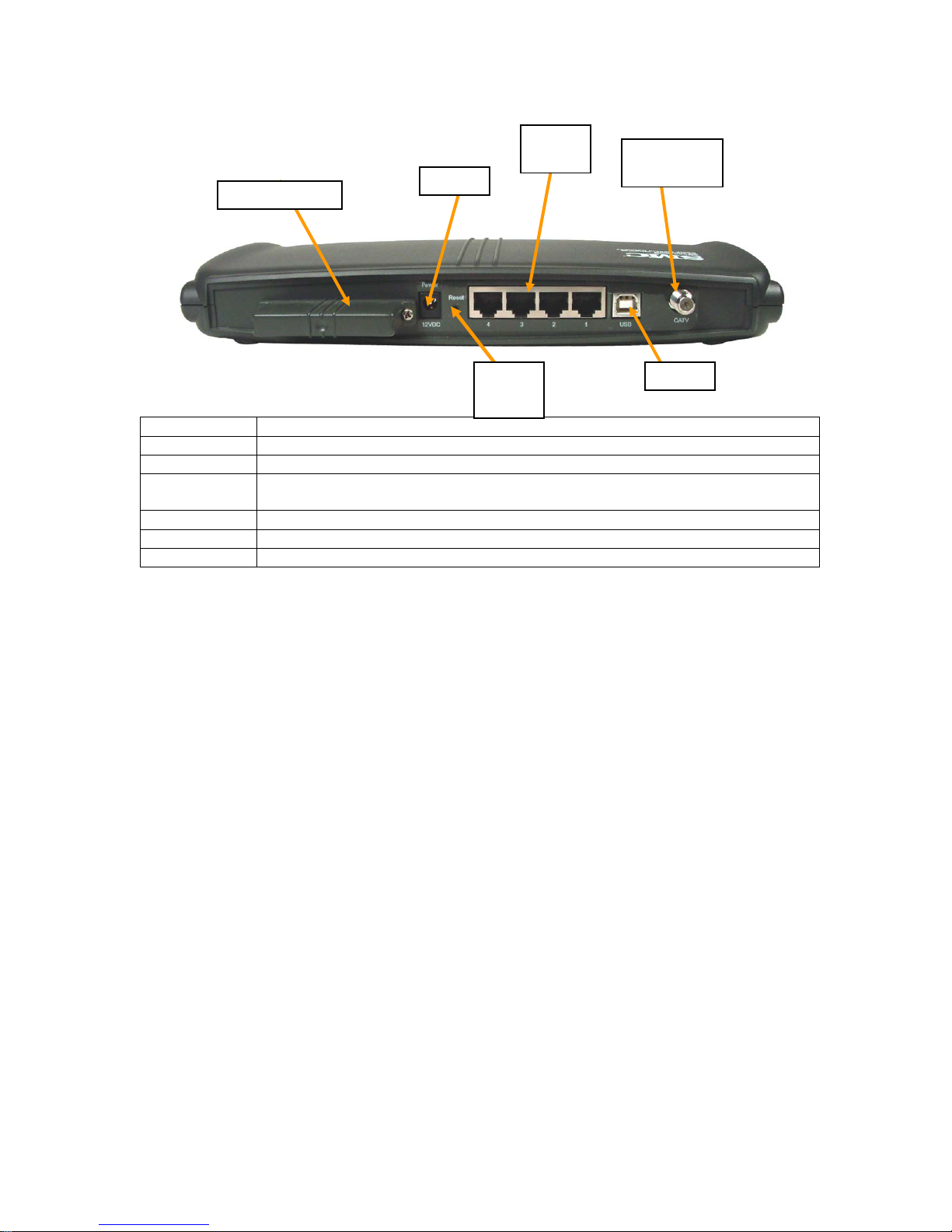

2.2 | Rear Panel Description

Item Description

Power Connect the included power adapter to this port.

Reset Use this button to reset the power or restore the default factory settings.

LAN 1-4 Four 10/100 Auto-sensing switch ports (RJ-45). Connect devices on your local

area network to these ports (such as a PC, hub, or switch).

USB Connect a USB Cable from your PC to this port.

CATV Connect your cable line to this port.

Wireless Card Provides Wireless Signal for wireless clients.

2.3 | Rebooting and Restoring the Wireless Cable Modem Gateway

The Reset button is located on the rear panel of the EZ Connect™ Wireless Cable Modem

Gateway. Use a paper clip or a pencil tip to push the Reset button.

Reboot

If the Gateway is having problems connecting to the Internet, simply hold down the reset

button for less than 2 seconds then release.

Restore Factory Defaults

If rebooting the Wireless Cable Modem Gateway does not resolve your issue, then you can

follow these steps:

1. Leave power plugged into the Wireless Cable Modem Gateway.

2. Locate the reset button on the back panel, press and hold button for at least 5 seconds.

3. Release reset button.

Wir

ess

Reset

Button

LAN

Ports CATV

Connector

CHAPTER 3 | Installation

The EZ Connect™ Wireless Cable Modem Gateway can be installed in any location where you

have cable internet access, and the cable internet service provider has approved the EZ

Connect™ Wireless Cable Modem Gateway. To confirm you meet these 2 criteria points, please

contact your local ISP.

For general installation please follow the guidelines outlined below to best performance:

•Keep the Wireless Cable Modem Gateway away from any heating devices.

•Do not place the Wireless Cable Modem Gateway in a dusty or wet environment.

•For optimum wireless performance, install the Wireless Cable Modem Gateway away

from other electronic devices, such as Monitors / TV / 2.4GHz Cordless Phones. These

devices can hamper your wireless throughput and distance.

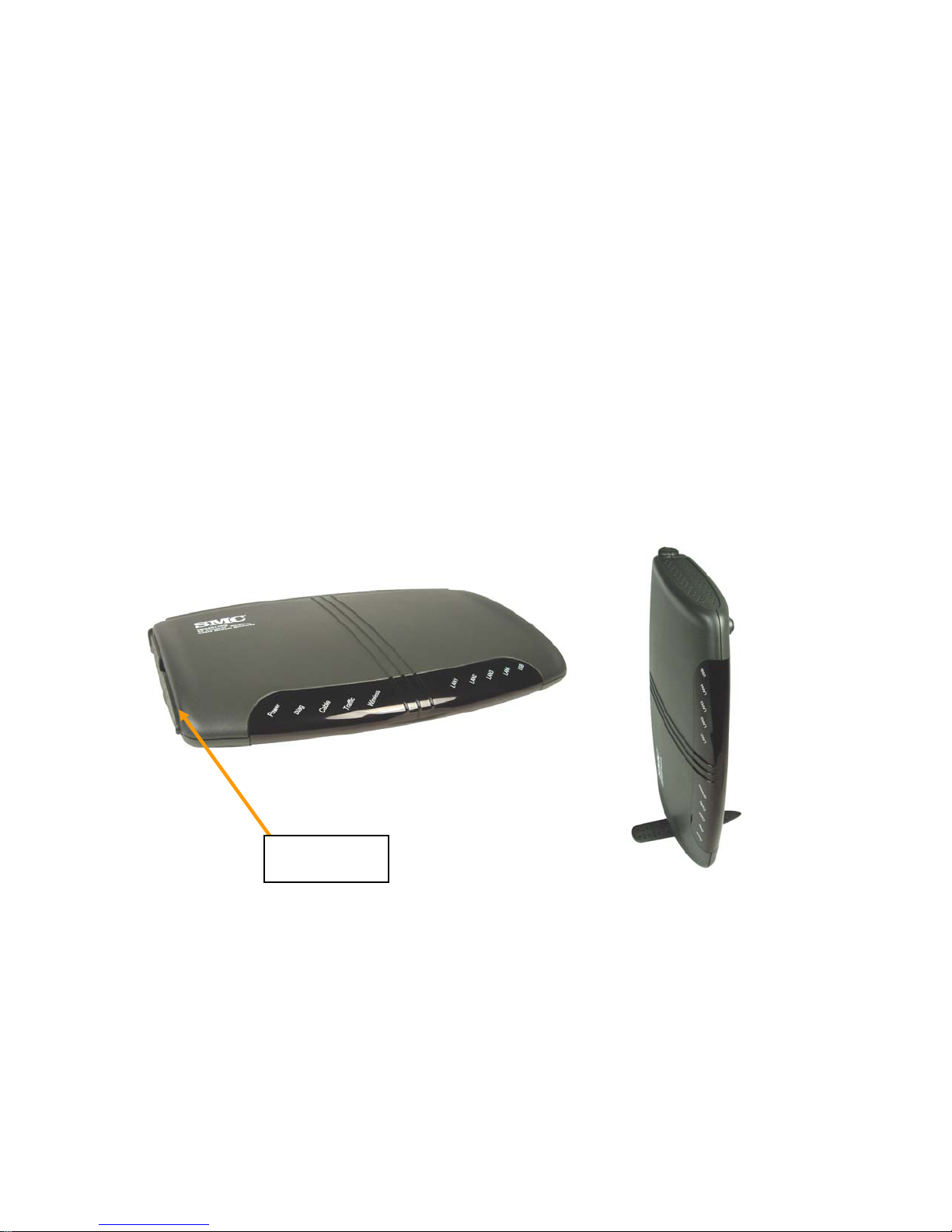

The EZ Connect™ Wireless Cable Modem Gateway can be positioned two ways, horizontal and

vertical.

To install the Wireless Cable Modem in a vertical position, on the left side of the device, when

looking at the LEDs – there is a built-in base stand. Pull out the stand out and turn it 90 degrees

and position the gateway on its side. See the different Install positions below:

Vertical Base

Stand

Horizontal Install

ertical Install

3.2 | Basic Installation Procedure

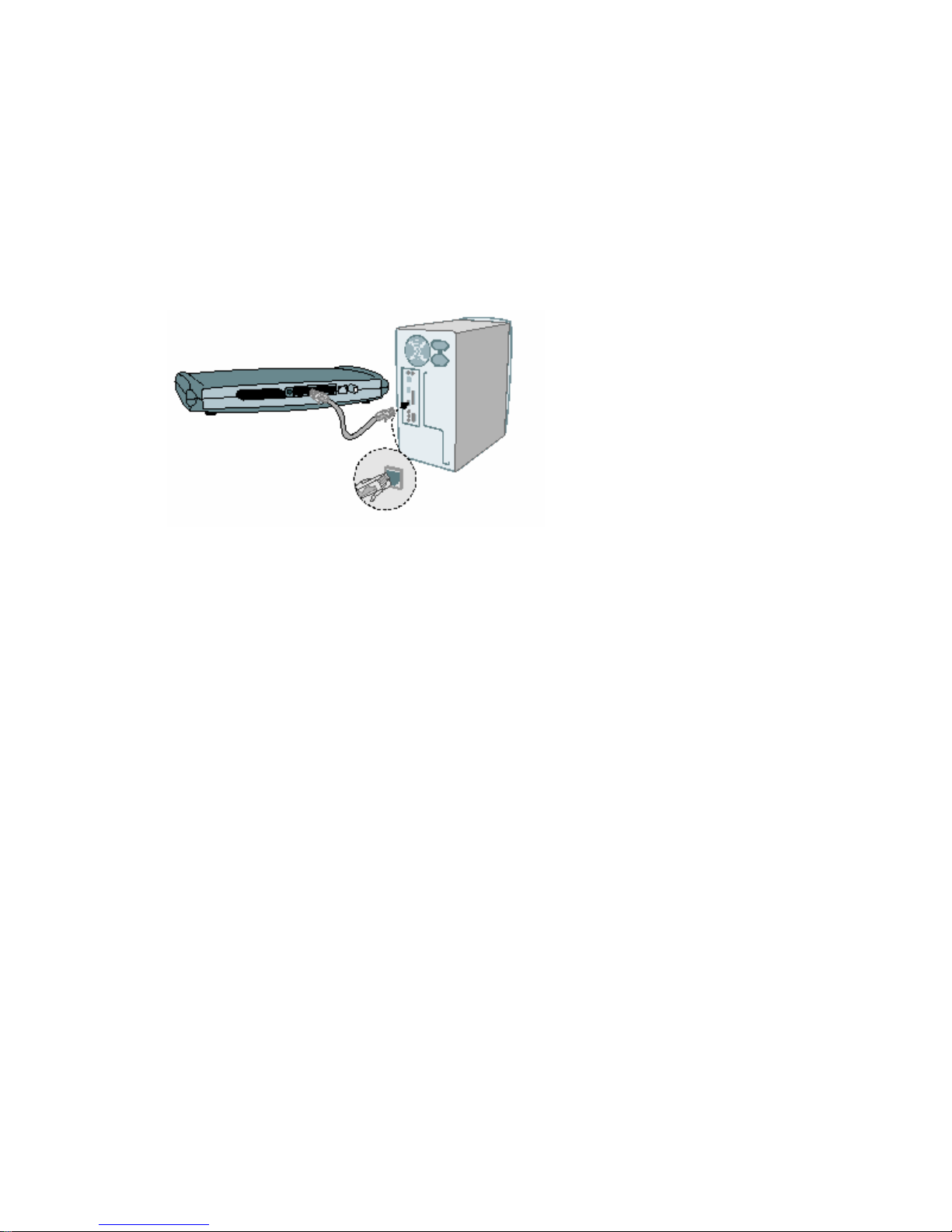

1. Connect the LAN: You can connect the Wireless Cable Modem Gateway to your PC, or to a

hub or switch. Run Ethernet cable from one of the LAN ports on the rear of the Wireless

Cable Modem Gateway to your computer’s network adapter or to another network device.

You can also connect the Wireless Cable Modem Gateway to your PC (using a wireless client

adapter) via radio signals.

Note: It is recommended that for first-time setup you use a wired connection.

2. Connect the WAN: Connect a coax cable to the CATV port on the back of the Wireless

Cable Modem Gateway from a cable port located in your home. When connecting to the

CATV port, use only manufactured coaxial patch cables with F-type connectors at both

ends for all connections.

Note: If this modem was NOT installed by the cable service provider (ISP) or is being used

to replace another cable modem – please contact your Cable Operator (ISP) to register the

SMC8013WG. Without registering the modem with your ISP it will be unable to connect to

the cable network system.

3. Power on: Connect the power adapter to the EZ Connect™ Wireless Cable Modem Gateway.

Warning: Only use the power adapter that was provided with the EZ Connect™ Wireless Cable

Modem Gateway, using another power adapter may damage your unit and void the warranty.

CHAPTER 4 | Configuring your Computer

The information outlined in this chapter will guide you through the configuration for the

following Operating Systems:

•Windows 95/98

•Windows Me

•Windows 2000

•Windows XP

•Apple Macintosh

4.1 | Configuring Windows 95/98/Me

1. Access your Network settings by clicking

[Start], choose [Settings], and then select

[Control Panel].

2. In the Control Panel, locate and double-click

the [Network] icon.

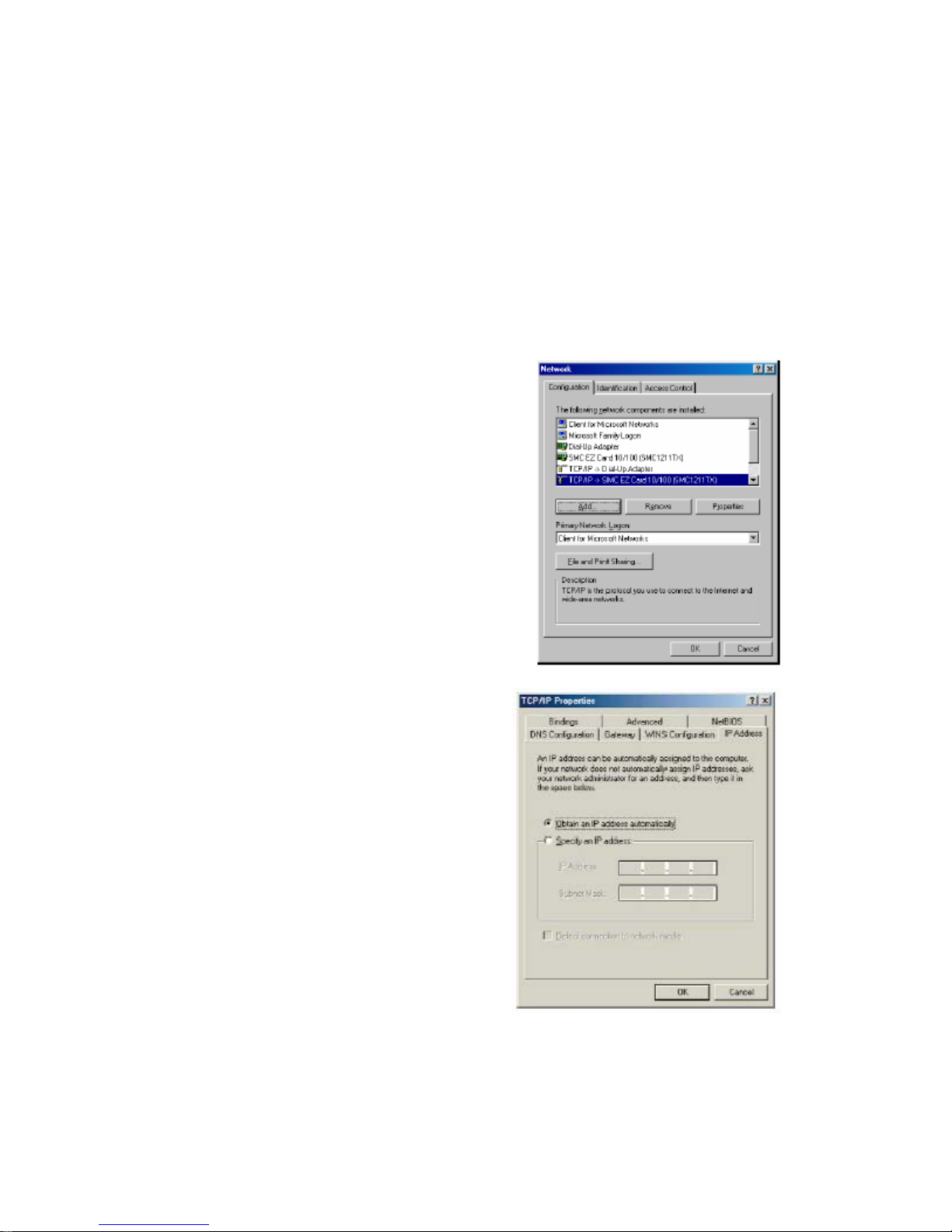

3. Highlight the TCP/IP line that has been

assigned to your network card on the

[Configuration] tab of the [Network]

properties window. (see network dialog box to

the right)

4. Next, click the [Properties] button to view

that adapter’s TCP/IP settings.

5. From the TCP/IP Properties dialog box, click

the [Obtain an IP address automatically]

option. (see TCP/IP dialog box to the

right)

6. Next click on the [Gateway] tab and verify

the Gateway field is blank. If there are IP

addresses listed in the Gateway section,

highlight each one and click [Remove]

until the section is empty.

7. Click the [OK] button to close the TCP/IP

Properties window.

8. On the Network Properties Window, click

the [OK] button to save these new

changes.

NOTE: Windows may ask you for the

original Windows installation disk or

additional files. Check for the files at

c:\windows\options\cabs, or insert your Windows CD-ROM into your CD-ROM drive and

check the correct file location, for example, D:\win98, D:\win9x. (Assume “D” is your

CD-ROM drive).

9. Windows may prompt you to restart the PC. If so, click the [Yes] button. If Windows

does not prompt you to restart your computer, do so anyways to ensure your settings.

Altri manuali per EZ Networking SMC8013WG

Indice

Altri manuali SMC Networks Portale

SMC Networks

SMC Networks SMC8014WN Manuale per l'uso e la cura

SMC Networks

SMC Networks SMC TigerAccess SMC-VIP04 Manuale utente

SMC Networks

SMC Networks EtherNet/IP EX500-GEN1 Manuale utente

SMC Networks

SMC Networks ProtoAir FPA-W44 Guida utente

SMC Networks

SMC Networks FieldServer FS-EZX-MOD-BAC Guida utente

SMC Networks

SMC Networks SMCD3GN Manuale utente

SMC Networks

SMC Networks EliteConnect SMCWHSG44-G Manuale utente

SMC Networks

SMC Networks FieldServer BACnet Explorer Guida utente

SMC Networks

SMC Networks EliteConnect SMCWHSG44-G Manuale utente

SMC Networks

SMC Networks EliteConnect SMCWHSG14-G Manuale utente

SMC Networks

SMC Networks DOCSIS 3.0 Commercial Cable Modem Gateway... Manuale utente

SMC Networks

SMC Networks SMCD3GN2 Manuale utente

SMC Networks

SMC Networks EliteConnect SMCWHSG14-G Manuale utente

SMC Networks

SMC Networks FieldServer QuickServer FS-QS-12 0 Series Guida utente

SMC Networks

SMC Networks EZ Connect 2.4GHz 54Mbps Wireless Cable Modem Gateway... Manuale utente

SMC Networks

SMC Networks EX500-GEN2 Series Manuale utente

SMC Networks

SMC Networks Lochinvar ProtoNode Guida utente

SMC Networks

SMC Networks EZ Connect SMC8014-TES Manuale utente

SMC Networks

SMC Networks SMCD3GNV Manuale utente

SMC Networks

SMC Networks EX500-GPN2 Series Manuale utente

SMC Networks

SMC Networks EX510-GMJ1 Series Manuale utente

SMC Networks

SMC Networks SMC8004CM Manuale utente

SMC Networks

SMC Networks SMCWTVG Manuale utente

SMC Networks

SMC Networks LEC-GEN1 Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
