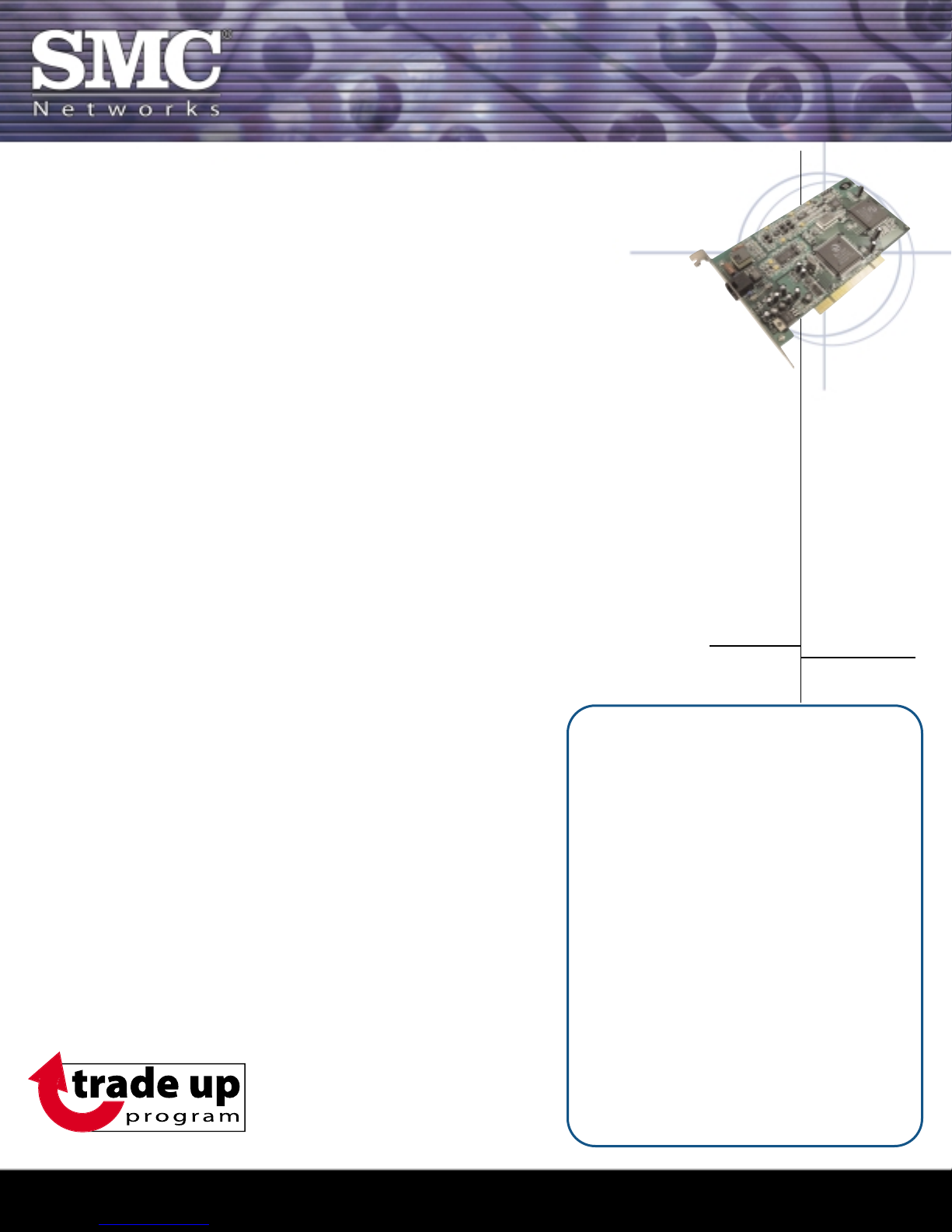

SMC Networks SMC7003-PCI Manuale utente

Features Benefits

ADSL PCI Modem

SMC7003-PCI

Asymmetrical Digital Subscriber Line (ADSL) broadband WAN technology is ideal for residential or

SOHO environments. Data and voice transmissions can be made simultaneously. Data is transmitted at

8 Mbps over distances up to 18,000 feet (more than 3 miles.)

The SMC7003-PCI is a plug-and-play ADSL modem that provides high-speed Internet access over exist-

ing telephone lines.It features an always-on digital connection,delivers concurrent voice and data over

a single line,and provides wide equipment interoperability and system compatibility. The modem’s PCI

bus seamlessly interfaces with PCs.

Designed to ensure a high-performance Internet connection for the SOHO environment, this new

modem connects to the web at speeds equal to those available in your office.Its always-on digital con-

nection saves you time by eliminating dial-up delays.The modem is interoperable with systems from

major central office equipment makers, and provides compatibility with various ISP services (static or

dynamic.)

The modem also supports both full-rate DMT connection (with 8 Mbps downstream and 640 Kbps

upstream), and the more economical G.lite connection (with 1.5 Mbps downstream and 512 Kbps

upstream.)

The new SMC ADSL/PCI modem allows SOHO users to employ a wide range of network applications.

Multiprotocol encapsulation of TCP/IP,Novell’s IPX,and Windows NetBEUI provides total access to the

Internet and all your corporate resources (i.e.printers,file servers,and multimedia services.)

With this new ADSL modem,investments are protected through the support of pop-

ular DSL connection models,including PPP over Ethernet, PPP over ATM,bridging

and routing.

All SMC products are supported by a limited lifetime warranty, the SMC Customer

Satisfaction Guarantee,and toll-free 24/7 technical support.

High Performance

• Full ADSL standard support

• Full rate transmission at up to 8 Mbps downstream;

640 Kbps upstream

• G.lite transmission at up to 1.5 Mbps downstream;

512 Kbps upstream

• Full rate adaptive modem at 32 Kbps steps

• Loop up to 18,000 feet (3.5 miles.)

• Plug-and-play connection

• Supports PPP over ATM

• MultiProtocol over ATM

•Windows 98/2000 compliant

• Interoperable with Alcatel’s DSLAM

Reliable

• Limited lifetime warranty

• 24/7 technical support

Web Site

• www.smc.com

Specifications

SMC7003-PCI Modem

TRANSMISSION CHARACTERISTICS:

ServiceType

Dual Mode full rate G.dmt or economical G.lite

Data Rate

G.dmt rate adaptive up to 8Mbps downstream,

640Kbps upstream

G.lite rate adaptive up to 1.5 Mbps downstream,

512Kbps upstream

DataType

Simultaneous data and voice (can coexist with HPNA

network)

Connection Length

Up to 18000 ft.(5.5 km) over 26 Gauge AWG

DSLAM Interoperability

Compatible withT1.413-standard,as well as Cisco and

AlcatelT1.413-like DSLAMs

PHYSICAL CHARACTERISTICS:

Interface

RJ-11 port for standard phone wire connection

to ADSL service provider

Power Consumption

0.75A Max @ +5V (+/-5%)

0.1A Max @ +/-12V (+/-5%)

Temperature

OperatingTemperature:0 ~ 50˚ C with 1 meter/sec airflow

StorageTemperature:-20 ~ 70˚ C

Humidity

Operating Humidity:0 ~ 95% (Non-condensing)

Storage Humidity:0 ~ 95%

SYSTEM REQUIREMENTS:

CPU

Pentium 133MHZ and up (Pentium 166 recommended),

Pentium II,Pentium III

Operating System

Windows 98,Windows 2000 (i.e.NT 5.0)

STANDARDS CONFORMANCE:

Emissions

FCC Part 15 Class B,CE Class B,FCC Part 68

Safety:

CE Mark

STANDARDS:

Basic ADSL

Full Rate ADSL – ANSIT1.413 Issue 2,G.dmt (ITU G.992.1),

G.lite (G.992.2),G.hs (G.994.1)

Transport Protocols

IP/ATM (RFC 1577),PPP/ATM (RFC 2364),PPP/Ethernet

(RFC 2516),PPP (RFC 1661),Multiprotocol encapsulation,

Bridged Ethernet/ATM,Routed IP/ATM (RFC 1483)

ATM Attributes

ATMTransmission Convergence,ATM Framing (with

traffic shaping),ATM SAR/AAL5,ATM Forum UNI3.1

signalling,ATM UBR Service Class

Product Description

SMC7003-PCI ADSL PCI Modem

SMC is a registered trademark of SMC Networks, Inc. All other brand and product names are trademarks of their respective holders.

SMC Networks

6 Hughes

Irvine, CA 92618

949.707.2400

949.707.2460 fax

1-800-SMC-4-YOU

www.smc.com
