SMC Networks EZ1026DT Manuale utente

SMC-EZ1026DT V.2

SMC-1026DT V.2

Unmanaged

Ethernet/Fast Ethernet

Switch

User Guide

EZ Switch 10/100

SMC-EZ1026DT V.2

Table of Contents

1. Introduction ................................................................. 3

1.1 Features ............................................................................. 4

1.2 Package Contents .............................................................. 5

2. Hardware Description.................................................... 6

2.1 Hardware Description......................................................... 6

The Front Panel .............................................................................6

10/100Base-TX RJ-45 ports (Auto MDI/MDIX ):.............................7

Expansion Slots: ............................................................................7

Console Port: .................................................................................7

2.2 LED Indicators.................................................................... 7

Rear Panel .....................................................................................8

Power On .......................................................................................9

3. Connecting to the Network............................................ 9

3.1 Pre-Installation Requirements ............................................ 9

3.2 Mounting the Switch ......................................................... 10

Desktop Mounting ........................................................................10

Rack-mounted Installation............................................................ 11

3.3 Connecting to the Switch.................................................. 12

3.4 Login in the Console Interface.......................................... 13

4. Network Configuration................................................. 21

4.1 Collapsed Backbone Application...................................... 21

4.2 Departmental Bridge ........................................................ 22

4.3 High Performance Switched Workgroup .......................... 23

4.4. VLAN Application ............................................................ 24

Port-based VLAN Workgroup.......................................................24

Shared Server..............................................................................25

5. Product Specifications................................................. 27

SMC-EZ1026DT V.2

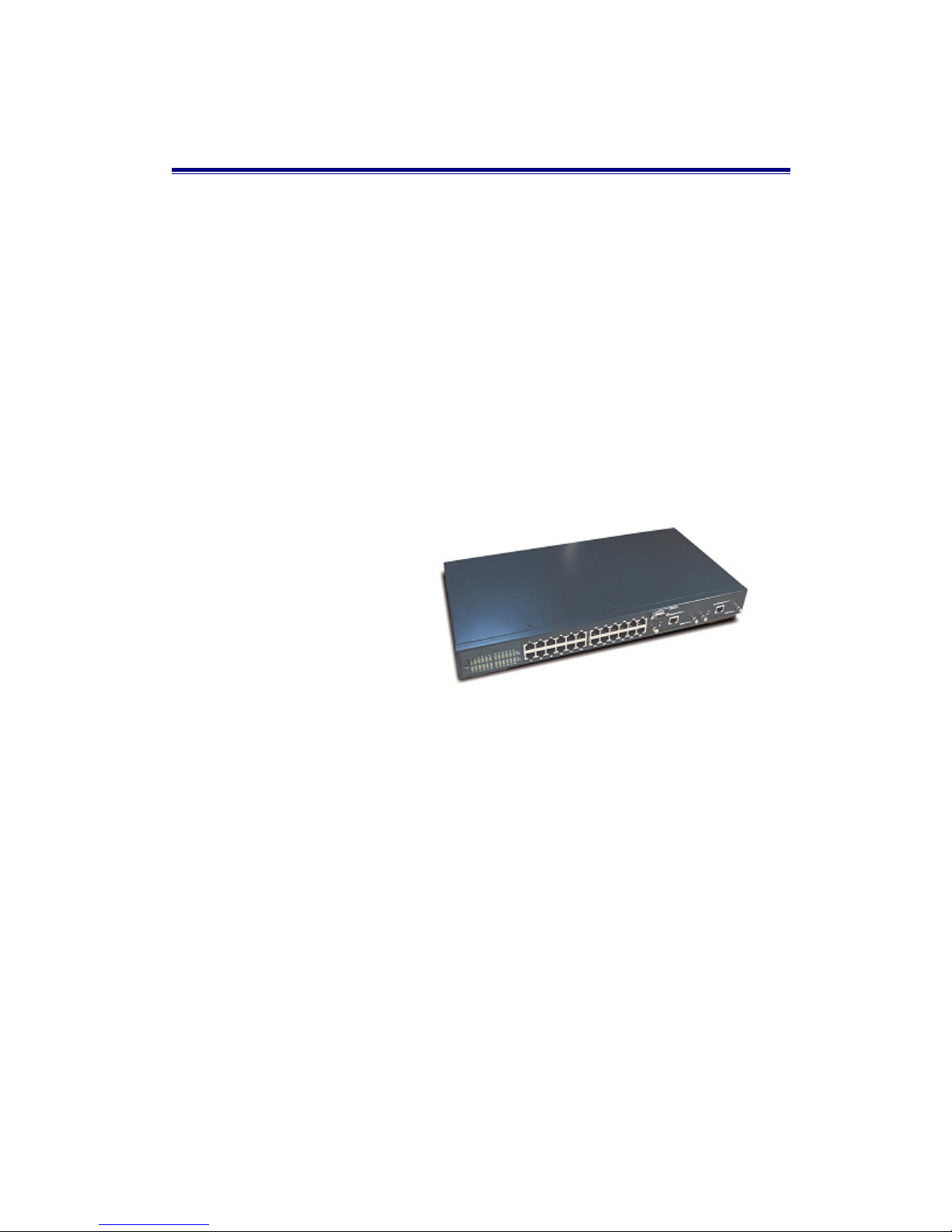

Figure 1-1. The

SMC-EZ1026DT V.2

1. Introduction

Welcome to the World of Switching-Network.

In modern society, communication and information sharing are

fundamental to our lifestyle. Computer networks are one of the

fastest mean of communication.

As your company grows, your network demands will increase. …

The SMC-EZ1026DT V.2 Switch is designed to provide your network

with Ethernet, Fast Ethernet, and Gigabit Ethernet connectivity over

twisted pair and fiber optic cabling. Two expansion slots on the front

panel of the SMC-EZ1026DT V.2 Switches further add to the

flexibility of the systems.

The SMC-EZ1026DT V.2 is a Smart Fast Ethernet switch, that

provides a number of exceptional features with extremely flexible

configuration expansions without compromising the wire speed

performance.

The SMC-EZ1026DT V.2 switch provide wire-speed switching with

advanced bridging functions like VLAN, link aggregation (Trunk) and

port mirroring. It can also support two different GBIC type as Mini

GBIC LC and standard GBIC SC.

SMC-EZ1026DT V.2

1.1Features

▓ Conforms to IEEE802.3,IEEE 802.3 ab,

IEEE802.3u,IEEE802.3z ,IEEE802.3x IEEE802.1p

 24 auto-sensing 10/100Mbps Ethernet RJ-45 ports

 2 Expansion slots for optional modules: 1-port Gigabit

( SX/LX ), 1-port Gigabit Copper, and 1-port 100M Fiber

Module

 Automatic MDI/MDIX crossover for each 10/100Base-TX port

 One Console-connecting port for communication parameter

configuration

 Auto-negotiation & Full-duplex/half-duplex supported

 Store-and- Forward error free packet forwarding scheme

 8K-entry MAC address table

 6Mbits share memory

 Full wire speed forwarding rate

 LED-indicators for Power, 10/100M, LK/ACT, FD/ COL

statuses

Intelligent Management Features

 Console Configuration

 Port Based VLAN supported

 IEEE802.3x Flow Control Mechanism is used in Full-Duplex

mode and back-pressure is used in half-duplex

 Link Aggregation function supported

 Port Mirror supported

 Bandwidth Control

SMC-EZ1026DT V.2

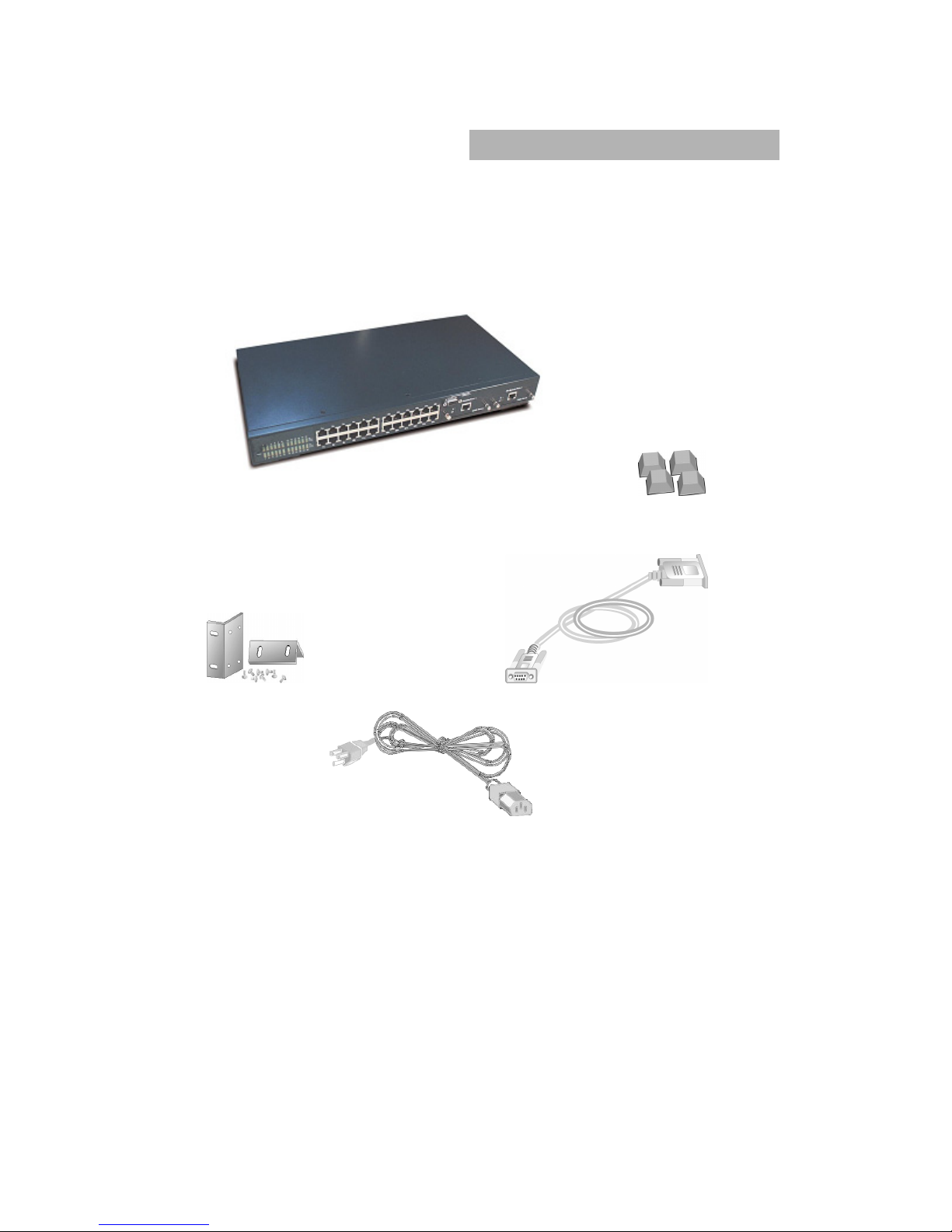

1.2 Package Contents

Unpack the carton of the SMC-EZ1026DT V.2 Switch and verify

them against the checklist below.

SMC-EZ1026DT V.2 Switch Rubber Feet

Rack-mounted Kit RS-232 cable

Power Cord

Figure 1-2. Package Contents

Compare the contents of your SMC-EZ1026DT V.2 Switch package

with the standard checklist above. If any item is missing or damaged,

please contact your local dealer for service.

SMC-EZ1026DT V.2

2. Hardware Description

This section mainly describes the hardware of the SMC-EZ1026DT

V.2, and gives a functional overview of the Switch.

The physical dimensions of the SMC-EZ1026DT V.2 is: 440mmx

225mmx 44.5mm ( L x W x H )

2.1 Hardware Description

The SMC-EZ1026DT V.2 Switch has fixed 24-port auto-sensing

Ethernet RJ-45 connectors, and its chassis contains two expansion

slots.

The Front Panel

The Front Panel of the SMC-EZ1026DT V.2 consists of 24x

auto-sensing 10/100Mbps Ethernet RJ-45 Ports, two optional

expansion slots, and Console port. The LED Indicators are also

located on the front panel of the Switch.

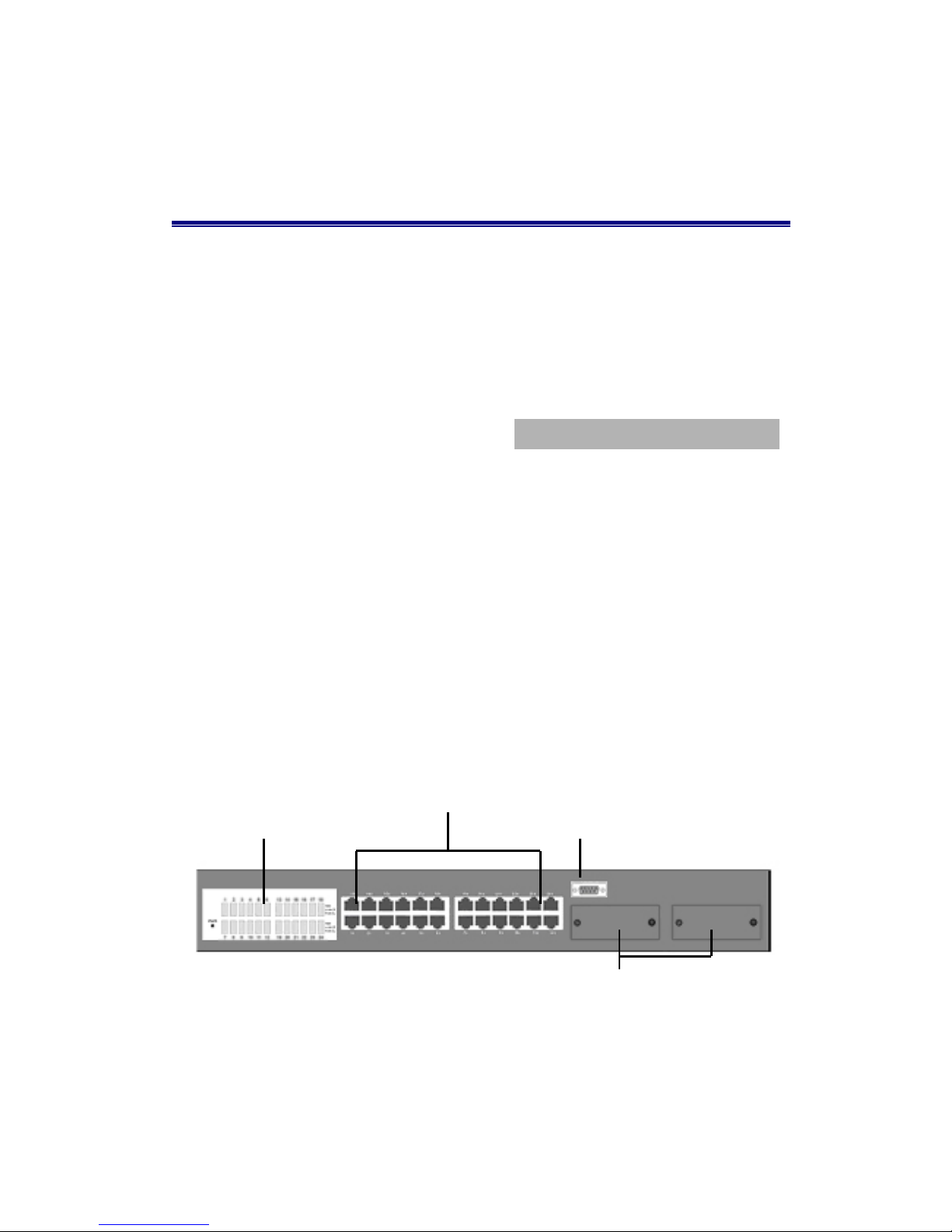

Figure 2-1. The Front Panel of SMC-EZ1026DT V.2 Switch

LED Indicators

RJ-45 Ports

Console Port

Expansion Slots for Optional Module

SMC-EZ1026DT V.2

10/100Base-TX RJ-45 ports (Auto MDI / MDIX):

24x 10/100Mbps auto-sensing port for 10Base-T or 100Base-TX

devices connection. Note: [MDI/MDIX means that you can connect

to another Switch or workstation without changing non-crossover or

crossover cable.]

Expansion Slots:

For two of the following Optional modules:

1 Port Gigabit 1000Base-T Intelligent Switch Modules,

1 Port Gigabit 1000Base-SX/LX Intelligent Fiber Modules.

1 Port 100Base-FX Intelligent Fiber Module

GBIC/Mini GBIC Module

Console Port:

Console Management can be done through the Console Port. It

requires a direct connection between the SMC-EZ1026DT V.2

Switch and an end station (PC) via a RS-232 cable.

2.2LEDIndicators

All LED indicators are located on the front panel of the

SMC-EZ1026DT V.2 Switch. They provide a real-time indication of

system and operational status. The following table

gives descriptions of the LED status and their meanings.

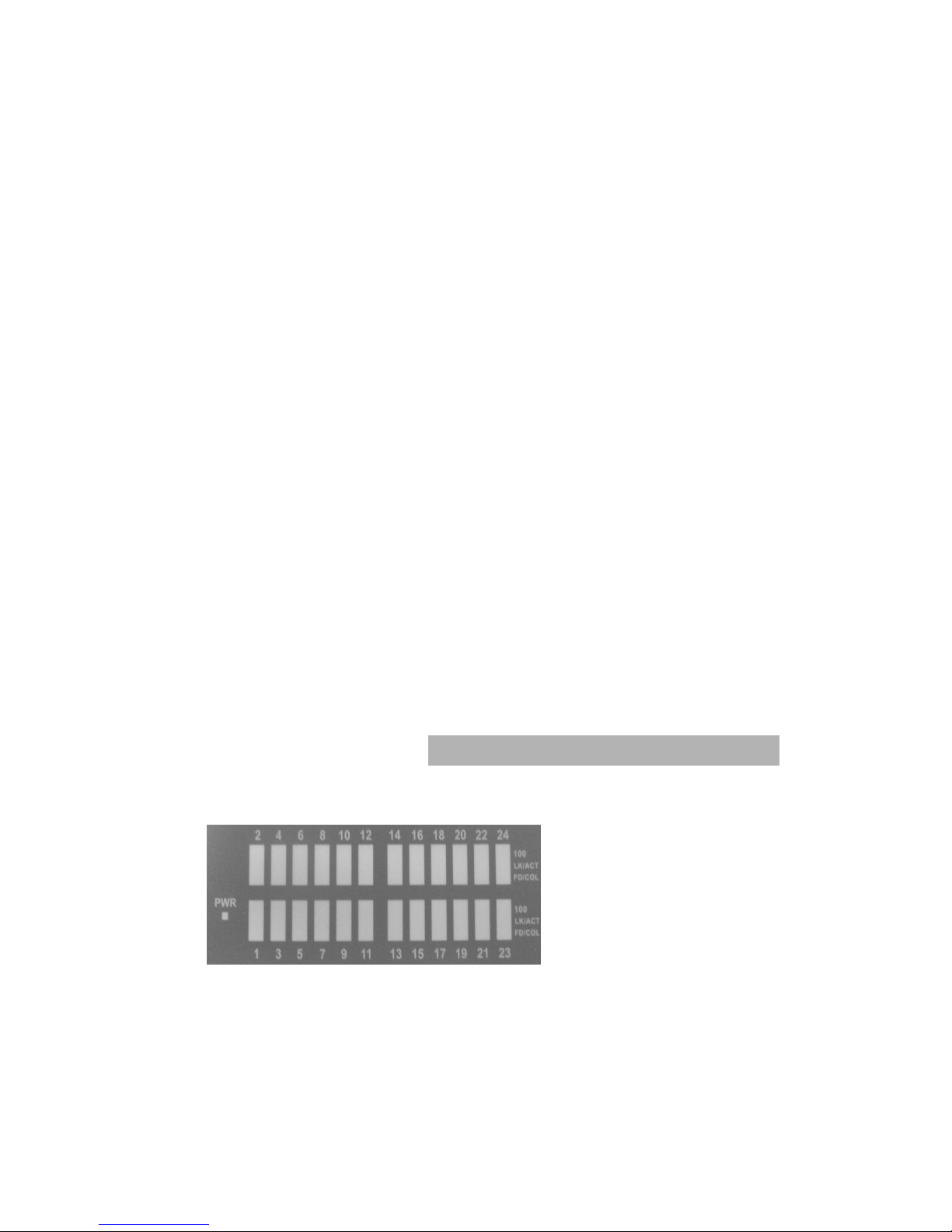

Figure 2-2 The LED

Indicators

SMC-EZ1026DT V.2

LED Status Description

Green Power On

PWR

Off Power is Off.

Green The port is operating at the speed of 100Mbps.

100

Off No device attached or in 10Mbps mode

Green The port is connecting with the device.

Blinks The port is receiving or transmitting data.

LK/ACT

Off No device attached.

Yellow The port is operating in Full-duplex mode.

Blinks Collision of Packets occurs in the port.

FD/COL

Off No device attached or in half-duplex mode .

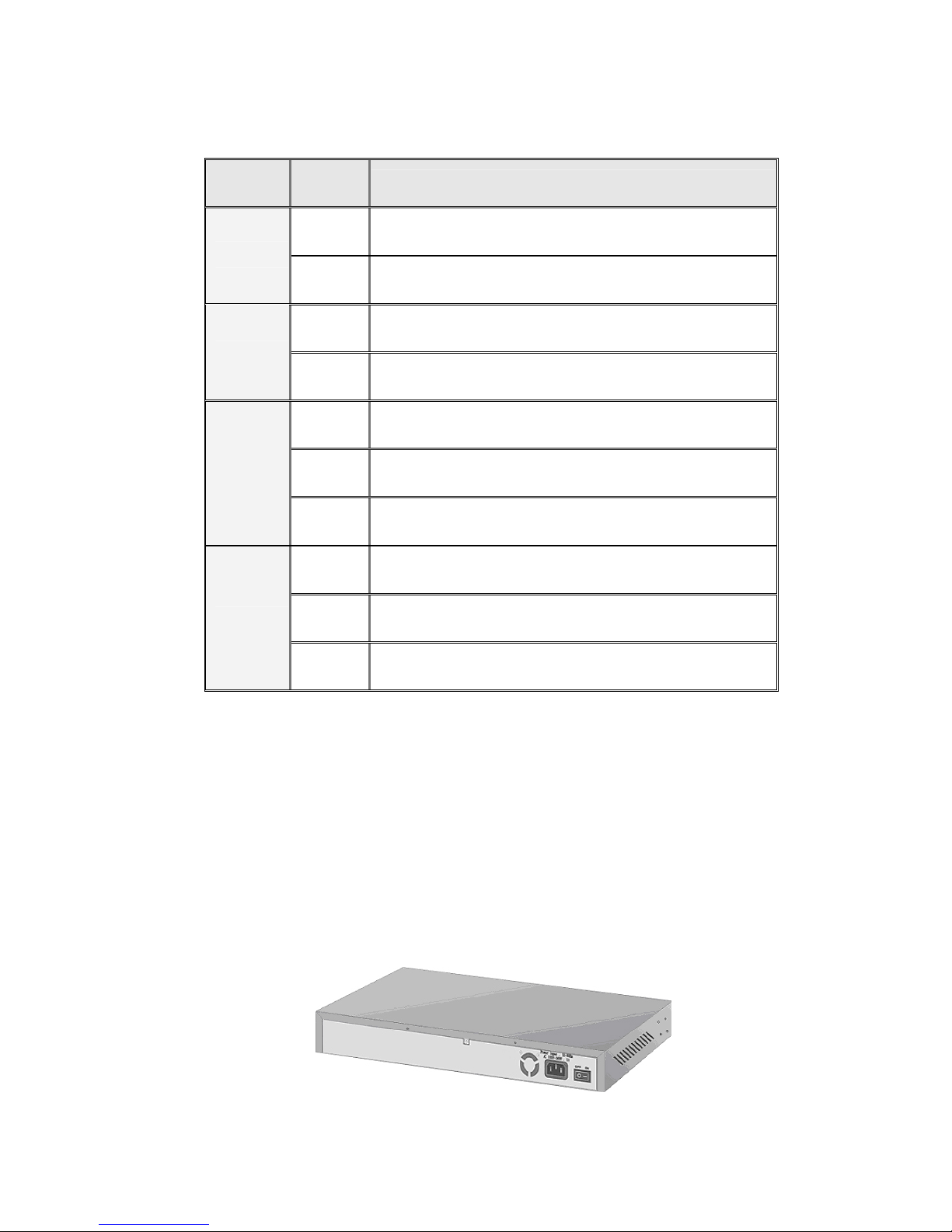

Table 2-3. The Descriptions of LED Indicators

Rear Panel

The 3-pronged power plug, On/Off switch are located at the Rear

Panel of the SMC-EZ1026DT V.2 Switch. (The Ventilation fan is

located on the side of the switch). The Switch will work with AC in

the range 100-240V AC, 50-60Hz.

Figure 2-4. The Rear Panel of the SMC-EZ1026DT V.2 Switch

SMC-EZ1026DT V.2

Power On

After all network cables are connected, plug the power cord into the

power socket on the back panel and the other end into a power

outlet. Turn the power On using the power switch on the back panel.

Check the front panel Power indicator to see if power is properly

supplied. The Switch uses a universal power supply that requires no

additional adjustment.

3. Connecting to the Network

This section provides the installation procedure and instructions for

assigning IP address.

3.1Pre-InstallationRequirements

Before you start hardware installation, make sure your installation

environment has below items:

PCs with 10/100Mbps Ethernet NICs/100/1000Mbps Fiber

NICs:

Your PC must have a standard Ethernet interface to connect to

the Switch.

UTP cable with RJ45 connectors/ Fiber cable with MT-RJ/

VF-45 connectors: Check if the cable and connectors work

properly.

A power outlet: 100 to 240V AC at 50 to 60 Hz: Make sure that

the Switch power is accessible and cables can be connected

easily.

Dedicated power supply: Use a dedicated power circuits or

power conditioners to supply reliable electrical power to the

network devices.

A dry cool place: Keep the Switch away from moisture. Avoid

SMC-EZ1026DT V.2

direct sunlight, heat source, and high amount of electromagnetic

interference around.

Mounting tools: If you intend to mount the Switch on a rack,

make sure you have all the tools, mounting brackets, screws etc.

Caution:

Cabling must be away from sources of electrical noise such as

radio, computers, transmitters, broadband amplifiers, power

lines and keep away from TVs, hair dryers, and microwave.

 Airflow around the Switch and through its vents on the rear

cannot be restricted.

3.2 Mounting the Switch

The SMC-EZ1026DT V.2 Switch is suitable for use in an office

environment where it can be rack-mounted in standard EIA 19-inch

racks or standalone.

Desktop Mounting

1. Set the Switch on a sufficiently large flat space with a power

outlet nearby, and about the center of all networked devices.

2. Make sure mounting surface on the bottom of the Switch is

grease dust free.

3. Remove adhesive backing from your Rubber Feet.

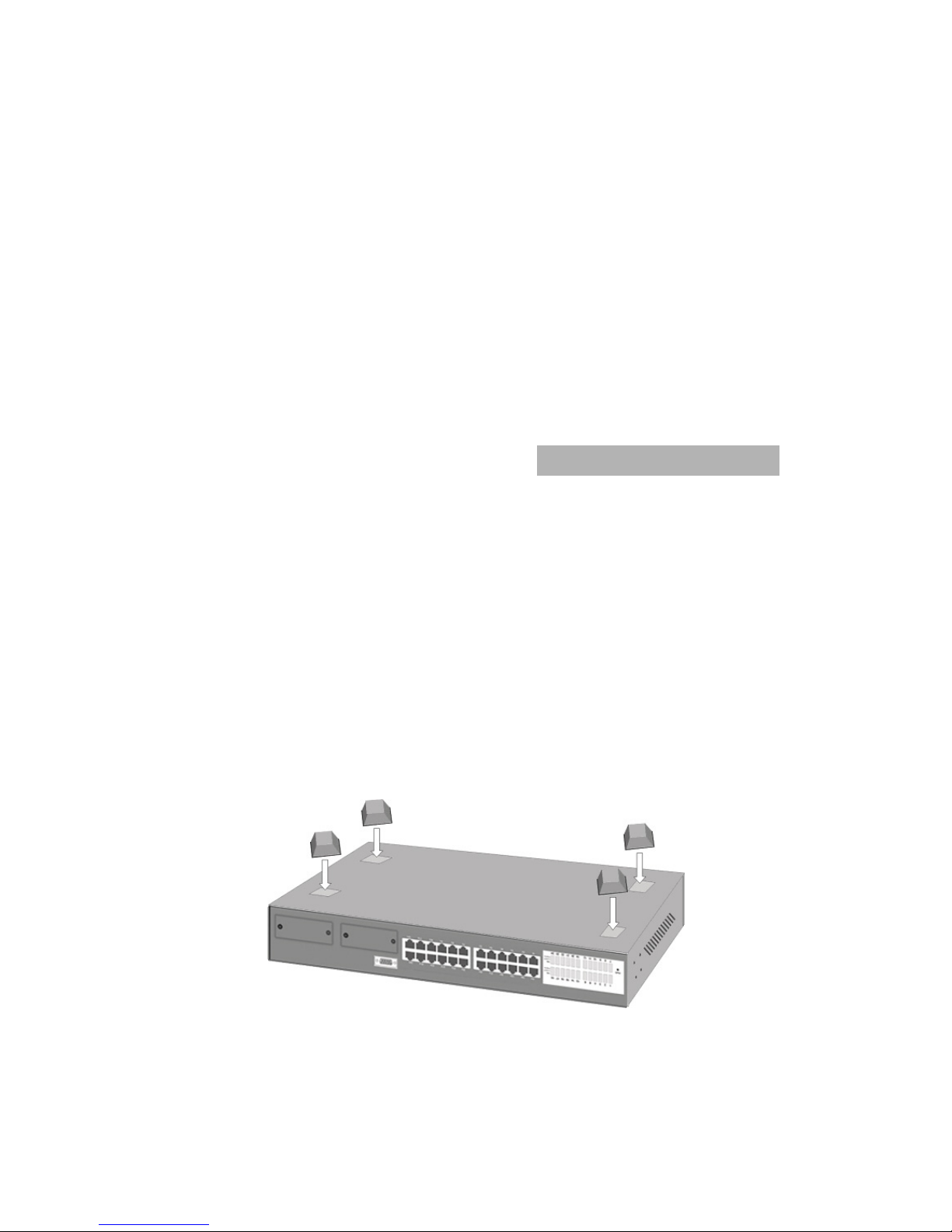

Figure 3-1. Attaching Rubber Feet to each corner

on the bottom of the Switch
