KER25U

Quaick Installation Guide

Wireless Dual Band Router

This product is specially designed to satisfy all your wireless

demand at home, office, and small business. It’s not only

with practical functions and excellent performance, but also

easy management.

KER25U is a multi-functional network product combined

with dual band AP, 4-port switch, and NAT router, and

complied with IEEE 802.11ac with up to 867Mbps speeds.

Meanwhile, it downward complied with IEEE 802.11a/b/n.

Package Contents

One ECW5350 Wireless Dual Band Router

One 12V DC Adaptor

One Quick Installation Guide

One RJ-45 Ethernet Cable

Product Brief

Front Panel Back Panel

1-1 1-2

LED Indicative

Color

Status

Description

POWER (PWR) Green Solid Light Power on

Light off

Power off

WAN Green

Solid Light

Link successfully

Blinking

Data transmitting

Light off

Link off

LAN 1-4 Green

Solid Light

Link successfully

Blinking

Data transmitting

Light off Link off

WPS Green

Solid Light

(one minute)

Connection succeeded under WPS

Blinking

Negotiation is in progress under

WPS

WLAN 2.4G Green

Solid Light

Wireless On

Blinking

Data transmitting

Light off

Wireless Off

WLAN 5G Green

Solid Light

Wireless On

Blinking

Data transmitting

Light off

Wireless Off

Port Function

WAN Wide Area Network port; Connect with Ethernet cable to a local

area network such as xDSL/Cable Modem or LAN network

LAN

1-4

Local Area Network port; Connect with Computer Lan card or

other Ethernet network devices

USB USB 2.0 port; Connect with USB device

WPS Wi-Fi Protected Setup; Press WPS button till WPS blinking as

negotiation with LAN card successfully, then WPS LED light goes

off. If negotiation with LAN card fails, WPS will also go off.

DC-IN Power jack; Connect with power outlet to supply power to the

router. (To avoid the risk of damage the router, please do not use

power adaptor not packaged with the router.)

Switches | Wireless | Broadband | Carrier Ethernet | Network Management

www.smc.com

www.smc asia.com

Connect Your World

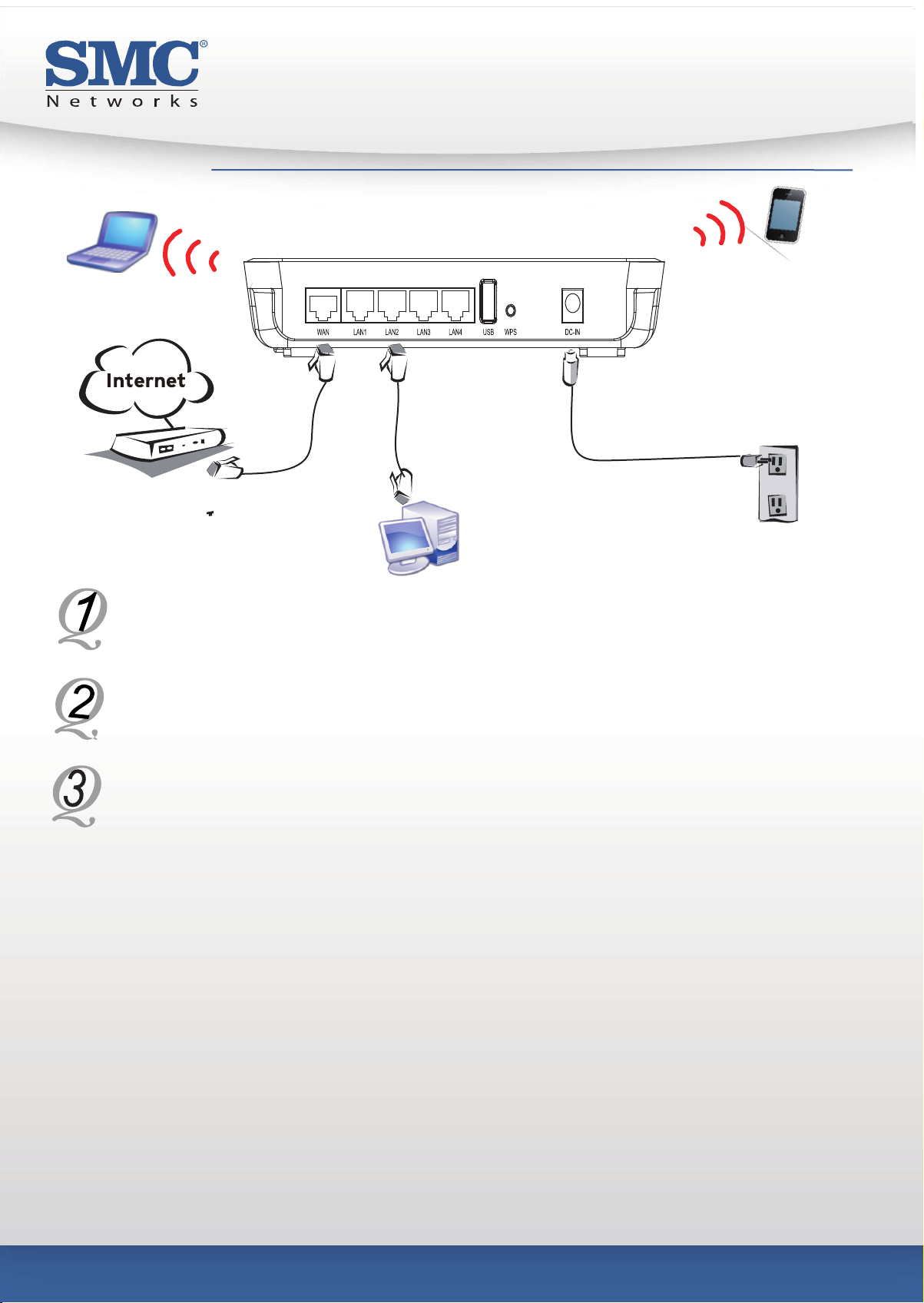

Installation 2-1

Set up WAN Connection

Plug Ethernet cable to WAN port of KER25U, and the other side of cable to xDSL/Cable

Modem or LAN network

Set up LAN Connection

Plug another Ethernet cable (not included) to your computer or other Ethernet network

devices, and the other side of Ethernet cable to any of LAN 1 to LAN4 on KER25U

Power on the Router

Connect power jack of power adaptor to the router, and plug the power adaptor into an

outlet. KER25U will be power on automatically and ready for your use.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

When suing IEEE 802.11a wireless LAN, this product is restricted to indoor use, due to its operation in the 5.15 to 5.25GHz frequency range. The FCC requires this product to be

used indoors for the frequency range of 5.15 to 5.25GHz to reduce the potential for harmful interference to co channel mobile satellite systems.

High-power radar is allocated as the primary user of the 5.25 to 5.35GHz and 5.65 to 5.85GHz bands. These radar stations can cause interference with and/or damage to this

device.
