SMCFS2601

EZ SwitchTM 10/100 Mbps

26-Port Unmanaged Fast Ethernet Switch

Product Overview

The EZ Switch 10/100 SMCFS2601 is an unmanaged, rack-mountable

24-port Fast Ethernet switch with two Gigabit uplink ports. All 10BASE-T/

100BASE-TX ports deliver dedicated 10/100 Mbps links to each attached

LAN segment. Auto-negotiation is used to select the optimal

communication mode for each connection, auto-sensing selects the

optimal transmission speed. With store-and-forward switching and flow

control, maximum data integrity is always maintained, even under heavy

loading. Environmentally friendly, the switch consumes less power than

non-green switches without reducing network performance. Easy

installation and reliability make this plug-and-play switch an ideal choice

for smooth Fast Ethernet integration in workgroup and small office

network environments.

Performance and Scalability

This switch provides 8.8 Gbps wire-speed switching

performance across all 26 ports. This enables the switch to

fully support existing high-performance PCs and laptops,

which significantly improves application response times and

the speed of large file transfers.

Support IEEE 802.1p Quality of Service

When the switch receives a frame tagged with an 802.1p

priority tag, it is placed in the appropriate priority queue.

Priority queuing is useful in environments where

time-sensitive data, such as voice and video, are streamed

across the network.

Green Ethernet Support

The switch power consumption is much less than non-

green switches and can be as low as 15.1 W.

Auto MDI/MDI-X on Each Port

Support for Auto MDI/MDIX means that no crossover

cables are required. Straight-through cables can be used

for all connections.

Metal Chassis Fan-less Design

The compact, rack mountable metal chassis is ideal for

desktop or rack mounting. In addition, the lack of fans

provides silent operation.

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

SMCFS2601

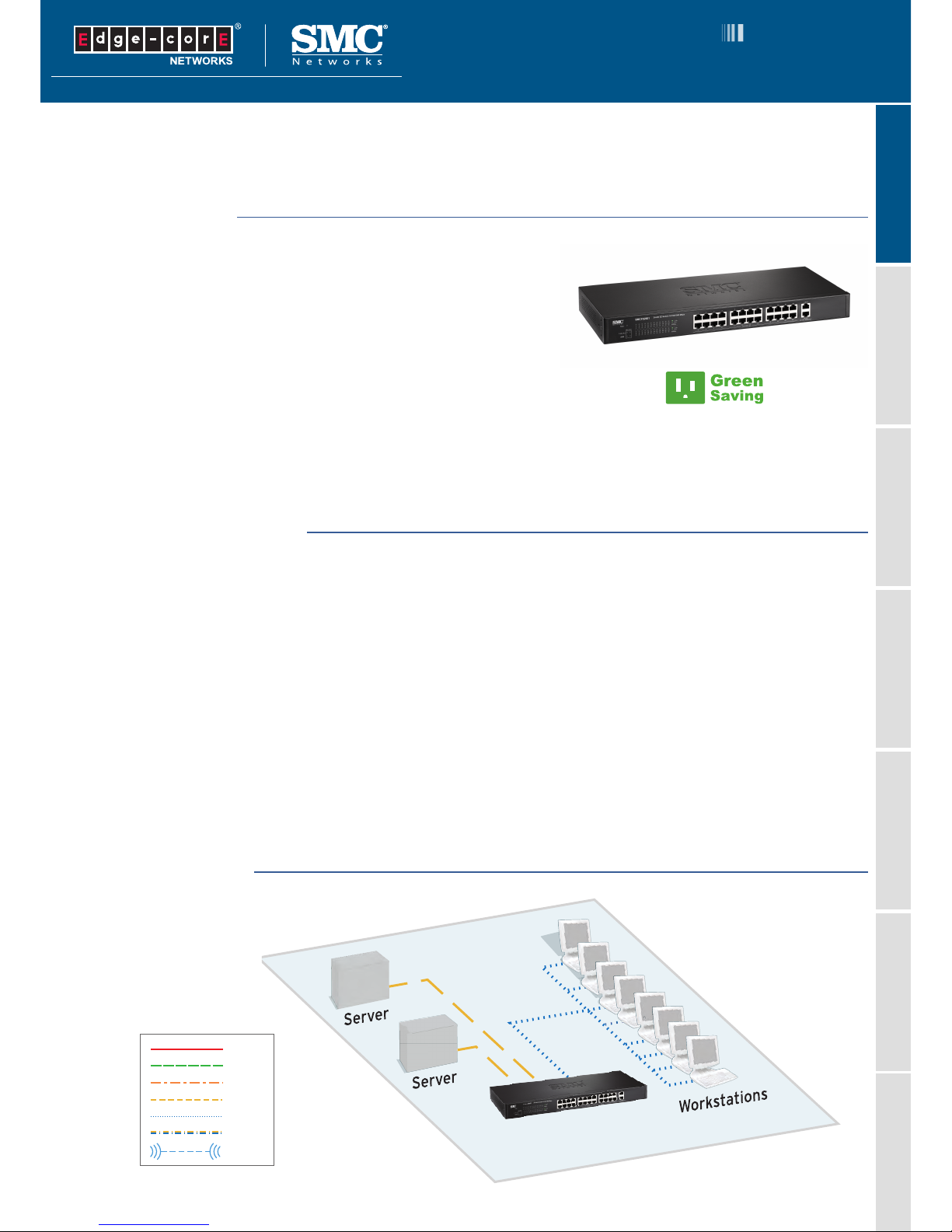

Application Diagram

Key Features and Benefits

www.smc.com

POWER TO CONNECT

www.edge-core.com

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

Ordering Information

Features

PHYSICAL PORTS

SMCFS2601:

■ 24 x 10/100 Mbps Auto-Negotiation RJ-45 ports

■ 2 x 10/100/1000 Mbps Auto-Negotiation RJ-45 ports

NETWORK INTERFACE

■ 10BASE-T (IEEE 802.3)

■ 100BASE-TX (IEEE 802.3u)

■ 1000BASE-T (IEEE 802.3ab)

FEATURE

■ IEEE 802.1p QoS

■ IEEE 802.3x Flow Control

■ Auto-MDI/MDIX

■ Green Saving

LEDs

■ Power

■ Link/Activity

■ 100 Mbps / 1000 Mbps

SWITCHING DATABASE

■ 8K MAC address entries

BUFFER MEMORY

■ 2.5 Mbytes/device

SWITCHING CAPACITY

■ 8.8 Gbps

POWER REQUIREMENT

■ 100-240V~50/60Hz, 0.6A

FRAME FILTER RATE

■ 10BASE-T: 14880 pps/port

■ 100BASE-TX: 148800 pps/port

■ 1000BASE-T: 1488000 pps/port

FRAME FORWARDING RATE

■ 10BASE-T: 14880 pps/port

■ 100BASE-TX: 148800 pps/port

■ 1000BASE-T: 1488000 pps/port

THROUGHPUT

■ 6.5 Mpps

DIMENSIONS

■ 44 x 18.0 x 4.4 cm (17.4 x 7.11 x 1.73 in)

WEIGHT

■ 2.4 Kg (5.28 lbs)

ELECTROMAGNETIC COMPATIBILITY

■ CE Mark

■ FCC Class A

■ KCC

IMMUNITY

■ EN55024

■ IEC61000-4/2/3/4/5/6/8/11

EMISSIONS

■ FCC Class A, EN55022/EN61000-3-2/3

SAFETY

■ LVD (EN60950)

TEMPERATURE

■ Operating Temperature: 0°C~40°C (32°F~104°F)

■ Operating Humidity: 10%~90% non-condensing

■ Storage Temperature: -40°C~70°C (-40°F~158°F)

■ Storage Humidity: 5%~90% non-condensing

WARRANTY

Please check www.smc.com for the warranty terms in your country.

Contact

World Wide Corporate and Sales Headquarters

No. 1 Creation Road III,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

Tel: +886 3 5770270 Fax: +886 3 5780764

Singapore

1 Coleman Street

#07-09, The Adelphi

Singapore 179803

Tel: 65-63387667 Fax: 65-63387767

Check www.smc-asia.com for your local country contact information

Europe/Africa

C/Fructuós Gelabert 6-8 2º, 2ª,

Edificio Conata II,

08970 Sant Joan Despí

Barcelona - Spain

Phone: +34 93 477 4920

Check www.smc.com for your local country contact information

Other trademarks or registered trademarks are the property of their

respective owners. Information is subject to change without notice. All

rights reserved.

SMC-DS-0811-01
