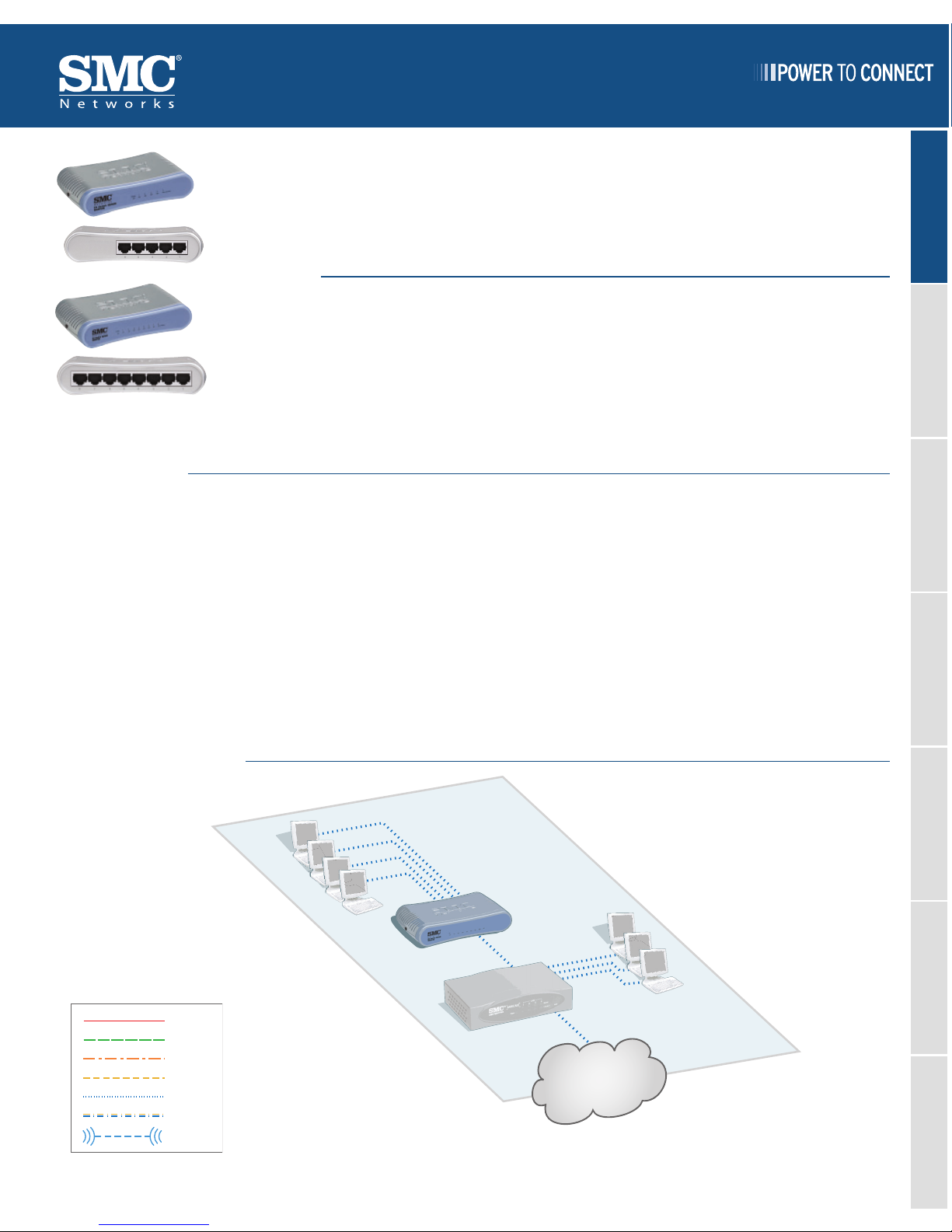

SMC Networks EZ Switch SMCFS5 Manuale di installazione e funzionamento

OVERVIEW

SMC’s EZ Switch™ 10/100s are dual-speed desktop network switches that are easy to install, with the added

dimension of dramatically improving network performance by offering speeds up to 200Mbps per port. All

EZ Switches feature Auto MDI/MDI-X on each port, providing added functionality and ease of use.

Designed for easy integration with any Home or Small Ofﬁce network, SMC EZ Switches contain added

feature like Store-and-Forward and Flow Control to ensure data delivery and network integrity. Powerful

enough to run your network’s backbone, yet so easy they can be used on your desktop, the EZ Switch™

10/100 brings the power of switching to you.

www.smc.com

SMCFS5 / SMCFS8

EZ Switch™ 10/100 Standalone 5/8-port 10/100 Unmanaged Switch

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

Internet

SMC7004VBR PC’s

PC’s

SMCFS5/

SMCFS8

APPLICATION DIAGRAM

KEY FEATURES

Features Store-and-Forward mode and Flow Control Attractive chassis

These Feature ensure data delivery and network integrity The compact, plastic chassis is light and is ideal for desktop appli-

cations. In addition, the lack of fans ensures silent operation.

Auto-MDIX ports LED indicators

No crossover cables required, pure plug and play for easy operation. Simple, at-a-glance LEDs to see port status and for simple trouble-

shooting.

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

PORTS

• SMCFS5

• 5 x 10/100 BASE-T

• DC power socket

• SMCFS8

• 8 x 10/100 BASE-T

• DC power socket

LED

• System: Power

• Port: Link/activity

SWITCH FABRIC

• SMCFS5

• 1Gbps

• 74400 pps

• SMCFS8

• 1.6Gbps

• 1190400 pps

BUFFER ARCHITECTURE

• SMCFS5

• 384Kbits

• SMCFS8

• 640Kbits

SWITCHING DATABASE

• 1K MAC address entries

NETWORK INTERFACE

• 10Base-T, UTP/ STP category 3 or 5 cable

• 100Base-TX UTP/ STP category 3 or 5 cable

POWER CONSUMPTION

• SMCFS5

• 3.52 Watts

• SMCFS8

• 4.6 Watts

POWER REQUIREMENTS

• 100 to 240V

• 50 to 60 Hz

DIMENSIONS

• SMCFS5:

• 13.1 x 8.5 x 3.2 cm

• 5.15 x 3.384 x 1.26 in.

• SMCFS8:

• 17.6 x 8.5 x 3.2 cm

• 6.93 x 3.34 x 1.26 in.

WEIGHT

• SMCFS5

• 155G

• 0.342LBS

• SMCFS8

• 200G

• 0.441LBS

HUMIDITY

• 10% to 90%

TEMPERATURE

• Operating

• 32 to 122oF

• 0 to 40oC

• Storage

• -40 to 158oF

• -40 to 70oC

EMC/SAFETY COMPLIANCES

• CE Mark Class B

EMISSIONS

• FCC Class B, CISPR Class B, EN 61000-3-2/3

STANDARDS

• IEEE 802.3 10BASE-T

• IEEE 802.3u 100BASE-TX

• IEEE 802.3x ﬂow control support

IMMUNITY

• EN 61000-4-2/3/4/5/6/8/11

SAFETY

• CSA/NRTL (CSA60950-1 & UL60950-1)

• TUV/GS (EN60950-1)

WARRANTY

• 1 Year

CONTACT

North America

20 Mason

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local country

contact information

of SMC Networks in the United States or other countries. Other trademarks

or registered trademarks are the property of their respective owners. Infor-

1/2009

www.smc.com

TECH SPECS - SMCFS5 / SMCFS8

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS
