SMCWCB-GM / SMCWPCI-GM
11B/G MIMO
WIRELESS Adapter
User’s Manual
- 1 -
Quick Installation
1. Insert the product’s CD into CD-ROM.
2. Follow the onscreen instructions to install the drivers.
3. Shut down the Computer and insert / plug-in the adapter into the appropriate slot.
4. Boot up the Computer and let the drivers install themselves automatically
FCC Regulatory Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received; including interference that may cause
undesired operation. Federal Communications Commission (FCC) Statement.
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
- 2 -
Contents
Chapter 1 System Requirements ______________________________ 3
1-1 Hardware ________________________________________________________________ 3
1-2 Software _________________________________________________________________ 3
Chapter 2 Install Driver for Windows Series ____________________ 4
2-1 Set up 11B/G MIMO WIRELESS LAN Card for Windows Series _________________ 4
Chapter 3 Configure MIMO WIRELESS LAN Card_____________ 6
3-1 Install Utility______________________________________________________________ 6
3-2 Use the MIMO WIRELESS LAN Card with Zero Configuration Tool______________ 7
Chapter 4 Configure MIMO WIRELESS LAN Card with “MiMo
Wireless Utility” for Windows 98/ME/2000/XP _________________ 10
4-1 Site Survey Page__________________________________________________________ 10
4-1-1Add/Edit Profile ______________________________________________________ 11
4-2 Authentication & Security _________________________________________________ 14
4-2-1 802.1x Setting________________________________________________________ 15
4-2-2 CA Server ___________________________________________________________ 16
4-3 Profile Page______________________________________________________________ 18
4-4 Link Status Page _________________________________________________________ 19
4-5 Statistics Page____________________________________________________________ 20
4-6 Advance Page____________________________________________________________ 22
4-7 About Page ______________________________________________________________ 24
- 3 -
Chapter 1 System Requirements
Before installing the adapter and related software, make sure the computer system meets the
minimum requirements described below.
1-1 Hardware
The adapter can be installed in any recent-model IBM-type microcomputer with a PCMCIA on
notebook or PCI slot on desktop which support CardBus or PCI interface. The CardBus adapter is a
Type II CardBus card, and can be installed in a Type II or Type III CardBus slot.
1-2 Software
The drivers included with the adapter allow the adapter to be used in Microsoft Windows 98, ME,
2000, and XP.
- 4 -
Chapter 2 Install Driver for Windows
Series
This section describes the installation of the 11B/G MIMO WIRELESS LAN Card driver for the
Windows98/ME/2000 and Windows XP operating systems.
2-1 Set up 11B/G MIMO WIRELESS LAN Card for Windows
Series
Step 1: After inserting the MIMO WIRELESS LAN Card into the PCMCIA slot on notebook or
PCI slot desktop, the Windows will auto-detect the MOMO WIRELESS LAN Card and a “Found
New Hardware Wizard” window will show up. Select “Cancel” to install the driver from
CD-Rom.
- 5 -

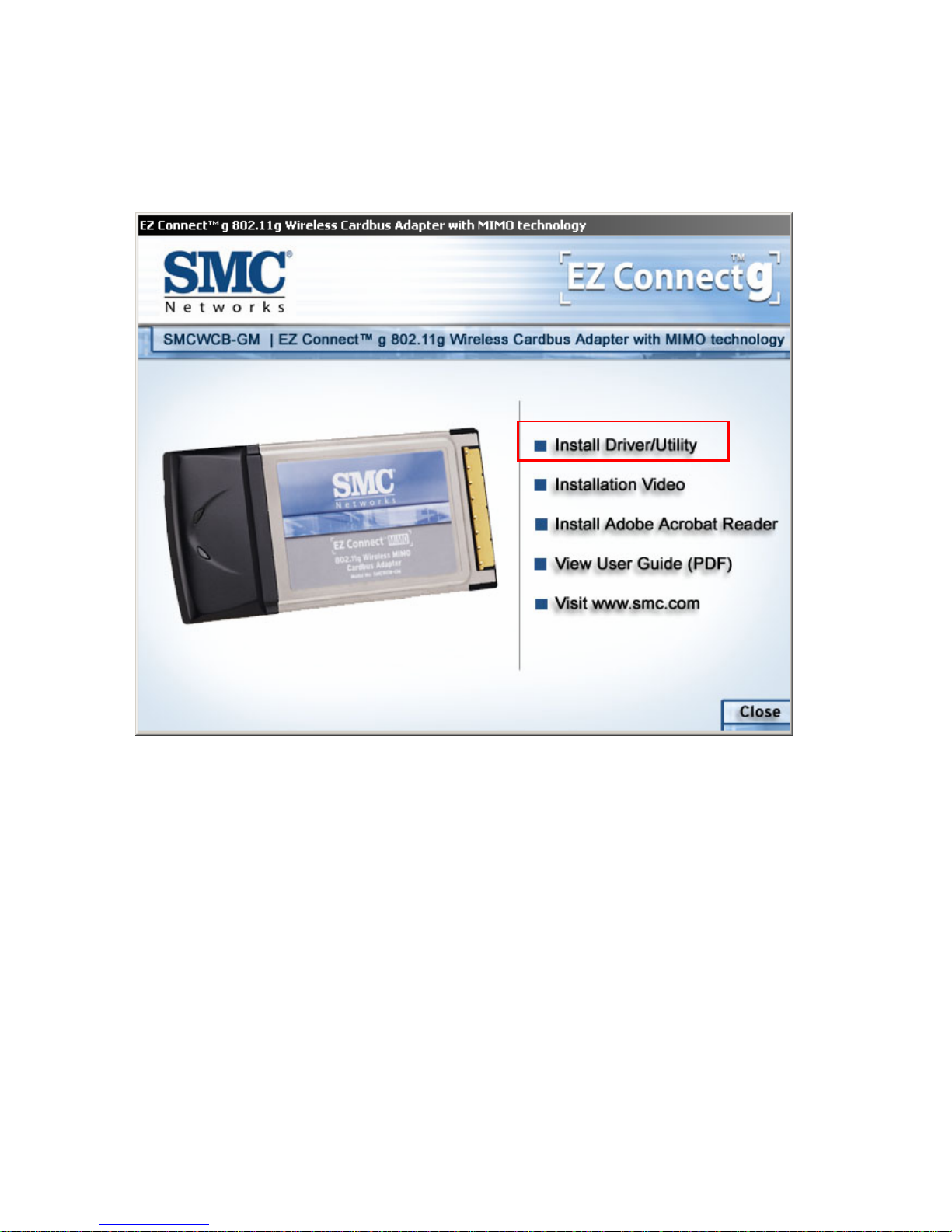

Step 2: Insert the Product CD-ROM into the CD-ROM drive. Select “Driver & Utility” to install
Driver and Utility.
Step 3: After installing the driver, you can check if your device is active in the device management
- 6 -
Chapter 3 Configure MIMO WIRELESS
LAN Card
This chapter will show you how to configure your MIMO WIRELESS LAN Card by using utility
in the Product CD Package under Windows series Operation System
3-1 Configuration Utility
1. After finishing the install process, you can execute the utility from the Start Menu.

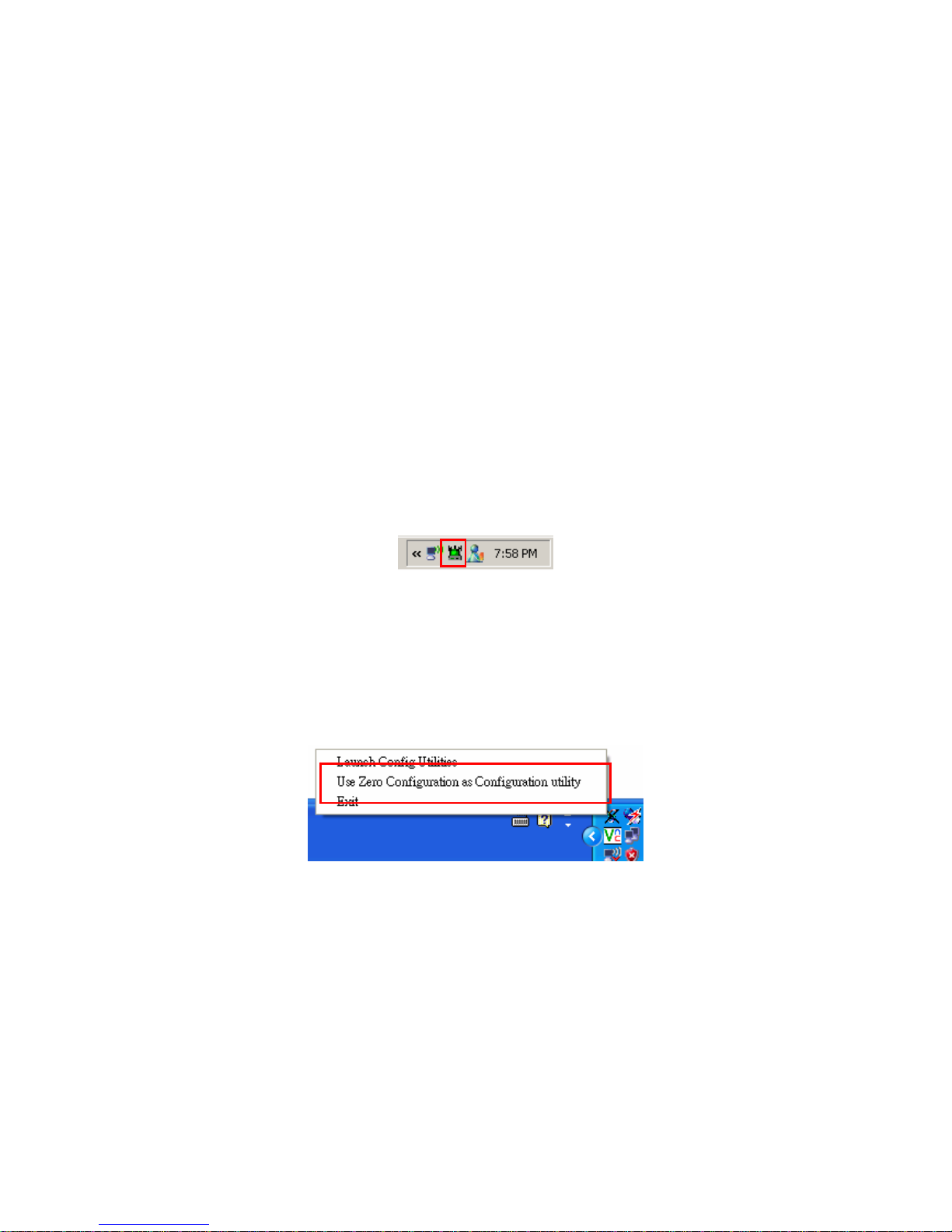

2. You will see the utility icon after you executing program “MiMo Wireless Utility” if your MIMO
WIRELESS Card is alive
3. If your operation system belong to Windows XP and have update to SP1, click the right button
on the icon. You will see the frame below. If you want to configure your MIMO Wireless LAN
Card with “Wireless Zero Configure” supported by XP, you should choose “Use Zero
Configuration as Configuration utility”.
- 7 -
3-2 Use the MIMO WIRELESS LAN Card with Zero
Configuration Tool

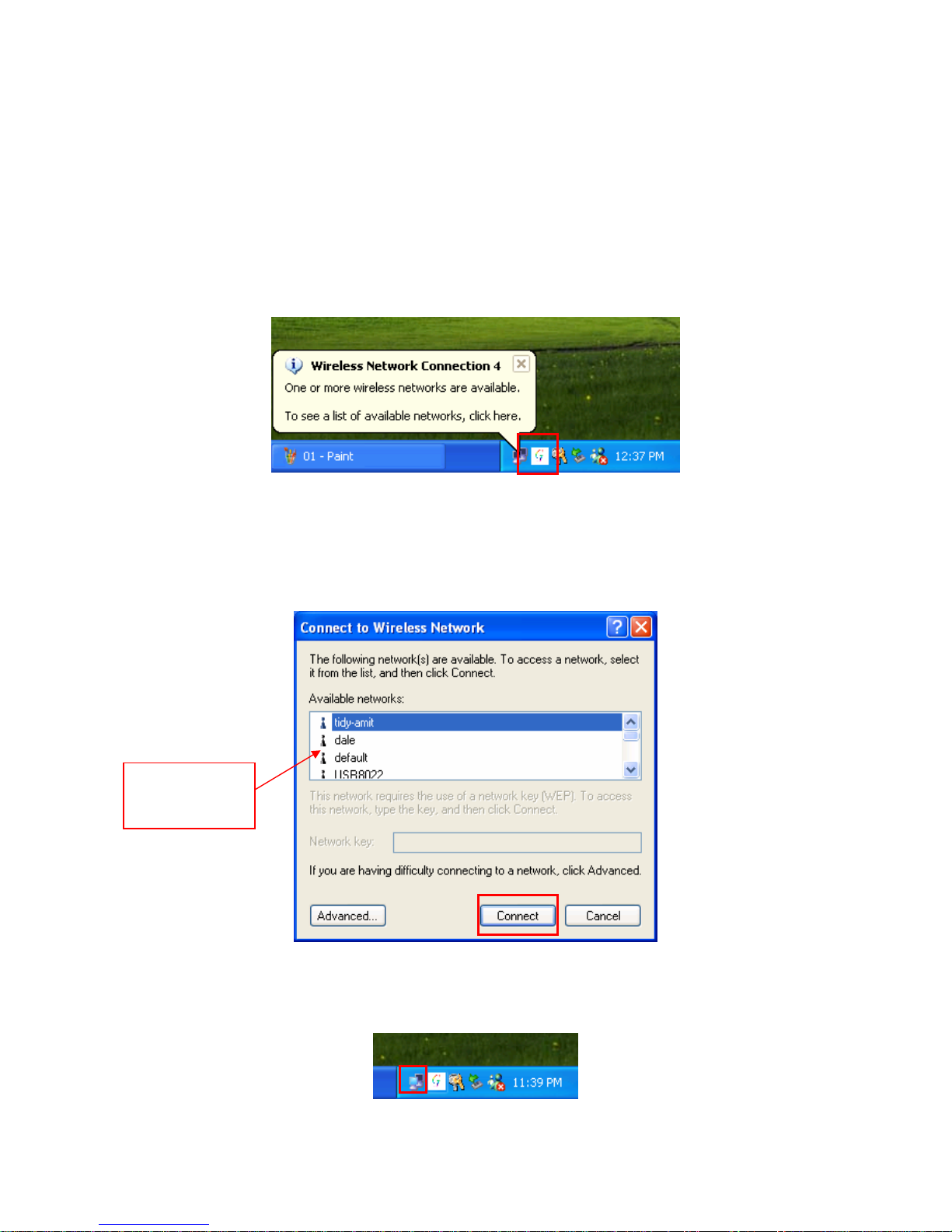

After installing MIMO Wireless LAN Card, the Windows XP will display a “WIRELESS
Network Connection ” message.
Click on the message and the “Automatic WIRELESS Network Configuration” will then appear
automatically and allow users to connect to an available WIRELESS infrastructure network (Access
Point), shown as follows. You may click the Advanced button to make advanced configuration for
the WIRELESS LAN Card, shown as below.
In order to reconfigure you WIRELESS connection, you can deal as follow procedure
1.click left button on the network icon as bellow.
Choose one
suitable server
- 8 -

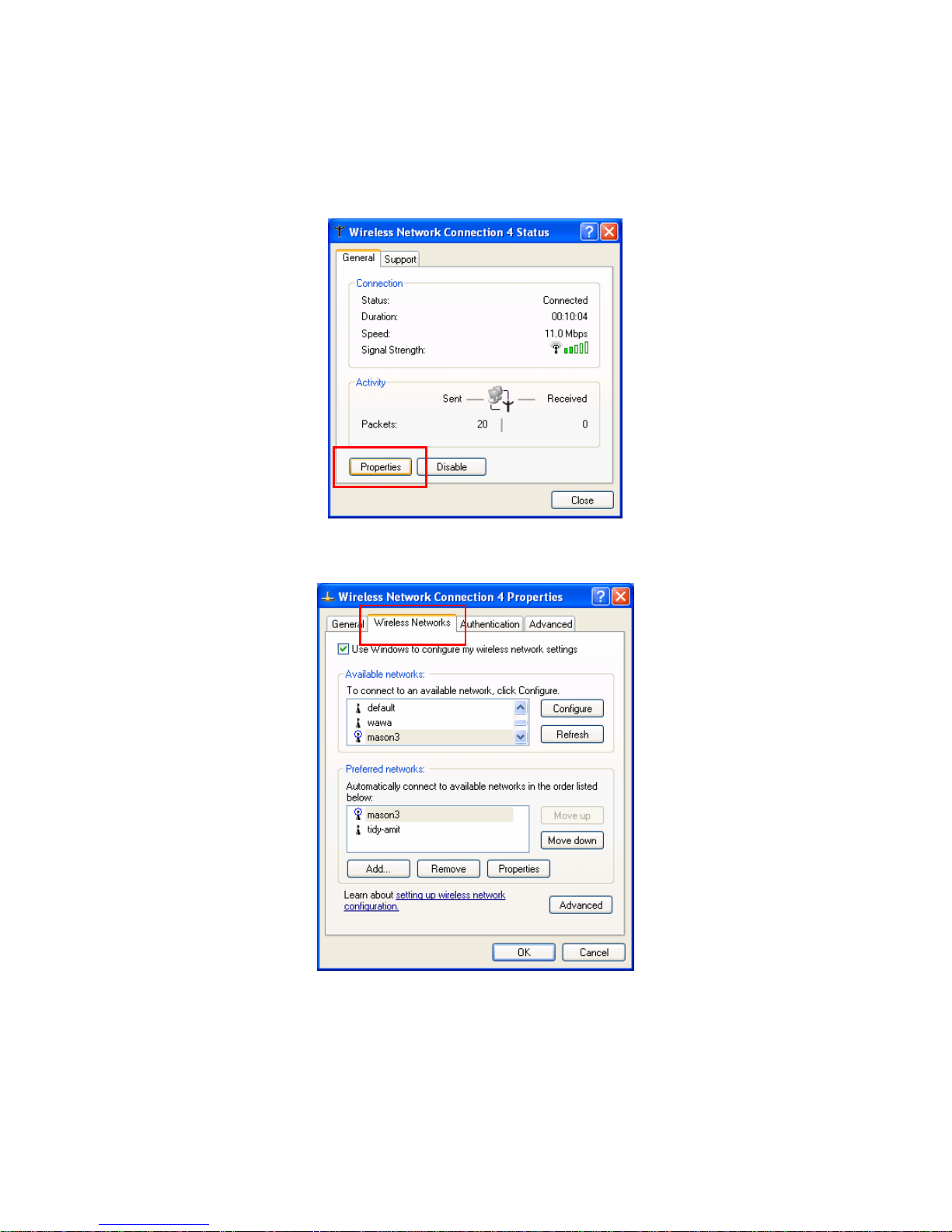

2. Click Properties to continue
3. Click WIRELESS Networks to reconfigure the WIRELESS network connection.
4. If you need a key(WEP) to connect the WIRELESS network, you should keyin the key that
supported by the WIRELESS network router or access point
