User’s Manual
VersaPoint Rechargeable Wireless Desktop Suite
Page 2
Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC Certication
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.
Notice: Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. Extension cables are not recommended, if used, they must be shielded
in order to comply with the emission limits.
IC Certication
The term “IC” before the certication/registration number only signies that the
Page 3
Industry Canada technical specications were met.
Declaration of conformity
Hereby, SMK-LINK Electronics, Inc. declares that this VersaPoint Wireless
Desktop Suite is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. All trademarks and registered trademarks
mentioned in this document are the property of their respective owners.
Features and specications are subject to change without notice.
© 2008 SMK-LINK Electronics, Inc.
Page 4
System Requirements
Hardware: Desktop or notebook system with 1 available USB 1.1
or 2.0 port
Operating System: Windows 2000, XP or Vista
Package Contents
2.4GHz rechargeable keyboard
2 x AAA rechargeable Ni-MH batteries (for the keyboard)
2.4GHz rechargeable mouse
2 x AA rechargeable Ni-MH batteries (for the mouse)
USB RF receiver with pass through charging port
Charging cable
User’s manual

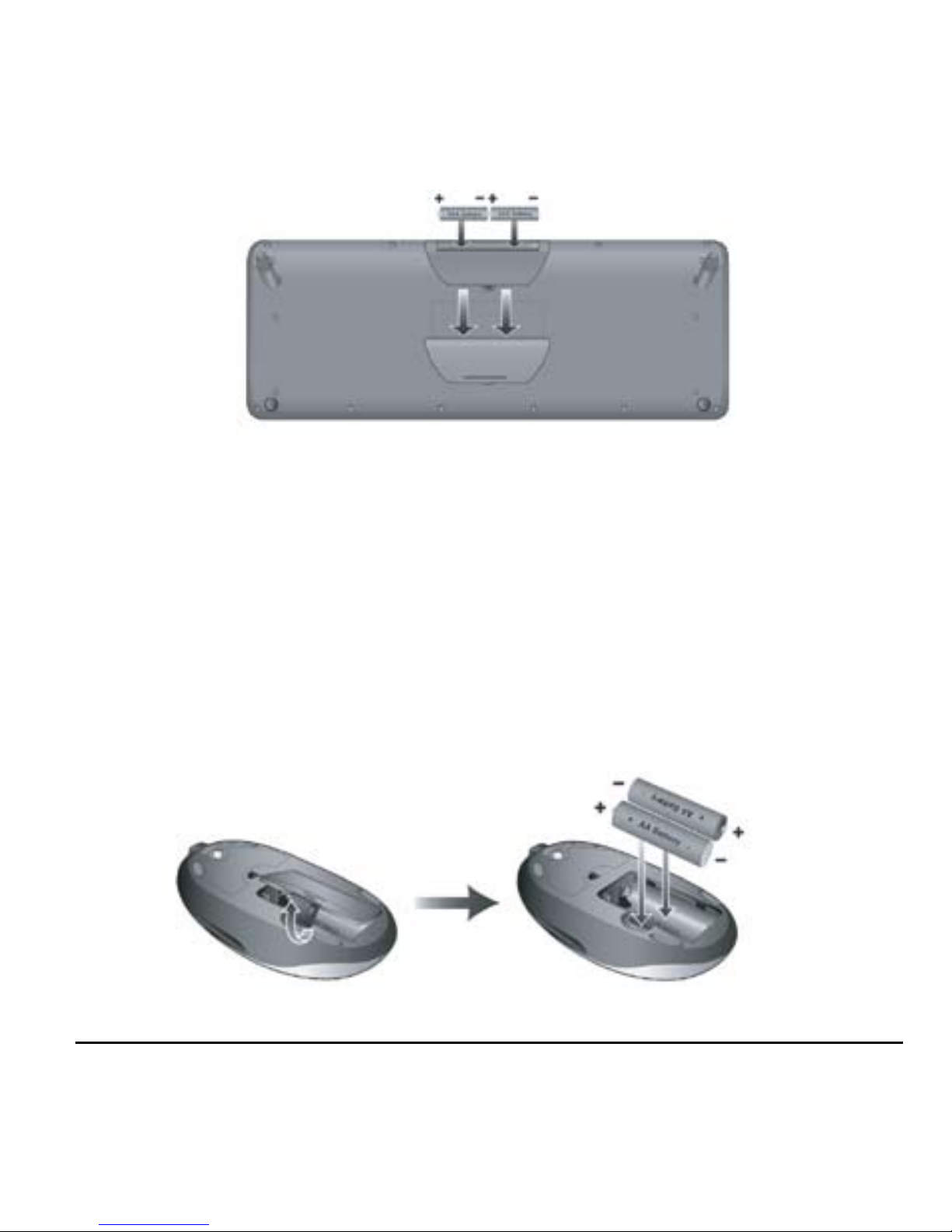

Installing Keyboard
Remove the battery cover located at the bottom of the
keyboard.
Insert the two supplied AAA rechargeable Ni-MH batteries
(included in the package) into the battery compartment.
•
•
•
•
•
•
•
•
•
Page 5
Make sure the positive (+) and negative (-) ends of the
batteries match the polarity markings inside the battery
compartment.
• Snap the battery cover back into position.
Installing the mouse
Page 6
• Remove the battery cover located at the bottom of the mouse.
• Insert the two supplied AA rechargeable Ni-MH batteries (in-
cluded in the package) to the battery slots. Make sure the posi-
tive (+) and negative (-) ends of the batteries match the polarity
markings inside the battery compartment.
• Snap the battery cover back into position.
Do not attempt to charge non-rechargeable
disposable Alkaline batteries. The batteries may
leak and damage your mouse or keyboard. Use
only the rechargeable Ni-MH batteries supplied.
Shall replacing batteries become necessary use
only rechargeable Ni-MH batteries. Do not mix
new and old batteries or batteries of different brands or
capacities in the products.
Page 7

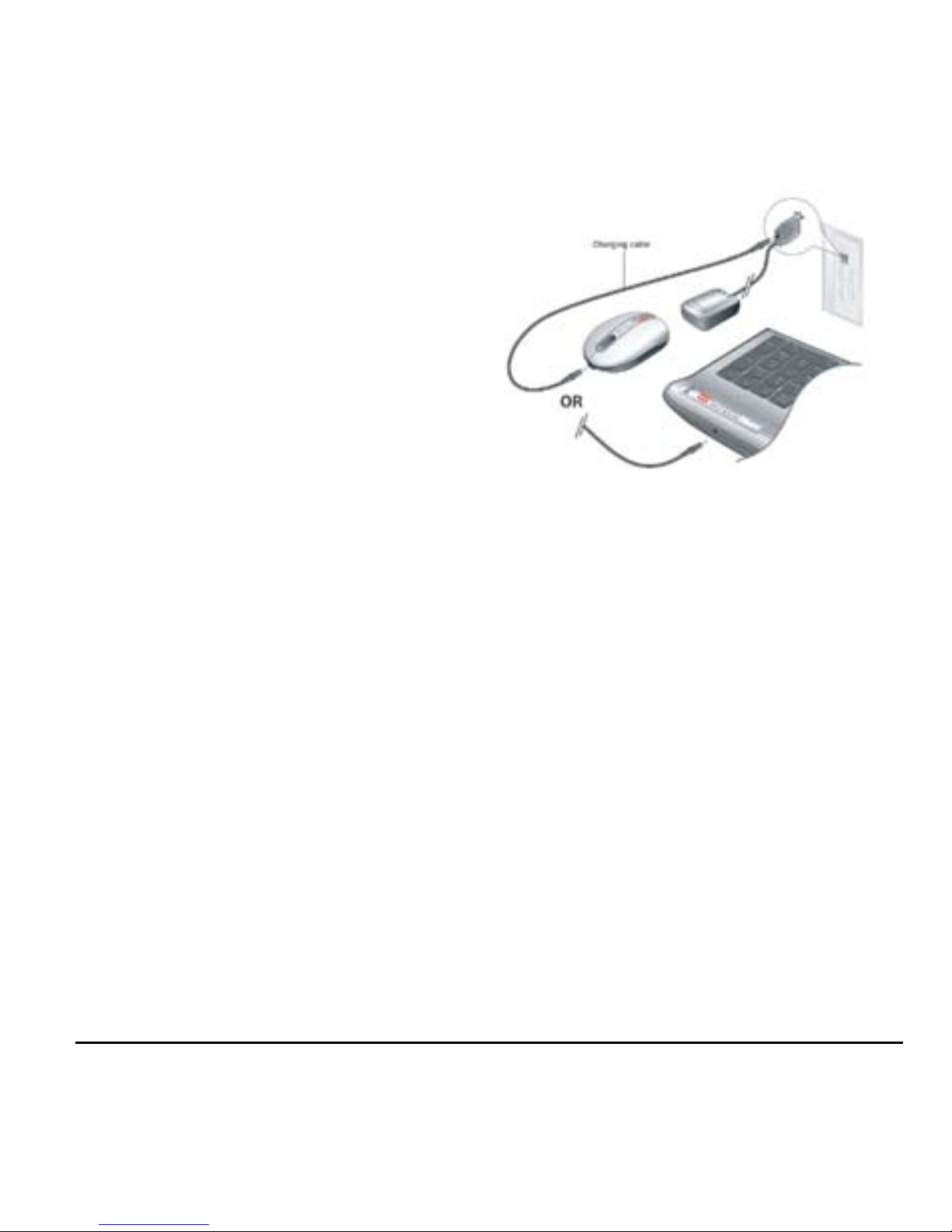

Changing the batteries
• It’s recommended that you fully
charge the batteries before initial
use; nevertheless it’s ready for set
up (see next step) anytime during
charging.
• Connect the charging cable
(included in the box) to the USB
RF receiver’s charging port and the mouse. (Repeat this step later
for the keyboard.)
• Plug the receiver’s USB connector to your computer’s available
USB port.
• The initial charging process may take up to 8 hours.
Subsequent recharge may require less time depending on the level
of residual power in the batteries.
• Repeat these steps to charge the keyboard. Unplug the charging
cable from the mouse and connect it to the keyboard’s charging
port.
• The keyboard and mouse are operational during charging; you
can continue use the products while charging via the USB charging
cable.
• You are now ready to connect the keyboard and mouse to your
Page 8
computer. (Note: it’s not necessary to wait for the batteries to be
fully charged before connecting to your system.)

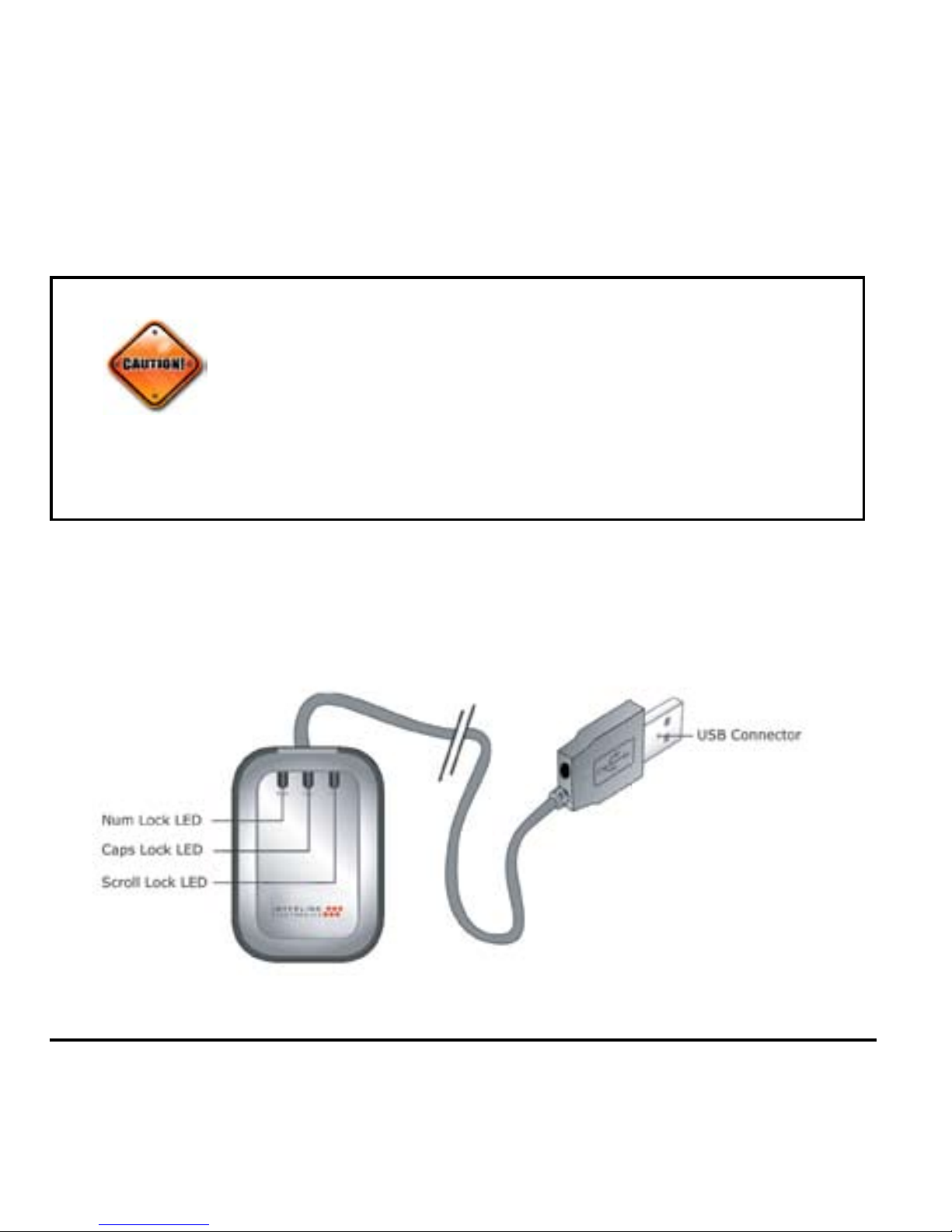

Connecting the Keyboard & Mouse to the Computer
Make sure the computer’s power management
is set to disable hibernation mode while the
products are being charged. (Go to Control
Panel, Power Options, select “Hibernate” from
the tabs and uncheck the box marked “Enable
Hibernation.)
Page 9
• Connect the RF receiver to an available USB port on your
computer. This may have been done when batteries are being
charged.
• The radio frequency (RF) codes are factory preset for your
convenience; the keyboard and mouse should be functional at this
point.
• If for any reason the keyboard do not function correctly, i.e. no
cursor movements, there may be other wireless devices in the
vicinity operating in the same radio frequency channel. They
keyboard and mouse can be easily reset to another channel.

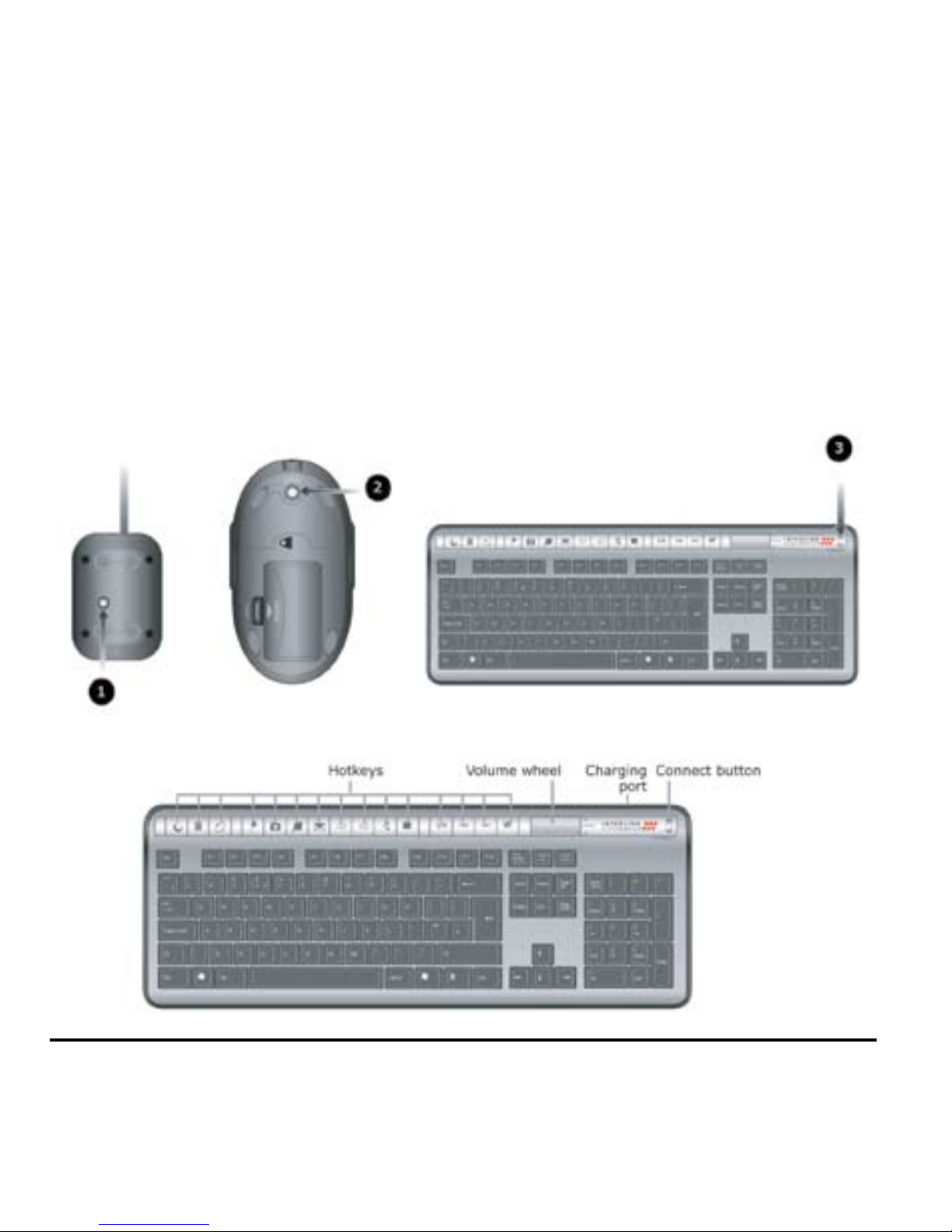

• To connect the mouse to your system, press the connect button
located at the bottom of the RF receiver (1) while it’s connected to
the computer’s USB port, and press the connect button located at
the bottom of the mouse (2). This will reset the mouse and the RF
receiver to a different channel to avoid interference.
• To connect the keyboard to your system, press the connect button
located at the bottom of the RF receiver (1) while it’s connected
to the computer’s USB port, and press the connect button located
at the upper right-hand corner of the keyboard (3). This will reset
the keyboard and the RF receiver to a different channel to avoid
interference.
• This step can be repeated when needed.
Page 10
Operating Instructions
Using the Keyboard
• This keyboard features the standard 104-key QWERTY
conguration plus 15 convenient one-touch hot keys and a volume
control wheel.
