Snapper 375ZB2050CE Manuale utente

Parts Manual fo

Revision IR,

20 HP HYDRO DRIVE ZT

375Z SERIES

TP 400-7380-IR-HZ-N8/13/2008

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967 Manual No. 5101533

MODEL

375ZB2050CE (5900735)

Table Of Content

TP 400-7380-IR-HZ-N

20 HP HYDRO DRIVE ZTR

375Z SERIES 3

Manual No. 5101533

PAGE GROUP

4Wheel & Tire Group

6Main Frame & Front Suspension Group

8Rear Suspension Group

10 Seat & Kickplate Group

12 Fuel Tank Group

14 Fuel Supply Hose & Tank Replacement Parts Group

16 Engine & PTO Group

18 Control Group Upper

20 Control Group Lower

22 Brake Group

26 Drive Group

28 Hydraulic Group

30 Hydraulic Pump SERVICE PARTS - BDP/PG Series

36 Bumper Group

38 Lift Group

42 50" Mower Deck - Housing, Arbors & Blades

44 50" Mower Deck - Belt & Idler Group

46 50" Mower Deck - Roller Group

48 Decal Group - Brand & Model

50 Export Decal Group - Saftey & Common

52 Control Group Panel

54 Electrical Group

Wheel & Tire Group

TP 400-7380-IR-HZ-N 20 HP HYDRO DRIVE ZTR

375Z SERIES

Manual No. 5101533

Wheel & Tire Group

Footnotes:

TP 400-7380-IR-HZ-N

Manual No. 510153320 HP HYDRO DRIVE ZTR

375Z SERIES 5

Part No Descri

tionItem Qt

Note

1 5022433 2 WHEEL & TIRE ASSEMBLY, 11 X 4.0 - 5, COMPLETE (Includes Ref. Nos. 2 - 6) (S/N:

2013129510 & Below)

2 5022433X1 2 TIRE, FRONT, 11 X 4.0 - 5

3 5022433SX2 2 WHEEL ASSEMBLY, COMPLETE (Includes Ref. Nos. 4 & 5)

4 2172353 4 VALVE STEM & CAP ASSEMBLY

5 5021042 4 BEARING, ROLLER (2 Per Tire)

6 5021043 4 BEARING RETAINER (2 Per Tire)

7 5045996 2 AXLE, FRONT CASTER

8 5025017X52 2 BOLT, 1/2-13 X 6-1/2

9 5025056 2 NUT, HEX NYLON LOCK, 1/2-13

10 5023095 2 WHEEL & TIRE ASSEMBLY, 20 X 8.0 - 10, COMPLETE (Includes Ref. Nos. 4, 11 & 12)

11 5023095X1 2 TIRE, REAR, 20 X 8.0 X 10

12 5023095X2 2 WHEEL ASSEMBLY, FOR 20 X 8.0 X 10 TIRE

13 5020601 8 LUG NUT, 1/2-20

14 5025158 4 WASHER, SAE, 1/2

15 5101418 2 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO (Includes Ref. Nos. 2, 4-6, 16)

(S/N: 2013129511 & Above)

16 5101418X1 2 WHEEL ASSEMBLY, COMPLETE (Includes Ref. Nos. 4 & 5)

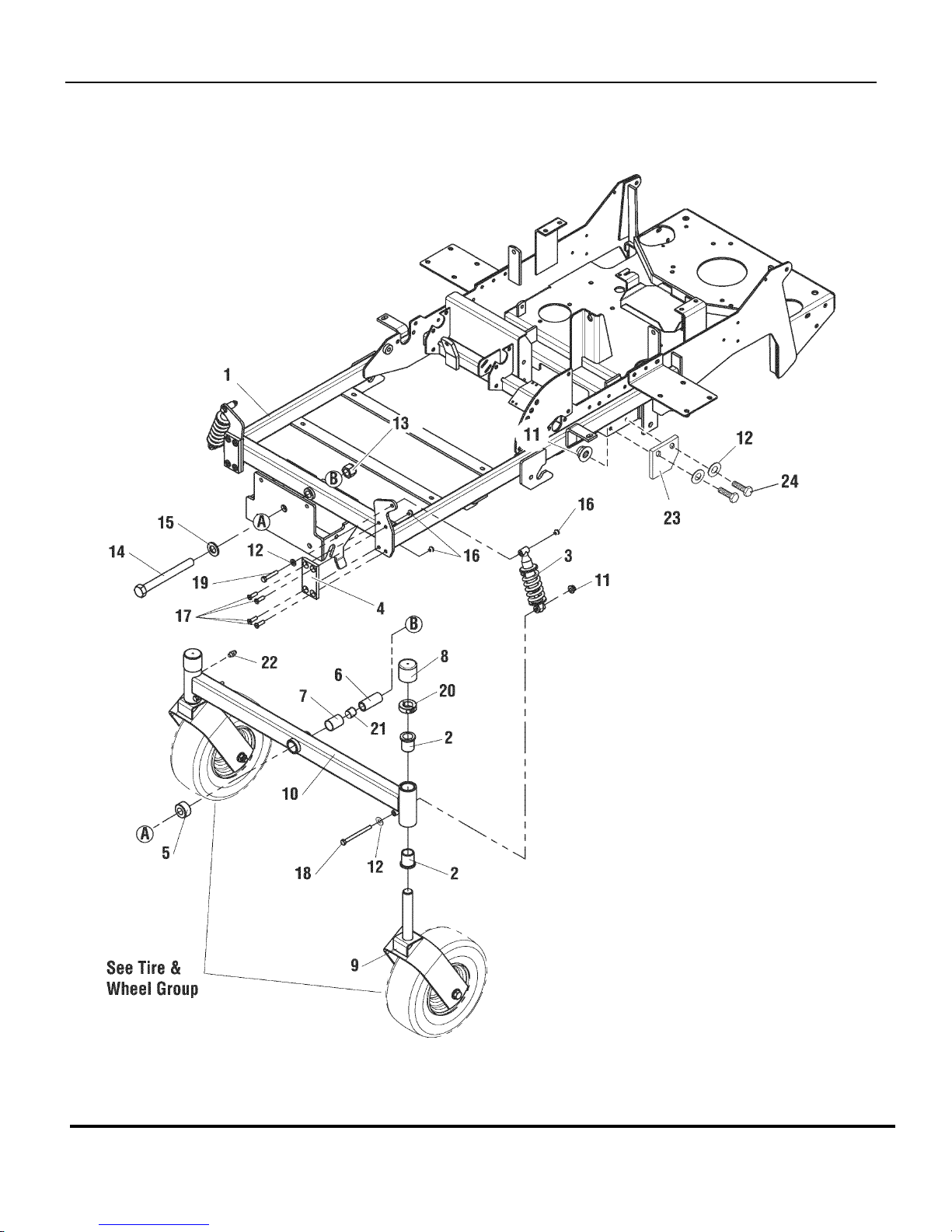

Main Frame & Front Suspension Group

TP 400-7380-IR-HZ-N 20 HP HYDRO DRIVE ZTR

375Z SERIES

Manual No. 5101533

Main Frame & Front Suspension Group

Footnotes:

TP 400-7380-IR-HZ-N

Manual No. 510153320 HP HYDRO DRIVE ZTR

375Z SERIES 7

Part No Descri

tionItem Qt

Note

1 5401035D 1 WELD, MAIN FRAME, SMI

2 5021541 4 BUSHING, FLANGE

3 5023213 2 SHOCK, SPRING ASSEMBLY

4 5045990 2 DECK FRICTION REDUCER PLATE

5 5400756 1 SPACER, .76X 1.50 X .79

6 5047489 1 SPACER, .75 X 1.00 X 2.38

7 5022852 1 PIVOT BEARING, 1.00" X 1.125" OD X 1.50"

8 5023214 2 CAP, VINYL 1.687 X 1-1/2

9 5048775D 2 WELD, CASTER YOKE

10 5400962D 1 WELD, PIVOTING FRONT END

11 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE

12 5025155 8 WASHER, 5/16" SAE

13 5025284 1 NUT, 3/4-16 HEX NYLON LOCK

14 5025265X56 1 BOLT, 3/4-16 X 7.00" YZ GD5

15 5025160 1 WASHER, 3/4" SAE

16 5025057 8 NUT, 5/16-18 HEX NYLON LOCK

17 5025303 8 SCREW, 5/16-18 X 1 FLAT HD SC

18 5025011X 2 BOLT, 5/16-18 X 3-3/4 GD5

19 5025011X14 2 BOLT, 5/16-18 X 1-3/4" GD5 YZ

20 5020602 2 COLLAR, 1" SPLIT

21 5100358 1 PIVOT BEARING, 1.00" X 1.125" OD X .50"

22 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT

23 5401053D 2 PLATE, DECK STOP

24 5025011X6 4 BOLT, 5/16-18 X 3/4" GD5

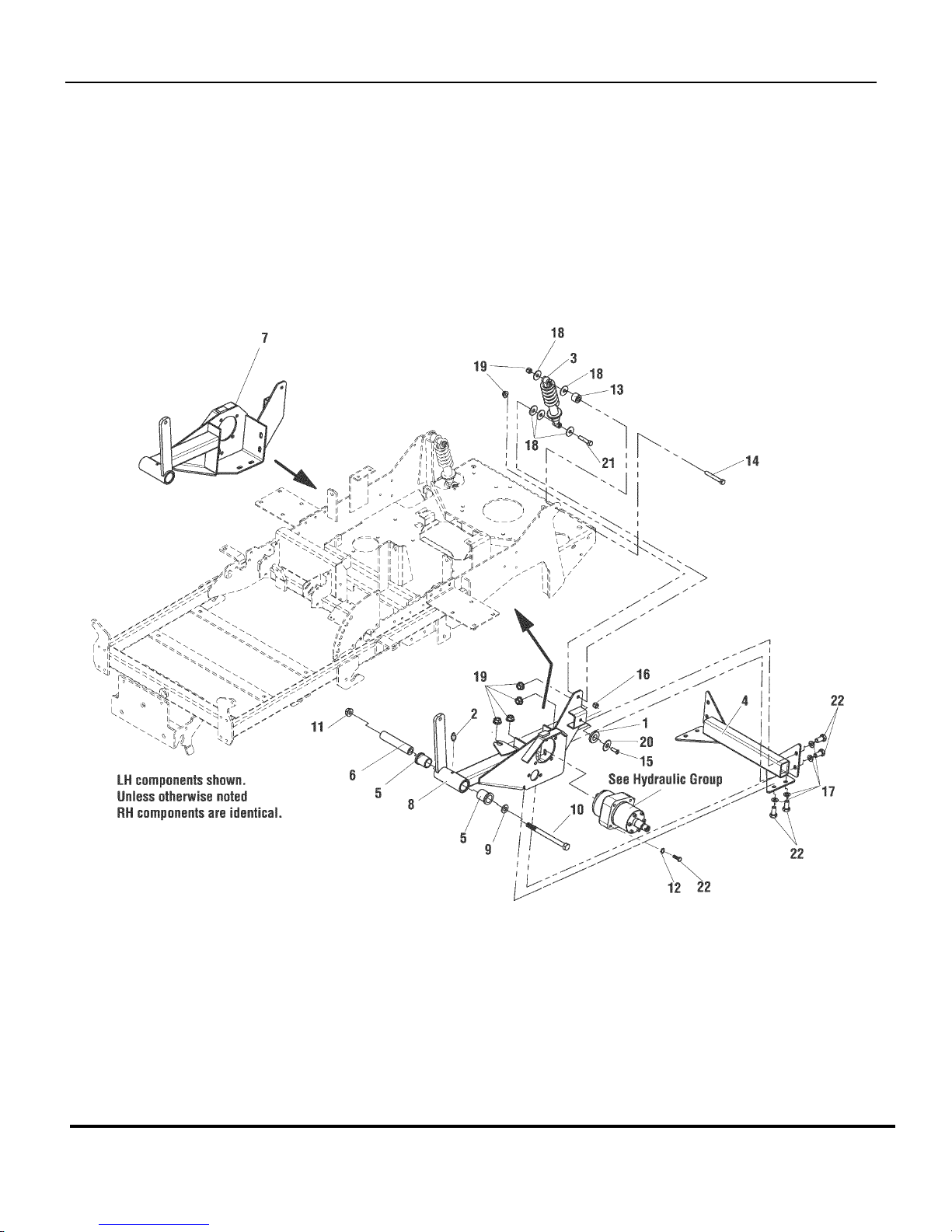

Rear Suspension Group

TP 400-7380-IR-HZ-N 20 HP HYDRO DRIVE ZTR

375Z SERIES

Manual No. 5101533

Rear Suspension Group

Footnotes:

TP 400-7380-IR-HZ-N

Manual No. 510153320 HP HYDRO DRIVE ZTR

375Z SERIES 9

Part No Descri

tionItem Qt

Note

1 5400065 2 SPACER, .34 X 1.54 X .25 UHMW

2 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT

3 5023483 2 SHOCK

4 5401012D 1 WELD, TIE BAR

5 5021541 4 BUSHING, FLANGE

6 5100194 2 SPACER, .52 X 1.00 X 5.00

7 5400973D 1 WELD, TRAILING ARM, RH

8 5400972D 1 WELD, TRAILING ARM, LH

9 5025158 2 WASHER, 1/2" SAE

10 5025017X52 2 BOLT, 1/2-13 X 6-1/2" GD8 YZ

11 5025396 2 NUT, 1/2-13 HEX NYLOCK FLANGE

12 5025171 8 WASHER, 3/8" SPLIT LOCK

13 5100334 2 SPACER, .39 X 1.00X .63

14 5025013X20 2 BOLT, 3/8-16 X 2-1/2" GD5 YZ

15 5025303 2 SCREW, 5/16-18 X 1 FLAT HD SC

16 5025392 2 NUT, 5/16-18 HEX NYLOCK FLANGE

17 5025293 8 WASHER, 3/8" GD.9 FLAT

18 5025165 10 WASHER, 3/8" FENDER

19 5025394 12 NUT, 3/8-16 HEX NYLOCK FLANGE

20 5025305 2 WASHER, .41 X 1.75 X .14

21 5025013X14 2 BOLT, 3/8-16 X 1-3/4" GD5

22 5025013X8 16 BOLT, 3/8-16 X 1" GD5 YZ

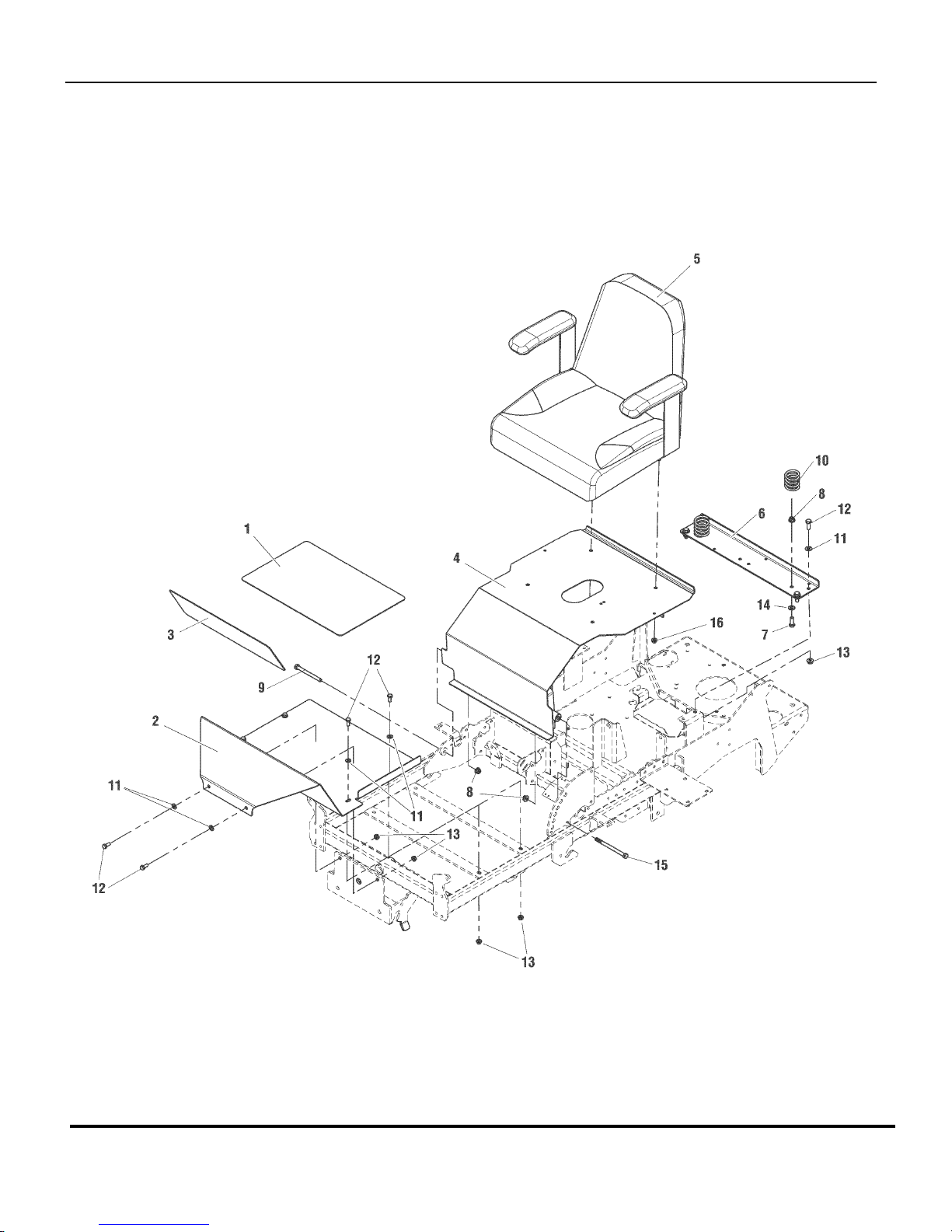

Seat & Kickplate Group

TP 400-7380-IR-HZ-N 20 HP HYDRO DRIVE ZTR

375Z SERIES

Manual No. 5101533
