Snapper 7800580 Manuale utente

Not for

Reproduction

Parts Manual fo

22" SELF-PROPELLED

NXT SERIES

ELECTRIC START MOWER

Revision: E 5/13/2011

Briggs & Stratton Yard Power Products Group

Manual No. 7104329

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

780072

ENXT22875E

780058

NXT22875E

780075

NXT22875EE

780069

NXT22875EFC

780078

NXT22875EEFC

Not for

Reproduction

Not for

Reproduction

Table Of Content

TP 400-5462-E-WB-N

22" SELF-PROPELLED

NXT SERIES 3

Manual No. 7104329

PAGE GROUP

4Handle & Controls Group (MY 2010 & Euro)

6Drive Control Assembly (MY 2010 & Euro)

8Handle & Controls Group, EHOC (MY 2011)

10 Drive Control Assembly, EHOC (MY 2011)

12 Mower Deck Group

14 Wheels Group

16 Engine, Blade & Grass Bag Group

18 Transmission Group

20 Decals

Not for

Reproduction

Manual No. 7104329 22" SELF-PROPELLED

NXT SERIES

Handle & Controls Group (MY 2010 & Euro)

Not for

Reproduction

Footnotes:

Manual No. 710432922" SELF-PROPELLED

NXT SERIES 5

Handle & Controls Group (MY 2010 & Euro)

Part No Descri

tionItem Qty

1 7090015 2 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2, YZ

1 7101410 1 GUIDE, Rope, 1/4-20 x 1.8” (Euro Model 7800722)

2 7090391 4 WASHER, 5/16” Internal Tooth Lock

3 7090951 2 NUT, 5/16-18 Large Flange Center Lock

4 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2

5 723873 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR 5, YZ (Was 1931333)

6 1931338 2 BOLT, 5/16-18 x 1-3/4” Round Head Square Neck Carriage

7 2860694 2 NUT, 1/4-20 Hex Flange (Esna), YZ

8 7024649 4 WIRE TIE, 11 Inch Standard Black Nylon

9 7102931 1 BATTERY, 1.3A/Hr

10 7102990 4 KNOB, Handle, 5-Prong (5/16-18 internal threads)

11 7103774 1 METER, Service Indicator

12 7300649 1 HANDLE, Connecting, 21”/22” WBM (Euro Model 7800722)

12 7300649BH 2 HANDLE, Connecting, 21”/22” WBM (used on all except Euro Model 7800722)

13 7301189 1 HANDLE, Lower, WBM, RD (Euro Model 7800722)

13 7301189BH 1 HANDLE, Lower, WBM, RD (used on all except Euro Model 7800722)

14 7501300 1 ASSEMBLY, Drive Control (MY 2010)

15 7103988 1 CHARGER, Battery, 120V AC, Output 14V DC, 260mA

15 7103119 1 CHARGER, Battery, 230V AC, 50 Hz, Output 12V DC, 750mA (Euro) (Euro Model 7800722)

Model pt. #'s: 7800580, 7800696 & 7800722

Not for

Reproduction

Manual No. 7104329 22" SELF-PROPELLED

NXT SERIES

Drive Control Assembly (MY 2010 & Euro)

Not for

Reproduction

Footnotes:

Manual No. 710432922" SELF-PROPELLED

NXT SERIES 7

Drive Control Assembly (MY 2010 & Euro)

Part No Descri

tionItem Qty

1 7091075 3 SCREW, #10-24 x 5/8” Hex Washer Self-Tap, GR 5 BZ

2 7091195 4 SCREW, #10-16 x 3/4” Pan Head Self-Tap Combo, BZ

3 1960593 3 NUT, #10-24 Speed Retainer w/extrusion

4 7102803 2 LEVER, Drive Control

5 7102804 2 LEVER, OPC, Control

6 7102805 1 CAM, Drive, LH

7 7102806 1 CAM, Drive, RH

8 7103324 1 CONTROL PANEL, Top, MY Mower

9 7103325 1 CONTROL PANEL, Bottom, MY Mower

10 7103326 1 PANEL, Bottom Control, WBM, RH

11 7103327 1 PANEL, Bottom Control, WBM, LH

12 7103345 1 ACCESS DOOR, Battery Control Panel, WBM

13 7103456 1 PANEL, Access, Maintenance Reminder

14 7103769 1 CABLE, OPC, NXT

15 7103930 1 HOUSING, Bridge Disconnect

-- 7103931 1 KEY, Bridge Disconnect (Not Shown)

16 7103932 1 HARNESS, Electric Start, NXT

17 7104001 1 SWITCH, Push Button Start

18 7104689 1 SPRING, Tension, Drive Control

19 7105092 1 CABLE, Control, NXT (Was 7103770)

20 7900081 4 SCREW, #10-16 x 2” Hi-Lo Cross Pan Head

Model pt. #'s: 7800580, 7800696 & 7800722

Not for

Reproduction

Manual No. 7104329 22" SELF-PROPELLED

NXT SERIES

Handle & Controls Group, EHOC (MY 2011)

Not for

Reproduction

Footnotes:

Manual No. 710432922" SELF-PROPELLED

NXT SERIES 9

Handle & Controls Group, EHOC (MY 2011)

Part No Descri

tionItem Qty

1 7090015 2 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2, YZ

2 7090391 4 WASHER, 5/16” Internal Tooth Lock

3 7090951 2 NUT, 5/16-18 Large Flange Center Lock

4 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2

5 723873 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR 5, YZ (Was 1931333)

6 1931338 2 BOLT, 5/16-18 x 1-3/4” Round Head Square Neck Carriage

7 2860694 2 NUT, 1/4-20 Hex Flange (Esna), YZ

8 7024649 4 WIRE TIE, 11 Inch Standard Black Nylon

9 7102931 1 BATTERY, 1.3A/Hr

10 7102990 4 KNOB, Handle, 5-Prong (5/16-18 internal threads)

11 7103774 1 METER, Service Indicator

12 7104598 1 SWITCH, Rotary, EHOC

13 7300649BH 2 HANDLE, Connecting, 21”/22” WBM

14 7301189BH 1 HANDLE, Lower, WBM, RD

15 7502154 1 ASSEMBLY, Drive Control, EHOC, (MY2011) Walk

16 7103988 1 CHARGER, Battery, 120V AC, Output 14V DC, 260mA

Model pt. #'s: 7800752 & 7800820

Not for

Reproduction

Manual No. 7104329 22" SELF-PROPELLED

NXT SERIES

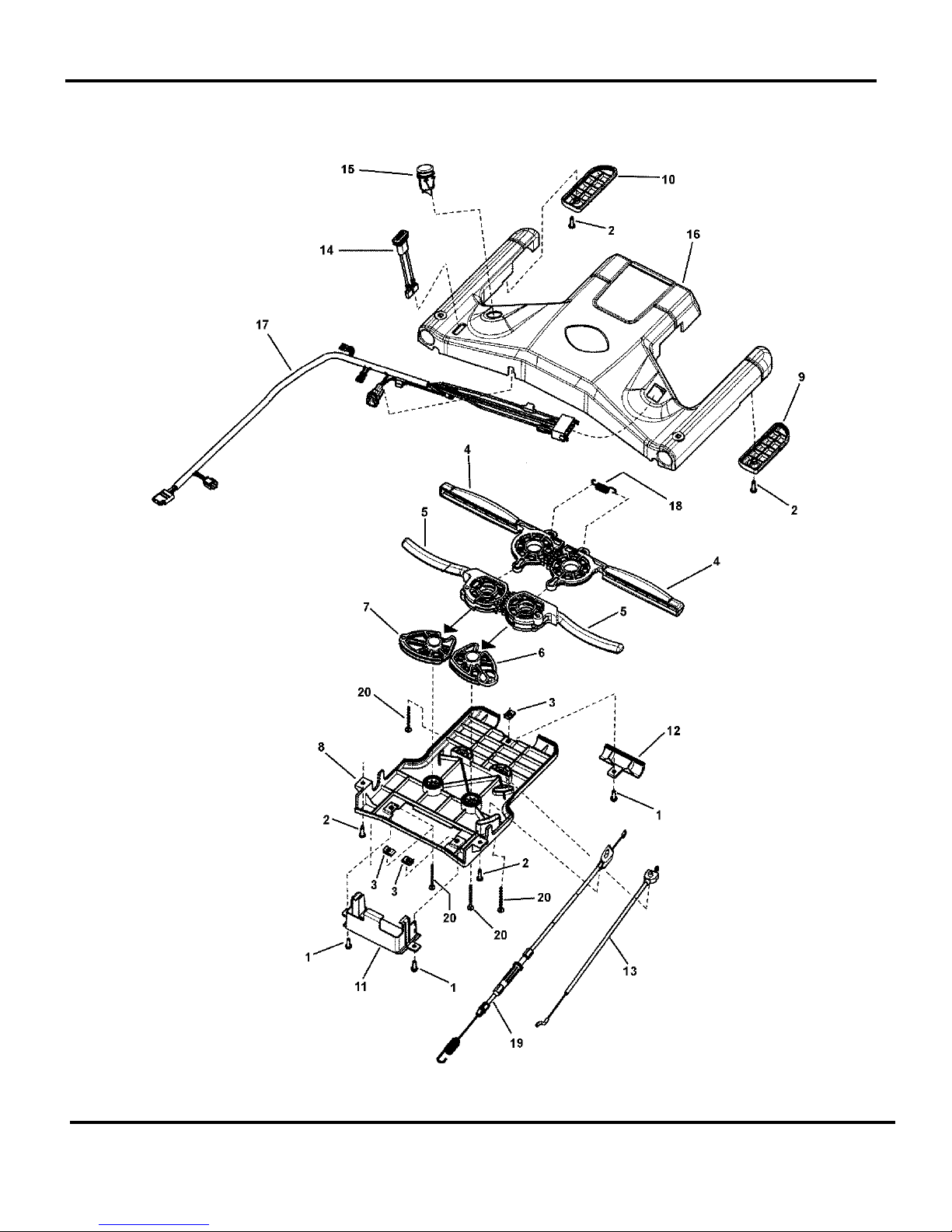

Drive Control Assembly, EHOC (MY 2011)
