Snapper ECLP21602KWV Manuale utente

Parts Manual fo

Revision 1,

21" CAST DECK WALK BEHIND MOWER

SERIES 2

2005

McDonough, GA, 30253 U.S.A.

TP 400-5061-1-WB-N

8/11/2005 Manual No. 7006203

SNAPPER PRODUCTS, INC.

COMMERCIAL EUROPEAN

MODEL

ECLP21602KW

Table Of Content

TP 400-5061-1-WB-N

Manual No. 700620321" CAST DECK WALK BEHIND MOWER

SERIES 2 3

PAGE GROUP

4HANDLES & CONTROLS

8ENGINE, CUTTING DECK, BLADE

12 WHEELS, FRONT & REAR

14 TRANSMISSION

16 DECALS

18 ACCESSORIES

HANDLES & CONTROLS

TP 400-5061-1-WB-N

Manual No. 7006203 21" CAST DECK WALK BEHIND MOWER

SERIES 2

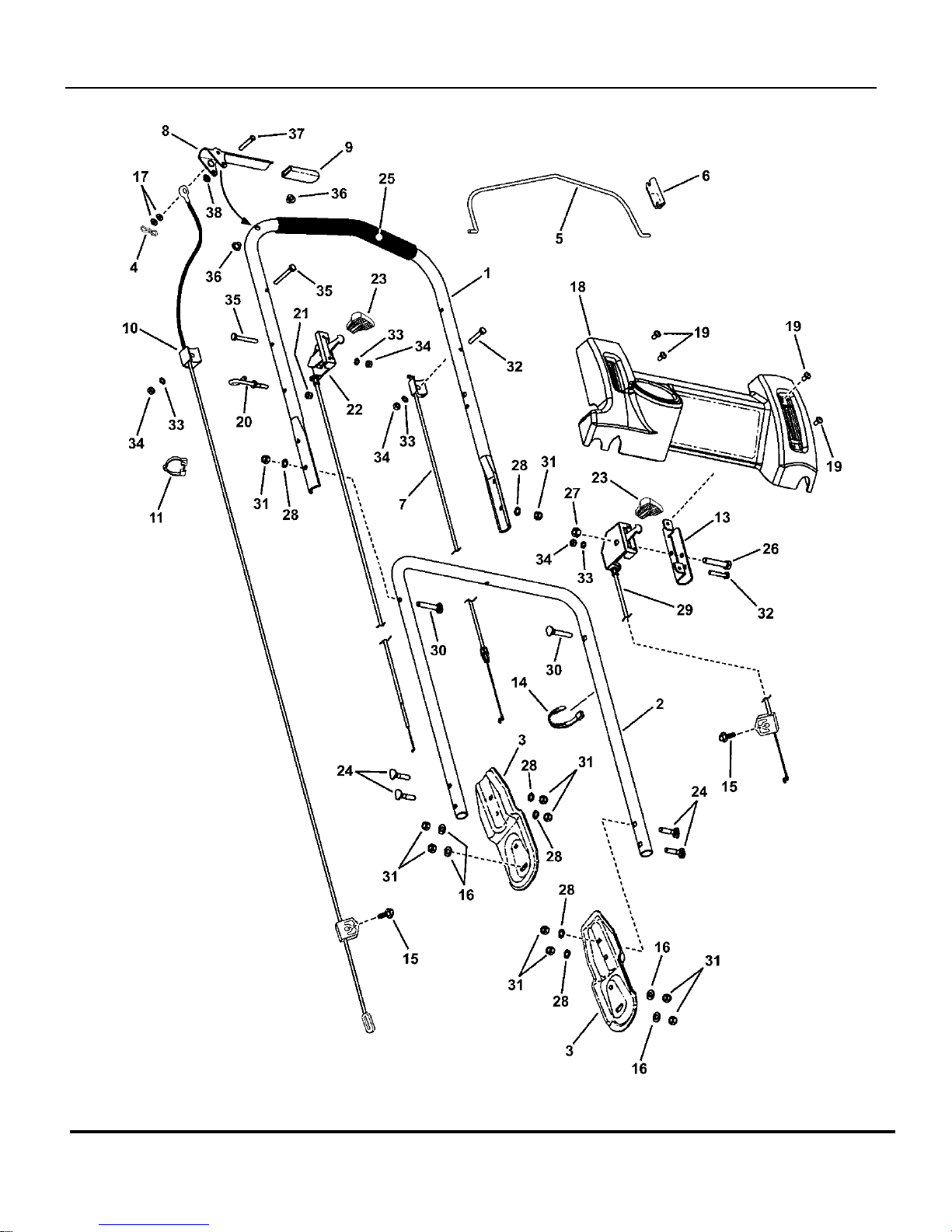

HANDLES & CONTROLS

Footnotes:

TP 400-5061-1-WB-N

Manual No. 700620321" CAST DECK WALK BEHIND MOWER

SERIES 2 5

Part No Descri

tionItem Qt

Note

1 7074411 1 HANDLE, Upper

2 7074156 1 HANDLE, Middle

3 7034864 2 BRACKET, Handle

4 7073821 1 COTTER PIN, Bow Tie Locking

5 7074418 1 BAIL, OPC Control

6 7034872 1 CLIP, Zone Control

7 7074141 1 CABLE, Zone Control

8 7046520 1 ASSEMBLY, Handle Clutch

9 7028407 1 GRIP, International Symbol

10 7046518 1 CABLE, Clutch (Adjustable)

11 7026219 1 CLAMP, 7/8” Double Cable

12 7012080 1 CABLE-TIE, 7” not shown

13 7073064 1 BRACKET, Shift

14 7024641 4 WIRE TIE, 1.29” Long Black

15 7091075 2 SCREW, #10-24 x 5/8” Slotted Hex Washer Head Self-Tap

16 7090188 8 WASHER, 11/32” Flat

17 7091552 2 WASHER, 7/32” Flat

18 7074140 1 CONTROL PANEL (w/o El. Switch Hole)

19 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx)

20 7028488 1 ROPE GUIDE (1/4-20 threads)

21 7076978 1 NUT, 1/4-20 Hex Nyloc

22 7074138 1 THROTTLE CONTROL, 6.0 KWV

23 7075308 2 THROTTLE KNOB

24 7091190 6 BOLT, 5/16-18 x 1-1/2” Curved Head Carriage

25 7023810 1 FOAM GRIP, 18.75”

26 7091088 2 SCREW, 3/8-16 x 2” Hex Head Self-Tap

27 7091585 2 NUT, 3/8-16 Hex Center Lock

28 7090391 6 WASHER, 5/16” Internal Tooth Lock

29 7029369 1 CONTROL, Speed Select

30 7091740 2 SCREW, 5/16-18 x 2” Square Neck Curved Head Was 91189

31 7091298 6 NUT, 5/16-18 Hex Nyloc

32 7079577 3 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR 5

33 7090053 5 WASHER, 1/4” Internal Tooth Lock Was 91023

34 7091576 5 NUT, 1/4-20 Hex Was 91100

35 7090505 2 SCREW, 1/4-20 x 2” Hex Head Cap GR 5

36 7014343 2 BUSHING, .27 x .35 x .4 Flange

37 7023792 1 PIN, 1/4 x 1-1/2”

HANDLES & CONTROLS

TP 400-5061-1-WB-N

Manual No. 7006203 21" CAST DECK WALK BEHIND MOWER

SERIES 2

HANDLES & CONTROLS

Footnotes:

TP 400-5061-1-WB-N

Manual No. 700620321" CAST DECK WALK BEHIND MOWER

SERIES 2 7

Part No Descri

tionItem Qt

Note

38 7091020 1 PUSHNUT, 1/4”

ENGINE, CUTTING DECK, BLADE

TP 400-5061-1-WB-N

Manual No. 7006203 21" CAST DECK WALK BEHIND MOWER

SERIES 2

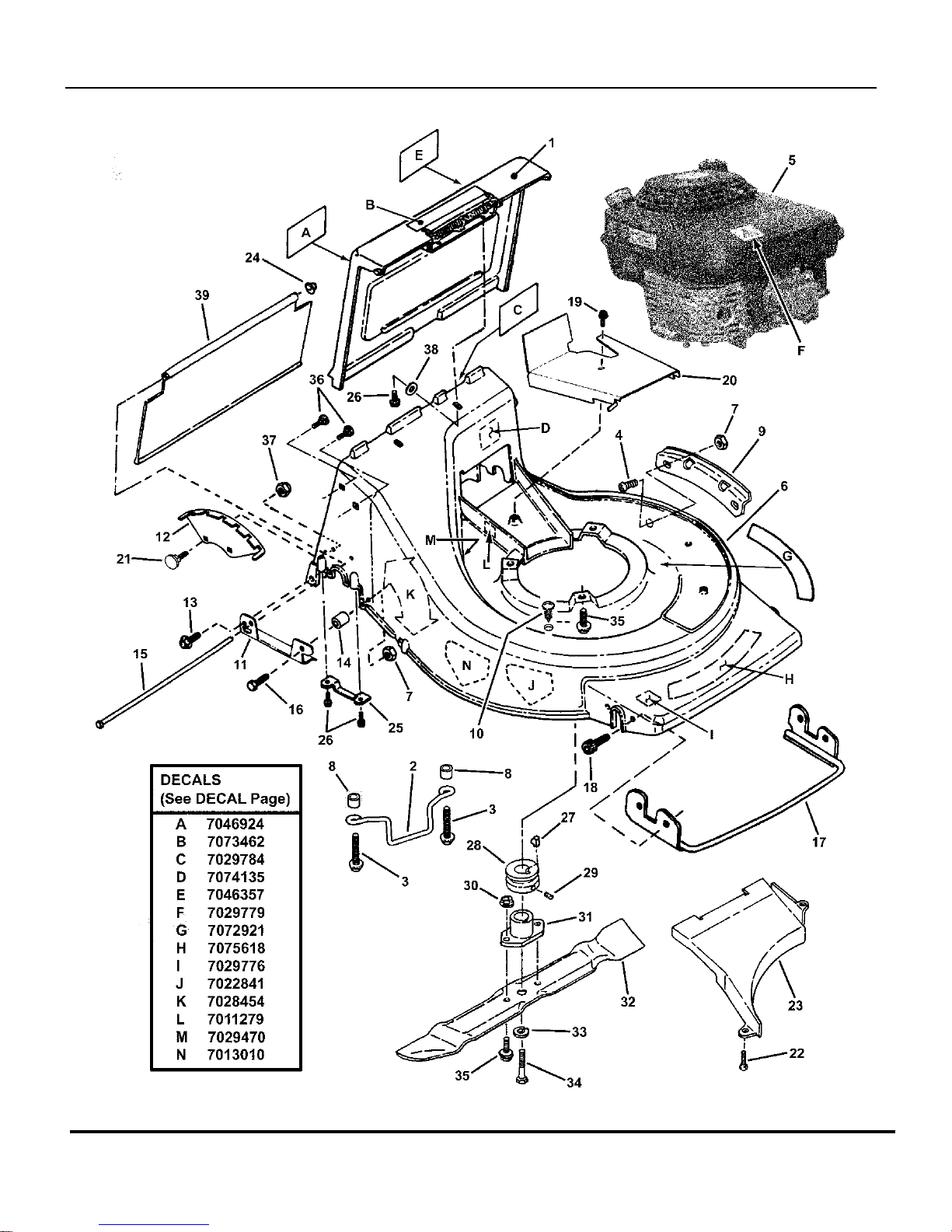

ENGINE, CUTTING DECK, BLADE

Footnotes:

TP 400-5061-1-WB-N

Manual No. 700620321" CAST DECK WALK BEHIND MOWER

SERIES 2 9

Part No Descri

tionItem Qt

Note

1 7052881 1 ASSEMBLY, Discharge Door

2 7072143 1 BELT GUIDE (Wireform)

3 7091088 2 SCREW, 3/8-16 x 2” Hex Head Self-Tap

4 7091696 4 SCREW, 1/4-20 x 5/8” Phillips Truss Head Machine

5 -- 1 *ENGINE, 6.0 H.P. Kawasaki OHV, Euro (Model FJ180V-AS54R)

6 7043888 1 DECK, 21” Cast Aluminum Short (Red)

7 7091603 6 NUT, 1/4-20 Hex Nyloc

8 7016719 2 IDLER SPACER

9 7034734 2 GUARD, Wear

10 7073293 1 PLUG, Hole (Polyethylene)

11 7042999 1 BRACKET, R.H. Stiffener w/tab

-- 7043790 1 BRACKET, L.H.Stiffener (not shown)

12 7034692 1 PLATE, Height Adjust

13 7091819 2 SCREW, 1/4-20 x 5/8” Hex Washer Face Self-Tap

14 7042988 2 SPACER, Stiffener

15 7043808 1 ROD, Trailing Shield Pivot (1/4” Dia.)

16 7027230 2 SCREW, 1/4-20 x 1” Hex Head Cap GR 5

17 7041736 1 WELDMENT, Crash Bar

18 7090999 4 SCREW, 1/4-20 x 5/8” Truss Head (Torx)

19 7091201 1 SCREW, #10-24 x 1-1/2” Slotted Hex Washer Head Self-Tap

20 7074124 1 BELT COVER, Commercial Metal B&S

21 7091711 2 BOLT, #10-24 x 5/8” Flat Head Carriage

22 7091075 4 SCREW, #10-24 x 5/8” Slotted Hex Washer Head Self-Tap

23 7041750 1 WELDMENT, Baffle

24 7091892 1 PUSHNUT, 1/4” Black

25 7033732 2 SUPPORT, Rear Axle

26 7091819 6 SCREW, 1/4-20 x 5/8” Hex Washer Face Self-Tap Was 90362

27 7091214 1 KEY, Hi-Pro #HP506 (Briggs engine)

28 7015780 1 PULLEY, Traction Drive (25mm x 2-1/8” O.D.)

29 7092086 1 SET SCREW, 5/16-18 x 1/2” Hex Recess

30 7091299 2 NUT, 3/8-16 Hex Nyloc Was 76979

31 7026631 1 HUB, Blade Drive, 25mm Internal Dia. (with integral key)

32 7026428 1 BLADE, 21” Bagging

33 7079268 1 WASHER, 3/8” Split Lock (Heavy)

34 7090483 1 SCREW, 3/8-24 x 1-3/4” Hex Head Cap GR 5

35 7091304 3 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5

36 7091714 4 BOLT, 5/16-18 x 1” Round Head Carriage GR 5

*NOTE: Purchase engine components directly from engine manufacturer dealer.

ENGINE, CUTTING DECK, BLADE

TP 400-5061-1-WB-N

Manual No. 7006203 21" CAST DECK WALK BEHIND MOWER

SERIES 2
