Snapper ESPV21675 (7800253) Manuale utente

Parts Manual fo

21" VARIABLE SPEED

REAR DISCHARGE EUROPEAN MOWERS

Revision IR, TP 400-5403-IR-WB-N7/1/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7006158

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

ESPV21675 (7800253)

Table Of Content

TP 400-5403-IR-WB-N

21" VARIABLE SPEED

Manual No. 7006158

PAGE GROUP

4Handles and Controls

6Front and Rear Wheels

8Deck Assembly

12 Engine and Blade Assembly

14 Transmission

16 Decals

TP 400-5403-IR-WB-N

Manual No. 7006158 21" VARIABLE SPEED

Handles and Controls

Footnotes:

TP 400-5403-IR-WB-N

Manual No. 700615821" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7100225 4 SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix

2 7300670A 1 PLATE, Control Panel - Plastic Handle

3 2860694 2 NUT, 1/4-20, Hex Flange Nyloc

4 7101410 1 ROPE GUIDE (1/4-20 thread)

5 7101312 1 HANDLE, Plastic Upper, WBM

6 7101321BH 1 BAIL, Plastic Handle, WBM

7 7101416 1 ASSY, Control Head, 21” WBM, RD, Snapper (includes cable &

lever)

8 7090015 1 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2

9 7024649 3 WIRE TIE, 11 Inch Standard Black Nylon

10 7091508 6 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR5 YZ

11 7300567BH 1 BRACKET, Lower Handle, LH 21” WBM

12 7300566BH 1 BRACKET, Lower Handle RH 21” WBM

13 7090951 2 NUT, 5/16-18 Large Head Center Lock, Black

14 7300649BH 2 HANDLE, Connecting 21”/22” WBM

15 7101399 1 CABLE, Bail, 21” WBM, RD, Snapper 44.20” length

16 7300639BH 1 HANDLE, Lower, 21” WBM, RD

17 7101198 2 PIN, Handle Adjust

18 7101200 2 SPRING, Compression

19 7101199 2 BUSHING, Handle Pin

20 7101202 2 KNOB, Quick Release

21 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2

22 7090391 2 WASHER, 5/16” Internal Tooth Lock

23 7035744 2 KNOB, 5/16-18 Wing (Black)

24 7091601 4 NUT, 5/16-18 Flange Lock, YZ

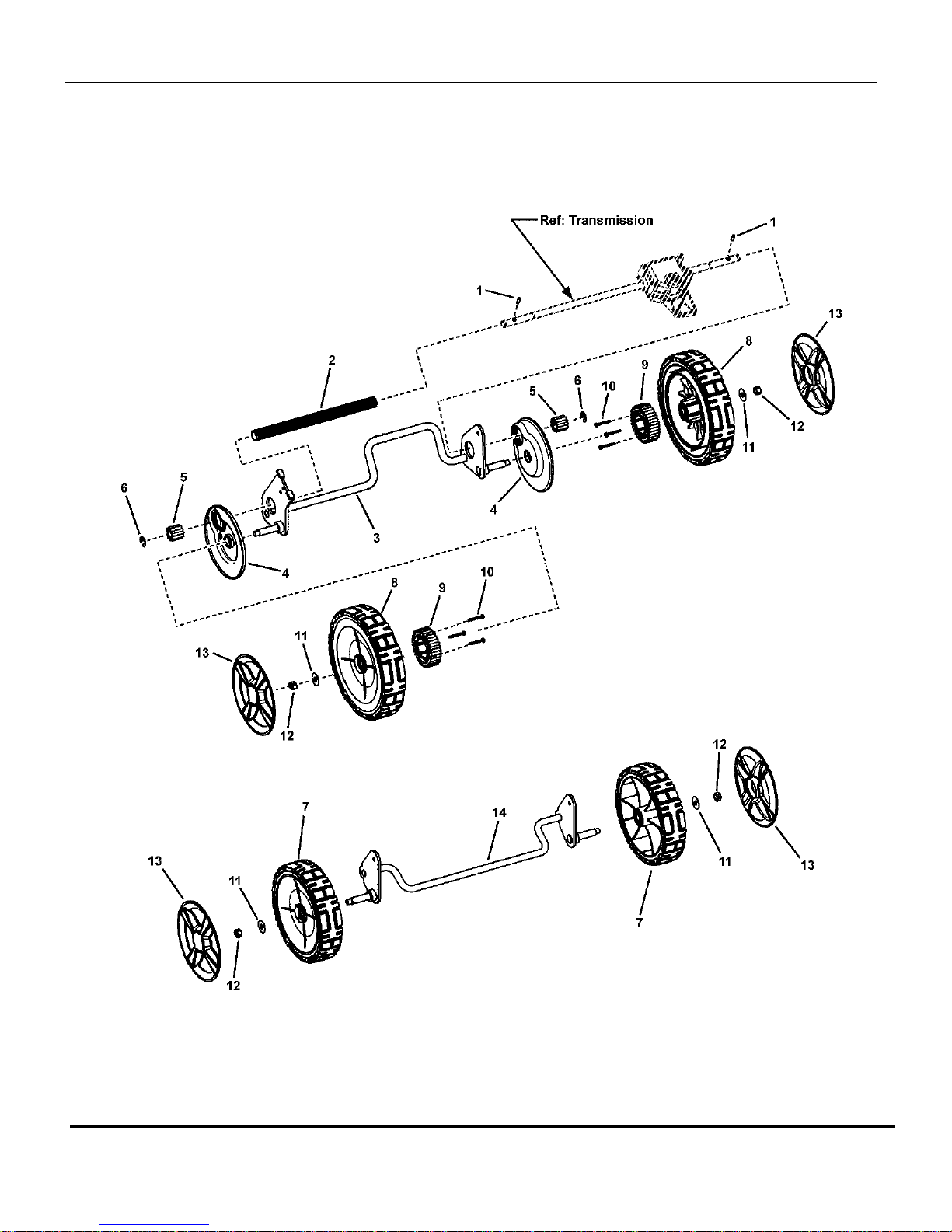

Front and Rear Wheels

TP 400-5403-IR-WB-N

Manual No. 7006158 21" VARIABLE SPEED

Front and Rear Wheels

Footnotes:

TP 400-5403-IR-WB-N

Manual No. 700615821" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7100861 2 PIN, Axle

2 727782 1 SHIELD, Axle

3 7400275 1 WELDMENT, Rear Crossbar 21” WBM, RD also shown on Deck Assembly

page

4 7101367 2 DUST SHIELD, 21” WBM, RD

5 7100820 2 GEAR, Pinion

6 7014341 2 RETAINING RING Waldes #5133-50 or equiv.

7 7500540 2 ASSY, Wheel, 8 x 2 Idle, Snapper Tread, Charcoal Gray

8 7500647 1 ASSY, Wheel, 9” Snapper Tread w/Bearing Charcoal Gray incl 2 ball bearings, p/n 7101380

9 7100914 1 GEAR, External Wheel

10 7091196 6 SCREW, #8 x 1-1/4 Hi-Lo, Hex Washer Self-Tap

11 722604 4 WASHER, 1” OD x .387 ID, FLAT

12 7091585 4 NUT, 3/8-16 Hex Center Lock, YZ

13 7101350 4 HUBCAP, 8” & 9” Wheel Spoked- Snapper Cool Gray

14 7400276 1 WELDMENT, Front Crossbar, 21” WBM, RD also shown on Deck Assembly

page

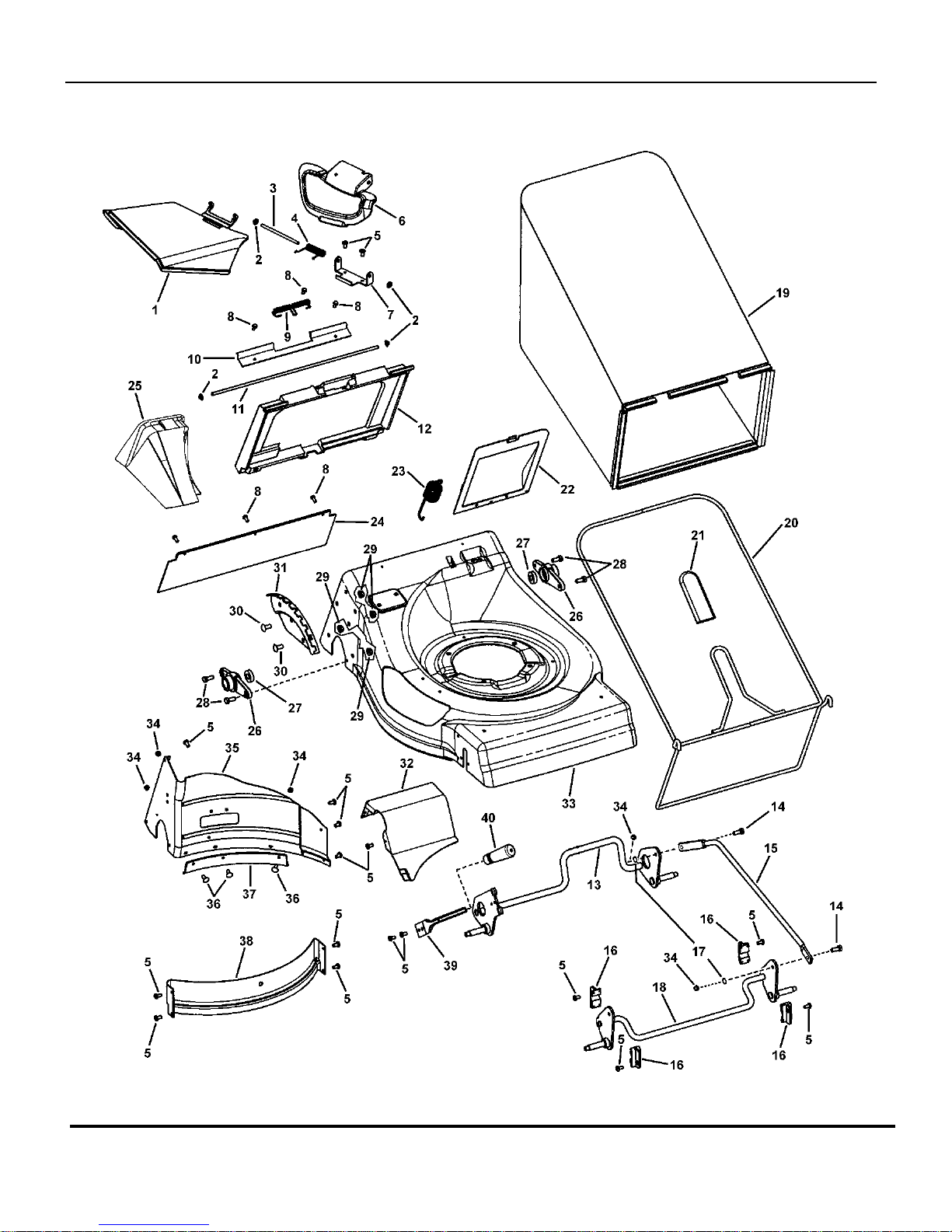

Deck Assembly

TP 400-5403-IR-WB-N

Manual No. 7006158 21" VARIABLE SPEED

Deck Assembly

Footnotes:

TP 400-5403-IR-WB-N

Manual No. 700615821" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7101490 1 CHUTE, 21” Side Discharge

2 7091020 4 PUSHNUT, 1/4”

3 7101471 1 ROD, Pivot, Mulch Cover

4 722507 1 SPRING, Torsion, Chute

5 722848 17 SCREW, 1/4-20 x 11/16” Pan Head Torx, Self-Tap

6 7101437 1 COVER, 21” Mulching

7 7300590D 1 BRACKET, Chute Deflector

8 7091286 5 SCREW, #10-24 x 1/2” Hex Washer Self-Tap, SEMS

9 722503 1 SPRING, Torsion

10 720735 1 SPACER, Rear Door, 21”

11 7101314 1 ROD, Pivot, Rear Door, 21” RD

12 727785 1 DOOR, 21” Black

13 7400275 1 WELDMENT, Rear Crossbar 21” WBM, RD

14 7101774 2 BOLT, Shoulder (#10-24 thread)

15 7101430 1 ROD, Lifter Link

16 7101241 4 BUSHING, Front, 21”

17 7091892 2 PUSHNUT, 1/4 Black

18 7400276 1 WELDMENT, Front Crossbar 21” WBM, RD

19 7101304 1 GRASSBAG, 21” Rear Discharge

20 7101303A 1 BAG FRAME, 21” RD WBM

21 7026421 1 GRIP, Rectangular (Black)

22 7300723D 1 TRANSMISSION COVER, Rear 21”

23 7101434 1 SPRING, Extension, Height-of-Cut Assist

24 7101553 1 DEFLECTOR, Rear, 21” WBM, RD

25 720723 1 PLUG, Mulching

26 7101418 1 BEARING HOLDER, 21” WBM,RD

27 7078243 1 BALL BEARING, Axle

28 7091318 4 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 YZ

29 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ

30 7091508 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR 5, YZ

31 7300587D 1 INDEX PLATE, Height-of-Cut, 21” WBM, RD

32 7300591D 1 BAFFLE, Right Rear, 21” WBM, RD

33 7300584D 1 DECK, 21” Rear Discharge

34 7091290 5 NUT, #10-24 Hex Nyloc

35 7300589D 1 BAFFLE, Left Rear, 21” RD, WBM

36 7091711 3 BOLT, #10-24 x 5/8” Flat Head Square Neck, YZ

37 7101502 1 BAFFLE, Extension, 21” RD WBM

Deck Assembly

TP 400-5403-IR-WB-N

Manual No. 7006158 21" VARIABLE SPEED
