21" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18

2005

McDonough, GA, 30253 U.S.A.

TP 400-5043-1-WB-N

8/2/2005 Manual No. 7006138

SNAPPER PRODUCTS, INC.

PUSH MODELS PROPELLED

MODELS

MR216518B EMRP216518B

MRP216518B

Table Of Content

TP 400-5043-1-WB-N

Manual No. 700613821" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18 3

PAGE GROUP

4HANDLES AND CONTROLS

8CUTTING DECK, BLADE

10 FRONT WHEEL BRACKET

12 REAR WHEEL BRACKETS, LATCHES

14 DRIVE SYSTEM SELF-PROPELLED

18 TRANSMISSION (DIFFERENTIAL)

20 FRONT WHEELS

22 REAR WHEELS

24 SIDE CHUTE, ADAPTER

26 GRASS BAG ACCESSORY

28 DECALS

30 THATCHERIZER ASSEMBLY

32 SNAPPERIZER ACCESSORY

34 RECYCLING KITS ACCESSORY

HANDLES AND CONTROLS

TP 400-5043-1-WB-N

Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18

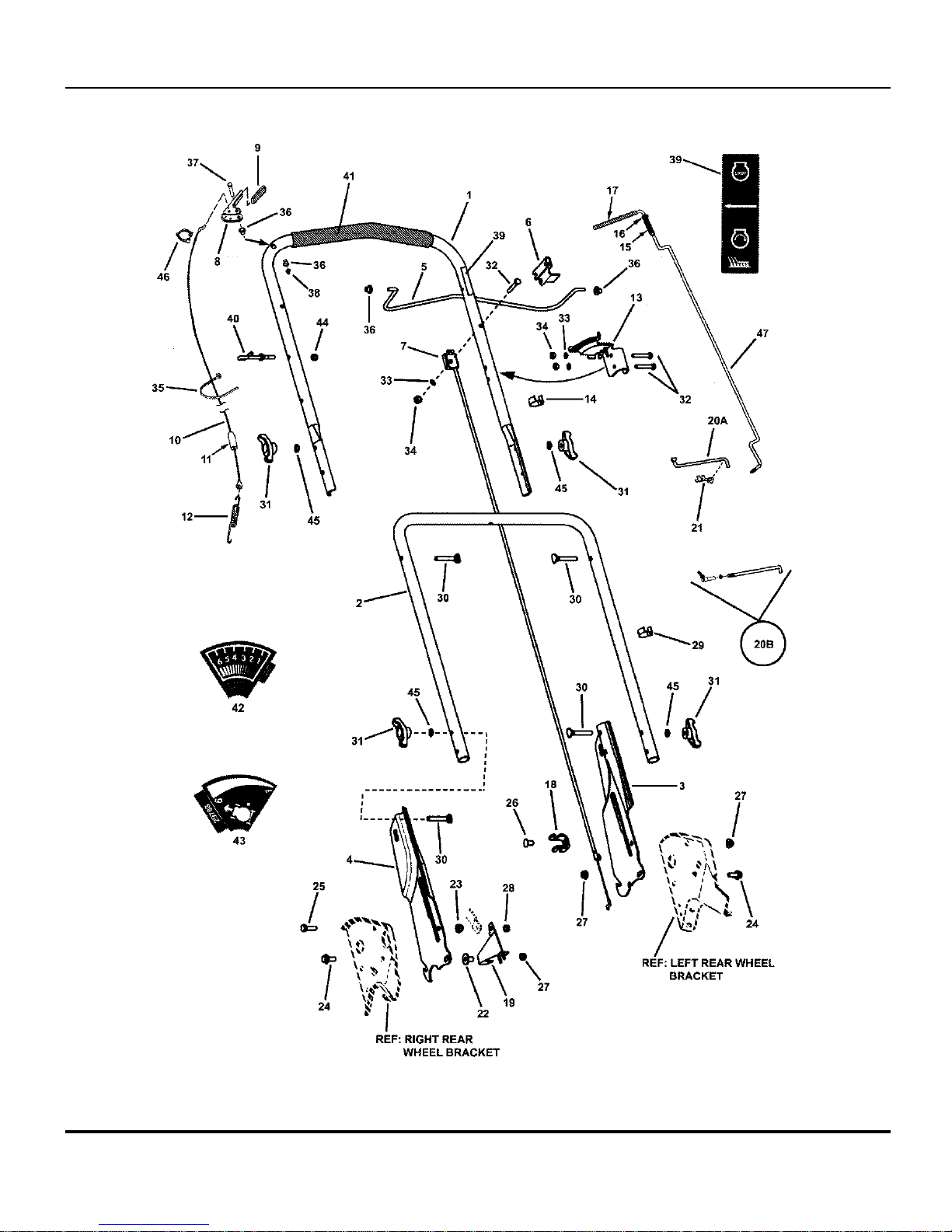

HANDLES AND CONTROLS

Footnotes:

TP 400-5043-1-WB-N

Manual No. 700613821" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18 5

Part No Descri

tionItem Qt

Note

1 7074411 1 HANDLE, Upper used on All

2 7074156 1 HANDLE, Middle used on All

3 7033985 1 HANDLE, Lower LH (Adjustable) used on All

4 7033986 1 HANDLE, Lower RH (Adjustable) used on All

5 7074418 1 BAIL, OPC Control used on All

6 7034872 1 CLIP, Zone Control used on All

7 7034608 1 CABLE, Blade Control (46.75/5.38 length) used on All

8 7074473 1 HANDLE, Wheel Drive used on Self Propelled

9 7028407 1 GRIP,Wheel Drive Handle (International Symbol) used on Self Propelled

10 7034604 1 CABLE, Clutch Pull (Z-bend, 41.25” long) used on Self Propelled

11 7012121 1 COVER, Vinyl used on Self Propelled

12 7012122 1 SPRING, Clutch used on Self Propelled

13 7038478 1 SECTOR, Speed '77VP used on Self Propelled

14 7024641 2 WIRE TIE, 1.29” Long (Black) used on All

15 7012093 1 SPRING, Speed Control used on Self Propelled

16 7090188 1 WASHER, 3/8” Flat used on Self Propelled

17 7023801 1 GRIP, Speed Control Handle used on Self Propelled

18 7032830 1 ANCHOR, Lever used on Self Propelled

19 7032408 1 GUIDE, Lower V-Belt used on Self Propelled

20A 7023790 1 ROD, Transfer used on Self Propelled

20B 7051698 1 ASSY., Transfer Rod (Incl. indented items below) used on EMRP216518B

-- 7015752 1 LINK, Transfer used on EMRP216518B

-- 7015753 1 BALL JOINT, 1/4-28 used on EMRP216518B

-- 7090095 1 NUT, 1/4-28 Hex used on EMRP216518B

21 7010937 1 CLIP, Transfer Rod 1/4” used on Self Propelled

22 7090895 1 T-NUT, 5/16-18 used on Self Propelled

23 7012114 1 BUSHING, Differential used on Self Propelled

24 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR5 used on All

25 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR5 used on All

26 7090799 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5 Was 91026 (used on All)

27 7091601 8 NUT, 5/16-18 Hex Flange Lock, GR 5 Was 91070 (used on All)

28 7091606 1 NUT, 5/16-24 Hex Center Lock GR5 Was 91074 (used on Self

Propelled)

29 7023813 1 CLIP, Cable/Wiring used on All

30 7091740 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR2 Was 91189 (used on All)

31 7035744 4 KNOB, 5/16-18 Wing (Black) used on All

32 7079577 3 SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR5 qty 1 on push model

33 7090053 3 WASHER, 1/4” Internal Tooth Lock Was 91023 (qty 2 on push)

HANDLES AND CONTROLS

TP 400-5043-1-WB-N

Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18

HANDLES AND CONTROLS

Footnotes:

TP 400-5043-1-WB-N

Manual No. 700613821" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18 7

Part No Descri

tionItem Qt

Note

34 7091576 3 NUT, 1/4-20 Hex Was 91100 (used on All)

35 7012080 1 CABLE-TIE, 7” used on All

36 7014343 4 BUSHING, .27 x .35 x .4 Flange used on Self Propelled

37 7023792 1 PIN, Clutch Handle used on Self Propelled

38 7091020 1 PUSH-NUT, 1/4” (for handle pin) used on Self Propelled

39 7029782 1 DECAL, OPC Bail (International Symbol) used on All; see Decal page

40 7028488 1 GUIDE, Rope (1/4-20 thread) used on All

41 7022458 1 FOAM GRIP, 15”, 21 SP used on All

42 7024087 1 DECAL, Speed Sector used on MRP216518B; see

Decal page

43 7029783 1 DECAL, Speed Sector Int'l Symbol used on EMRP216518B; see

Decal page

44 7076978 1 NUT, 1/4-28 Hex GR5 or B used on All

45 7090391 4 WASHER, 5/16” Internal Tooth Lock used on All

46 7026219 1 CLAMP, 7/8” Double Cable used on Self Propelled

47 7029911 1 LEVER, Speed Control used on Self Propelled

CUTTING DECK, BLADE

TP 400-5043-1-WB-N

Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18

CUTTING DECK, BLADE

Footnotes:

TP 400-5043-1-WB-N

Manual No. 700613821" STEEL DECK WALK BEHIND MOWER

"MR" SERIES 18 9

Part No Descri

tionItem Qt

Note

1 7057884 1 * ASSEMBLY, M Series Push 21” Deck Was 57784 (Used on

MR216518B)

-- 7057884 1 * ASSEMBLY, Non-Adjustable Air, 21” Deck Was 57667 (Used on

MRP216518B and

EMRP216518B)

2 7091601 10 NUT, 5/16-18 Hex Flange Lock, GR5 Was 90585

3 7090731 9 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5 Was 92061

4 7091169 1 BOLT, 5/16-18 x 1-1/8” Short Neck Carriage GR5

5 7090324 3 SCREW, 3/8-16 x 1” Hex Washer Self-Tap

6 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR5

7 7012063 2 WASHER, Cone

8 7026407 1 BLADE, 21” Ninja

9 7015626 1 HUB, Blade Drive 25mm

10 7091214 1 KEY, Hi-Pro #HP506 (Briggs engine)

11 7090201 1 SCREW, 5/16-18 x 5/16” Hex Socket Head

12 7015780 1 PULLEY, Engine Drive (25mm x 2-1/8” O.D.)

13 7090702 1 BOLT, 5/16-18 x 2-1/4” Hex Flange Lock

14 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5 Was 90001

15 7011791 1 RETAINER, 5/16” Bolt

16 7090951 2 NUT, 5/16-18 Hex Large Flange Center Lock

17 7091122 6 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap Was 90539

18 7031961 1 WASHER, 7/16” Flat

19 7073462 1 DECAL, Caution, International Symbols used on Euro models

20 7046780 2 HOLE PLUG, Polyethylene

21 7074568 1 COVER, Belt used on MRP216518B &

EMRP216518B

22 7044770 3 SPACER, .06 Blade Hub

23 7041400 1 FENDER WELDMENT used on Euro models

24 7046471 3 PLUG, 5/16” Square Hole used on Push models; (only one

shown)

25 7045264 3 PLUG, 5/16” Round Hole qty. 3 on Push, qty. 2 on Self-

Propelled (only one shown)

26 7013320 1 BUSHING, .388 x .625 x 1.62 used on Euro models

27 7031961 2 WASHER, 7/16” Flat used on Euro models

28 7033863 1 COVER, Belt- IP21S used on Euro models

29 7090534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR5 used on Euro models

-- -- 1 *ENGINE, 6.5 B&S Quantum model 123K02 type 0119 trim E1

-- -- 1 *ENGINE, B&S Euro 6.5HP model 123K02 type 0125 trim E1

Note* includes painted deck and wheel brackets

Note* Purchase engine parts from engine manufacturer dealer.
