Snapper S50X Series Manuale utente

Parts

Rev. Date: 12/2007

S50X Series

Zero-Turn Riding Mower

Manual

5101101

5375 North Main Street

Munnsville, NY 13409 USA

800-933-6175

Briggs and Stratton Yard Power Products Group

TP 400-7345-IR-M5-SP

Models: Descri

tion:

5900683 S50XKAV1936, 36" 19HP Kawasaki Mid Mount Zero-Turn Rider

5900734 S50XBS1948, 48" 19HP Kawasaki Mid Mount Zero-Turn Rider

5900709 S50XBS2648, 48" 26HP Briggs & Stratton Mid Mount Zero-Turn Rider

IRRevision

Table Of Content

Tor

ue S

ecification Chart ............................................................................................. Inside Back Cover

MODEL COMPONENTS PAGE

Main Frame & Front Caster Group ..................................................................................................................................... 4

Rear Bumper Group ........................................................................................................................................................... 6

Seat Mount & Floor Group ................................................................................................................................................. 8

Fuel Tank Mount & Suppl

Group ...................................................................................................................................... 10

Instrument Control Panel Group ........................................................................................................................................

Engine & PTO Group - 26 HP Briggs & Stratton ................................................................................................................ 14

Engine & PTO Group - 19 HP Kawasaki ............................................................................................................................ 16

Pump Drive Group .............................................................................................................................................................

Motion Control Group ......................................................................................................................................................... 20

Hydraulic Group ................................................................................................................................................................. 22

Parkin

Brake Group .........................................................................................................................................................

Deck Lift Group .................................................................................................................................................................. 26

Transmission SERVICE PARTS ........................................................................................................................................ 28

Wheel & Tire Group ...........................................................................................................................................................

Decal Group - Brand & Model ............................................................................................................................................ 32

Decal Group - Safet

& Operation .....................................................................................................................................

36" & 48" Mower Deck - Hanger Chains ............................................................................................................................

48" Mower Deck - Housing, Covers, Spindles & Blades .................................................................................................... 38

48" Mower Deck - Pulle

s, Belts & Idler Arm Group ..........................................................................................................

36" Mower Deck - Housin

, Covers, Spindles & Blades ....................................................................................................42

36" Mower Deck - Pulleys, Belt & Idler Arm ....................................................................................................................... 44

48" Mower Deck - Rollers ..................................................................................................................................................

Main Frame & Front Caster Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 4

5900683

5900709

5900734

TP 400-7345-IR-M5-SP

PART NO. DESCRIPTIONREF NO. QTY.

Main Frame & Front Caster Group

Footnotes

1 5025457 2 BOLT, 1/4-28 X 1/2, GD5 YZ

2 5402539D 2 WELD, CASTER YOKE, IS500Z

3 5020884 4 BEARING, TAPERED ROLLER, 1"

4 5021072 2 SEAL, GREASE

5 5025449 4 WASHER, BELLEVILLE - 1.500 X .755

6 5025448 2 NUT, 3/4-16, HEX JAM NYLON LOCK

7 5100882 2 CAP, CASTER SPINDLE, LOW PROFILE

8 5402841D 1 WELD, MAINFRAME, SNAPPER PRO 38-44 - RED

9 5100716 1 GROMMET, 2" ID

10 5021379 1 GROMMET, 7/8

11 5020883 1 CUP, BEARING (SV)

12 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT

The above parts group applies to the following Mfg. Nos.:

2007 5

5900683

5900709

5900734

TP 400-7345-IR-M5-SP

Rear Bumper Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 6

5900683

5900709

5900734

TP 400-7345-IR-M5-SP

PART NO. DESCRIPTIONREF NO. QTY.

Rear Bumper Group

Footnotes

1 5025158 4 WASHER, 1/2 SAE

2 5025017X12 4 BOLT, 1/2-13 X 1-1/2 GD5 YZ

3 5025396 4 NUT, 1/2-13 HEX NYLOCK FLANGE

4 5025155 4 WASHER, 5/16 SAE

5 5025011X6 4 BOLT, 5/16-18 X 3/4 GD5

6 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE

7 5403018D 1 PLATE, CARB GUARD - RED

8 5403573D 1 WELD, PLATE, BUMPER - RED

9 5403593D 1 SHIELD, MUFFLER - RED

The above parts group applies to the following Mfg. Nos.:

2007 7

5900683

5900709

5900734

TP 400-7345-IR-M5-SP

Seat Mount & Floor Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 8

5900683

5900709

5900734

TP 400-7345-IR-M5-SP

PART NO. DESCRIPTIONREF NO. QTY.

Seat Mount & Floor Group

Footnotes

1 5025155 3 WASHER, 5/16 SAE

2 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ

3 5025392 10 NUT, 5/16-18 HEX NYLOCK FLANGE

4 5025127 1 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

5 5025011X10 1 BOLT, 5/16-18 X 1-1/4 GD5 YZ

6 5021878 1 SPACER, .25 X .37 X .25

7 5025144X6 1 BOLT, 1/4-20 X 3/4", CARRIAGE

8 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE

9 5044617 2 WASHER, .34 X 1.25 X 10 GA

10 5025394 10 NUT, 3/8-16 HEX NYLOCK FLANGE

11 5403706D 1 PLATE, SIO FLOOR MOUNT - RED

12 5100909 1 SEAT, NO ARM REST

13 5403015D 1 SEAT PLATE, STOP - RED

14 7078299 2 SPRING, SEAT SUPPORT

15 5402859D 1 MOUNT, SEAT STOP - RED

16 5403555D 1 PLATE, FOOT REST - RED

17 5403574D 1 WELD, PLATE, SEAT MOUNT - RED

18 5023263 1 VINYL CLAMP

19 5101374 1 SAFETY WALK, FLOOR REST, 16.00 X 6.00

20 5101333 1 SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

21 5101004 1 SAFETY WALK, 4.00 X 7.50

22 5025013X8 6 BOLT, 3/8-16 X 1 GD5 YZ

23 5025156 6 WASHER, 3/8 SAE

24 1686907 1 ARM REST (SET OF TWO) (SV)

25 5100636 1 SPRING, SEAT ADJUSTMENT (SV)

26 5061599X1 1 KIT, SEAT RAILS (COMPLETE)(SV)

27 197546 4 MOUNT, VIBRATION, RUBBER

28 5100383 2 BUMPER, ROPS

29 5025481 4 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

30 5025480 4 WASHER, 3/8" ID, INTERNAL TOOTH

31 5025011X6 1 BOLT, 5/16-18 X 3/4 GD5

32 5041930 2 SPACER, .38 X .50 X .27

The above parts group applies to the following Mfg. Nos.:

2007 9

5900683

5900709

5900734

TP 400-7345-IR-M5-SP

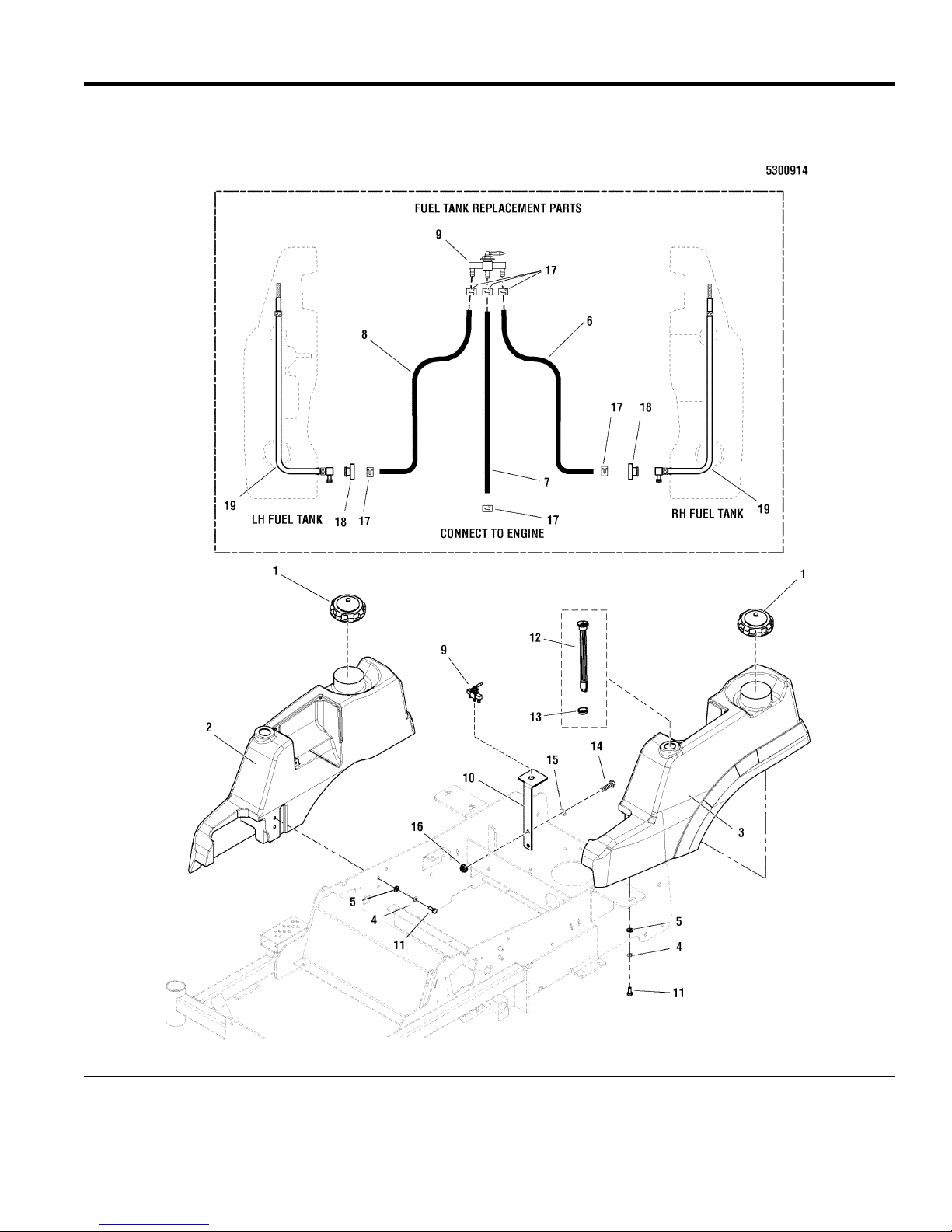

Fuel Tank Mount & Supply Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 10

5900683

5900709

5900734

TP 400-7345-IR-M5-SP
