Snom SnomONE-ST402 Manuale utente

1@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Installation and

Provisioning

snomONE – ST402

2@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Installing the Software

1. Downloads: http://wiki.snomone.com -> Downloads

After update, the software must be licensed (even the free version).

2. Updates: http://wiki.snomone.com -> Updates

3@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

snom ONE Directory Structure

Default directory in Windows: Program Files/snom/snomONE

Default directory in Linux: /usr/local/snomONE

Default directory in Mac: /usr/Applications/snomone

4@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

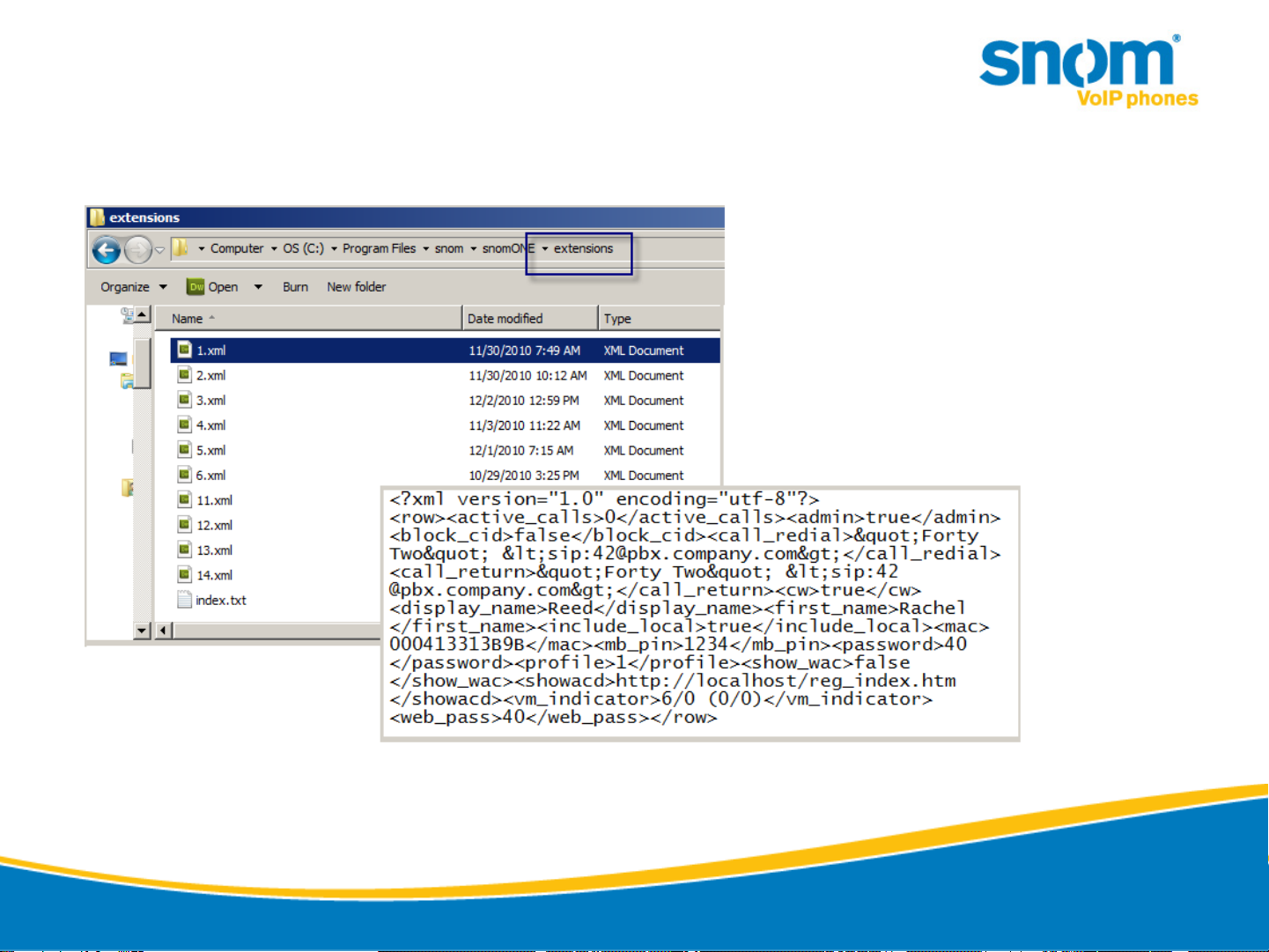

Sample Folder and XML File

5@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Author: Alexander Feldt , Christian Niemczik

snomEssentials - ST112: Auto Provisioning Overview

Installing and setting up

snom ONE SOHO

6@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Author: Alexander Feldt , Christian Niemczik

snomEssentials - ST112: Auto Provisioning Overview

SOHO Environment: Overview

PoE Switch

Phone 2: snom821Phone 1: snom320

Internet:

snom_guest

invoipwetrust

snom ONE soho

7@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Author: Alexander Feldt , Christian Niemczik

snomEssentials - ST112: Auto Provisioning Overview

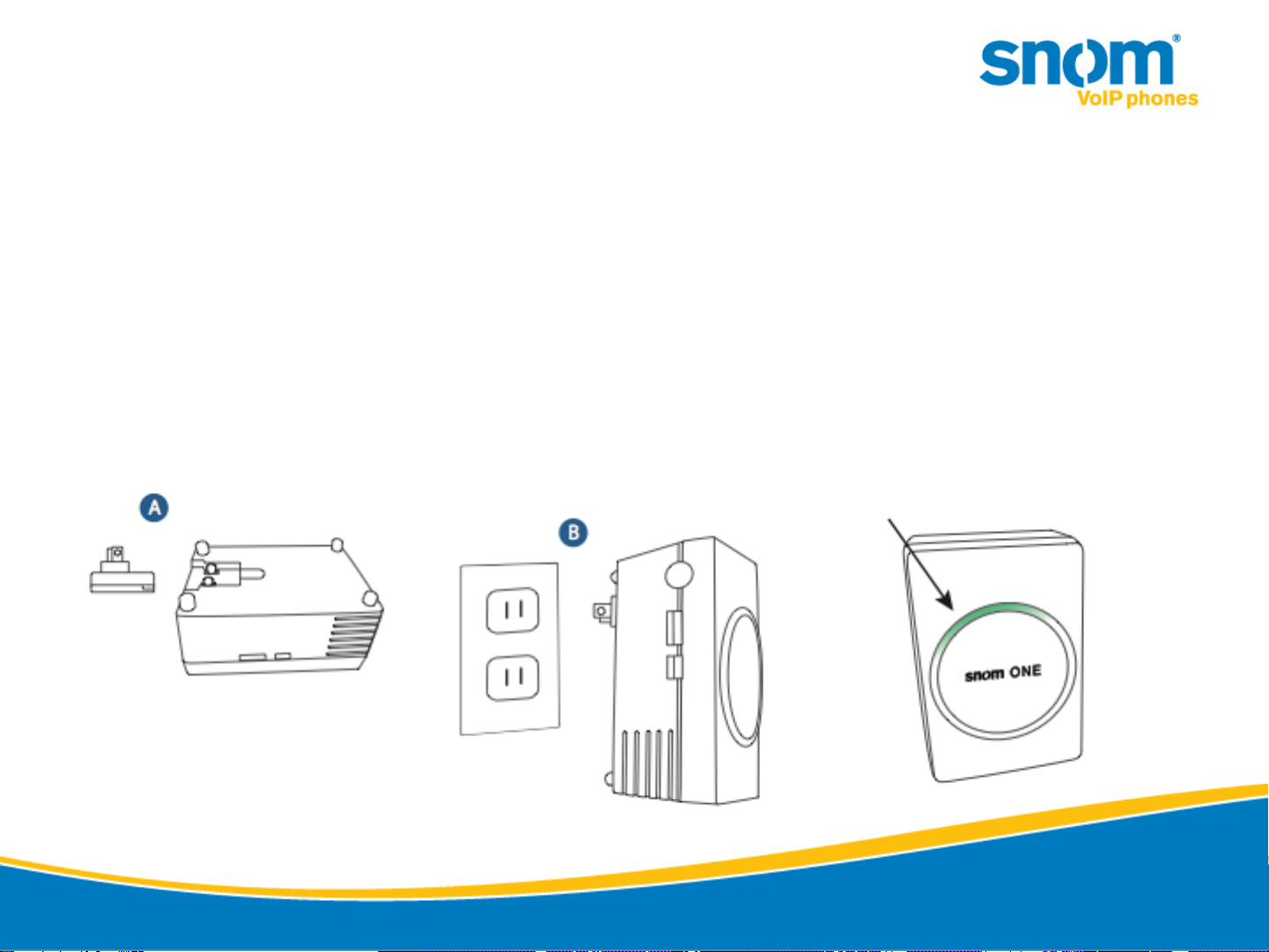

snom SOHO: Installation (1)

•Insert the appropriate plug adapter into the

device (A), then plug it into the wall (B).

–Note: Make sure the green LED is lit. This

indicates that output is present.

8@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Author: Alexander Feldt , Christian Niemczik

snomEssentials - ST112: Auto Provisioning Overview

•Insert one end of the Ethernet cable into the Ethernet port of the

SoHo and the other one into a non PoE port of the provided PoE

switch.

–Note: Make sure your switch/hub is not connected to your

existing LAN

•Connect your Laptop to another free non PoE port of the provided

PoE switch and make sure your laptop receives an IP address via

DHCP (192.168.168.X).

snom SOHO: Installation (2)

9@ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

Author: Alexander Feldt , Christian Niemczik

snomEssentials - ST112: Auto Provisioning Overview

•Enter 192.168.168.254:81 into a web browser

•Log in using the following login credentials:

–User: admin

–Password: snomONE

•Click “Admin”

snom SOHO:Configuration

10 @ 2011 snom TechnologyAG

snomONE – ST402: Installation and Provisioning

snom SOHO:Configuration

•In order to connect to the Internet via an existing AP, select the

WLAN SSID. The encryption type will be detected automatically.

–Click “Save”, then “Apply” from the left navigation panel and

finally “Restart services”

–After the restart click on the link to refresh the page

–Make sure the blue LED on the SoHo is solid and your internet

connection is working

Author: Alexander Feldt , Christian Niemczik

snomEssentials - ST112: Auto Provisioning Overview
