Socket 2DSC 5 series Manuale utente
2D Scan Card™ Series 5
2D Scan Card Series 5 with
Built-in Bar Code CMOS Technology for:
•Pocket PC 2000/2002/2003/2003SE
•HPC 2000s and Pen Tablets based on Windows Mobile
•Windows 98SE/Me/2000/XP Notebooks
User’s Guide
8/2005 Document # 6410-00202 D
Copyright Notice
Copyright © 2005 Socket Communications, Inc. All rights reserved.
Socket Communications, Socket, the Socket Communications logo, 2D
Scan Card, SocketScan, and Mobility Friendly are registered trademarks or
trademarks of Socket Communications, Inc. All other brand and product
names are trademarks of their respective holders.
Reproduction of the contents of this manual without the permission of
Socket Communications is expressly prohibited. Please be aware that the
products described in this manual may change without notice.
Feel free to contact SOCKET COMMUNICATIONS at:
Socket Communications
37400 Central Court
Newark, CA 94560
Other than the above, Socket Communications can assume no responsibility
for anything resulting from the application of information contained in this
manual.
Socket Communications requests that you refrain from any applications of
the 2D Scan Card that are not described in this manual. Socket
Communications also requests that you refrain from disassembling the
CompactFlash Card. Disassembly of this device will void the product
warranty.
You can track new product releases, software updates and technical
bulletins by visiting Socket’s web page at www.socketcom.com
2
Table of Contents
COPYRIGHT NOTICE 2
1 | INTRODUCTION 5
About the Software 5
System Requirements 6
Package Contents 6
Product Registration 6
About This User’s Guide 6
2 | SETUP FOR WINDOWS MOBILE 7
STEP 1: Uninstall Other Scanning Software 8
STEP 2: Install the Software 9
STEP 3: Insert the Card 11
STEP 4: Assign a Trigger Button 12
STEP 5: Scan Data into a Windows Program 13
OPTIONAL: Configure Prefix/Suffixes 15
OPTIONAL: Run Scan Demo 16
OPTIONAL: Configure Sounds 17
OPTIONAL: Use SocketScan Trigger 18
3 | SETUP FOR WINDOWS 98SE/ME/2000/XP 20
STEP 1: Uninstall Old Scanning Software 21
STEP 2: Insert the Installation CD 21
STEP 3: Insert the Card 21
STEP 4: Complete the New Hardware Wizard 22
STEP 5: Assign a Trigger Button 24
STEP 6: Scan Data into a Windows Program 25
OPTIONAL: Configure Prefix/Suffixes 26
OPTIONAL: Configure Sounds 27
APPENDICES
A | 2DSC SPECIFICATIONS 28
B | BAR CODE LABEL SPECIFICATIONS 29
C | ENABLING OR DISABLING SYMBOLOGIES 30
D | DEPTH OF FOCUS 32
E | TROUBLESHOOTING 33
F | TECHNICAL SUPPORT 34
3
1 | Introduction
The Socket 2D Scan Car (2DSC) gives you the freedom
to scan linear, stacked, 2D/matrix or postal bar codes
anytime anywhere using a variety of Windows-based
mobile computers. You can also use the Socket 2DSC to
capture VGA grayscale images.
The world’s only bar code image scanner built into a
CompactFlash card, the 2DSC is sleekly designed with no
cables or batteries. Simply pop in the scanner when you
need it, and remove it when you’re done. The card’s
compact design lets you scan with only one hand when
used with a PDA.
The 2DSC is available in two decode configurations: The “2DSC 5B (Basic)”
configuration adds all linear 1D, 2D/Matrix and postal symbologies, as well as
OCR-A & B. The “2DSC 5X (Xtreme Performance)” configuration reads
high density or small front linear 1D, all 2D/Matrix and postal symbologies as
well as OCR-A & B. Refer to the product specifications in Appendix A for a
more detailed explanation of the two decode configurations. In order to switch
configurations, you must contact customer support and send the 2DSC back to
Socket.
About the Software
SocketScan™ software functions as a “keyboard wedge,” sending
scanned bar code data directly into any active Windows program.
Your application will accept the data as if it were manually typed.
The SocketScan Trigger™ launches an on-screen trigger icon
that you can tap on to trigger the 2DSC. This serves as an
alternative to using a hardware button on your device. Windows
Mobile only. Must be installed separately from the CD.
The Socket 2DSC Demo™ lets you perform basic bar code
scanning and image capture with the 2DSC. You can also
configure the decoder and image capture settings, and perform
image transfers. Refer to the separate User’s Guide for the
2DSC Demo for instructions. Windows Mobile only.
Software updates: www.socketcom.com/support/support_bar.asp
CHAPTER 1: INTRODUCTION 5
System Requirements
Your mobile computer should meet these minimum requirements:
•Any of the following operating systems:
-Windows Mobile 2003, 2003SE
-Windows CE 3.0 or greater
-Windows 98SE, Me, 2000, XP
•Available CompactFlash or PC Card slot
(Operation in a PC Card slot requires a Type II PC Card adapter.)
The PC Card adapter is available separately under Accessories at:
www.socketcom.com/shop
Package Contents
The 2D Scan Car (2DSC) package includes:
•2D Scan Card
•SocketScan Installation CD
•Booklet with, copyright and warranty information
Product Registration
Socket highly recommends that all customers register their Socket products.
Register online at www.socketcom.com/prodreg
About This User’s Guide
This User’s Guide shows how to install and use the 2D Scan Card
in conjunction with SocketScan keyboard emulation software.
IMPORTANT! This User’s Guide DOES NOT include
instructions for using the Socket 2DSC Demo application.
Please refer to the separate User’s Guide for that application.
6
2 | Setup for Windows Mobile
This chapter shows how to install, configure, and use the
2D Scan Car (2DSC) with a Pocket PC 2000/2002/
2003/2003SE.
This chapter shows Pocket PC 2002 screens. Other
Windows Mobile-based devices will have functionally
equivalent screens except where otherwise noted.
For instructions on using the 2D Scan Car Demo, please
refer to the User’s Guide for that specific application.
Setup Summary
STEP 1: Uninstall other scanning software.
STEP 2: Install the software.
STEP 3: Insert the 2DSC into Your Device.
STEP 4: Assign a trigger button.
STEP 5: Scan data into a Windows program.
OPTIONAL: Select symbologies.
OPTIONAL: Configure prefix/suffixes.
OPTIONAL: Run Scan Demo to scan unknown bar codes.
OPTIONAL: Configure sounds.
OPTIONAL: Manually configure specific symbologies or extensions.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 7
STEP 1: Uninstall Other Scanning Software
Delete any bar code scanning software you may already have installed on
your Pocket PC. You can uninstall either directly from your Pocket PC, or
indirectly via ActiveSync.
OPTION 1: Uninstall Directly from the Pocket PC
1. Make sure the bar code scanning software is closed.
2. Tap Start | Settings. Tap on the System tab or Control Panel.
3. Tap on the Remove Programs icon.
4. Select the bar code scanning software, then tap Remove.
5. Tap Yes to confirm removal of the program.
OPTION 2: Uninstall via ActiveSync
1. Make sure the bar code scanning software is closed.
2. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an
active connection between your Pocket PC and a host PC.
3. On the host PC, open Microsoft ActiveSync.
4. Click Tools | Add/Remove Programs.
5. Select the bar code scanning software and click Remove.
6. In the confirmation screen, click OK.
7. A screen will ask if you also want to remove the software from the host PC.
If desired, click NO to keep a copy of the software on the host PC that
can later be re-installed onto a Pocket PC.
8
STEP 2: Install the Software
1. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an
active connection between the mobile computer and a host PC.
2. Insert the installation CD into your host PC.
3. Use My Computer or Windows Explorer to access your CD-ROM drive.
In the CD, click on SETUP.EXE.
4. Follow the instructions on your screen to install the software for
Windows CE (also compatible with Windows Mobile).
•Read the information in the Welcome screen, then click next.
•In the Main Page, click Software Installation.
•In the Installation screen, click Windows CE.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 9
5. In the File Download screen, click Run.
6. If a Security Warning screen appears, click Run.
7. The installation wizard will begin. Follow the wizard to install the
software.
8. When software installation is complete, disconnect the Pocket PC from
the host PC. Soft reset the Pocket PC by pressing the reset button.
10
Indice
Altri manuali Socket Lettore di codici a barre
Socket
Socket 6410-00233 Manuale utente
Socket
Socket D820 Manuale utente
Socket

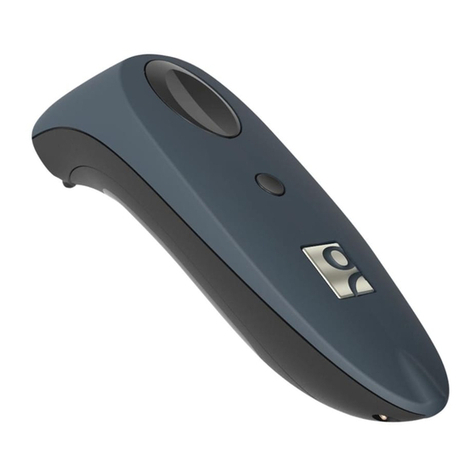

Socket CHS 7Ci Manuale utente
Socket
Socket CHS 7Ci Manuale utente
Socket
Socket CX2821-656 Manuale utente
Socket
Socket DURASCAN D750 Manuale utente
Socket
Socket SOCKETSCAN 800 Series Manuale utente
Socket
Socket CHS 7Ci Manuale utente
Socket

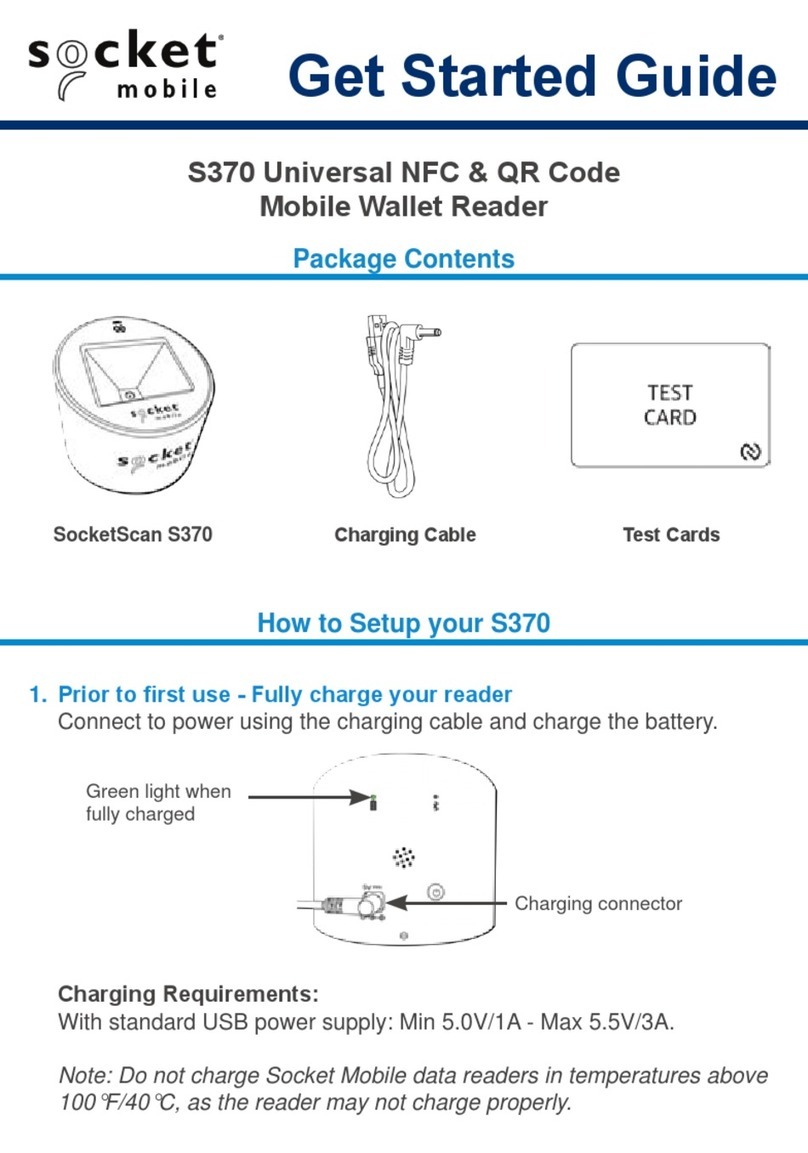

Socket Socketscan S370 Scheda tecnica
