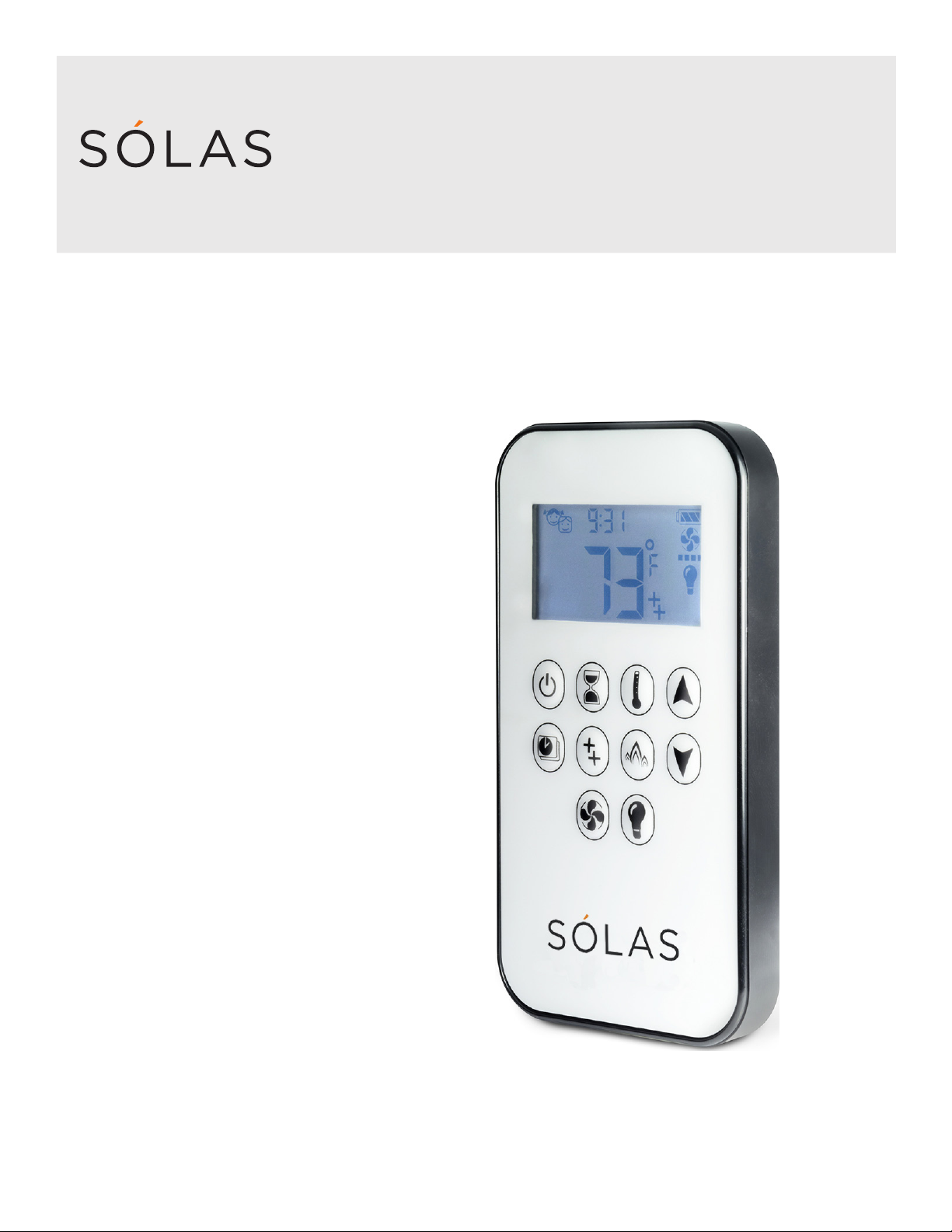

Solas One-Touch Remote Manuale del proprietario

Congratulations on your

purchase of a SÓLAS Fireplace!

We welcome you to the SÓLAS family

of gas ﬁreplaces. Each of our products

are skillfully designed and expertly

manufactured in the USA. We take great

pride in every ﬁreplace we make, with

every product being fully tested throughout

the production process to ensure your

safety and warmth throughout the years.

Sincerely,

The SÓLAS Team

SUPPLEMENTAL MANUAL

Your Fireplace has been equipped with the SÓLAS next generation control system.

Please refer to this supplemental manual for operation of the SÓLAS One-Touch Remote.

ONE-TOUCH REMOTE

SÓLAS CONTEMPORARY FIRE

LIGHTING & OPERATION

FIRST FIRE INSTRUCTIONS

When operating your new ﬁreplace for the ﬁrst time, some

vapors may be released due to the curing compounds

used in the manufacture of the appliance. They may cause

a slight odor and could cause the ﬂames to be the full

height of the ﬁrebox, or even slightly higher, for the ﬁrst few

hours of operation. It is possible that these vapors could

set o smoke detection alarms in the immediate vicinity.

These vapors are quite normal on new appliances. We

recommend opening a window to vent the room during the

burn o period. After a few hours use, the vapors will have

disappeared and the ﬂames will be at their normal height.

It is important that the Comfort Blower is turned on to help

clear the vapors from the unit.

Follow these instructions for a successful ﬁrst ﬁre;

1. Turn the ﬁreplace on in Manual Mode.

2. Set ﬂame height to HI.

3. Set the Comfort Blower speed control to level

4. Let the ﬁreplace run for 3 hours at this setting then shut

o ﬁreplace and let it cool.

5. After the ﬁreplace cools, turn the ﬁreplace on in manual

mode with ﬂame on HI and the Comfort Blower o.

6. Allow ﬁreplace to run for 6 hours in this setting.

NOTE: Slight Odors may still be noticed on future uses

of the ﬁreplace but will diminish over time. The type of

ﬁnishing materials used around the ﬁreplace may add

odors or add to the curing time. If the ﬁreplace has not

been used in several months, it is normal for odors to

occur caused by lint or dust that has settled on the unit

while not in use.

FLAME SUPERVISION DEVICE

For your safety, this appliance is ﬁtted with a ﬂame

supervision device which will shut-o the gas supply if, for

any reason, the pilot ﬂame goes out. This device incorporates

a ﬁxed probe, which senses the heat from the pilot ﬂame. If

the probe is cool, the device will prevent any gas ﬂow unless

manually lighting the pilot. See full lighting instructions.

NOTE: Periodically conduct a visual check to ensure the

pilot and burner ﬂames are as shown (top of page 3).

During extreme cold weather, it is recommended that you

leave the pilot running to prevent condensation forming in

the ﬁrebox and on the glass viewing area during startup.

LIGHTING, OPERATION & RATING INFO

The Lighting, Operation and Rating information is located

on a plate in front of the Comfort Blower inside the front

face of the ﬁreplace.

To access the plate, remove lower air trim panel as shown

in step 1 on page 26.

SERVICING

If any attention is required for your appliance, contact your

dealer quoting the model number and serial number. This

number is on the rating plate, which is located adjacent

to the control module. The replacement parts are shown

at the end of this manual. Please always quote the part

number and description when requesting spare parts.

Warranty is void if serviced by a non-qualiﬁed technician.

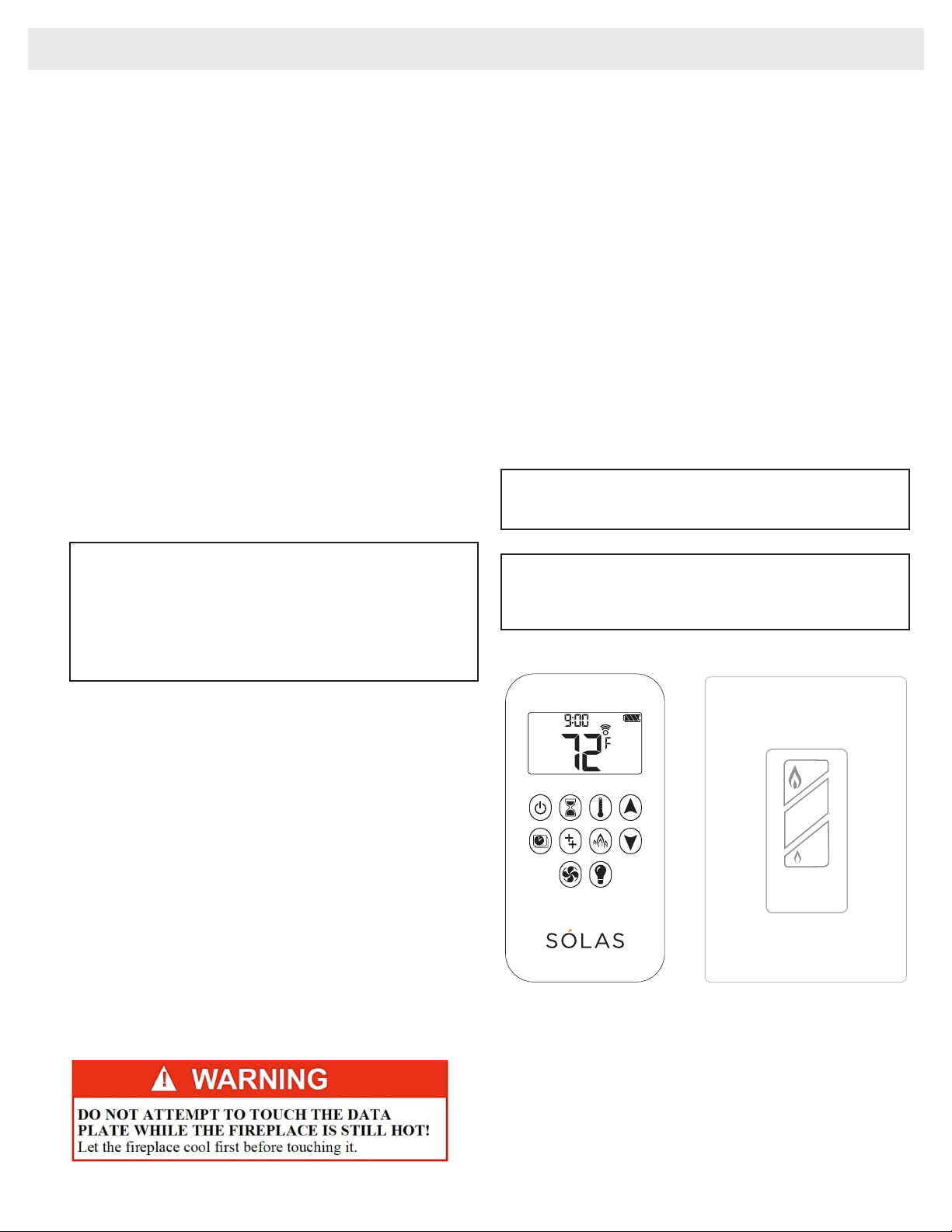

FIREPLACE CONTROL DEVICES

There are two ways to control your ﬁreplace.

1. SÓLAS One-Touch Remote (S-507)

2. Optional Wall Touch Pad (WTP-1500)

The SÓLAS One-Touch Remote can be programmed to

function automatically—see pages 34-38.

The ptional Wall Touch Pad can be used to turn the ﬂame

on, o, and to increase or decrease the ﬂame height.

NOTE: The SÓLAS One-Touch Remote in the

AUTO mode will override the Wall Touch Pad.

NOTE: The Wall Touch Pad is not compatible

with the SÓLAS Self-Calibrating Power Vent

System.

DOWN

ON-OFF

SÓLAS One-Touch

Remote Part #S-507

Wall Touch Pad

Part #WTP-1500

(Optional)

solasﬁres.com 3

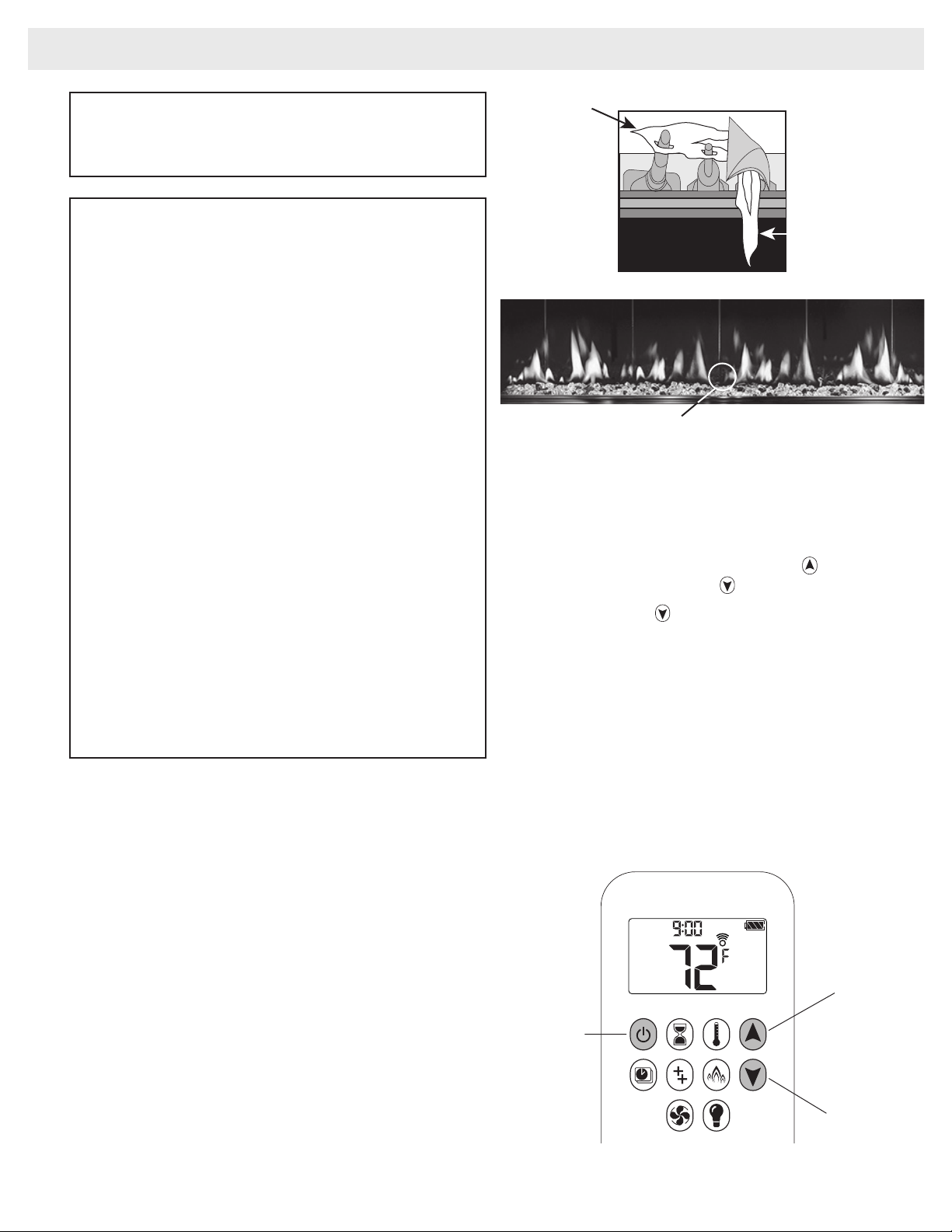

LIGHTING & OPERATION

WARNING: If you do not follow these instructions

exactly, a ﬁre or explosion may result causing

property damage, personal injury or loss of life.

When lighting this appliance, follow instructions exactly.

A. This appliance is equipped with an ignition device that

automatically lights the pilot. Do not try to light the pilot

by hand.

B. BEFORE OPERATING THE BURNER SYSTEM, smell

around the appliance area for gas. Be sure to smell next

to the ﬂoor because some gas is heavier than air and

will settle on the ﬂoor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light the appliance.

• Do not touch any electric switch; do not use any telephone

in your building.

• Immediately call your gas supplier from a neighbor’s

telephone. Follow the gas supplier’s instructions

• If you cannot reach your gas supplier, call the ﬁre

department.

C. Use only your hand to operate the gas controls. Never

use tools. If a knob will not push in or turn by hand, don’t

try to repair it, call a qualiﬁed service technician. Force

or attempted repair may result in a ﬁre or explosion.

D. Do not use this appliance if any part has been under

water. Immediately call a qualiﬁed service technician

to inspect the appliance and to replace any part of the

control system which has been under water.

OPERATING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. This appliance is equipped with an ignition device that

automatically lights the pilot. Do not try to light the pilot

by hand.

3. Using the Remote, or the optional Wall Touch Pad, push

the “ON/OFF" button until you hear an audible signal to

insure the appliance is o.

4. Wait ﬁve (5) minutes to clear out any gas. Then smell for

gas including near the ﬂoor. If you smell gas, STOP! Follow

“B" in the safety information above. If you don’t smell gas,

proceed to step 5.

5. Using either the Remote or the optional Wall Touch Pad,

press and hold the “ON/OFF" button for 4 seconds. An

audible signal conﬁrms the start sequence has begun.

6. Continuing beeps conﬁrm the ignition is in process. Once

lighting the pilot ﬂame should appear as shown below.

Once the pilot is conﬁrmed, the main burner ignites on high.

Flame

NOTE: If the pilot does not stay lit after several tries,

proceed to step 9.

7. Use the ﬂame height adjustment buttons on either the

Remote or the optional Wall Touch Pad to adjust the ﬂame.

To increase ﬂame height, press and hold . To decrease

ﬂame height, press and hold .

8. Press and hold the button on the Remote or optional

Wall Touch Pad to set the appliance to Pilot ﬂame only.

9. If the appliance will not operate, follow the instructions

“TO TURN OFF GAS TO THE APPLIANCE" and call your

gas service technician or gas supplier.

TO TURN OFF GAS TO THE APPLIANCE

1. To turn o gas to the appliance, push and release the

“OFF" button on either the Remote or the optional Wall

Touch Pad. An audible signal will conﬁrm.

2. TO TURN OFF THE GAS SUPPLY TO THE APPLIANCE,

close the shut-o valve on the gas supply line to the

appliance.

HI Flame

LO Flame

ON/OFF

Pilot Light

Pilot Light Location

SÓLAS CONTEMPORARY FIRE

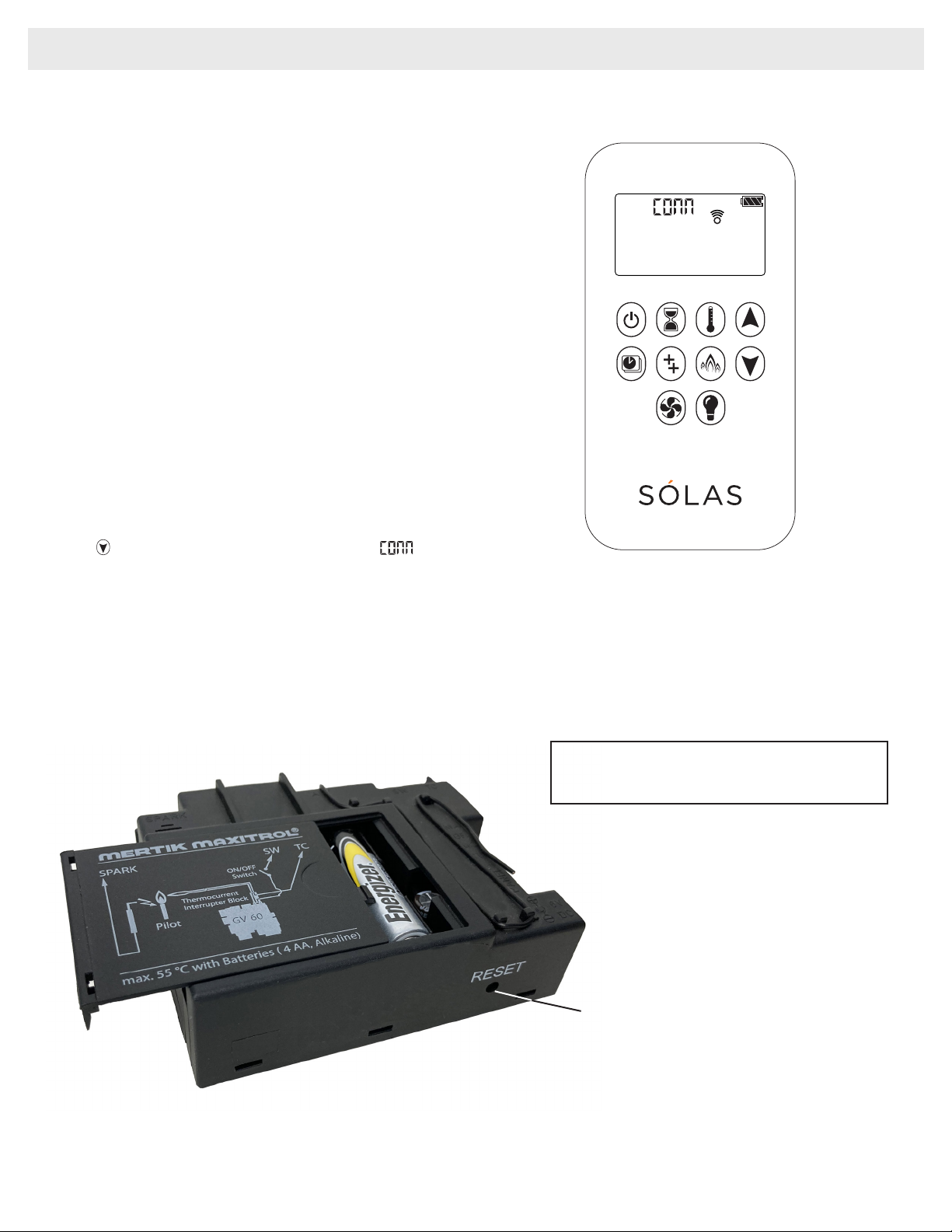

SÓLAS ONETOUCH REMOTE OPERATION

SÓLAS ONETOUCH REMOTE

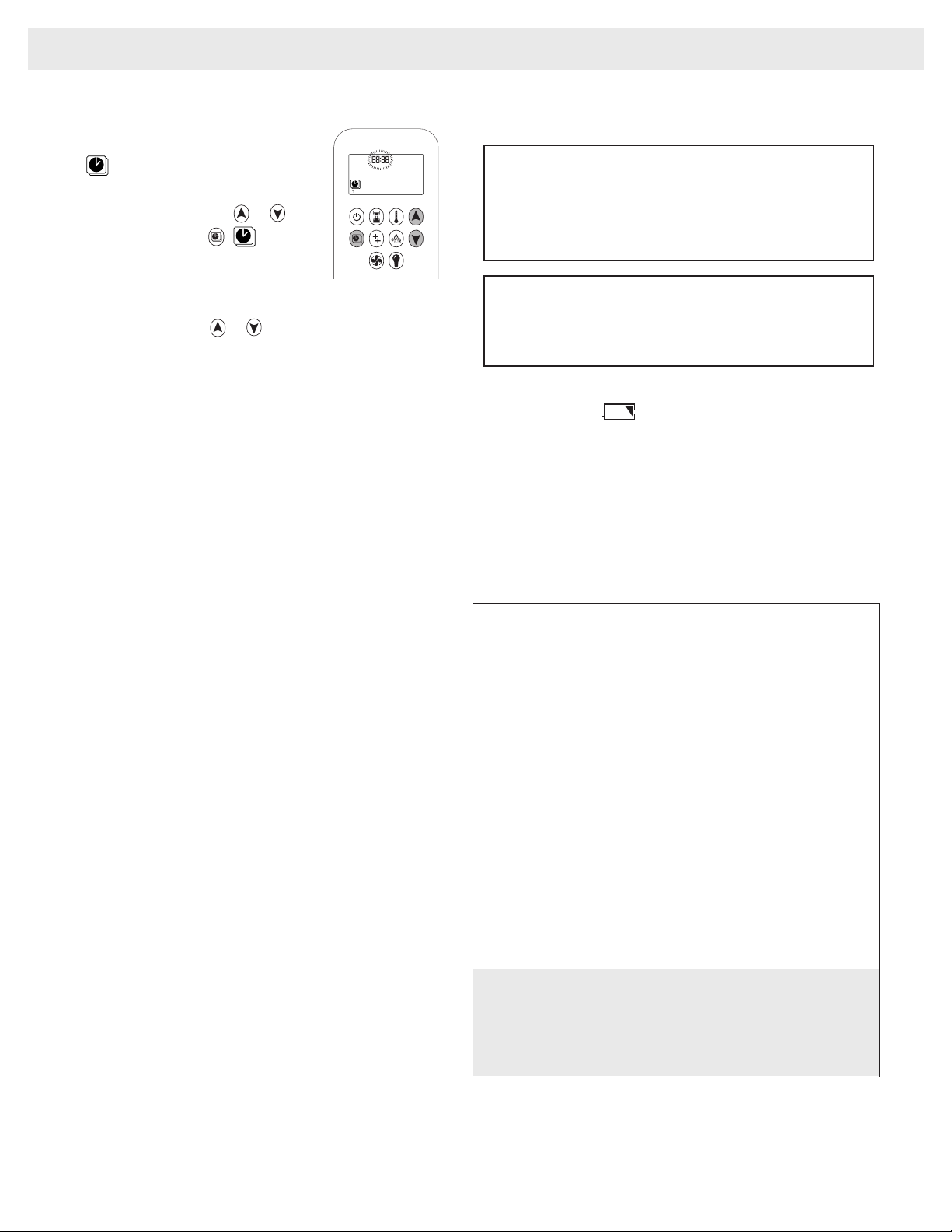

PAIRING SETUP

The Control Module and the Remote must be paired

before the ﬁrst use. This has been completed for you

at the factory. Refer to the section below if the Control

Module and Remote lose synchronization.

1. Insert two AAA alkaline batteries in the Remote. Only

use brand name alkaline batteries, such as Duracell or

Energizer.

2. Four AA alkaline batteries are installed in the Control

Module (shown below).

NOTE: The four AA batteries are only used for battery

backup purposes in the event of a power outage.

3. Locate the RESET button on the front side of the

Control Module.

4. Press and hold the Control Module’s RESET button until

you hear one short beep and one long beep. After the

second beep, release the reset button.

5. Within the subsequent 20 seconds, press and hold

the button on the Remote for 2-3 seconds.

will be displayed and ﬂash on the Remote during the

pairing sequence. The Remote will count up from 1 to

8, and you will hear two short beeps conﬁrming the

pairing is complete.

If you hear one long beep, the pairing sequence has

failed or the wiring is incorrect.

This is a one time pairing and is not required when

changing the batteries of the Remote or Control Module.

The remote control system is now ready to use.

RESET Button

SÓLAS One-Touch

Control Module

Part #S-504

SÓLAS One-Touch

Programmable

Thermostatic Remote

Part #S-507

NOTE: The batteries in your SÓLAS one touch

remote control and control module are to be

replaced annually.

solasﬁres.com 5

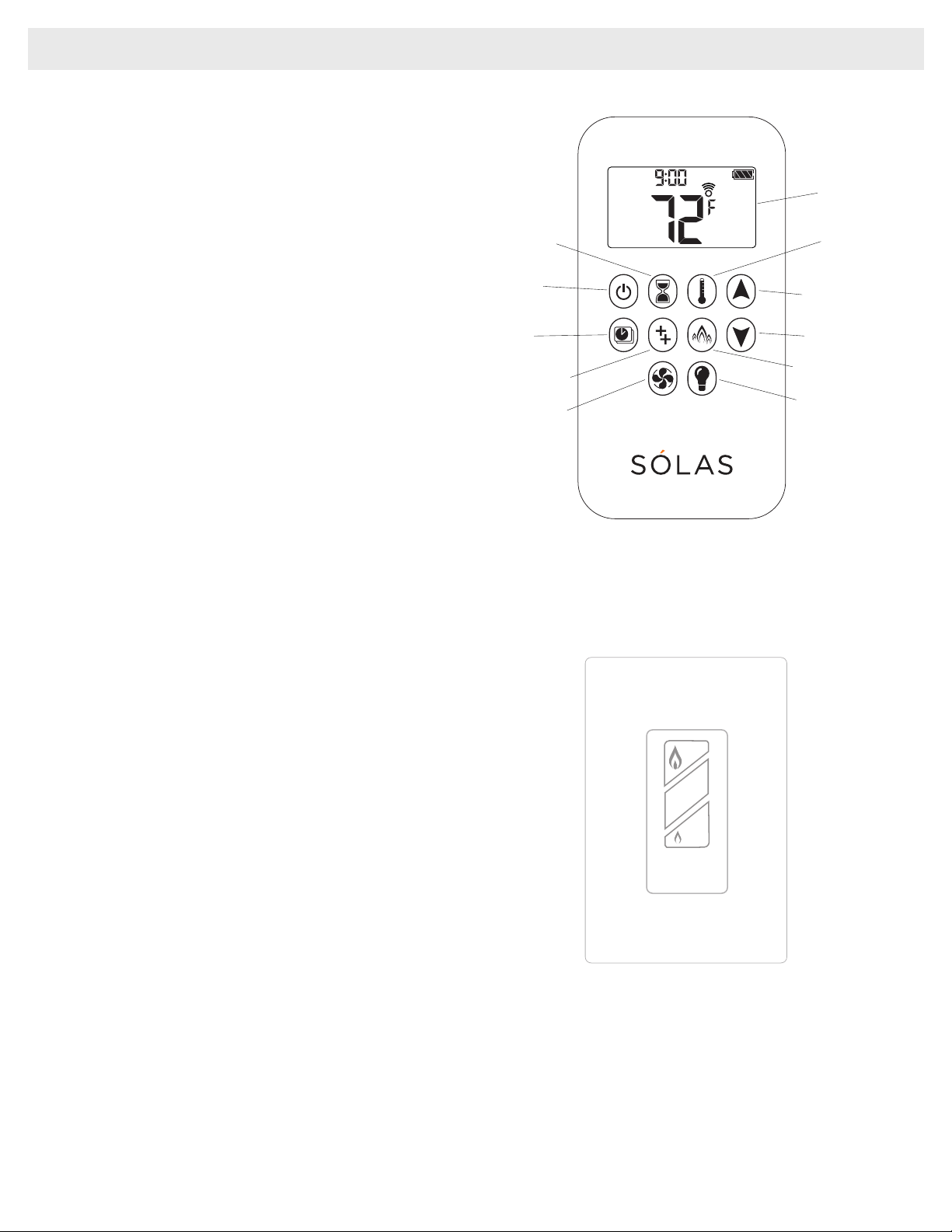

SÓLAS ONETOUCH REMOTE OPERATION

HOW TO TURN YOUR FIREPLACE OFF

(INCLUDING PILOT)

Familiarize yourself with each of these methods before

operating your ﬁreplace.

Remote and Wall Touch Pad*: Press and hold the ON-

OFF button for a second (either on the Remote or the

optional Wall Touch Pad).

If the ﬂames are on, they go down and you hear the valve

motor wind down. You hear a clunk and a beep indicating

that the valve has received the signal from the Remote.

HOW TO ENSURE YOUR FIREPLACE

CANNOT BE TURNED ON

INADVERTENTLY

You can use the following method to ensure that your

ﬁreplace will not turn on when you don’t want it on.

First, ensure your ﬁreplace is turned o—including the

pilot—and cold BEFORE going ahead.

• Close the shut-o valve on the gas supply line to

the appliance.

• Remove all batteries from the Control Module as well as

the batteries from the Remote.

• Shut o power at the breaker.

Automatic Shut-O (in certain conditions)

Your ﬁreplace’s Remote is equipped with an automatic

shut-o mechanism which is activated in certain

conditions. See page 38 in the Remote Control Operation

section for a description of this feature.

NOTE: Before using the remote control system for

the ﬁrst time, the Control Module and the Remote are

synchronized at the factory. See the section SÓLAS

Remote Pairing Set-up on page 32 of this manual if the

Control Module and Remote lose synchronization.

IMPORTANT: BEFORE YOU BEGIN, please note that

with this system, the settings of time, temperature and

automatic ON/OFF can only be programmed when the

function display is ﬂashing. Be patient when programming

as it does take time to set-up.

DOWN

ON-OFF

ON/OFF

Countdown

Timer Thermostatic

Mode

Main Display

Increase Flame

Decrease Flame

Light (not used)

Split Flow Mode

(not used)

Program

Mode

Comfort Blower

Auxiliary Feature

(not used)

SÓLAS One-Touch

Programmable

Thermostatic Remote

Part #S-507

SÓLAS Wall Touch Pad*

(Optional)

Part #WTP-1500

*Not Compatible with SÓLAS Self-Calibrating Power Vent Kit

SÓLAS CONTEMPORARY FIRE

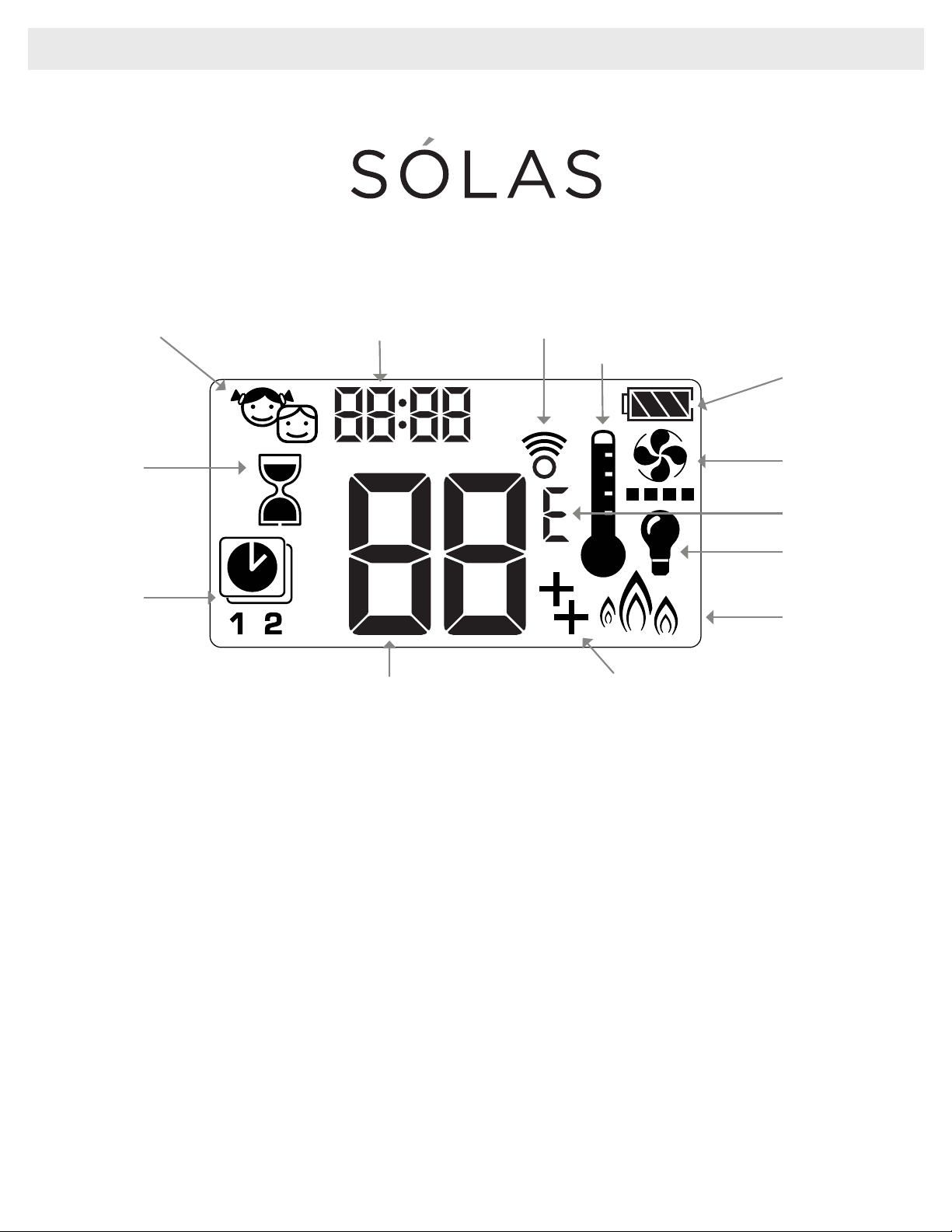

SÓLAS ONETOUCH REMOTE OPERATION

OFF

Thermostatic Mode

Signal IndicatorChild Proof

Light (not used)

Comfort Blower

Program Mode

Temperature

Time

Auxiliary Feature (not used)

Countdown Timer

Battery Status

Split Flow Mode

(not used)

°F or °C

DO NOT leave the Remote on the hearth, mantel, or on top of the

ﬁreplace. Use the Remote wall mount holder provided.

ONETOUCH REMOTE MAIN DISPLAY OVERVIEW

solasﬁres.com 7

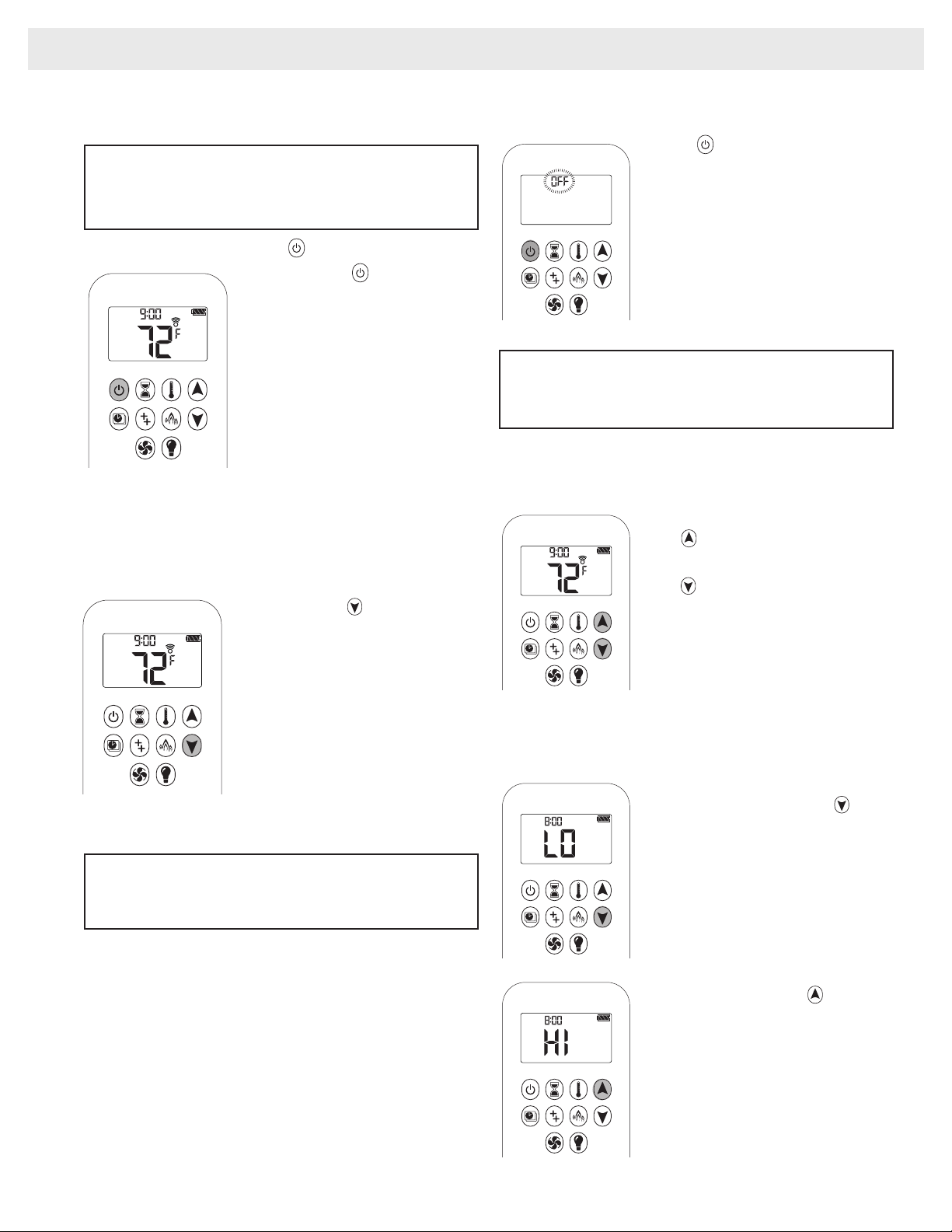

SÓLAS ONETOUCH REMOTE OPERATION

TO TURN ON FIREPLACE

CAUTION

WHEN PILOT IGNITION IS CONFIRMED, MOTOR

TURNS AUTOMATICALLY TO MAXIMUM FLAME

HEIGHT.

One-Touch Lighting (default):

Press and hold for 4 seconds,

until 8 short beeps and a blinking

series of lines conﬁrms the start

sequence has begun. Release

button.

Main gas ﬂows once pilot ignition

is conﬁrmed.

Remote automatically goes into

manual mode after main burner

ignition. The ﬁreplace will default

to HI ﬂame.

STANDBY MODE PILOT FLAME

Press and hold to set

appliance to pilot ﬂame.

CAUTION

If the pilot does not stay lit after several tries call your

local service technician or gas supplier.

TO TURN OFF FIRE

• Press to turn OFF.

When the pilot is o, it will

take 2 minutes before it

can be lit again.

NOTE: There is a 2 minute delay

after switching o before the next

ignition is possible.

CAUTION

Always check the ﬁre and pilot visually to ensure they

are o.

FLAME HEIGHT ADJUSTMENT

To increase ﬂame height, press and

hold .

To decrease ﬂame height, press and

hold . You may hold the button

down until the ﬁre is set to pilot

ﬂame only.

DESIGNATE LOW AND HIGH FIRE

Double-Click DOWN Arrow

button. “LO" is displayed.

NOTE: Flame goes to high ﬁre ﬁrst

before going to designated low ﬁre.

Double-Click UP Arrow button.

Flame automatically goes to high

ﬁre. “HI" will be displayed.

SÓLAS CONTEMPORARY FIRE

SÓLAS ONETOUCH REMOTE OPERATION

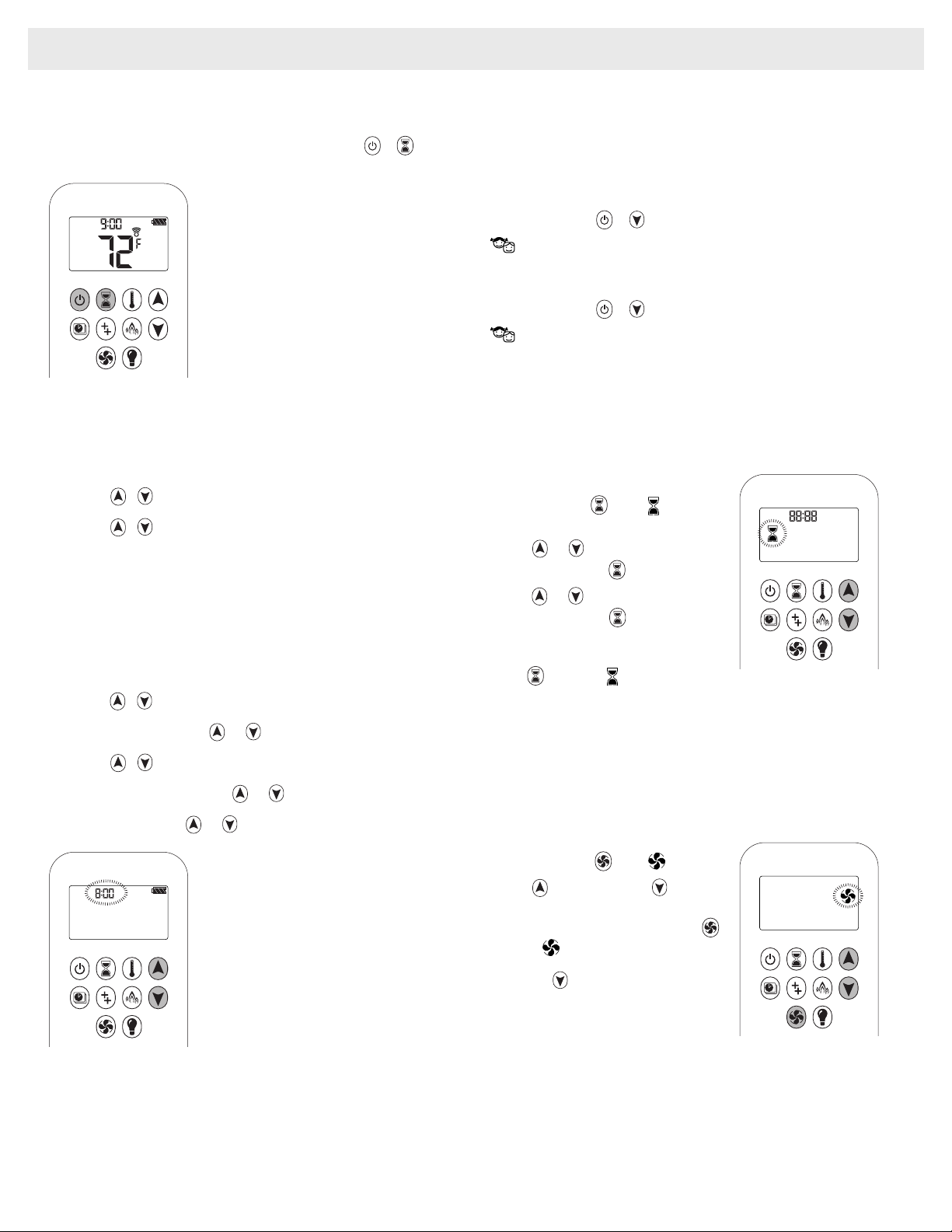

SETTING CELSIUS OR FAHRENHEIT

To change between °C and °F, press and hold +

simultaneously.

Note: When Remote is in °C

(Celsius) mode the clock will

be 24-hour. When Remote is

in °F (Fahrenheit) mode the

clock will be 12-hour.

SETTING THE TIME

1. Press + simultaneously. Day ﬂashes.

2. Press + to select a number to correspond

with the day of the week.

• 1 = Monday

• 2 = Tuesday

• 3 = Wednesday

• 4 = Thursday

• 5 = Friday

• 6 = Saturday

• 7 = Sunday

3. Press + simultaneously. Hour ﬂashes.

4. To select hour press or .

5. Press + simultaneously. Minutes ﬂash.

6. To select minutes press or .

7. To conﬁrm, press or simultaneously or wait.

CHILD PROOF

Your Remote can be set to lock out all commands to the

ﬁreplace, except OFF.

To turn Child Proof ON:

1. Press and hold + simultaneously.

2. is displayed. Child Proof is now active.

To turn Child Proof OFF:

1. Press and hold + simultaneously.

2. disappears. Child Proof is now inactive, and the

Remote has full function.

COUNTDOWN TIMER

You can set your ﬁreplace to automatically turn o at the

end of a timer.

To set a Countdown Timer:

1. Press and hold until is

displayed. Hour ﬂashes.

2. Press or to select Hour.

3. To conﬁrm, press . Minutes ﬂash.

4. Press or to select Minutes.

5. To conﬁrm, press or wait.

To turn o a Countdown Timer:

1. Press , and the countdown

disappears.

NOTE: The Countdown Timer only works in Manual and

Thermostatic modes. Maximum countdown time is

9 hours and 50 minutes.

COMFORT BLOWER OPERATION

Setting:

1. Press and hold until ﬂashes.

2. Press to increase or to

decrease Comfort Blower speed.

3. To conﬁrm setting, either press

or wait. is displayed.

OFF: Press until all 4 speed level

bars disappear.

NOTE: When setting, if the Comfort

Blower was not switched o

after last use, it starts automatically 4 minutes

after ignition at maximum speed, and goes to

the last set level after 10 seconds. The Comfort

Blower stops 10 minutes after the main burner is

extinguished.

solasﬁres.com 9

SÓLAS ONETOUCH REMOTE OPERATION

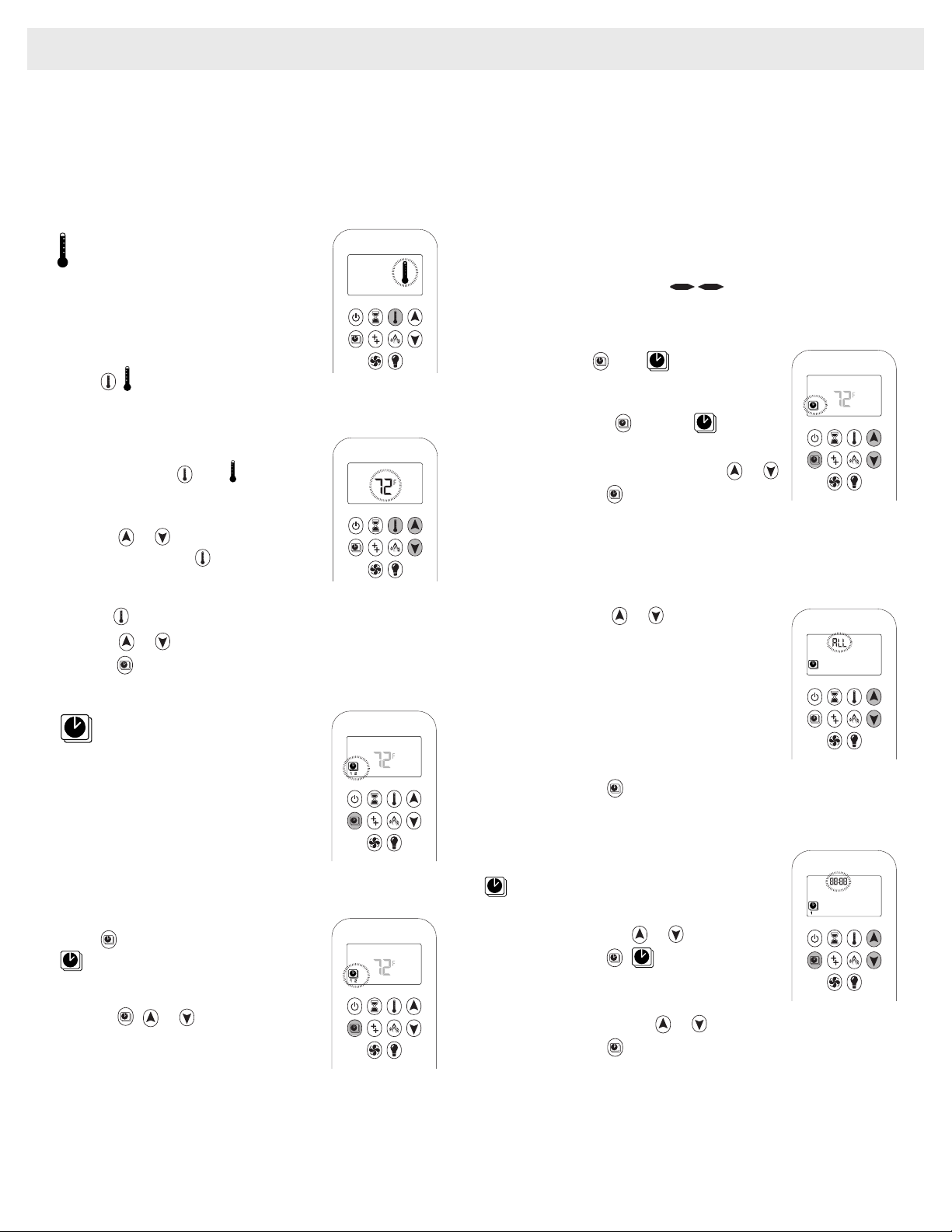

MODES OF OPERATION

Manual Mode

The ON/OFF status of the ﬁreplace, as well as ﬂame

height, are manually controlled by the user.

Thermostatic Mode

The room temperature is measured

and compared to the set temperature.

The ﬂame height is automatically

adjusted to achieve the set

temperature.

ON:

Press . is displayed. Preset

temperature displays brieﬂy, followed by the room

temperature.

Setting Desired Temperature:

1. Press and hold until is displayed

and set temperature ﬂashes.

2. To adjust set temperature,

press or .

3. To conﬁrm, press or wait.

OFF:

1. Press .

2. Press or to go to Manual Mode.

3. Press to go to Program Mode.

Program Mode

The temperature is controlled by

Programs 1 and 2, each of which can

be set to go on and o at speciﬁc

times, at a set temperature.

PROGRAM MODE

ON:

Press .

, 1 or 2, ON or OFF are displayed.

OFF:

1. Press , or to go to

Manual Mode.

2. Press to go to Thermostatic Mode.

NOTE: The set temperature for Thermostatic Mode is the

temperature for the ON time in Program Mode.

Changing the Thermostatic Mode set temperature

also changes the ON time temperature in

Program Mode.

Default Settings:

• ON TIME (Thermostatic) TEMPERATURE: 70°F / 21°C

• OFF TIME TEMPERATURE: “ " (pilot ﬂame only)

Temperature Setting:

1. Press and hold until ﬂashes. ON and

set temperature (set in Thermostatic Mode)

is displayed.

2. To continue, press or wait. , OFF

displayed, temperature ﬂashes.

3. Select o temperature by pressing or .

4. To conﬁrm, press .

NOTE: The on (Thermostatic) and o set temperatures

are the same for each day.

Day Setting:

1. ALL ﬂashes. Press or to choose

between:

• ALL = same settings ON-OFF every day

• SA:SU = same settings ON-OFF Saturday

and Sunday

• 1, 2, 3, 4, 5, 6, 7 = daily timer—unique

ON-OFF settings for a single day of the

week, for multiple days of the week or for

every day of the week.

2. To conﬁrm, press .

ALL Selected

On Time Setting (PROGRAM 1)

1. , 1, ON are displayed.

ALL is displayed brieﬂy. Hour ﬂashes.

2. To select hour, press or .

3. To conﬁrm, press . , 1, ON are

displayed. ALL displayed brieﬂy.

Minutes ﬂash.

4. To select minutes, press or .

5. To conﬁrm, press .

OFF

SÓLAS CONTEMPORARY FIRE

SÓLAS ONETOUCH REMOTE OPERATION

PROGRAM MODE Continued

O Time Setting (PROGRAM 1)

1. , 1, OFF are displayed. ALL is

displayed brieﬂy. Hour ﬂashes.

2. To select hour, press or .

3. To conﬁrm, press . , 1, OFF

are displayed. ALL displayed

brieﬂy. Minutes ﬂash.

4. To select minutes, press or .

5. To conﬁrm, press or .

NOTE: Either continue to PROGRAM 2 and set ON and

OFF times or stop programming at this point, and

PROGRAM 2 remains deactivated.

NOTE: PROGRAM 1 and 2 use the same ON

(Thermostatic) and OFF temperatures. Once a

new ON (Thermostatic) and/or OFF temperature

has been set, that temperature becomes the new

default setting.

NOTE: ON and OFF times programmed for PROGRAM 1

and PROGRAM 2 become the new default times.

The batteries must be removed to clear the PROGRAM 1

and PROGRAM 2 ON and OFF times and temperatures.

SA: SU or Daily Timer (1-7) Selected

• Set ON time and OFF time using the same procedure

as “ALL Selected" above.

• Waiting to ﬁnish setting.

LOW BATTERY INDICATION

CAUTION

Do not use a screwdriver or other metallic object

to remove the batteries from the Control Module

battery holder or the Remote. This could cause a

short circuit.

NOTE: The batteries in your SÓLAS One-Touch

remote control and control module are to be

replaced annually. Only use brand name alkaline

batteries such as Duracell or Energizer.

Remote

The battery icon will show when the battery needs

to be replaced. Replace with two 1.5 V AAA alkaline

batteries.

Control Module

Frequent beeps for 3 seconds when the motor turns

indicate the batteries in the battery holder of the Control

Module need to be replaced. Replace with four 1.5 V AA

alkaline batteries.

AUTOMATIC SHUTOFF

Countdown Timer

At the end of countdown time period, the ﬁre turns

o. The Countdown Timer only works in Manual and

Thermostatic. Maximum countdown time is 9 hours and

50 minutes.

Seven Day Shut O

If there is no activity for 7 days, the SÓLAS ﬁreplace will

automatically shut down the pilot as required by certain

jurisdictions.

AUTOMATIC TURN DOWN

3 Hour No Communication Function

If your ﬁreplace and remote are inactive for three hours—

for example, if the remote is left in another room—your

ﬁreplace automatically turns down to pilot.

Beneﬁt

SÓLAS products are designed with a focus on safety and

environmental responsibility. This will help save fuel and

is an environmental beneﬁt. Program the temperature

and timer modes to maximize your heating eciency.

OFF

Altri manuali per One-Touch Remote

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Solas Telecomando

Solas

Solas One-Touch Remote Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
