Solid State Logic A16.D16 Manuale utente
A16.D16, A32 and D64 User Guide Contents
Visit SSL at:
www.solidstatelogic.com
© Solid State Logic
All rights reserved under International and Pan-American Copyright Conventions
SSL
®
, Solid State Logic
®
, Total Recall
®
, Gravity
®
and Tempest
®
are ® registered trademarks of Solid State Logic.
System T™, Live L100™, Live L200™, Live L300™, Live L500™, L500 Plus™, Blacklight™
are ™ trademarks of Solid State Logic.
Dante™ and Audinate™ are trademarks of Audinate Pty Ltd.
All other product names and trademarks are the property of their respective owners
and are hereby acknowledged.
No part of this publication may be reproduced in any form or by any means,
whether mechanical or electronic, without the written permission of
Solid State Logic, Oxford, OX5 1RU, England
As research and development is a continual process, Solid State Logic reserves the right to change
the features and specifications described herein without notice or obligation.
Solid State Logic cannot be held responsible for any loss or damage arising directly or indirectly from
any error or omission in this manual.
PLEASE READ ALL INSTRUCTIONS, PAY SPECIAL HEED TO SAFETY WARNINGS.
E&OE
September 2018
Document Revision History
FIRST VERSION
Revision 1.0
7th September 2018
Page 2 of 26
A16.D16, A32 and D64 User Guide Contents
Table of Contents
Introduction 4
Overview 4
Key Features 4
A16.D16 Front Panel 4
A16.D16 Rear Panel 4
A32 Front Panel 5
A32 Rear Panel 5
D64 Front Panel 5
D64 Rear Panel 5
Status LEDs and User Buttons 6
Status and Reset 6
Device Reset 6
Brooklyn Reset 6
User and Control Bit Pass-Through
(A16.D16 and D64 only) 7
Hardware Connections 8
Mains Power Connections 8
Dante Connections 8
Audio and GPIO Connections 8
SSL Network I/O Controller 9
Installing Network I/O Controller 9
Network Configuration - PC 9
Network Configuration - Device 9
The GUI 10
Network View 10
Inputs/Outputs 11
Analogue Inputs 11
Mic/Line Inputs (A16.D16 Only) 11
Analogue Outputs 12
AES I/O 12
GPIO (A16.D16 Only) 13
Setup 13
Ownership 14
Stagebox and Input Ownership 14
Individual Input Ownership 15
GPO Ownership (A16.D16 Only) 15
Dante Controller 16
Network Config 16
Device Info 16
Linking/Unlinking Networks A and B 16
User and Control Bit Pass-Through
(A16.D16 and D64 only) 16
Appendix A – Physical Specifications 17
Ventilation 17
Appendix B - Connector Pin Outs 18
Analogue Inputs/Outputs 18
AES/EBU Inputs/Outputs 19
GPIO (A16.D16 Only) 20
Appendix C –
Performance Specifications 21
Mic/Line Inputs 21
Line Inputs 22
Line Outputs 22
Digital Inputs 23
Appendix D – Safety Notices 24
General Safety 24
Installation Notes 24
Power Safety 25
For EU 25
Environmental Declaration 26
RoHS Notice 26
For USA 26
Electromagnetic Compatibility 26
Environmental 26
Page 3 of 26
A16.D16, A32 and D64 User Guide Contents
Introduction
Overview
A16.D16, A32 and D64 are 2U Dante I/O devices featuring high-density combinations of
SuperAnalogue™, AES3 and GPIO connections. All analogue audio, AES audio and GPIO connectors
are 25-pin D-type. These units can all be controlled remotely from SSL System T and SSL’s Network
I/O Controller app for PC.
A16.D16 is a 32-input and 32-output Dante I/O device featuring 4 SuperAnalogue mic/line inputs,
12 SuperAnalogue line inputs, 8 AES3 inputs, 16 SuperAnalogue line outputs, 8 AES3 outputs and 4
GPIO connections.
A32 is a 32-input and 32-output Dante I/O device featuring 32 SuperAnalogue line inputs and 32
SuperAnalogue line outputs.
D64 is a 64-input and 64-output Dante I/O device featuring 32 AES3 inputs and 32 AES3 outputs.
These units are ideally suited for bulk analogue and AES I/O connections from control or machine
rooms, featuring a high-density combination of analogue and digital inputs and outputs, GPIO,
redundant power and network connections.
Key Features
●Interface between control/machine room analogue/AES connections and IP audio networks
using Dante and AES67
●Redundant PSUs and Dante network connections
●SSL SuperAnalogue technology
1
●Device and parameter ownership assignment to avoid control conflicts
●Front facing Dante network connections
●Rear facing audio and GPIO connections
●Silent operation - no cooling fans
A16.D16 Front Panel
A16.D16 Rear Panel
1 A16.D16 and A32 only
Page 4 of 26
A16.D16, A32 and D64 User Guide Contents
A32 Front Panel
A32 Rear Panel
D64 Front Panel
D64 Rear Panel
Page 5 of 26
A16.D16, A32 and D64 User Guide Contents
Status LEDs and User Buttons
Status and Reset
These reset buttons have the same functionality as the front-facing RESET A and RESET B user
buttons.
Device Reset
Performing a device reset will clear the SSL device settings. This includes ownership, input and GPIO
states. This does not clear Dante Brooklyn card settings.
Brooklyn Reset
Resetting the Dante Brooklyn card to default settings is performed from Dante Controller. Under the
‘Device Config’ tab for a device select ‘Clear Config’. This clears the device name, channel labels, IP
address settings, sample rate, latency and existing audio routes. This does not clear SSL Ownership
settings.
Page 6 of 26
A16.D16, A32 and D64 User Guide Contents
User and Control Bit Pass-Through (A16.D16 and D64 only)
To enable the pass-through of AES user and control bits the device must be set to PCM 32
encoding within Dante Controller. Changing the encoding setting is detailed in the Dante Controller
section of this guide.
N.B. When set to 32-bit encoding the audio remains 24-bit. The additional 8 bits are used to
transport the user and control bits from the AES3 signals.
Page 7 of 26
A16.D16, A32 and D64 User Guide Contents
Hardware Connections
Mains Power Connections
The A16.D16, A32 and D64 include redundant PSUs with IEC C14 inlets. Either
supply can individually power the unit. Ideally these should be connected to separate
power circuits to provide redundancy of incoming AC power.
Dante Connections
The A16.D16, A32 and D64 have two redundant sets of network connections. The Network B port
connectivity is currently not enabled, this requires an additional Dante card which is currently not
available.
Audio and GPIO Connections
All audio and GPIO connections are via 25-pin D-type connectors.
See Appendix B for pinout information.
Page 8 of 26
A16.D16, A32 and D64 User Guide Contents
SSL Network I/O Controller
Installing Network I/O Controller
When an A16.D16, A32 or D64 is used without an SSL console, configuration and control is achieved
using the SSL Network I/O Controller PC application. This can be downloaded from the SSL website
as part of the Network I/O Stagebox upgrade package or as a standalone installer.
Locate and run the Network I/O Controller installer and follow the on-screen prompts to install the
application.
Network Configuration - PC
Once Network I/O Controller is installed, connect the Windows PC to the same subnet as the
Network I/O. The SSL Network I/O Controller application uses the network adapters configured in
Dante Controller for communication. Before starting Network I/O Controller first open Dante
Controller and select the network adaptors connected to the Dante network. ‘Use shared Dante
interface’ must be selected to ensure all applications using the Dante network use the correct
adaptors. Subsequent changes to network settings may require Network I/O Controller to be
restarted.
TCP/IP is used to communicate with the unit, so check Windows firewall settings if communications
are not working.
Set the computer to ‘Never Sleep’ to maintain communication.
Network Configuration - Device
Unless shipped as part of a preconfigured system, Network I/O units are set to obtain an IP address
automatically.
If the IP settings need to be changed to a fixed address – to match the network environment in
which the unit is to be installed – this can be achieved using the Dante Controller application.
Remember that the computer’s network adapter configuration will also need to be updated to match
the Network I/O.
For additional information see the Dante Controller section.
Page 9 of 26
A16.D16, A32 and D64 User Guide Contents
The GUI
The application window is divided into six sections:
Network View
Page 10 of 26
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Solid State Logic Sistema I/O
Solid State Logic

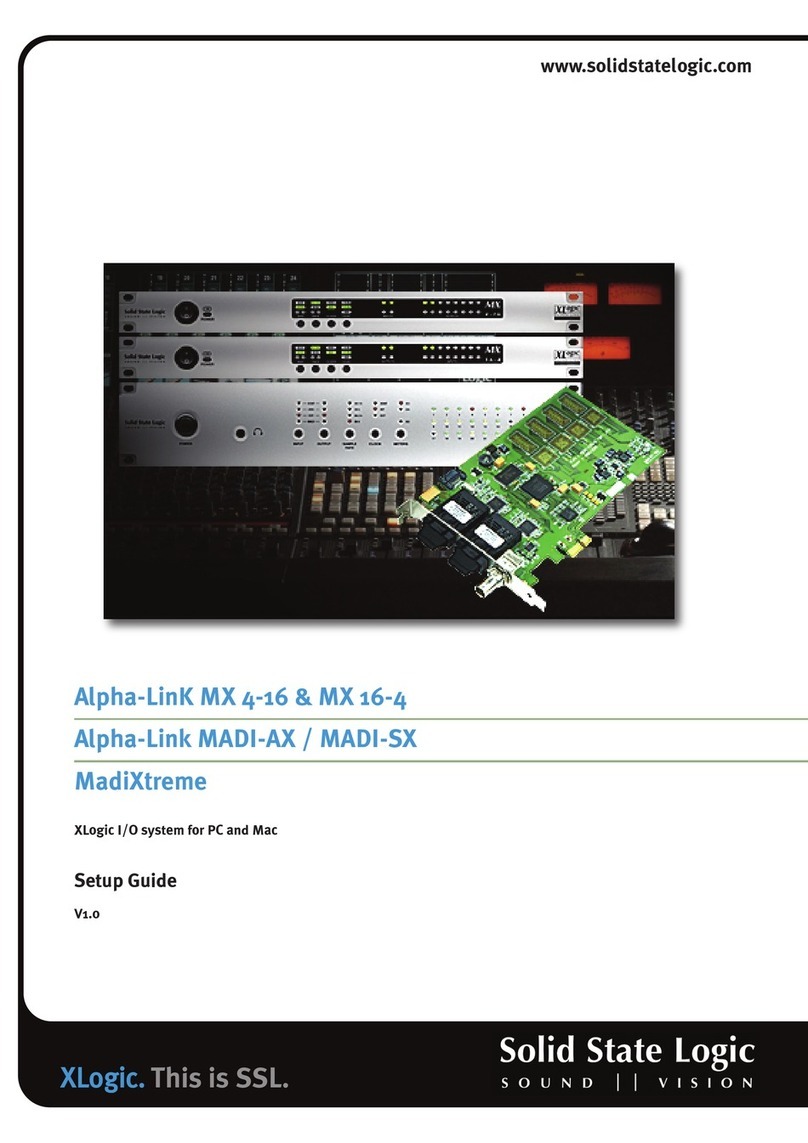

Solid State Logic Alpha-LinK MX 4-16 Manuale utente
Solid State Logic
Solid State Logic MadiXtreme MADI I/O Manuale utente
Solid State Logic

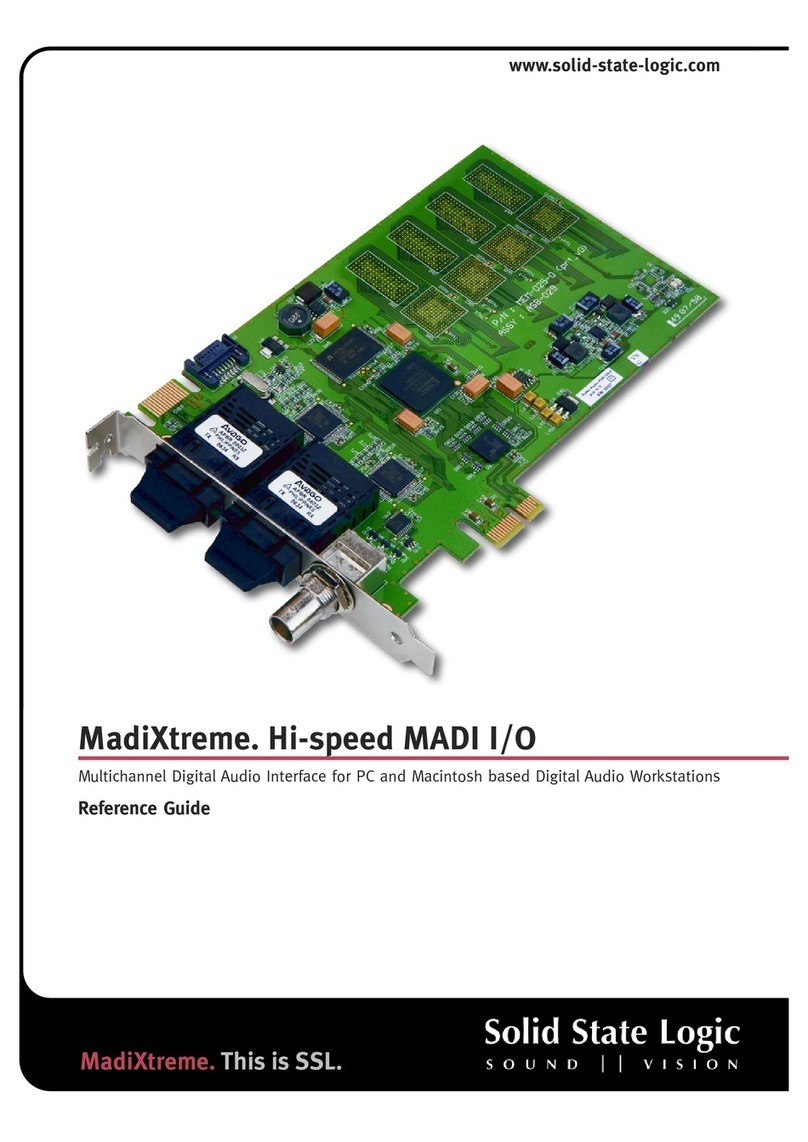

Solid State Logic Multichannel Digital Audio Interface... Manuale utente
