1. Brief introduction to the Telis 4 RTS remote control 3

1.1 What is the Telis 4 RTS for? 3

1.2 A few denitions 3

2. Safety - Important information 4

2.1 Installation and commissioning 4

2.2 Operating 4

2.3 Environment 5

3. Content of the kit and tools required 5

3.1 List of parts 5

3.2 Tools required 5

4. The Telis 4 RTS in detail 6

4.1 Components 6

4.2 Technical data 6

5. How does the Telis 4 RTS operate? 6

5.1 Channels and indicator lights 6

5.2 Choice of products to be controlled 8

6. Adding a new Telis 4 RTS 12

6.1 Identifying the original control point 12

6.2 One-touch point 13

6.3 Point with Up/STOP/Down buttons 16

6.4 Timer 18

6.5 Situo control point 20

6.6 Telis 1 RTS/Telis Soliris RTS remote controls 21

7. Replacing a lost or broken control point 23

7.1 Sole control point lost or broken 23

7.2 One lost or broken control point amongst others 24

8. Mounting the bracket 24

9. Everyday use of the Telis 4 RTS 24

9.1 Channel selection 24

9.2 Up and Down buttons 25

9.3 My button 25

9.4 Replacing the battery 25

9.5 Maintenance 26

10. Problems with the Telis 4 RTS? 26

Contents

Telis 4 RTS

Somfy’s expertise delivers satisfaction guaranteed.

Thank you for choosing a Somfy Telis 4 RTS .

Before installing and using the Telis 4 RTS, please read this guide

carefully.

Somfy solutions animate your windows and entrances to bring your

whole house alive. Somfy solutions are designed so that everyone can

enjoy the benets of the products in their home, based on their specic

requirements.

In this guide, the term ‘product’ can include your awning, blind, curtain,

garage door, gate, projection screen, roller shutter.

Well thought-out and easy to use, Somfy solutions are one of life’s little

daily pleasures, making home life more enjoyable.

1. Brief introduction to the Telis 4 RTS remote

control

1.1 What is the Telis 4 RTS for?

The Telis 4 RTS is a wireless radio remote control compatible only

with products tted with Radio Technology Somfy (RTS): roller shutter

motors, awning motors, etc.

The Telis 4 RTS makes it possible to control several products individually

or all at the same time using just this one remote control handset. This is

made possible by the Telis 4 RTS using a 5 channel radio system, each

channel being identied by the indicator lights. The Telis 4 RTS also

makes it possible to control several products at once.

1.2 A few denitions

Installation

All of the Radio Technology Somfy products a house is equipped with.

Favourite position:

The favourite position is your ideal position for your product in certain

common situations, for example, your awning partially extended when

you are dining beneath it in summer but don’t want to deprive your

houseplants of sunlight; shading your computer screen from glare by

partially closing your interior window blinds/curtains etc.

Telis 4 RTS

2. Safety - Important information

2.1 Installation and commissioning

Before installing and using the Telis 4 RTS, please carefully read these

instructions, which describe how to install, commission and operate the

Telis 4 RTS.

Never begin installing without rst checking the compatibility of the Telis

4 RTS with the associated equipment and accessories.

Any incorrect use will invalidate the warranty and Somfy's liability.

2.2 Operating

Somfy recommends that at least one control point is located close to -

the product or group of products.

Do not allow children to play with the xed control points. Keep remote

controls out of the reach of children.

Monitor the product (especially roller shutter/awning/garage door/gate)

while it is moving, especially during commissioning of the Telis 4 RTS,

and keep people at a distance until the product is completely closed.

Make sure the power supply to the product is turned off before any

maintenance operation in the vicinity of the product (for example, when

cleaning windows near your blind).

Avoid moving the product if ice has formed in it, unless the motor is

tted with anti-freeze protection.

Do not leave the Telis 4 RTS behind a window in full sunlight: the Telis

4 cannot withstand temperatures greater than 60°C.

Do not leave the Telis 4 RTS in a car in winter.

Do not immerse or soak the Telis 4 RTS in any liquid.-

Only use maintenance products recommended by Somfy.-

Frequently check the product (e.g. awning) to detect any defects in -

balance or any signs of wear. Do not use the product if a repair or

adjustment is required.

Telis 4 RTS

2.3 Environment

Damaged electrical or electronic products, such as used batteries,

should not be disposed of with household waste. Please take them to

a collection point or an approved centre to ensure they are recycled

correctly.

3. Content of the kit and tools required

3.1 List of parts

-Before starting installation and commissioning of the Telis 4 RTS,

check that all parts listed in the table below are present in the correct

quantity (Q):

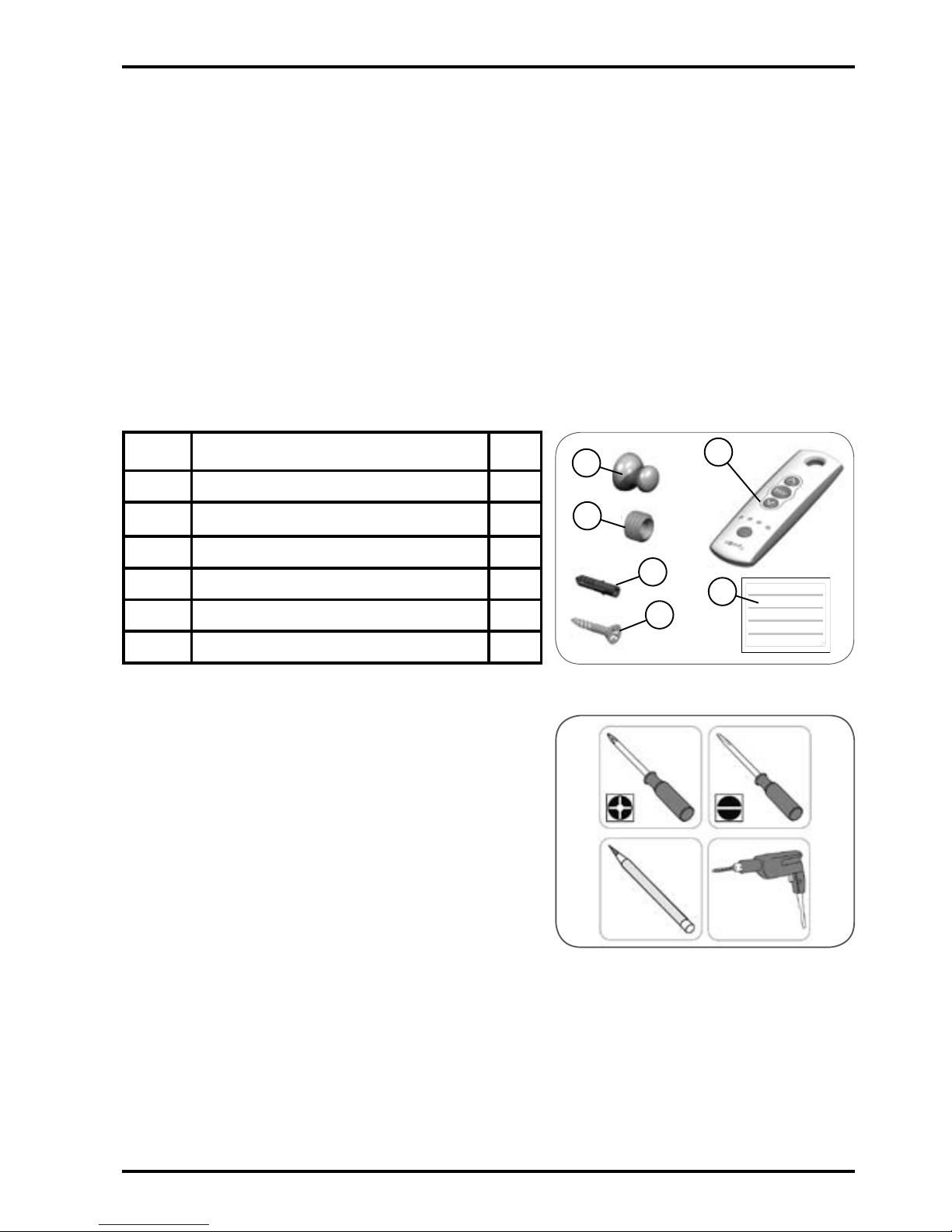

No. Components Q.

1Telis 4 RTS remote control 1

2Mounting pin 1

3Bracket 1

4Plug 1

5Screw 1

6Identication sticker 1

3.2 Tools required

• Appropriate screwdriver for

the screws to be used

Insulated athead electricians •

screwdriver

Drill and drill bit•

Pencil•

Telis 4 RTS

4. The Telis 4 RTS in detail

4.1 Components

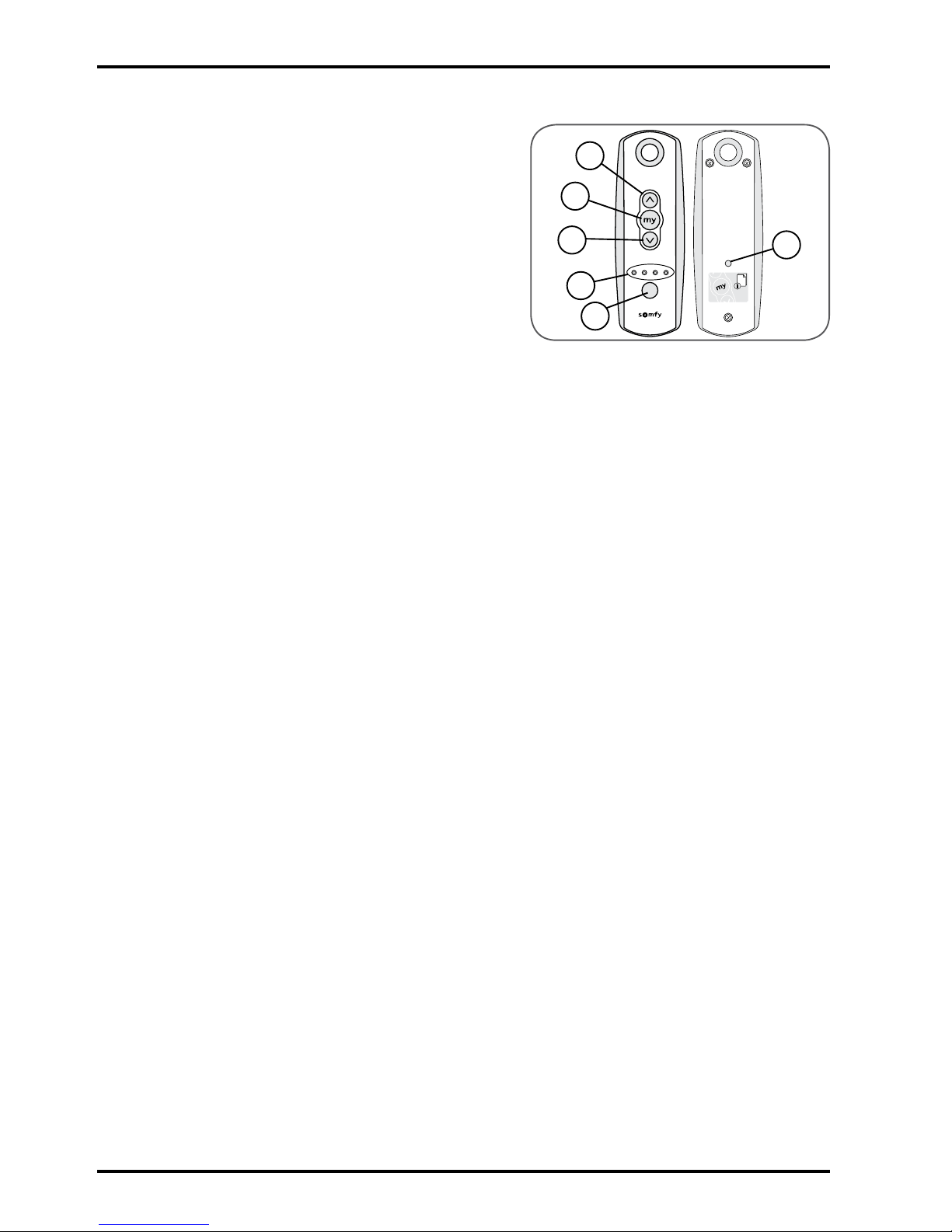

A. Up button

B. STOP/my button

C. Down button

D. Indicator lights

E. Selection Button

F. PROG button

4.2 Technical data

Dimensions in mm (H x w x d):

Pure model: 134 x 41 x 21 mm

Lounge, Silver, Patio models: 145 x 49 x 22 mm

Operating temperature: 0°C to + 60°C

Protection rating: Inside use, in a dry room - IP 30

Frequency: 433.42 MHz

Range: 20 m through two concrete walls; 200 m in open space

Battery: 3 V, type CR 2430

5. How does the Telis 4 RTS operate?

5.1 Channels and indicator lights

5.1.1 Description

The Telis 4 RTS allows independent or simultaneous control of different

products.

This functionality is possible thanks to a 5 channel system, identied

by indicator lights: each channel corresponds to an individual remote

control and is associated with one or several indicator lights.

Each channel is independent and controls a product or group of

products. Navigation between the 5 channels is carried out using the

Selection button (E).

my somfy.com

Telis 4 RTS

5.1.2 Channel identication

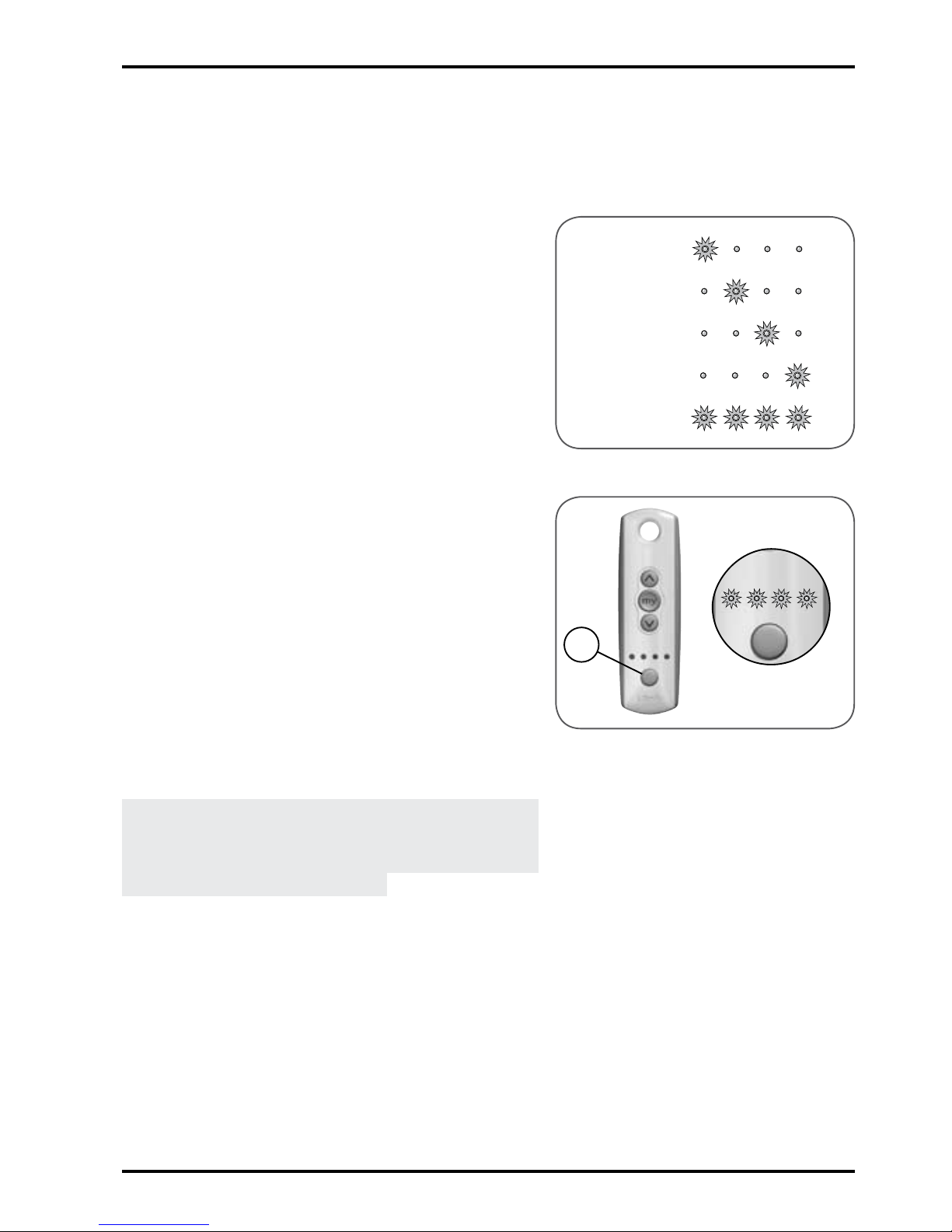

The rst 4 channels are each represented

by an indicator light, the fth channel by all

4 indicator lights:

• Channel 1: the rst indicator light is

on,

Channel 2: the second indicator •

light is on,

Channel 3: the third indicator light •

is on,

Channel 4: the fourth indicator light •

is on,

Channel 5: all four indicator lights •

are on.

5.1.3 Channel selection

The Selection button (E) allows naviga-

tion between the 5 channels:

Press the Selection button (E) to select

the indicator light that corresponds with

the required channel, the channel for

the product to be controlled:

The indicator light will come on for

►

a few seconds and then turn off.

Press one of the three buttons, Up/

STOP/Down to control the operations.

Note: the Telis 4 RTS will store the last

channel activated. Press the Selection

button (E), the indicator light of the last

channel used will light up.

Channel 1:

Channel 2:

Channel 3:

Channel 4:

Channel 5:

Telis 4 RTS

5.2 Choice of products to be controlled

Note:

This section is illustrated with a specic example to explain the opera-

tion of the Telis 4 RTS and its channels. The blinds identied here can

be replaced with roller shutters or a combination of blinds and roller

shutters.

5.2.1 Context of use

To facilitate explanations, we will use a group of 4 blinds in a home of

the following types:

Kitchen blind,•

Study blind,•

Living Room blind No.1 called Living Room bind 1,•

Living room blind No.2 called Living Room blind 2.•

Each of these blinds are tted with an individual control point.

The purpose in installing the Telis 4 RTS is to be able to control these

4 blinds independently but also on certain occasions all 4 blinds at the

same time.

In order to control these 4 blinds with the Telis 4 RTS, each blind must be

allocated a channel and then all 4 blinds allocated to the fth channel.

5.2.2 Allocating a channel to a blind

Note: This step is to choose which chan-

nel to allocate to which product. It is not

to make the allocation itself.

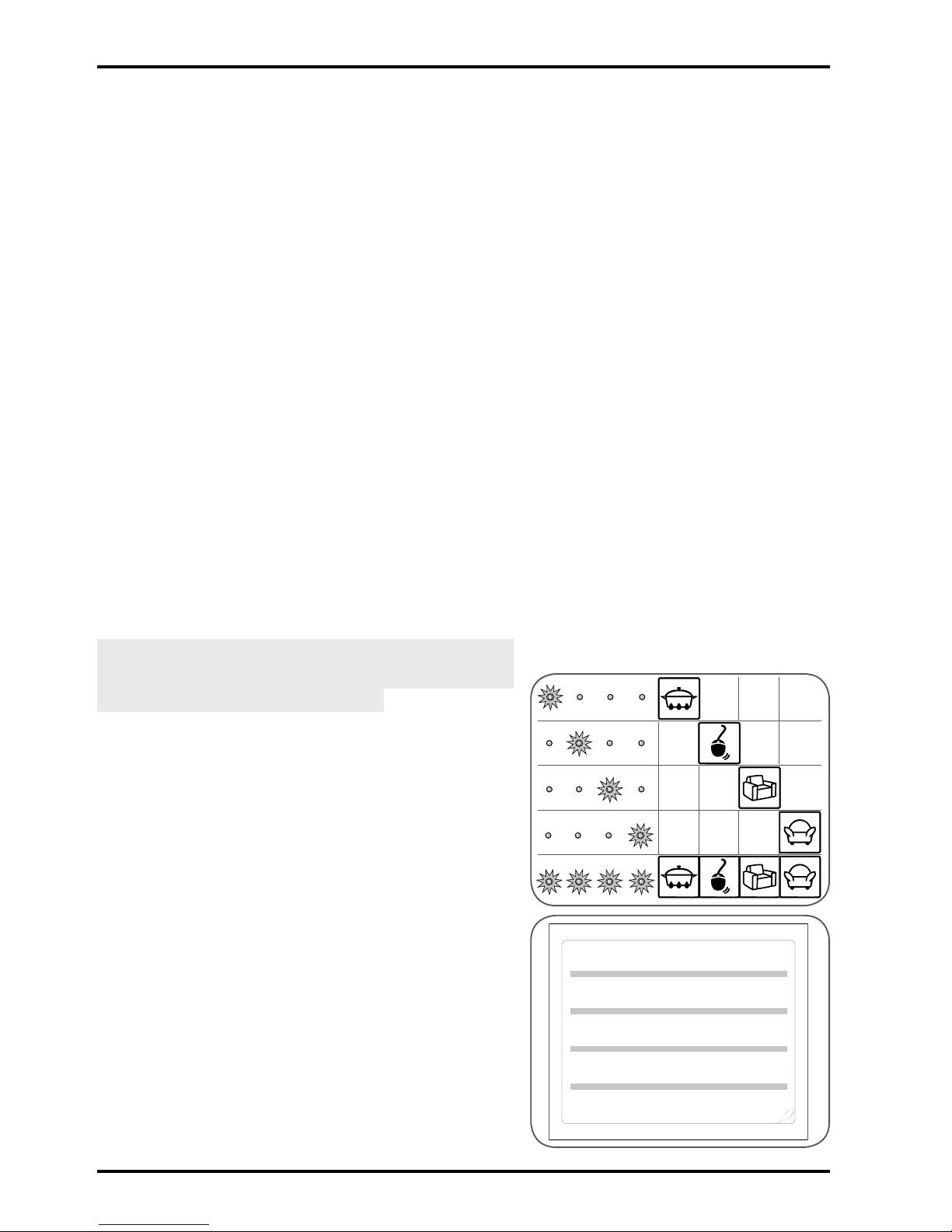

-Choosing which channel to associate

to which blind:

Channel 1: Kitchen Blind•

Channel 2: Study Blind•

Channel 3: Living Room Blind 1•

Channel 4: Living Room Blind 2•

Channel 5: all 4 Blinds - Kitchen, •

Study, Living Room 1 and Living

Room 2.

Add these names to the identication

sticker.

-Apply the sticker to the back of the Telis

4 RTS as a guide.

Kitchen

Study

Living Room 1

Living Room 2

Kitchen, Study, Living Room 1 and 2

Telis 4 RTS

5.2.3 How can the Telis 4 RTS be

associated to each blind?

Note: A channel is associated with a

blind individually.

Kitchen Blind on channel 1

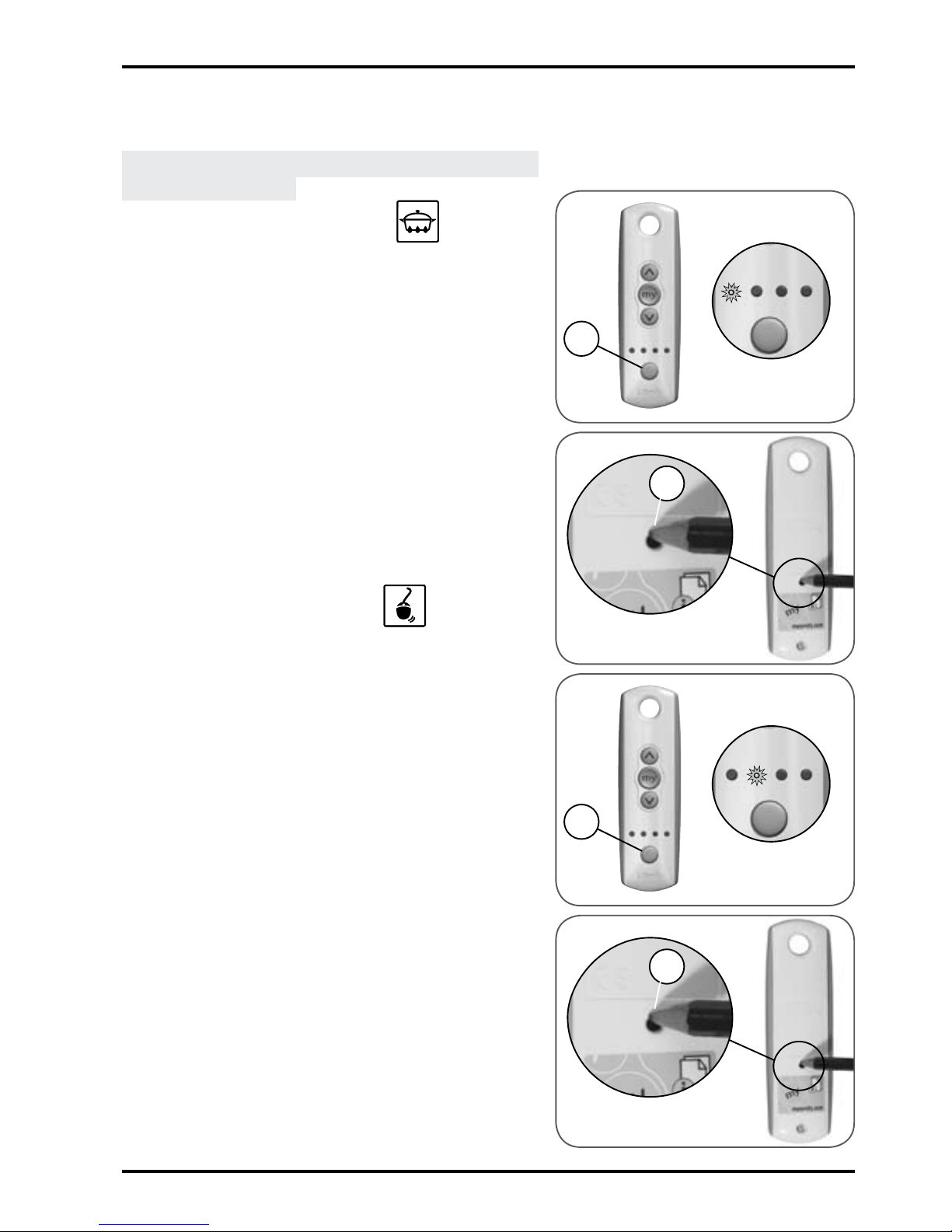

Identify the original control point asso--

ciated with the Kitchen blind.

Press the PROG button on the origi-

nal control point (refer to the section

“Adding a new Telis 4 RTS”) until the

blind moves briey.

-Press the Selection button (E) to light

up the rst indicator light (channel 1).

-Briey press the PROG button (F)

located on the back of the Telis 4 RTS:

The blind will perform a second

►

brief movement to indicate the new

Telis 4 RTS is programmed.

Study Blind on channel 2

Identify the original control point asso--

ciated with the Study blind.

Press the PROG button on the origi-

nal control point (refer to the section

“Adding a new Telis 4 RTS”) until the

blind moves briey.

-Press the Selection button (E) to

light up the second indicator light

(channel 2).

-Briey press the PROG button (F) loca-

ted on the back of the Telis 4 RTS:

The blind will perform a second

►

brief movement to indicate the new

Telis 4 RTS is programmed.

Telis 4 RTS

Living Room Blind 1 on channel 3

Identify the original control point -

associated with the Living Room

1 blind.

Press the PROG button on the origi-

nal control point (refer to the section

“Adding a new Telis 4 RTS”) until the

blind moves briey.

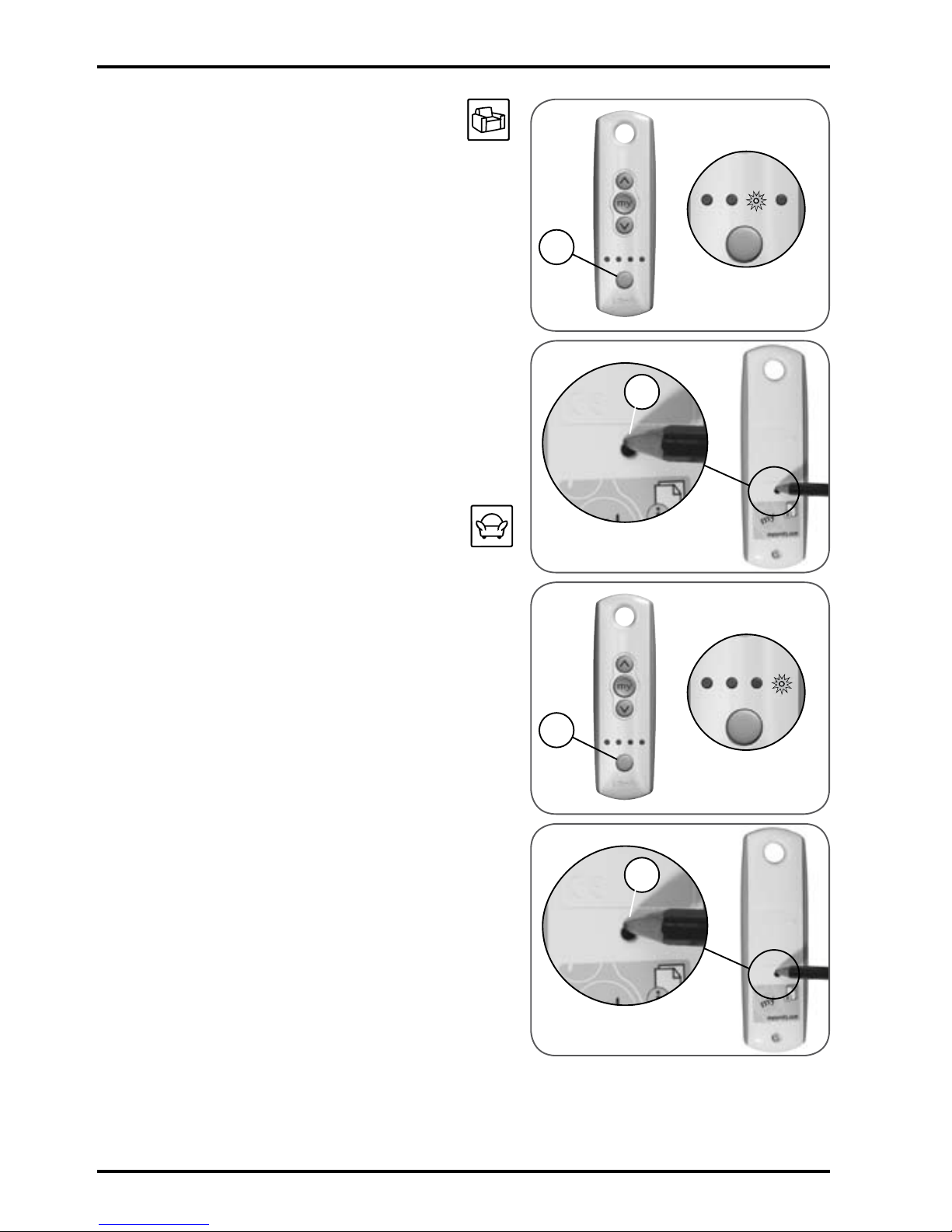

-Press the Selection button (E) to light

up the third indicator light (channel 3).

Briey press the PROG button (F)

located on the back of the Telis 4 RTS:

The blind will perform a second

►

brief movement to indicate the new

Telis 4 RTS is programmed.

Living Room Blind 2 on channel 4

Identify the original control point -

associated with the Living Room

2 blind.

Press the PROG button on the origi-

nal control point (refer to the section

“Adding a new Telis 4 RTS”) until the

blind moves briey.

Press the Selection button (E) to

light up the fourth indicator light

(channel 4).

-Briey press the PROG button (F) loca-

ted on the back of the Telis 4 RTS:

The blind will perform a second

►

brief movement to indicate the new

Telis 4 RTS is programmed.

Indice

Altri manuali SOMFY Telecomando

SOMFY

SOMFY KeyGo io Manuale utente

SOMFY

SOMFY INTEO TELIS 1 RTS Manuale utente

SOMFY

SOMFY KEYTIS INTERIOR Manuale utente

SOMFY

SOMFY Smoove Origin RTS US Manuale utente

SOMFY

SOMFY Telis 5 Modulis RTS Silver 1810663 Manuale utente

SOMFY

SOMFY inis RT Manuale utente

SOMFY

SOMFY Keytis NS2RTS Manuale del proprietario

SOMFY

SOMFY nina Manuale utente

SOMFY

SOMFY INTEO TELIS 1 RTS Manuale utente

SOMFY

SOMFY INTEO TELIS 1 RTS Manuale utente

SOMFY

SOMFY Sonesse 40 Manuale utente

SOMFY

SOMFY CENTRALIS RECEIVER Manuale utente

SOMFY

SOMFY Telis RTS Manuale utente

SOMFY

SOMFY nina Manuale utente

SOMFY

SOMFY 5014984 Manuale utente

SOMFY

SOMFY Easy Sun io Manuale utente

SOMFY

SOMFY Situo 5 Variation RTS II Manuale utente

SOMFY

SOMFY KEYGO Manuale utente

SOMFY

SOMFY Telis 1 RTS Pure Manuale utente

SOMFY

SOMFY Rollixo Optimo RTS Manuale utente

SOMFY

SOMFY Telis 1 Chronis RTS Manuale utente

SOMFY

SOMFY inteo CENTRALIS RTS Manuale utente

SOMFY

SOMFY Telis 16 RTS Manuale utente

SOMFY

SOMFY Impresario Chronis RTS Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
