SOMFY Telis Composio RTS Manuale utente

somfy.com

Telis Composio RTS

USER MANUAL

5015237A

Description of the remote control

Display

Up order(c)

Stop / Intermediate position (e)

Down order (a)

Programming key (Prog.)

Wall mount

Mount compartment

Battery compartment cover

Help / Information ( N)

Cancel or back to a previous screen( C)

Validation (ok)

Move left ( S )

Move right ( R)

Move up ( Q)

Move down (

)

Selection key (i)

Description of the symbols used in Telis Composio menus:

Menus

Groups (k)

Solar sensors (u)

Settings (g)

Symbols , and indicate the ability to move within the screen in the direction

shown by the arrows to access other set up elements not visible on-screen.

222120

REMOTE CONTROL PRESENTATION

(c)

(e)

(a)

17 18 19

( Q)

( S )

(

)

( R)

( C)(ok)

( N)

(i)

NOTES

5015237A-GB.qxd 25/01/07 14:52 Page 17

CHARACTERISTICS 2

Presentation 2

Technical specifications 2

SETTING INTO SERVICE 3

Fitting/replacing batteries 3

Attaching the wall mount 3

QUICK START GUIDE 4

Introduction 4

Moving through the matrix/menus 5

Selecting a group 6

Driving a group 6

Favourite position 7

Using the Soliris (u) function 8

CUSTOMISING THE MATRIX 9

Renaming groups 9

Organising groups in the matrix 9

SETTINGS 10

Language 10

Last groups used 10

Matrix size 10

Screen 11

Reset 11

Your contact 11

CREATING A GROUP 12

Creating a group 12

MODIFYING A GROUP 14

Modifying a group 14

DELETING A GROUP 15

Deleting a group 15

INDEX 16

NOTES 17

CONTENTS

5015237A-GB.qxd 25/01/07 14:52 Page 1

CHARACTERISTICS

26 mm 29 mm

0 °C (32 ° F)

+60 °C (140 ° F)

55 mm

174 mm

77 mm

Presentation

Telis Composio RTS is a remote control that lets you drive up to 20 groups of products

compatible with Somfy (RTS) radio technology.

The following product categories can be controlled by the Telis Composio RTS remote control:

• roller shutters,

• terrace awnings

• blinds (roller or pleated),

• venetian blinds (interior or exterior),

• garage doors and gates,

• lights (with a suitable radio receiver).

Technical specifications

Dimensions

Operating

temperature

0-60°C Indoor use Twenty meters through

two concrete walls

Protection

level Radio range

5015237A-GB.qxd 25/01/07 14:52 Page 2

SETTING INTO SERVICE

Fitting/replacing batteries

Open the battery compartment cover. Insert three brand new

type AAA (LR03) 1.5 V alkaline batteries from the same source

and with the same expiry date.

Be sure to comply with the polarity indications shown on the

remote control.

Never use rechargeable batteries.

A low battery condition is shown on the display by the ( p)

symbol.

All programmed settings remain in memory when the batteries are replaced or if they become

completely discharged.

If the remote control is not to be used for an extended period, we recommend removing the

batteries.

Used batteries should always be recycled and never disposed of with regular waste .

Setting into service for the first time

When first used the Telis Composio RTS automatically prompts the

user to set the language and create the first groups:

1- Select the language using the (n) keys and confirm with (ok).

2- Start to create the groups (refer to “Creating a group”).

·To create groups later, return to the main screen by pressing ( C) as

many times as necessary.

Attaching the wall mount

Choosing a location for the wall mount

Choose an accessible location where it is easy to see and use the

remote control.

Attach the wall mount to the wall using the two screws supplied.

Attach it at a convenient height for reading the display.

5015237A-GB.qxd 25/01/07 14:52 Page 3

QUICK START GUIDE

Introduction

Telis Composio RTS is used to control all of the opening and closing systems for a home by

creating groups of motor-driven systems to cover zones within the house. With just one touch

of a key, all of the products in the same group will rise, fall or adopt a favourite position,

simultaneously.

A group may comprise a number of products… or just one. You choose!

Examples:

A single group for all of the ground floor shutter that will close them simultaneously to

leave the house secure, even for a short while.

This group could be called “Ground”.

Another group for all of the blinds on the South side of the house that will be closed to

protect furniture and rugs from the afternoon sun during the summer months.

This group could be called “South”.

Another group for all of the house blinds to close them at the touch of a key at bedtime.

This group could be called “All blinds”.

Another group solely for the office window blind that will take up the ideal position to

avoid any reflections off the computer screen.

This group could be called “Office”.

Another group for the gate to open it for visiting friends.

This group could be called “Gate”.

Telis Composio RTS offers the ability to create 20 different groups to organise house functions

as needed.

Every group can be named and positioned as required.

5015237A-GB.qxd 25/01/07 14:52 Page 4

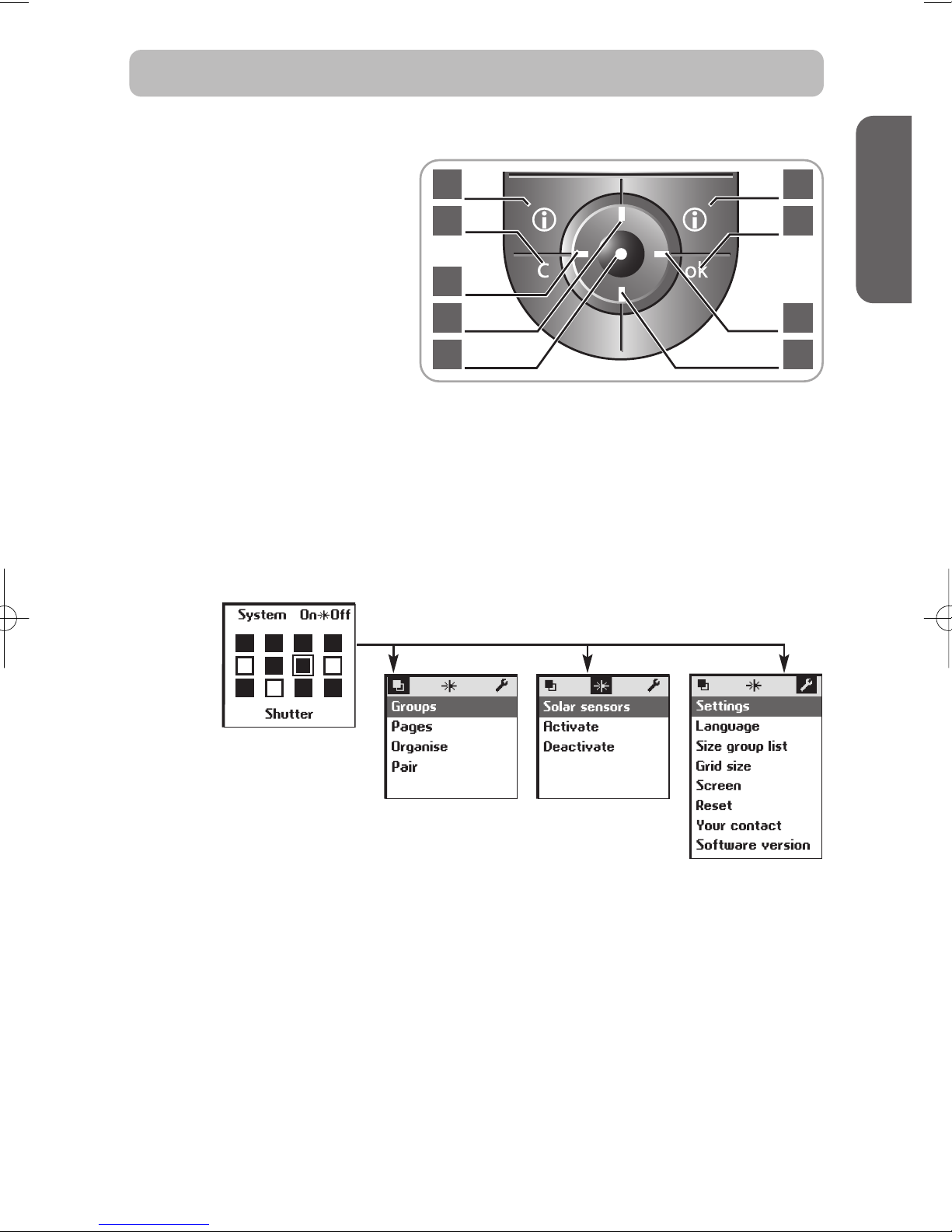

Moving through the matrix/menus

The (m) keys let you move the cursor

to select a group or to access the

menus and submenus provided by

Telis Composio RTS.

Press (i) or (ok) to call up the next

screen.

( C) returns you to the previous

screen. Press ( C) as many times as

necessary to return to the main screen.

As a rule, (i) lets you choose the element that the cursor is pointing to and (ok) confirms

an action.

System menu general layout

QUICK START GUIDE

( Q)

( S )

(

)

( R)

( C)(ok)

( N)

(i)

5015237A-GB.qxd 25/01/07 14:52 Page 5

Selecting a group

There are two different ways to select a group.

Selecting a group by name

Place the cursor on the group names at the bottom of the screen and use the (n) keys to scroll

the group names until the desired group is found.

The names that appear in this field are the names of the last groups

used. You can choose to display the last five groups used, the last ten

groups used or all groups. This setting can be modified from the

“System > Settings > Size group list” menu (refer to

“Settings”).

Selecting a group from the matrix

Select the desired group directly from the matrix using the (m) keys.

The black boxes correspond to groups that have already been

created; the blank boxes correspond to blank locations.

The corresponding group name is displayed at the bottom of the

screen.

Driving a group

After first selecting a group, all of the products in the group can be driven simultaneously:

Stop a

Up order Down order moving group

Garage door and gate opening and closing systems are driven in sequential mode using the (e) key: every

time you press the (e) key, the drive motor successively receives the up / stop / down / up / stop orders…

Garage door and gate opening and closing systems must not therefore be included in groups comprising other

kinds of products that use a conventional drive mode. A group should be created for each garage door or gate opening

and closing system. Garage doors and gates must always be operated when in sight of the user.

TIP

• Setting up this function so that it only displays the last five groups used makes it

possible to run a quick search on the most used groups.

QUICK START GUIDE

5015237A-GB.qxd 25/01/07 14:52 Page 6
