SONARAY SR-2050 Manuale utente
PRODUCT
MODEL
NUMBER SR-2050 SR-2070
POWER
CONSUMPTION 50W 70W
OPERATING
VOLTAGE 12-24V DC
HOUSING
MATERIAL Aluminum
OPERATING
TEMPERATURE -30°C ~ +50°C / -22°F ~ +122°F
IP
RATING 66
EPA
RATING 1.70 ft² 2.92 ft²
BUG
RATING B3-U1-G0 B3-U1-G1
WEIGHT 16.97 16.97
DIMENSIONS 23.62 x 8.66 x 4.01 32.10 x 9.74 x 4.98
All-in-One Solar Light Installation Guide
ATTENTION
INSTALLATION PREPERATION
1. Take out the luminaire from the box and place it on a level platform for easy installation.
2. For proper operation, a qualied electrician should perform the installation.
3. Ensure the normal ambient temperature of the installation location is between -40°C ~ +45°C.
4. Ensure the voltage of the luminaire is capatable with the onsite voltage before installation.
5. Any luminaire with damaged power cord should not be installed.
Note: The power must be cut off before installation.
TECHNICAL PARAMETERS INSTALLATION DIAGRAM
1. Press the on/o button near the mount of the solar light.
REV: 21 0101 0000
TYPEDATE
PROJECT
NOTES
www.sonarayled.com
®
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
This manual instructs the important information of installation and operation. Be sure to strictly follow
the instructions before use. To ensure correct installation and operation of the product, carefully read
and understand all contents of this guide. Any mechanical or electrical modications to the product
will void warranty and may cause dangerous hazards. To avoid potential issues caused by high
temperature, be sure no objects are on the lens while the product is switched on.
All-in-One Solar Light Installation Guide
INSTALLATION DIAGRAM

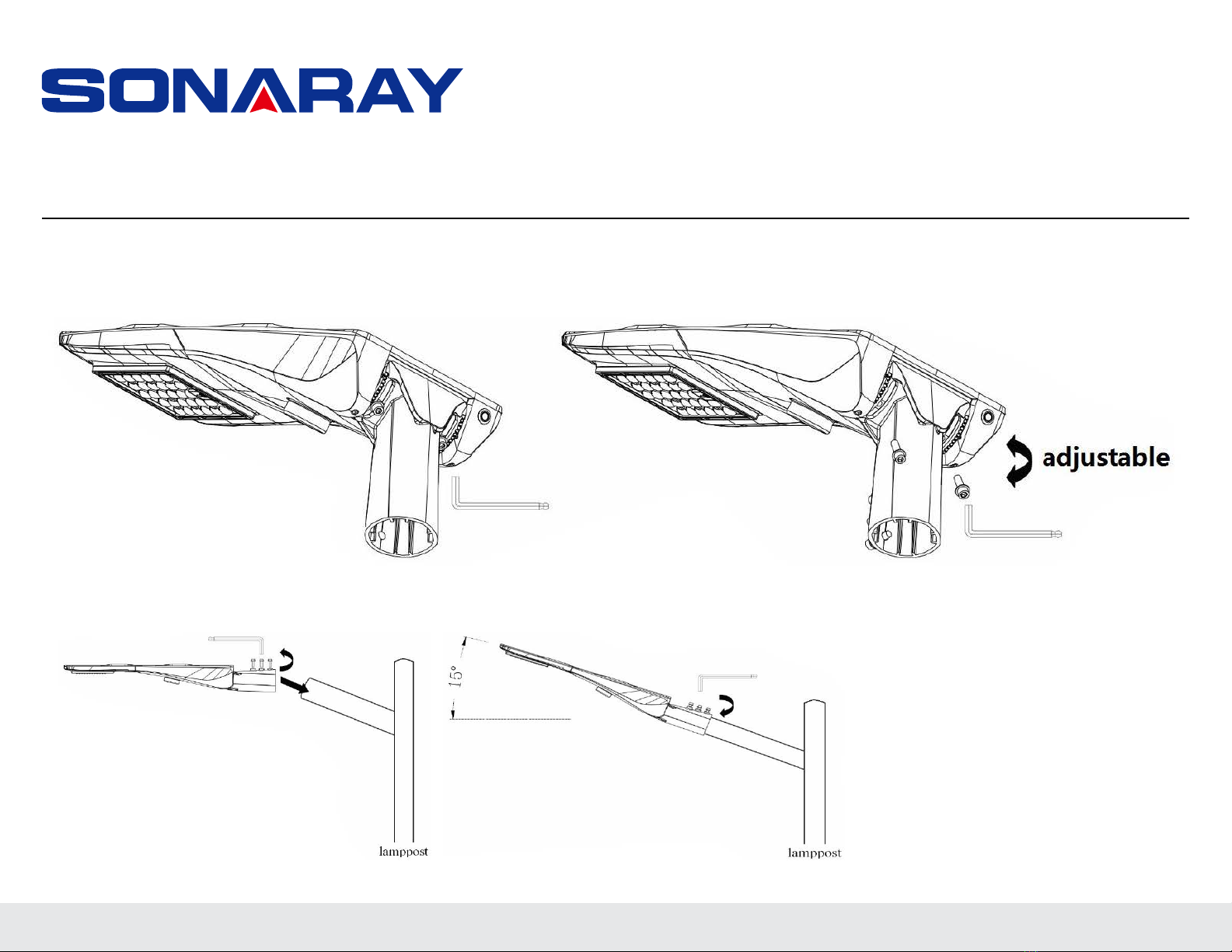

2. Loosen the two hexagonal screws on the bracket to adjust the angle of the unit. Once in the desired poistion, tighten the screws with the wrench.
SIDE MOUNTED STYLE
REV: 21 0101 0000
TYPEDATE
PROJECT
NOTES
www.sonarayled.com
®
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
Shoebox Area Light Installation Guide
TOP MOUNTED STYLE
3. Solar Light mounting bracket slips over any 2-3/8” tenon or pole arm.
REV: 21 0101 0000
TYPEDATE
PROJECT
NOTES
www.sonarayled.com
®
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221

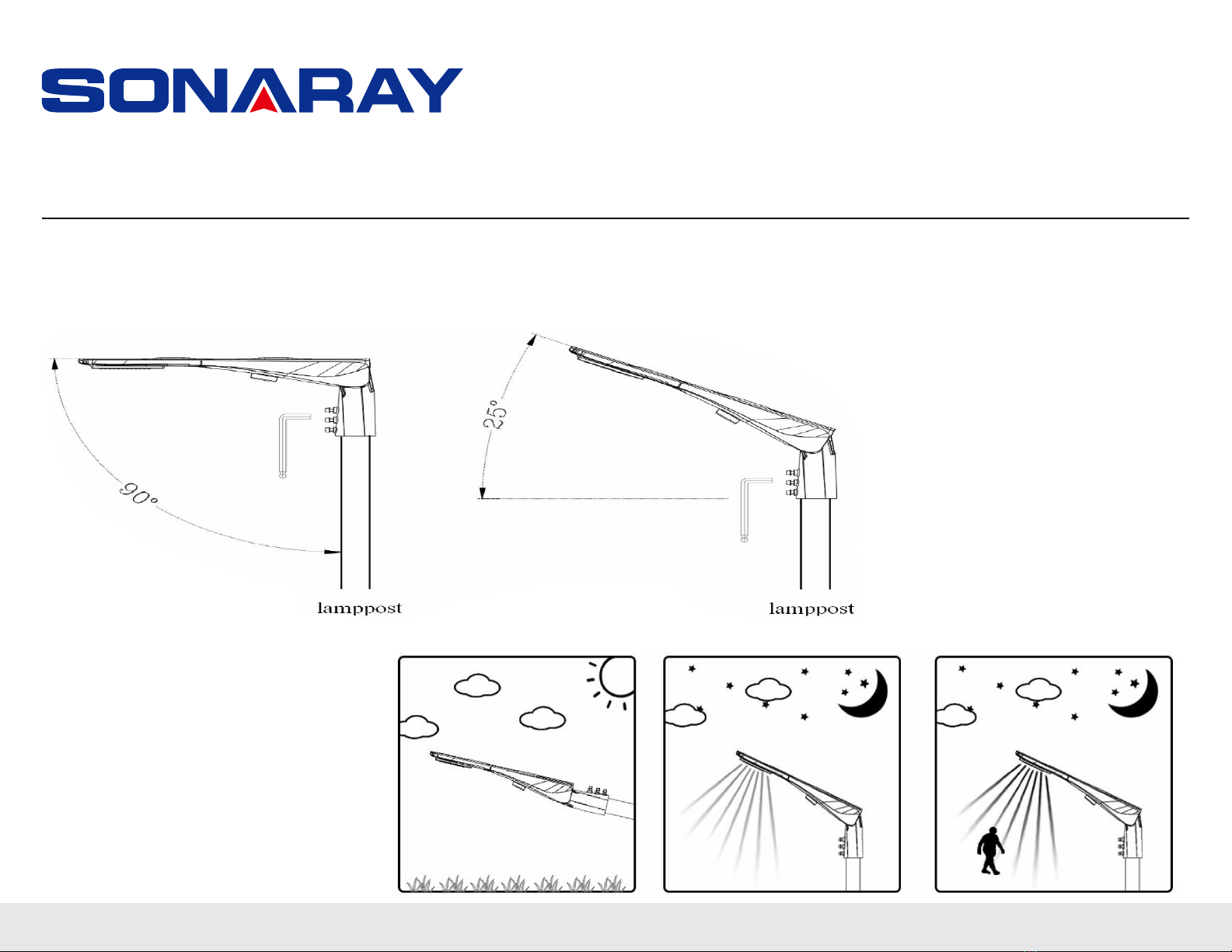

SOLAR FUNCTION
- Solar Panel charges in the daytime and stores power in the
internal battery.
- When no motion is detected from 30 feet away, the unit will
dim down to prolong the usage throughout the night.
- When motion is detected, the light will cut back on to 100%.
