Sonic Alert HomeAware BLINK Manuale utente
BLINK USER GUIDE
HA360B and HA360BDB
1
Copyright © 2019 Sonic Alert. All right reserved.
2
IMPORTANT SAFETY INSTRUCTIONS
When using your HomeAware™HA360B /
HA360BDB, basic safety precautions should always
be followed to reduce the risk of fire, electric shock
or injury to persons including the following:
1. Read and understand all instructions, if there is
something you do not understand please call
our customer service.
2. Do not use any electrical product near a
bathtub, washbasin, kitchen sink or laundry tub,
in a wet basement, or close to a swimming pool
or anywhere else there is water.
3. Do not use a telephone anywhere near a gas
leak.
4. Avoid using a telephone (other than a cordless
type) during a storm. There may be a risk of
electrical shock from lightning and electrical
storms.
5. Always unplug this product from the wall power
outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners on the product. Use
a damp cloth for cleaning only.
6. Always place this product on a stable surface.
Serious damage and/or injury may result if the
product falls.
3
IMPORTANT SAFETY INSTRUCTIONS
7. Do not cover slots, vents or openings on this
product. This product should never be placed
near or over a radiator or heat register. This
product should not be placed in a built-in
installation unless proper ventilation is
provided.
8. Always operate this product using electrical
voltage as specified on the base unit or in the
user guide. If you are not sure of the voltage in
your home, consult your dealer or local power
company.
9. Do not place anything on the power cord. Install
the product where no one will step or trip on
the cord.
10. Never push any objects through the slots in the
product. They can touch dangerous voltage
points or short-out parts that could result in a
risk of fire or electrical shock. Never spill liquid
of any kind on the product
11. Do not overload wall outlets or extension cords
as this can increase the risk of fire or electrical
shock.
4
IMPORTANT SAFETY INSTRUCTIONS
12. Unplug this product from the wall outlets and
refer servicing to the manufacturer under the
following conditions:
A. When the power cord or plug is damaged or
frayed.
B. If water or liquid has been spilled into or on
the product.
C. If the product has been exposed to rain or
water.
D. If the product does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions. Improper adjustment
may require extensive work by a qualified
technician.
E. If the product has been dropped or if the
case has been damaged in any way.
13. To reduce the risk of electrical shock, do not
take this product apart. Opening or removing
covers may expose you to dangerous voltages or
other risks. Incorrect reassembly can cause
electric shock when the appliance is
subsequently used.
5
IMPORTANT SAFETY INSTRUCTIONS
14. Never install telephone wiring during a lightning
storm.
15. Never install telephone jacks in damp or wet
areas.
16. Never touch uninsulated telephone wires or
terminals unless the telephone line and power
supply have first been disconnected.
17. Always use caution when installing or modifying
telephone lines.
18. Use only the power cord and batteries indicated
in this manual. Do not dispose of batteries in a
fire. They may explode. Check with local codes
for possible special disposal instructions.
19. This product should not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on or near
the product.
20. Batteries shall not be exposed to excessive heat,
such as sunshine or fire or any other heat
source.
21. The HomeAware main unit’s power supply plug
is used as the disconnect device, which shall
remain readily operable.
6
FEATURES
•The brightest and most colorful signaling receiver
on the market today
•Connects to the HomeAware main unit,
transmitters, and receivers
•Works with compatible Sonic Alert legacy
receivers via the HomeAware bridge unit
•Blinks five unique colors to alert you to five
differing alerts
•The bright flash duration is 0.04 seconds
•Simply press the link button on HA360B to link to
HA360DB and other HomeAware receivers and
transmitters
•Move the HA360B switch from receiver mode to
master mode to reset the device
•A fully-charged battery lasts for 48 hours
•The battery charges fully within one hour
•One-year Sonic Alert warranty
7
OUT OF BOX FIRST TIME USE
1. Plug in the HA360B.
2. Charge the HA360B fully
TO USE THE HOMEAWARE BLINK HA360B AS PART
OF THE HOMEAWARE SYSTEM
Linking:

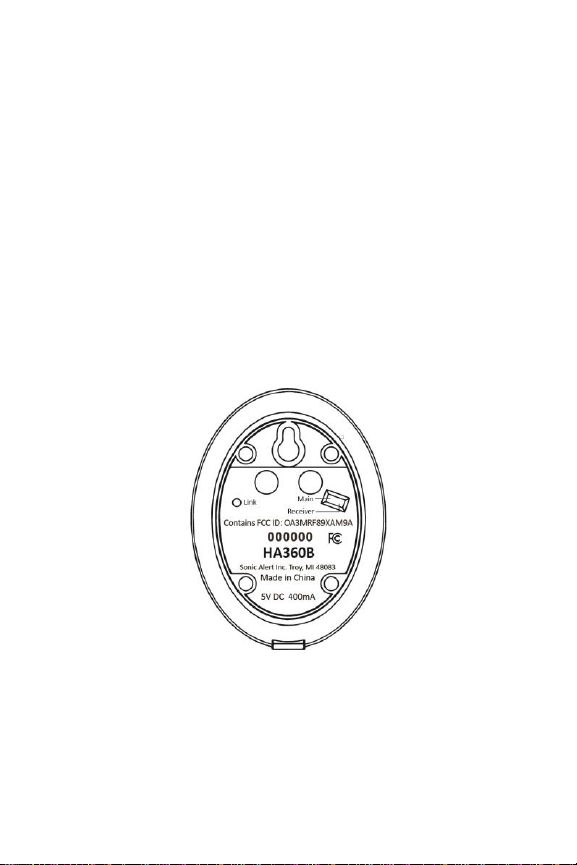

•Set the Main / Receiver switch to Receiver. (see
illustration for switch location)
•Set the HomeAware Main to link mode.
•Press the LINK button on the HomeAware Blink.
It will glow purple for one second.
If there is a low battery on the HomeAware Blink, it
will flash yellow every eight seconds.
If there is a low battery on the HomeAware Doorbell,
the HomeAware Blink will flash green every eight
seconds.
8
TO USE THE HOMEAWARE BLINK DOORBELL
HA360BDB AS A DOORBELL SIGNALER
Before linking please install batteries in your
HomeAware doorbell.

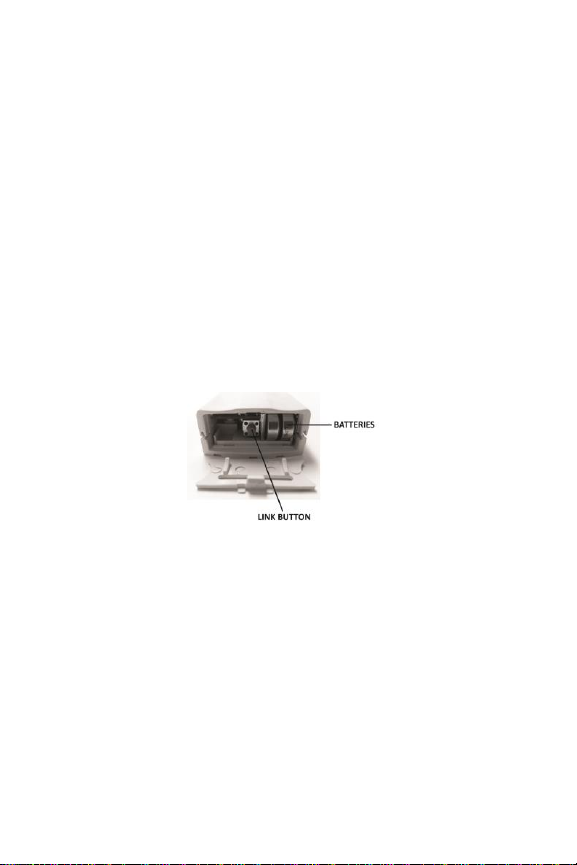

Install Batteries
The HomeAware™doorbell transmitter comes with
two #357 silver oxide long-lasting batteries that
need to be installed into the bottom of the unit.
Once installed the red light should light when the
button is pushed. If the light does not show, you may
have the batteries in backward.
Linking:
•Press the LINK button on the HomeAware
Doorbell. The HomeAware Blink will glow
purple for one second.
•When the HomeAware Doorbell is pressed, the
HomeAware Blink will flash four times and glow
green.
9
SET UP FOR HOMEAWARE DOORBELL HA360BDB
The Placement of the Doorbell Transmitter
Proper placement of the HomeAware™doorbell
transmitter is important because it uses Digital RF
frequencies to send its signal. It’s important to not
place or install it on anything made of metal because
RF signals cannot transmit through anything made of
metal.
THE DOORBELL TRANSMITTER SET-UP
Installation and Set Up of Doorbell Transmitter
Note: There are two methods to install/set up the
doorbell transmitter, both require batteries
1. Stand-alone no chime box. With this method no
existing doorbell chime box is available.
Placement of the transmitter must be within
50ft of the HomeAware™Main unit (See Step 1
for doorbell transmitter set up below).
2. To the existing chime box. This is the preferred
method as it keeps the transmitter out of the
elements and in closer range to the main unit
(See step 2 for doorbell transmitter to the
existing chime box set up below).
Please determine which method you will use and
continue with the following installation directions.
