SonicWALL PRO 2040 Manuale utente

COMPREHENSIVE INTERNET SECURITY™

SSSSSSSSSSbSonicWALL Security Appliances

SonicWALL PRO 2040

Getting Started Guide

SonicWALL PRO 2040 Getting Started Guide Page 1

SonicWALL PRO 2040 Security Appliance

Getting Started Guide

The SonicWALL PRO 2040 is a total security platform for complex networks, utilizing a

deep packet inspection engine and six* fully configurable Ethernet interfaces to provide

cost-effective, enterprise-class firewall throughput and VPN concentration. As a

comprehensive network security, mobility and productivity solution targeting networks

comprising 200 or fewer nodes or 50 or fewer network locations, the SonicWALL PRO

2040 offers the configuration flexibility and redundancy features typically associated with

more expensive appliances.

* Six interfaces are available by upgrading from the SonicOS Standard version of

software to SonicOS Enhanced. Also note that ICSA certification for the SonicWALL

PRO 2040 only applies when running the SonicOS Enhanced version of software on the

device. See both the SonicOS Enhanced Release Notes and the standalone

documentation for details on upgrading from SonicOS Standard to SonicOS Enhanced.

This Getting Started Guide provides instructions for basic installation and configuration of

the SonicWALL PRO 2040 running SonicOS Standard. After you complete this guide,

computers on your Local Area Network (LAN) will have secure Internet access.

Note: For complete documentation, refer to the SonicOS Standard Administrator’s Guide on the

SonicWALL Resource CD or at:

http://www.sonicwall.com/support/documentation.html.

Before You Begin

Check Package Contents

• One SonicWALL PRO 2040

security appliance

• One SonicWALL PRO 2040

Getting Started Guide

• One SonicOS Standard

Release Notes

• One straight-through Ethernet cable

• One crossover ethernet cable (red)

• One DB-9 (RS-232) CLI cable (requires a DB-9 serial port). This is a DB-9 Female-

to-DB-9 Female Null Modem Cable.

• One rack-mount kit

• One power cord*

• One SonicWALL PRO 2040 Resource CD, which contains:

• SonicWALL PRO 2040 Product Documentation

• Software Utilities

*A power cord is included only with units shipped to North America.

Any Items Missing?

If any items are missing from your package,

contact:

SonicWALL Support

Web: <http://www.sonicwall.com/support/>

E-mail: [email protected]

Page 2

What You Need to Begin

• A computer to use as a management station for initial configuration of the

SonicWALL PRO 2040

• A Web browser supporting Java and HTTP uploads. Internet Explorer 5.0 or higher,

Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher, or Firefox are recommended

• An Internet connection

SonicWALL PRO 2040 Configuration Steps

“Collecting Required Information” on page 2

“Applying Power to the SonicWALL PRO 2040” on page 3

“Connecting the SonicWALL PRO 2040” on page 4

“Accessing the Management Interface” on page 5

“Using the SonicWALL Setup Wizard” on page 6

“Testing Your Connection” on page 12

“Registering Your SonicWALL PRO 2040” on page 15

Collecting Required Information

Internet Service Provider (ISP) Information

Collect the following information about your Internet service:

If you connect

via

You probably

use Please record

Cable modem,

DSL with a router

DHCP You do not need to provide any Internet connection

information.

Home DSL PPPoE User Name:

Password:

Note: Your ISP may require your user name in the

format: name@ISP.com

T1,

Static broadband

Static IP IP Address:

Subnet Mask:

Default Gateway:

Primary DNS:

Secondary DNS (optional):

SonicWALL PRO 2040 Getting Started Guide Page 3

Note: If you are not using one of the network configurations above, refer to the

SonicOS Standard Administrator’s Guide.

Other Information

SonicWALL Management Interface

To access the SonicWALL PRO 2040 Web-based management interface. These are

the default settings, which you can change:

User Name: admin

Password: (default: password)

Applying Power to the SonicWALL PRO 2040

1. Plug the power cord into the SonicWALL PRO 2040 and into an appropriate power

outlet.

2. Turn on the power switch on the rear of the appliance next to the power cord.

The Power LED on the front panel lights up green when you plug in the

SonicWALL PRO 2040. The Test and Alarm LEDs light up and may blink

while the appliance performs a series of diagnostic tests. When the Test light is no

longer lit, the SonicWALL PRO 2040 is ready for configuration.

If the Test or Alarm LEDs remain lit after the SonicWALL PRO 2040 has booted,

restart the SonicWALL PRO 2040.

For more troubleshooting information, refer to the SonicOS Standard Administrator’s

Guide.

Dial in to a server PPTP Server Address:

User Name:

Password:

If you connect

via

You probably

use Please record

Page 4

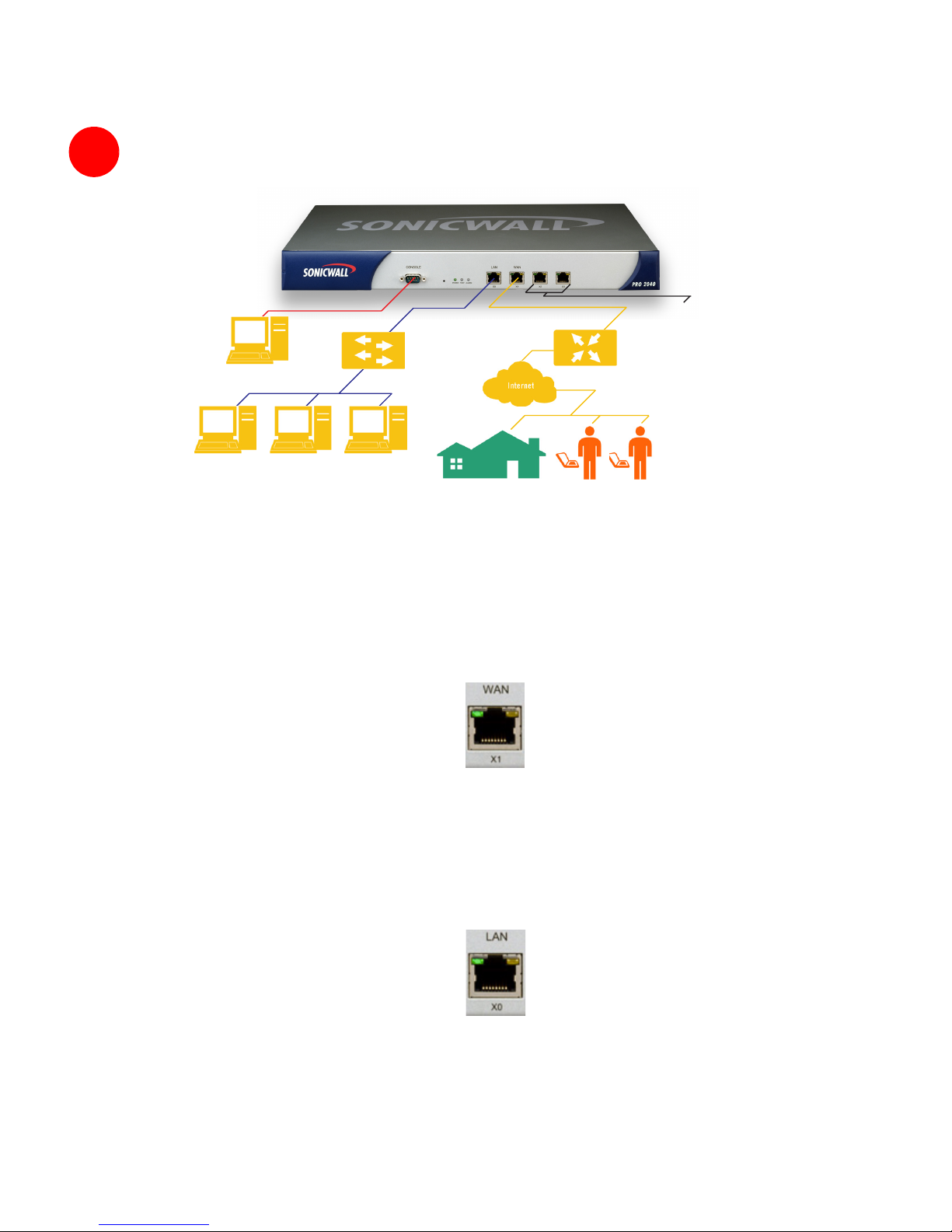

Connecting the SonicWALL PRO 2040

1. Connect one end of an Ethernet cable to your Internet connection such as a DSL

modem or a router.

2. Connect the other end of the cable to the WAN port on the front of your

SonicWALL PRO 2040.

The WAN Activity LED to the above left of the port lights up in green indicating an

active connection.

3. Connect one end of an Ethernet cable to the computer you are using to manage the

SonicWALL PRO 2040.

4. Connect the other end of the cable to the LAN port on the front of your

SonicWALL PRO 2040.

The LED for the LAN port you used lights up indicating an active connection. This

may take several seconds.

When you connect the LAN, the SonicWALL PRO 2040 automatically checks for a

DHCP server on the LAN. If it does not find one, it automatically enables its own

DHCP server.

LAN (X0) WAN(X1)

HUB/SWITCH

LOCAL CLIENTS

COMMAND-LINE

INTERFACE

CONSOLE

REMOTE CLIENTS

ROUTER/MODEM

USER DEFINED

PORTS (X2-X3)

SonicWALL PRO 2040 Getting Started Guide Page 5

Accessing the Management Interface

The computer you use to manage the SonicWALL PRO 2040 must be set up to accept a

dynamic IP address, or have an unused IP address in the 192.168.168.x/24 subnet, such

as 192.168.168.20. For instructions on configuring your IP address, see “Configuring

Computers for Your LAN” on page 20.

To access the Web-based management interface of the SonicWALL PRO 2040:

1. On the computer you just connected, start your Web browser.

SAlert: Your Web browser must support Java and HTTP uploads. Internet Explorer 5.0

or higher or Netscape Navigator 4.7 or higher are recommended.

2. Enter 192.168.168.168 (the default LAN management IP address) in the Location or

Address field.

3. The SonicWALL Setup Wizard launches and guides you through the configuration

and setup of your SonicWALL PRO 2040.

If the SonicWALL Setup Wizard Does Not Appear

If you cannot connect to the SonicWALL PRO 2040 or the Setup Wizard does not

display, verify the following configurations:

• Did you correctly enter the SonicWALL PRO 2040 management IP address in

your Web browser?

• Are the Local Area Connection settings on your computer set to obtain an IP

address dynamically (DHCP) or set to a static IP address of 192.168.168.20?

See “Configuring Computers for Your LAN” on page 20 for instructions on

changing your Local Area Connection settings.

192

168

in the Location or

Address field

Page 6

• Do you have the Ethernet cable connected to your computer and to the LAN port

on your SonicWALL PRO 2040?

• Some browsers may not launch the Setup Wizard automatically. In this case,

log into SonicWALL PRO 2040 using “admin” as the user name and

“password” as the password. After you log in, click the Wizards button on the

System > Status page. Select Setup to begin configuring your

SonicWALL PRO 2040.

• Some popup blockers may prevent the launch of the setup wizard. You can

temporarily disable your popup blocker, or add the management IP address of

your SonicWALL (for example, 192.168.168.168) to your popup blocker’s allow

list.

Using the SonicWALL Setup Wizard

The SonicWALL Setup Wizard provides user-guided instructions for configuring your

SonicWALL PRO 2040.

Note: Use the ISP information you collected in Step 1, “Collecting Required

Information” on page 2 to complete the steps in the Setup Wizard.

9Tip: If you do not know what type of Internet connection you have, contact your ISP. In

addition, the SonicWALL Setup Wizard will attempt to detect your connection settings.

You will see what is automatically selected in Step 3, WAN Network Mode

Configuring the SonicWALL PRO 2040

The SonicWALL configuration wizard displays. The first screen is Welcome. Click Next

to begin the wizard configuration.

1. Change Password - Change the administrative password. This is the password for

the admin account.

Note: Keep your new password in a safe place. If you lose your password, you will

have to reset the SonicWALL PRO 2040 to factory settings, losing your configuration.

For instructions on resetting your SonicWALL PRO 2040, See the SonicOS Standard

Administrator’s Guide available on the SonicWALL Resource CD and on the Web at:

http://www.sonicwall.com/support/documentation.html

Click Next.

Old Password Should be populated with the default password, password.

New Password Enter your new password.

Confirm Re-enter your new password.

SonicWALL PRO 2040 Getting Started Guide Page 7

2. Change Time Zone - Change the Time Zone setting to your local time zone.

Click Next.

Note: It is important that you set the time zone correctly before you register your

SonicWALL PRO 2040.

3. WAN Network Mode - The Setup Wizard automatically detects most networking

modes. If it does not detect the networking mode, you may have a Static IP Address.

See Step 1, “Collecting Required Information” on page 2.

Confirm the selection or select the correct type of network connection for your

network.

Click on the yellow link for a networking type to see a definition.

Click Next.

4. WAN Network Mode - The second WAN network mode page configures your WAN

settings for the selection you made in the previous page.

Statis IP

The Setup Wizard screen should display:

WAN Network Mode: NAT Enabled (Static IP)

Time Zone Select the time zone for your location from the list.

Automatically

adjust clock for

daylight saving time

Check this setting if you live in an area that observes Daylight

Savings Time.

Static IP Select Static IP if you want to manually assign the

SonicWALL PRO 2040 a specific, unchanging IP address.

DHCP Select DHCP if your ISP automatically assigns your computer

a dynamic IP Address. DHCP is commonly used with cable

modems.

PPPoE Select PPPoE if your ISP requires a username and password

to establish a connection and assign a dynamic address.

PPPoE is commonly used with DSL modems.

PPTP Select PPTP if you dial into a specific server and log into a

VPN to establish a connection. With PPTP, you can have

either a static or dynamic IP Address.

SonicWALL WAN

IP Address

Enter a single, static IP address. This must be in the correct

address range for your ISP.

WAN Subnet Mask Enter the subnet mask for your network, for example,

255.255.255.0.

Page 8

Click Next.

Gateway (Router) Address Enter the IP address of your internet gateway provided by

your ISP.

DNS Server Address Enter the IP address of the DNS server for your network.

DNS Server Address #2

(optional)

You can enter a secondary, back-up DNS server to use if the

first one fails.

SonicWALL PRO 2040 Getting Started Guide Page 9

DHCP

The Setup Wizard page should display:

WAN Network Mode: NAT with DHCP Client

You do not need to enter any WAN networking settings. The network settings are

provisioned automatically from a DHCP server.

Click Next.

PPPoE

The Setup Wizard page should display:

WAN Network Mode - NAT with PPPoE Client

Click Next.

PPTP

The Setup Wizard screen should display:

WAN Network Mode: NAT with PPTP Client

Obtain an IP Address

Automatically

Select this if your ISP assigns you a dynamic IP address.

Use the following IP

Address

Select this if your ISP has assigned you a static IP address,

and enter the address.

PPPoE User Name Enter the user name for your Internet account. Your ISP may

require you to enter your user name in email address format,

including “@” and the domain name, for example,

joe.user@ispgateway.net.

PPPoE Password Enter the password for your internet account.

Inactivity Disconnect (min-

utes)

Check this box if you want the SonicWALL PRO 2040 to dis-

connect from the Internet if there is no traffic for the number of

minutes you enter.

PPTP Server IP Address Enter the address of the PPTP server you are connecting to.

PPTP User Name Enter your network user name.

PPTP Password Enter your network password.

Obtain an IP Address

Automatically

Select this if the server assigns you a dynamic IP address.

Use the following IP

Address

Check this if you have been given a static IP address, and fill in

the following three fields.

SonicWALL WAN IP

Address

Enter the static IP address for your connection.

Altri manuali per PRO 2040

Indice

Altri manuali SonicWALL Firewall

SonicWALL

SonicWALL TZ 170 Manuale utente

SonicWALL

SonicWALL Email Security 6000 Manuale utente

SonicWALL

SonicWALL Internet Security Manuale utente

SonicWALL

SonicWALL TZ 180 Manuale utente

SonicWALL

SonicWALL SOHO Wireless Manuale utente

SonicWALL

SonicWALL 1RK33-0D9 Manuale del proprietario

SonicWALL

SonicWALL NSA 2650 Manuale utente

SonicWALL

SonicWALL TZ 170 Manuale utente

SonicWALL

SonicWALL SMA Manuale tecnico

SonicWALL

SonicWALL SonicOS Enhanced 2.2 Manuale di servizio

SonicWALL

SonicWALL TZ 200 Series Manuale utente

SonicWALL

SonicWALL TZ270 Manuale utente

SonicWALL

SonicWALL SuperMassive 9800 AC Manuale utente

SonicWALL

SonicWALL CSa 1000 Manuale per l'uso e la cura

SonicWALL

SonicWALL TZ 180 Manuale utente

SonicWALL

SonicWALL SMA Series Manuale del proprietario

SonicWALL

SonicWALL PRO 200 Manuale utente

SonicWALL

SonicWALL TZ 100 Series Manuale utente

SonicWALL

SonicWALL NSA E7500 Manuale utente

SonicWALL

SonicWALL SMA 400 Manuale di istruzioni

SonicWALL

SonicWALL NSa 5700 Manuale utente

SonicWALL

SonicWALL Email Security 7.0 8000 Manuale utente

SonicWALL

SonicWALL 1RK53-116 Manuale del proprietario

SonicWALL

SonicWALL TZ570 Manuale utente

Manuali Firewall popolari di altre marche

Cisco

Cisco S190 Manuale utente

Fortinet

Fortinet FortiGate Voice Series Manuale utente

ADTRAN

ADTRAN NetVanta 2300 Manuale utente

SecureLogix

SecureLogix ETM System Manuale utente

NETGEAR

NETGEAR ProSafe FVX538 Manuale utente

Lanner

Lanner FW-8877 Manuale utente

Huawei

Huawei USG6000 Series Manuale di installazione e funzionamento

H3C

H3C SecPath F5000-AI-15 Manuale utente

Nexcom

Nexcom DNA 1150 Manuale utente

Fortinet

Fortinet FortiGate-60 series Manuale utente

Cisco

Cisco 3110 Manuale

Draytek

Draytek Vigor2860 Series Manuale utente

Lanner electronics

Lanner electronics FW-7650 Series Manuale utente

Swisscom

Swisscom Internet Backup Manuale utente

DPtech

DPtech FW1000 SERIES Manuale utente

FEITIAN

FEITIAN MultiPass FIDO Manuale utente

EBLOCKER

EBLOCKER PRO Manuale utente

GTA

GTA GB-200 Manuale utente
