SonicWALL TZ 170

Getting Started Guide

SonicWALL TZ 170 Getting Started Guide Page 1

SonicWALL TZ 170 Security Appliance

Getting Started Guide

The SonicWALL®TZ 170 security appliance is a total security platform for your network,

delivering enterprise-class layered security by integrating gateway anti-virus, anti-

spyware, intrusion prevention, and content filtering capabilities in an easy-to-use, low

cost platform.

This Getting Started Guide provides instructions for basic installation and configuration of

the SonicWALL TZ 170. After you complete this guide, up to 10, 25, or an unlimited

number of computers (depending on your license) on your network will have secure

Internet access.

Note: For complete documentation, refer to the SonicOS Standard Administrator’s

Guide on the SonicWALL Resource CD or at:

<http://www.sonicwall.com/support/documentation.html>.

SonicWALL TZ 170 Configuration Steps

Before You Begin page 2

Applying Power to the SonicWALLTZ 170 page 5

Connecting the SonicWALLTZ 170 page 5

Accessing the Management Interface page 6

Using the SonicWALL Setup Wizard page 8

Testing Your Connection page 13

Registering Your SonicWALLTZ 170 page 14

Activating SonicWALL Security Services page 17

Connecting Computers to Your SonicWALLTZ 170 page 20

Page 2

Before You Begin

Check Package Contents Any Items Missing?

If any items are missing from your package,

contact:

SonicWALL Support

Web: <http://www.sonicwall.com/support/>

1. One SonicWALLTZ 170

security appliance

2. One Getting Started Guide

3. One SonicOS Standard

Release Note

4. One straight-through Ethernet cable

5. One RJ45 CLI cable*

6. One 5 Volt DC power supply

7. One power cord**

8. One SonicWALLTZ 170 Resource CD

*The RJ45 CLI cable is only included with the purchase of a SonicWALLTZ 170 with

SonicOS Enhanced.

**A power cord is included only with units shipped to North America.

** Das eingeschlossene Netzkabel ist für Gebrauch in Nordamerikas nur vorgehabt.

Für Europaïsche Union (EU) Kunden, ist ein Netzkabel nicht eingeschlossen.

SonicWALL TZ 170 Getting Started Guide Page 3

SonicWALL TZ 170 Front and Back Panels Overview

Power Light WAN:

Link, Activity, 100

LAN:

Link, Activity

Test Light

Console Port

Link, Activity, 100

WAN Port Optional Port LAN Ports 1-5 Power

Optional Zone:

Front Bezel Feature Description

Power Light Indicates the SonicWALL TZ 170 Series appliance is powered on.

LAN: Link, Activity Indicates a LAN link (green), or LAN activity (blinking) on the specified port.

Optional Zone:

Link, Act, 100 Indicates a link, activity, and speed of the opt port connection.

WAN: Link, Act, 100 Indicates a link, activity, and speed of the WAN port connection.

Test Light Indicates the SonicWALL TZ 170 Series appliance is in test mode.

Back Panel Feature

Console Port Provides access to the command-line interface

(only for use with SonicOS Enhanced software).

WAN Port Provides a primary (Ethernet) connection to the Internet (WAN).

Optional Port Provides and optional configurable port.

LAN Ports 1-5 Provide multiple connections to your LAN.

Power Provides power connection using the power cord and power supply.

Page 4

Collecting Internet Service Provider (ISP) Information

Collect the following information about your Internet service:

If you connect via You probably use Please record

Cable modem,

DSL with a router DHCP No Internet connection information usually required.*

*Some service providers require a host name. Check

with your ISP.

Host Name:

Home DSL PPPoE User Name:

Password:

Note: Your ISP may require your user name in the

format: name@ISP.com

T1,

Static broadband,

Cable or DSL with

a static IP

Static IP IP Address:

Subnet Mask:

Default Gateway

(Router IP Address):

Primary DNS:

Secondary DNS (optional):

Dial in to a server PPTP Server Address:

User Name:

Password:

Note: If you are not using one of the network configurations above, refer to the

SonicOS Standard Administrator’s Guide.

Other Information

These are the default settings for accessing your SonicWALL TZ 170 Web-based

management interface:

User Name: admin

Password: (Default: password)

What You Need to Begin

• A computer to use as a management station for initial configuration of the

SonicWALL TZ 170

• An Internet connection

• A Web browser supporting Java and HTTP uploads. Internet Explorer 5.0 or higher,

Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher, or Mozilla Firefox are

recommended

SonicWALL TZ 170 Getting Started Guide Page 5

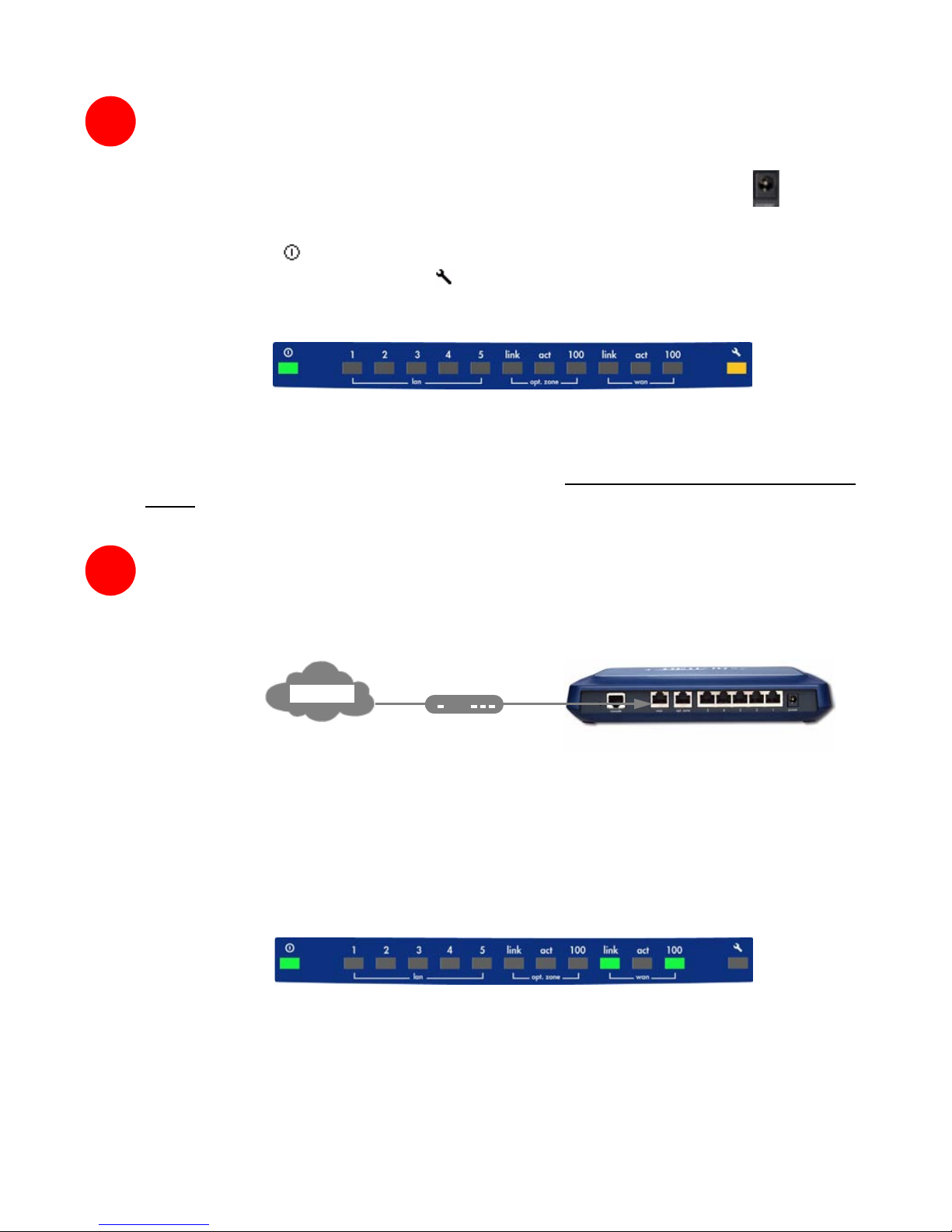

Applying Power to the SonicWALLTZ 170

Plug the power supply into the back of the SonicWALL security appliance and into an

appropriate power outlet.

The Power LED on the front panel lights up green when you plug in the

SonicWALL TZ 170. The Test LED lights up and may blink while the appliance

performs a series of diagnostic tests. When the Test light is no longer lit, the SonicWALL

security appliance is ready for configuration.

If the Test LED remains lit after the SonicWALL TZ 170 has booted, restart the

SonicWALL security appliance.

For more trouble shooting information, refer to the SonicOS Standard Administrator’s

Guide.

Connecting the SonicWALL TZ 170

Connecting the WAN Cable to the Internet

WAN

DSLorCable

Modem

Internet

1. Connect one end of an Ethernet cable to your Internet connection, such as a DSL

modem or cable modem.

This cable may already be connected between your computer and your modem. If

so, disconnect it from your computer, and leave it connected to the Internet.

2. Connect the other end of the cable to the WAN port on the back of your

SonicWALL TZ 170.

The WAN LEDs on the front panel lights up indicating an active connection.

Page 6

Connecting the LAN Cable to Your Management Station

Management

Station

LAN port #1

1. Connect one end of an Ethernet cable to the computer you are using to manage the

SonicWALL TZ 170.

2. Connect the other end of the cable to port # 1on the back of your

SonicWALL TZ 170.

The port # 1LEDs on the front panel light up indicating an active connection.

Accessing the Management Interface

The computer you use to manage the SonicWALLTZ 170 must be set up to accept a

dynamic IP address, or have an unused IP address in the 192.168.168.x/24 subnet,

such as 192.168.168.20. For instructions on configuring your IP address, see

“Configuring Computers for Your Network with DHCP” on page 20.

To access the Web-based management interface of the SonicWALLTZ 170:

1. On the computer you have connected to port # 1, start your Web browser.

Alert: Disable pop-up blocking software or add the management IP address of your

SonicWALL (192.168.168.168 by default) to your pop-up blocker's allow list

before accessing the SonicWALL management interface.

Your Web browser must support Java and HTTP uploads. Current versions of Internet

Explorer, Netscape Navigator, Mozilla, and Firefox are recommended.

SonicWALL TZ 170 Getting Started Guide Page 7

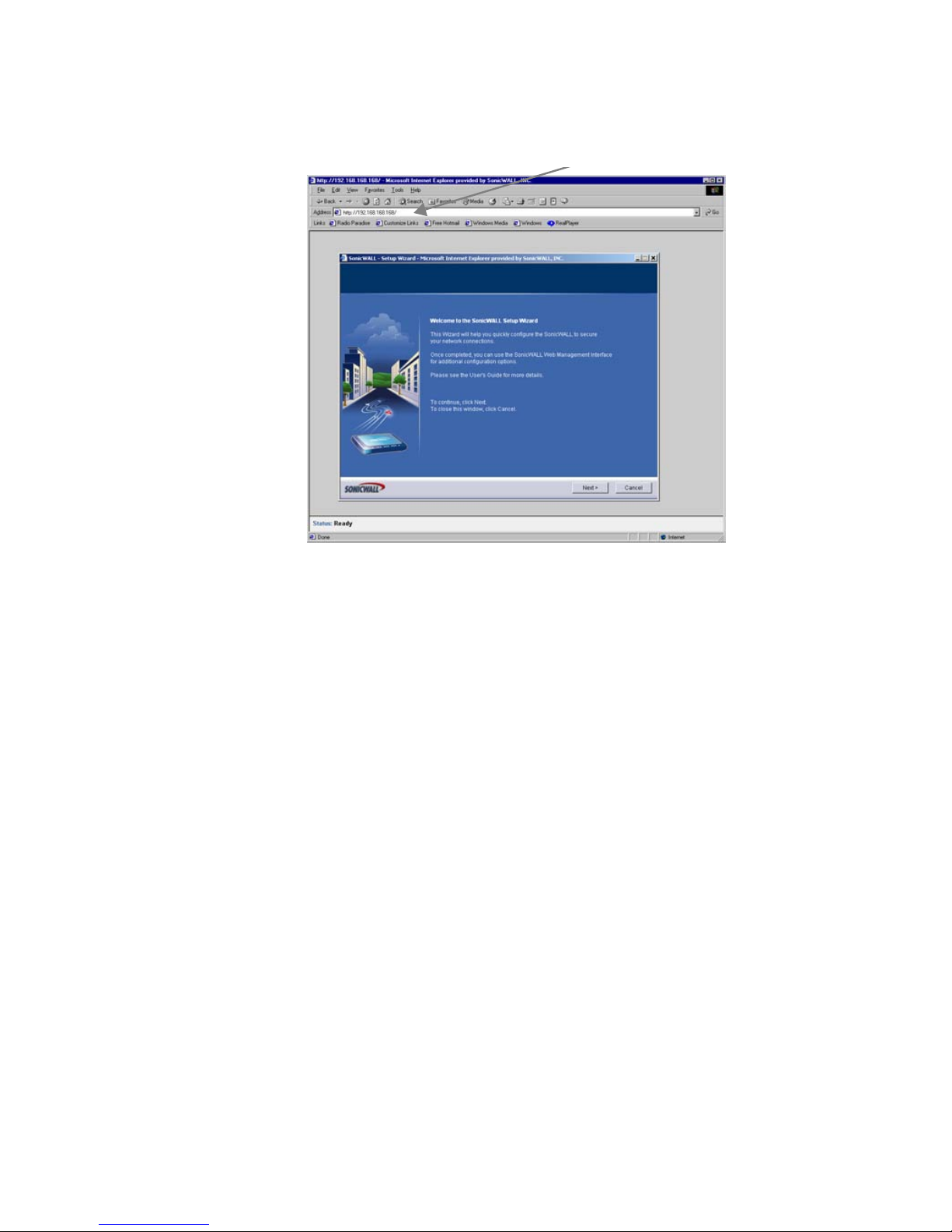

2. Enter 192.168.168.168 (the default LAN management IP address) in the Location or

Address field.

3. The SonicWALL Setup Wizard launches and guides you through the configuration

and setup of your SonicWALL TZ 170.

If the SonicWALL Setup Wizard Does Not Appear

If you cannot connect to the SonicWALL TZ 170 appliance or the Setup Wizard does

not display, verify the following configurations:

• Did you correctly enter the SonicWALLTZ 170 management IP address,

192.168.168.168, in your Web browser?

• Is your computer running pop-up blocking software?

• Are the Local Area Connection settings on your computer set to obtain an IP

address dynamically (DHCP) or set to a static IP of 192.168.168.20? See

“Configuring Computers for Your Network with DHCP” on page 20 for instructions

on changing your Local Area Connection settings.

• Do you have the Ethernet cable connected to your computer and to one of the

LAN ports (1through 5) on your SonicWALL TZ 170?

• Some browsers may not launch the Setup Wizard automatically. In this case, log

into SonicWALLTZ 170 using “admin” as the user name and “password” as the

password. After you log in, click the Wizards button on the System > Status

page. Select Setup to begin configuring your SonicWALLTZ 170.

• Some popup blockers may prevent the launch of the setup wizard. You can

temporarily disable your popup blocker, or add the management IP address of

your SonicWALL (192.168.168.168 by default) to your popup blocker's allow list.

Page 8

Using the SonicWALL Setup Wizard

The SonicWALL Setup Wizard provides user-guided instructions for configuring your

SonicWALL TZ 170.

Note: It is important that you have collected any required ISP information before using

the Setup Wizard. See the list in Procedure 1, “Before You Begin” on page 2.

Tip: If you do not know what type of Internet connection you have, contact your ISP. In

addition, the SonicWALL Setup Wizard will attempt to detect your connection

settings.

Configuring the SonicWALL TZ 170

Welcome - Click Next to begin.

1. Change Password - Change the administrative password. This is the password for

the admin account.

Old Password Should be populated with the default password, password.

New Password Enter your new password.

Confirm Re-enter your new password.

Note: Keep your new password in a safe place. If you lose your password, you will

have to reset the SonicWALL security appliance to factory settings and lose your

configuration. For instructions on resetting your SonicWALL security appliance,

refer to the SonicOS Standard Administrator’s Guide.

Click Next.

2. Change Time Zone - Change the Time Zone setting to your local time zone.

Time Zone Select the time zone for your location from the list.

Automatically

adjust clock for

daylight saving time

Check this setting if you live in an area that observes Daylight

Saving Time.

SonicWALL TZ 170 Getting Started Guide Page 9

Note: It is important that you set the time zone correctly before you register your

SonicWALL TZ 170.

Click Next.

3. WAN Network Mode - The Setup Wizard automatically detects most networking

modes. If it does not detect a networking mode, you may have a static IP address.

See Procedure 1, “Before You Begin” on page 2.

Confirm the selection or select the correct type of network connection for your

network.

Static IP Select Static IP if you want to give the SonicWALLTZ 170 a

specific, unchanging IP address.

DHCP Select DHCP if your ISP assigns your computer a dynamic IP

address. DHCP is commonly used with cable modems.

PPPoE Select PPPoE if your ISP requires a username and password to

establish a connection and assign a dynamic address. PPPoE

is commonly used with DSL modems.

PPTP Select PPTP if you dial into a specific server and log into a VPN

to establish a connection. With PPTP, you can have either a

static or dynamic IP Address.

Click on the yellow link for a networking type to see a definition.

Click Next.

4. WAN Network Mode - The second WAN network mode screen configures your

WAN settings for the selection you made in the previous screen.

Static IP

The Setup Wizard screen should display:

WAN Network Mode: NAT Enabled (Static IP)

SonicWALL WAN IP

Address Enter a single, static IP address. This must be in the address

range assigned to you by your ISP.

WAN Subnet Mask Enter the subnet mask for your network, provided by your ISP.

For example, 255.255.255.0.

Gateway (Router)

Address Enter the IP address of your Internet gateway, provided by your

ISP.

DNS Server Address Enter the IP address of the DNS server for your network,

provided by your ISP.

Altri manuali per TZ 170

Indice

Altri manuali SonicWALL Firewall

SonicWALL

SonicWALL SMA Manuale tecnico

SonicWALL

SonicWALL NSa 4650 Manuale utente

SonicWALL

SonicWALL Email Security 200 Manuale utente

SonicWALL

SonicWALL TZ 200 Series Manuale utente

SonicWALL

SonicWALL CSa 1000 Manuale utente

SonicWALL

SonicWALL Email Security 7.0 8000 Manuale utente

SonicWALL

SonicWALL NSA 250M series Manuale utente

SonicWALL

SonicWALL Internet Security Manuale utente

SonicWALL

SonicWALL CDP 6.0 Manuale di servizio

SonicWALL

SonicWALL NSA 2600 Manuale di installazione e funzionamento

SonicWALL

SonicWALL TZ600 Manuale utente

SonicWALL

SonicWALL TZ 100 / 200 Manuale utente

SonicWALL

SonicWALL Secure Mobile Access 6210 Manuale utente

SonicWALL

SonicWALL NSA E6500 Manuale utente

SonicWALL

SonicWALL TZ 190 Manuale utente

SonicWALL

SonicWALL TZ270 Manuale utente

SonicWALL

SonicWALL TZ 150 Wireless Manuale utente

SonicWALL

SonicWALL TZ 180 Manuale utente

SonicWALL

SonicWALL SuperMassive 9800 Manuale utente

SonicWALL

SonicWALL TZ670 Manuale utente

SonicWALL

SonicWALL SMA 400 Manuale di istruzioni

SonicWALL

SonicWALL TZ 100 Series Manuale utente

SonicWALL

SonicWALL PRO 200 Manuale utente

SonicWALL

SonicWALL SMA 210 Guida di riferimento rapido

Manuali Firewall popolari di altre marche

Cisco

Cisco S190 Manuale utente

Fortinet

Fortinet FortiGate Voice Series Manuale utente

ADTRAN

ADTRAN NetVanta 2300 Manuale utente

SecureLogix

SecureLogix ETM System Manuale utente

NETGEAR

NETGEAR ProSafe FVX538 Manuale utente

Lanner

Lanner FW-8877 Manuale utente

Huawei

Huawei USG6000 Series Manuale di installazione e funzionamento

H3C

H3C SecPath F5000-AI-15 Manuale utente

Nexcom

Nexcom DNA 1150 Manuale utente

Fortinet

Fortinet FortiGate-60 series Manuale utente

Cisco

Cisco 3110 Manuale

Draytek

Draytek Vigor2860 Series Manuale utente

Lanner electronics

Lanner electronics FW-7650 Series Manuale utente

Swisscom

Swisscom Internet Backup Manuale utente

DPtech

DPtech FW1000 SERIES Manuale utente

FEITIAN

FEITIAN MultiPass FIDO Manuale utente

EBLOCKER

EBLOCKER PRO Manuale utente

GTA

GTA GB-200 Manuale utente
