General Information 5

General Information

Congratulations and thank you for buying the Ericsson R38

Smartphone, the ultimate mobile phone and personal digital

assistant. This is an advanced, yet easy to use, product with a

wide range of features, designed to make everyday life much

easier.

Your R38 gives you the freedom to communicate wherever you

are and whenever you want. Along with a host of mobile phone

functions, your R38 can send and receive e-mail and SMS

messages, browse the Internet via a WAP services browser and

much, much more.

The advanced software in your R38 introduces a new era in

mobile communications. Welcome to our wireless world!

Operators and Subscription

To be able to use your phone, you need to have a subscription to

a network. This is obtained from the network operator.

The services included in your subscription depend on your

choice of operator and/ or subscription. Therefore, some of the

services and functions described in this manual may not be

accessible to you. If you want a complete list of the services

included in your subscription, please contact your network

operator.

Phone Information

6 General Information

GSM 900/1900 Dual Band

The Ericsson R38 is a dual band phone, which means that you

can use your phone in two different kinds of networks - the

GSM 9 and GSM 19 systems.

The GSM 19 system is used primarily in the US and other

parts of the Americas, and the GSM 9 system is used primarily

in Europe, the Asia/Pacific region and in some parts of Africa.

This means that you can used your R38 on six continents.

Switching between the two systems is done automatically, which

means that you can use your phone without ever having to

consider which system is being used. This is taken care of by the

networks. However, you should note that the functions offered

and the network coverage differ depending on your choice of

operator and/or subscription.

SIM and PIN

You will obtain a SIM (Subscriber Identity Module) card with

your subscription. The SIM card contains a computer chip that

keeps track of your phone number, the services you have ordered

from your network operator and your Phone Book information,

among other things.

Your SIM card is supplied with a security code or PIN (Personal

Identity Number), which you need in order to gain access to the

network. Your PIN may also be required when you want to

change settings in your phone. Furthermore, some operators may

have services that require a second PIN, your PIN2. You will find

your PIN (and PIN2) in the information from your operator.

If you have set certain security options in your phone, when you

turn on your phone, it prompts you to enter your PIN. If the

PIN is entered incorrectly three times in a row, the SIM card will

be blocked. If this happens you can unlock it by using your PUK

(Personal Un-blocking Key code), which you also get from your

operator. You should be careful with your PIN, since it is your

protection against unauthorized use of your phone and

subscription.

General Information 7

Mobile Internet

When you are on the move and in need of communication and

information, Mobile Internet is the answer. Mobile Internet is a

service supplied by Sony Ericsson to facilitate easy

communications and rapid information retrieval, wherever you

are. It gives you access to on-line customer services, on-line user

manuals, and useful information when you are out travelling. It

allows you to download various communication software which

will ensure you achieve optimum results from your Sony

Ericsson products. If you run into any problems, there are help

texts connected to the different Mobile Internet pages. The

Internet address to Mobile Internet is

http://wap.sonyericssonmobile.com

To get full access to the service you need to register, follow the

links on the website for more details.

Documentation is designed to enhance your understanding of

the capabilities of the R38 by providing you with both a quick

reference and a more comprehensive description of the many

functions within your R38 .

Descriptions follow the two main operational functions which

are flip closed and flip open .

The term phone is equivalent to mobile or cellular phone.

Quick Guide

The Quick Guide is a printed document providing a quick

reference on how to get started with your R38 . Technical

instructions are kept to a minimum.

User’s Guide

The User’s Guide is a printed document containing a

comprehensive description of all the functions in your R38 .

Documentation

8 General Information

Note: The information contained in this document can also be

found in the User’s Manual, which is an electronic document on the

enclosed CD as well as on the Mobile Internet.

Insert the CD into your PC’s CD-ROM drive and the main

menu should appear automatically.

From the main menu you can start:

•A multimedia presentation, R380 Product Information,

which is an on-screen description of the functions of the

R38 .

•The installation of the Sony Ericsson R380

Communications Suite, for PC synchronization, backup

and restore of R38 data.

Note: See “R380 Communications Suite” on page 2 5 or

the CD sleeve for more information if the CD-browser does

not appear when the CD is inserted into your PC’s CD-ROM.

•Change Language in R380, when synchronized.

•The R380 User’s Manual, which is an electronic document

containing a comprehensive description of all your R38

functions in portable document format (pdf).

Note: Adobe Acrobat Reader version 4.0 should be installed

on your PC to read the R380 User’s Manual.

•The installation of Adobe Acrobat Reader version 4.0.

Note: R380 User’s Manual information on the CD is

exactly the same as the printed R380 User’s Guide. The names

are different so that the printed document and the electronic

document can easily be recognised.

•The installation of Lotus Organizer version 5.0. See

“Checklist” on page 9 for more information.

Information and Communications Suite CD

Preparing for Use 9

Preparing for Use

The following items should be in the box when you unpack it:

•R38 unit

•R38 battery with touch screen stylus

•Charger with power plug and phone cable

•User’s Guides (**including the Quick Guide leaflets)

•CD-ROM; Ericsson Mobile Communications and

Information Suite which contains a multimedia presentation,

Communications Suite software and the User’s Manual (pdf)

•RS-232 cable for R38 to PC connectivity

•Desk stand

•3 extra touchscreen styluses

•Battery leaflet

•Sony Ericsson Service and Support leaflet

•Accessory leaflet

** The Quick Guide provides an overview on how to get started.

Unlike other mobile phones, the R38 has added features

available with the flip open. Tasks that you can perform with the

phone can be started with the flip closed and, if required,

continued in the more comprehensive flip open mode.

Although the manual covers both modes of operation in detail, it

is very important to remember that many functions described are

dependent on your subscription as well as your operator and

internet service provider. Please consult your network operator

and internet service provider for more information about the

services that are available to you.

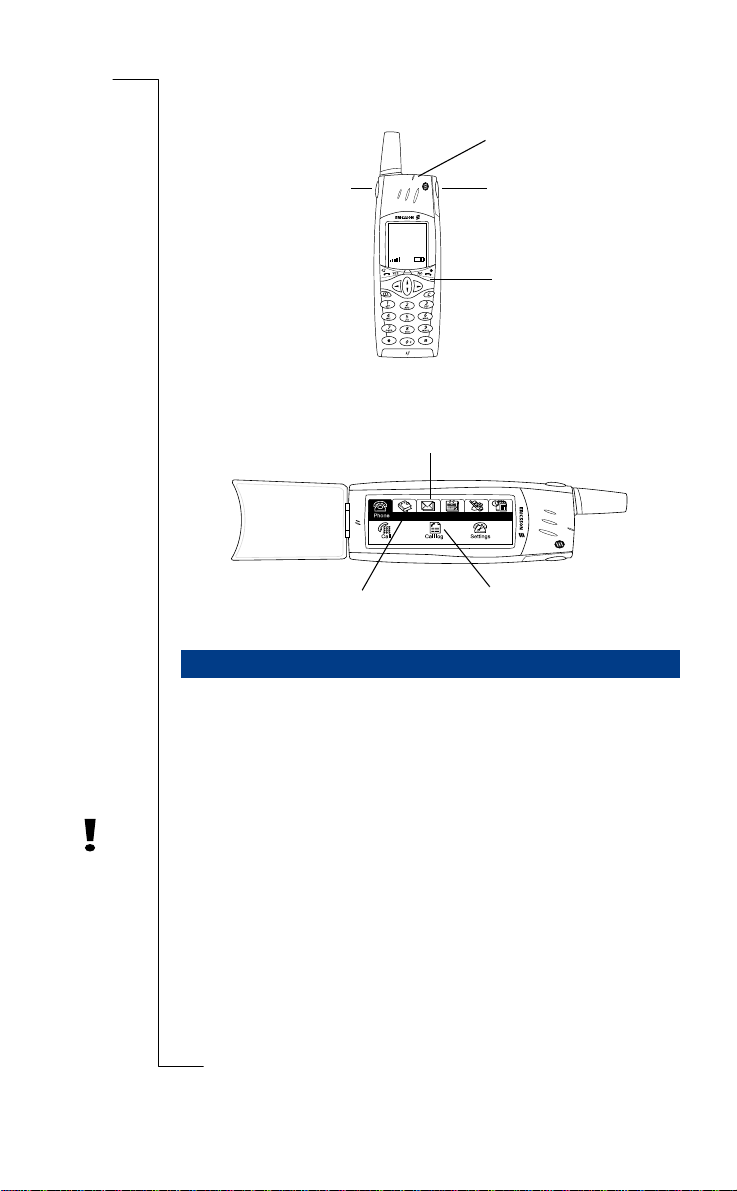

Flip open and flip closed modes are illustrated in the following

diagrams:

Checklist

Operational Modes

10 Preparing for Use

Flip closed.

Flip opened.

When you become a subscriber to a mobile network operator,

you are issued a SIM card with a security code or PIN, Personal

Identification Number. The SIM card contains your personal

subscriber data and must be inserted into your R38 . The holder

for the SIM card is located underneath the battery.

Warning! Always disconnect the charger and other accessories from

your phone before inserting and removing your SIM card.

To insert the SIM card:

1. Ensure that your R38 is turned off and the flip is closed.

2. Remove the battery.

SIM Card

NETWORK

18-05-00

12:00

Volume slider key Voice memo key

Power on/off key

Status indicator

Program tabs

Title bar Program icons

Altri manuali Sony Ericsson Telefono cellulare

Sony Ericsson

Sony Ericsson Cincinnati Bell W300i Manuale utente

Sony Ericsson

Sony Ericsson K530i Manuale utente

Sony Ericsson

Sony Ericsson Walkman W958c Manuale utente

Sony Ericsson

Sony Ericsson Xperia Arc S Manuale di servizio

Sony Ericsson

Sony Ericsson K810i Cyber-shot Manuale utente

Sony Ericsson

Sony Ericsson K610i Manuale utente

Sony Ericsson

Sony Ericsson K850 Manuale utente

Sony Ericsson

Sony Ericsson Hazel Manuale utente

Sony Ericsson

Sony Ericsson Walkman W600I Manuale utente

Sony Ericsson

Sony Ericsson Walkman W910i Manuale utente

Sony Ericsson

Sony Ericsson Cyber-shot K850i Manuale utente

Sony Ericsson

Sony Ericsson T618 Manuale utente

Sony Ericsson

Sony Ericsson Cyber-shot K850i Manuale utente

Sony Ericsson

Sony Ericsson Xperia XXX Manuale utente

Sony Ericsson

Sony Ericsson K770 Manuale utente

Sony Ericsson

Sony Ericsson Walkman W980 Manuale utente

Sony Ericsson

Sony Ericsson Xperia X1 Manuale utente

Sony Ericsson

Sony Ericsson Cyber-shot C905 Manuale utente

Sony Ericsson

Sony Ericsson Xperia arc S LT18i Manuale utente

Sony Ericsson

Sony Ericsson GSM 850 Manuale utente

Sony Ericsson

Sony Ericsson Xperia X10 Mini Pro Manuale di servizio

Sony Ericsson

Sony Ericsson Walkman W980 Manuale utente

Sony Ericsson

Sony Ericsson J300 Guida di riferimento rapido

Sony Ericsson

Sony Ericsson Z558 Manuale utente

Manuali Telefono cellulare popolari di altre marche

Zte

Zte BLADE A520 Manuale utente

Nokia

Nokia Lumia 620 Manuale utente

Blackbe;rry

Blackbe;rry KEYone Manuale utente

Bea-fon

Bea-fon X5 Premium Manuale utente

Blackbe;rry

Blackbe;rry 8707 Series Manuale utente

Blackbe;rry

Blackbe;rry Storm Istruzioni operative

LG LM-X420QN Manuale utente

LifeWatch

LifeWatch V Manuale utente

Bea-fon

Bea-fon SILVER LINE SL860 Manuale utente

IKI Mobile

IKI Mobile KF4.5i Manuale utente

Hitech

Hitech HT-850 Manuale utente

Yezz

Yezz Fashion F10 Manuale utente

Point Mobile

Point Mobile PM60 Manuale utente

Blackbe;rry

Blackbe;rry Q10 Manuale utente

Blackbe;rry

Blackbe;rry Bold 9900 Manuale utente

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuale utente

LG LM-K420EMW Manuale utente

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuale utente
